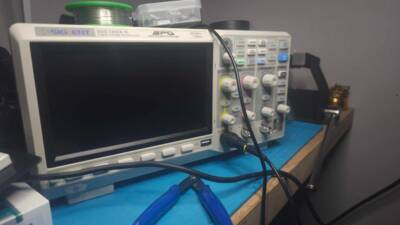

Oscilloscope Siglent SDS1202X-E 200MHz 2 channels
Digital oscilloscope, dual channel, operating in the range up to 200 MHz. Offering a sampling rate of 1 GS/s, it has an LCD display and an USB slot. The set has also two probes, USB cable, power cable.
We could not load the price.
The promotional price does not combine with quantity discounts.
Description
Digital oscilloscope, dual channel, operating in the range up to 200 MHz. Offering a sampling rate of 1 GS/s, it has an LCD display and an USB slot. The set has also two probes, USB cable, power cable.
The oscilloscope has a minimum volatge sensitivity of 500μV / phase, an innovative digital trigger system with high sensitivity and small fluctuations. The refresh rate of waveforms is 6000 wfms/s (frames per second). Use the display function of the intensity of the waveform with 256 levels, and the mode of displaying color temperature.
The duration of recording memory 14 Mpts
Oscilloscope Siglent SDS1202X-E can have up to 14 million measurement points. You only have to increase the selected part of the intercepted waveforms to get more information and scroll through the measuring points. Architecture 1 GS/s, 14 Mpts allows you to capture a fast transient or a long activation.
Innovative SPO technology
Thanks to "Superphosphoric" oscilloscope (SPO) and multilevel indicator of intensity, you can also see the full characteristics of the signal with a very large number of measured values. The option of displaying colors is changing the intensity level to the displaying the color temperature. The more often you receive wave form, the warmer is the color.
Built-in decoders of serial bus
Using the function of decoding of signal and trigger, in serial protocols of oscilloscope, events can be easily isolated and analyzed. The decoded details are displayed directly on waveform via an intuitive, colorful cap.
Automatic measurements with statistics
Siglent oscilloscope measures up to five parameters like rise time and fall time, amplitude, pulse width, coefficient of a pulse and many more. Also shows statistics for each parameter (current, average, min, max, etc.).
The function of the masks Pass / Fail-Tests
One way of checking whether the waveform is compatible, is doing the test positive / negative. Breakthrough / rejection defines the area of the display of the oscilloscope where the waveform must remain in order to adapt to the chosen parameters. The compatibility with the mask is checked exactly point after point for the whole display.
Advanced math functions and FFT
The oscilloscope supports several mathematical operations (addition, subtraction, multiplication, division), FFT (Fast Fourier Transform) and working of math functions (differential, integral, square root). Measurements and math functions in Siglent SDS1202X-E use all the memory instead of the display memory. FFT function uses up to 1 million points.
Specification
- Number of channels: 2
- Bandwidth: 200 MHz
- Sampling in real time: 1 GS/s
- The duration of recording memory: 14 Mpoints
- Speed of refreshing the waveform: 100000 wfms/s
- Display: LCD 7" TFT (800 x 480 px)
- Technology SPO - digital luminophore
- Supports intensity of 256 levels of classification and displays color temperature
- Smart trigger: Edge, Pulse, Window, Runt, Interval, Time out (drop-out), Pattern
- Triggering from a serial bus and decoding (optional)
- Supporting protocols: IIC, SPI, UART, RS232, CAN, LIN
- Low noise background
- Voltage sensitivity: 500µV/div to 10dB/div ř
- Hot keys function: 10 - Auto Setup, Default Setup, Cursor, Measure, Roll, History, Persist, Clear Sweep, Zoom and Print
- The segmented acquisition method: maximum record length can be divided into segments of 1000, depending on triggering conditions defined by the user
- The function of recording of the waveform: the maximum length of the recorded mileage was 80000 frames
- 36 automatic measurements, supports the statistic calculations, the mathematic measurement, history of measurement, reference measurements.
- Mathematical function
- Fast, hardware function support Pass / Fail
- Interfaces: USB Host, USB Device, LAN, Pass / Fail, Trigger Out
- Support SCPI - commands for remote control
Includes:
- Oscilloscope SDS1202X-E
- 2 x oscilloscope probe
- Power cable
- USB cable
The oscilloscope has a minimum volatge sensitivity of 500μV / phase, an innovative digital trigger system with high sensitivity and small fluctuations. The refresh rate of waveforms is 6000 wfms/s (frames per second). Use the display function of the intensity of the waveform with 256 levels, and the mode ofdisplaying color temperature.
Useful links
| Name | Value |
|---|---|
| Channels | 2 |
| Frequency to | 200 MHz |
| Oscilloscope - Type | digital |
| Oscilloscope - Sampling | 1 GS/s |
| Width | 39 cm |
| Height | 27 cm |
| Depth | 23 cm |
| Weight | 3.3 kg |
