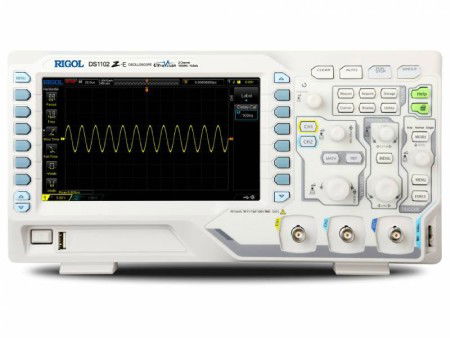

Rigol DS1102Z-E 100MHz 2-channel oscilloscope
The Rigol DS1102Z-E digital oscilloscope is an advanced, dual-channel measurement tool with a 100 MHz bandwidth and a 1 GSa/s sampling rate . Equipped with a 7-inch screen, 24 Mpts of deep memory, and a full suite of serial decoding and triggering functions , it's ideal for education, electronics design, and diagnostics.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Rigol DS1102Z-E 100 MHz 2-channel oscilloscope
The Rigol DS1102Z-E digital oscilloscope is a cost-effective and versatile device that combines high performance and functionality . Designed for engineers, students, and professionals involved in electronic system diagnostics and design. With a 100 MHz bandwidth, fast 1 GSa/s sampling rate, and 24 Mpts of acquisition memory, this model enables precise analog signal analysis. It also includes RS232, I2C, and SPI bus decoding, frame recording, and advanced triggering capabilities as standard.

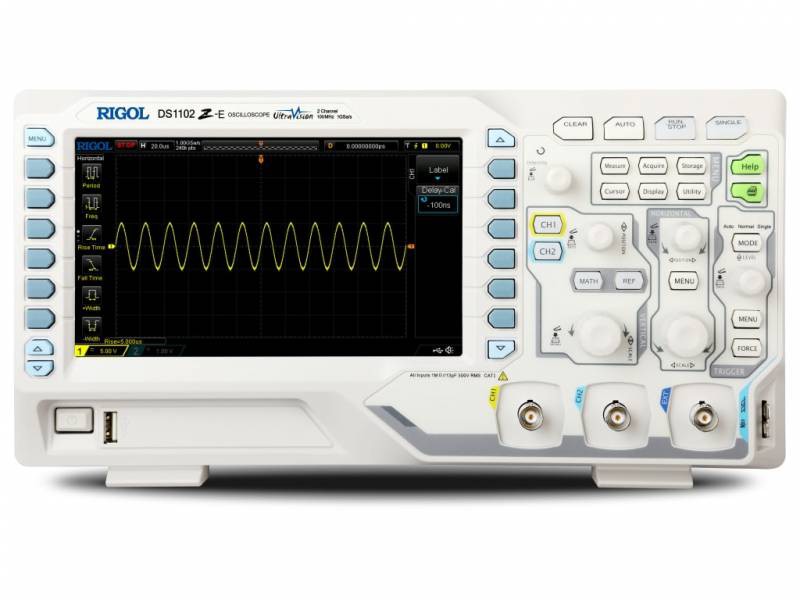

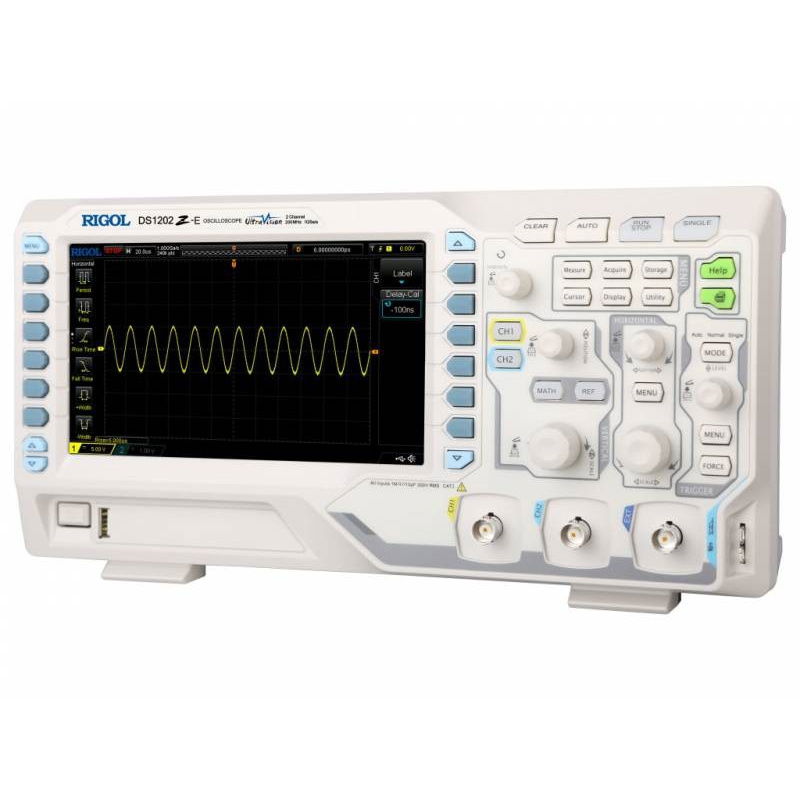

Rigol DS1102Z-E 100 MHz 2 channel oscilloscope.

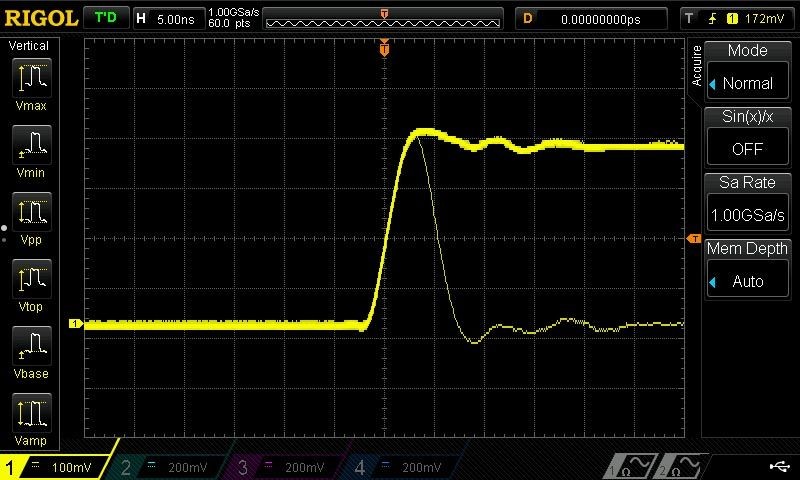

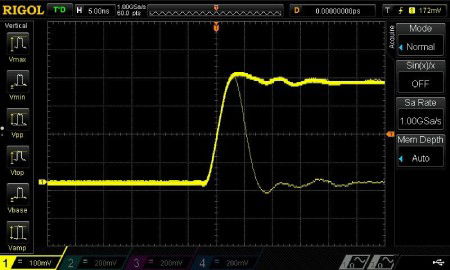

The oscilloscope is equipped with 2 channels that operate at a sampling rate of up to 1 GSa/s.
Main features of the DS1102Z-E oscilloscope
- 100 MHz bandwidth, 2 analog channels : provides a wide measurement range for various applications
- 1 GSa/s real-time sampling : precise analysis of fast-changing signals
- 24 Mpts deep acquisition memory : record large amounts of data without losing details
- High refresh rate up to 30,000 waveforms/s : helps detect rare glitches
- Advanced bus triggering and decoding : RS232, UART, I2C, SPI support as standard
- 7'' TFT LCD WVGA display (800 x 480 px) : clear data presentation with fluorescent backlight

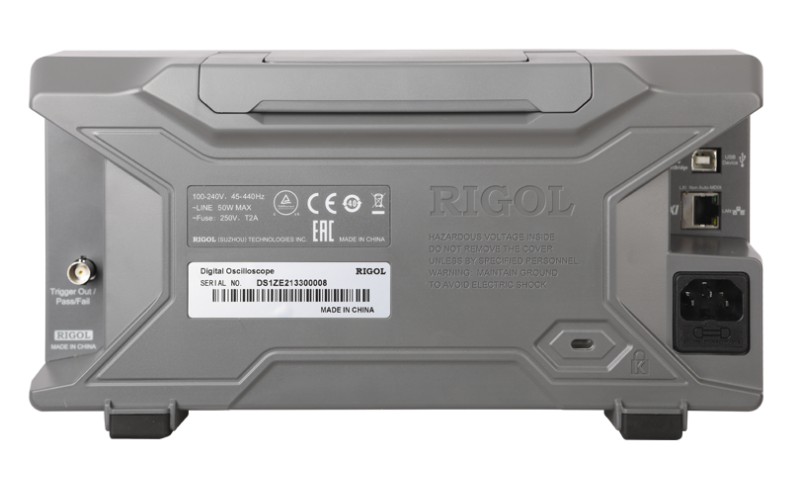

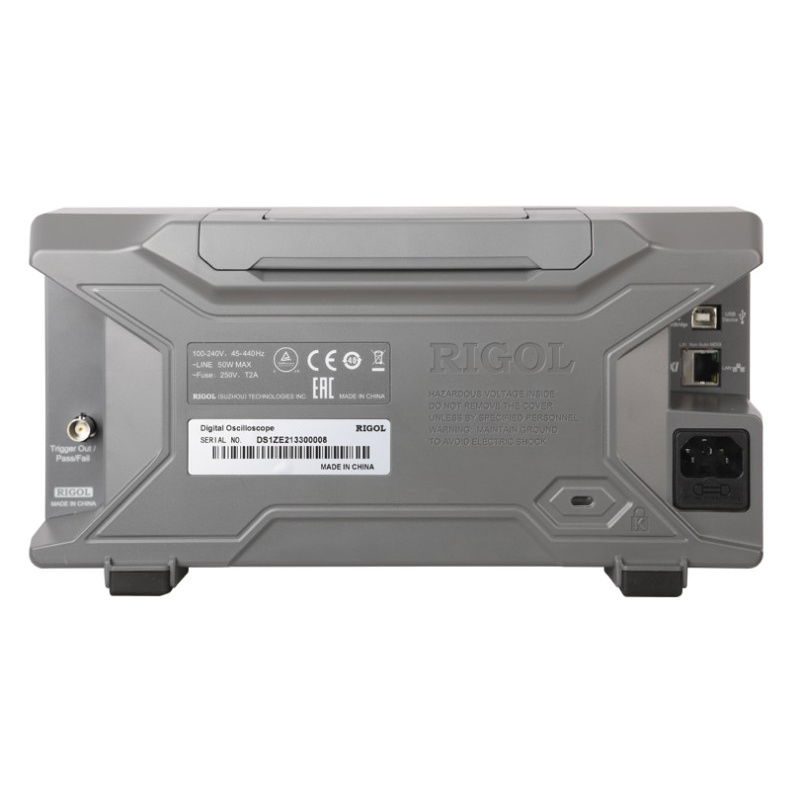

- Full range of interfaces : LAN (LXI), USB Host and Device, AUX
- All software options are active immediately : no need to purchase additional licenses
Waveform refresh rate 30000 WFMS/s
High waveform refresh rates enable rapid detection of rare and short-term signal disturbances . This ensures that any anomalies are captured and easily analyzed.
The 30,000 WFMS/s refresh rate makes it easy to catch occasional abnormal signals.

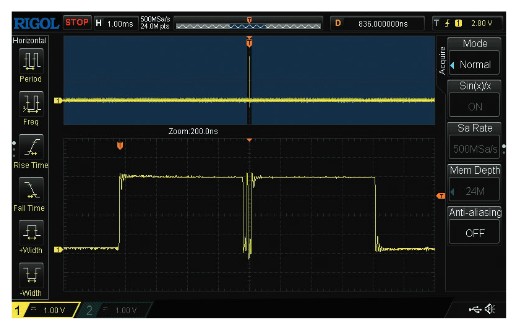

Storage Depth 24m as standard in the device.
Storage Depth 24 Mpts - deep acquisition memory
24 Mpts of acquisition memory allows for long-term signal capture without loss of detail . You can analyze both overall trends and subtle signal changes while maintaining a high sampling rate for extended periods.

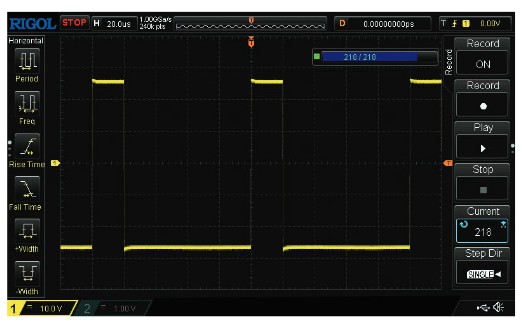

Hardware waveform recording and playback function
The device's 60,000-frame recording function allows you to analyze signal changes over time and easily locate faults . This is an indispensable tool for analyzing digital and analog systems.
Hardware waveform recording and playback function.

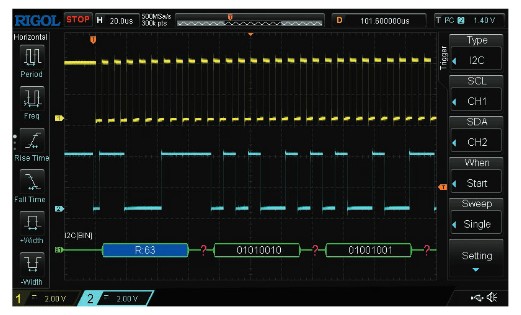

Supports RS232/UART, I2C, SPI bus.
Serial bus triggering and decoding
The DS1102Z-E supports RS232, UART, I2C, and SPI bus decoding , allowing you to easily monitor and analyze communications in complex embedded systems.

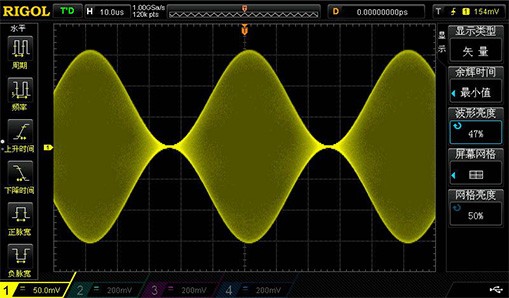

Digital fluorescent display
The use of UltraVision intensity display technology allows for the reproduction of gray levels, creating an effect similar to that of classic analog oscilloscopes . This allows for better visualization of changes in signal dynamics.
Multi-level grayscale providing an effect similar to a fluorescent display.

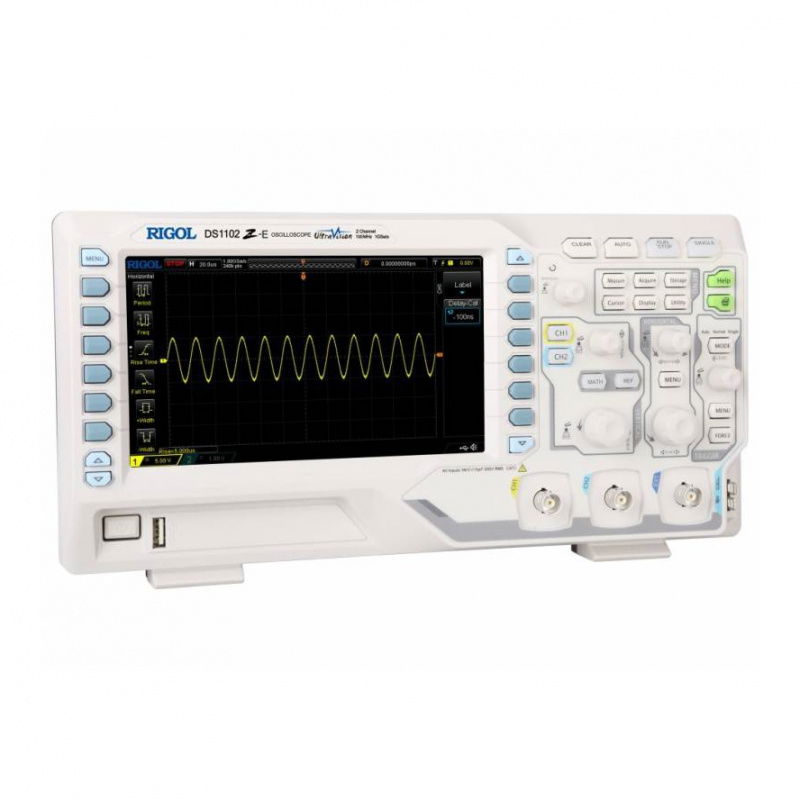

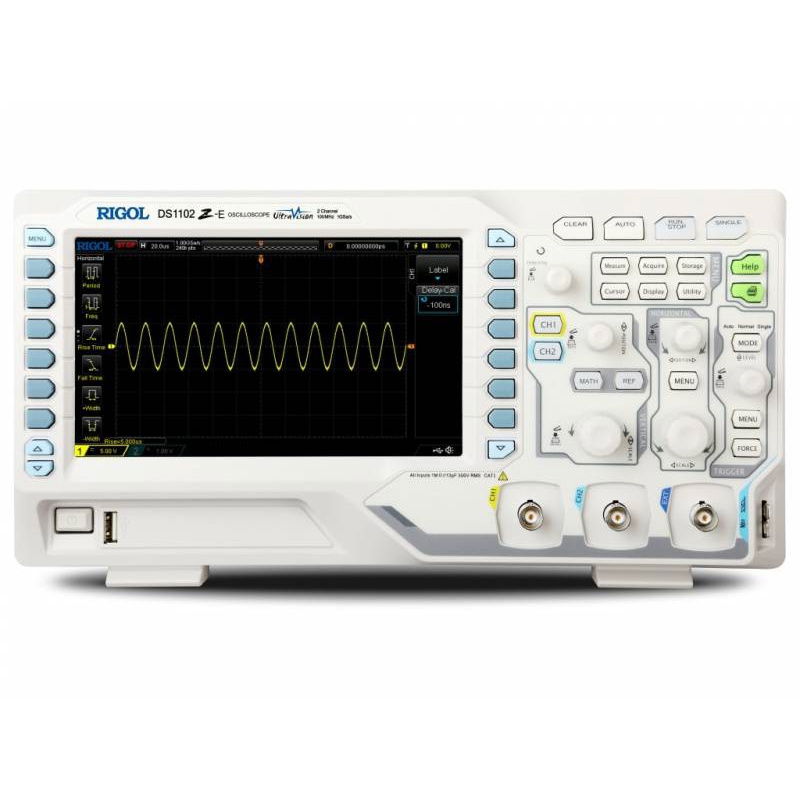

Digital oscilloscope operating in the 100 MHz band.
Technical specifications of the Rigol DS1102Z-E oscilloscope
- Analog bandwidth: 100 MHz
- Number of channels: 2
- Sampling rate: 1 GSa/s
- Acquisition memory: 24 Mpts
- Waveform refresh rate: up to 30000 wfms/s
- Frame recording: up to 60,000 frames
- Display: 7'' WVGA 800 x 480 px
- Interfaces: USB Host & Device, LAN (LXI), AUX
- Dimensions: 313.1 x 160.8 x 122.4 mm
- Weight: 3.2 ± 0.2 kg
Contents of the set
- Rigol DS1102Z-E Oscilloscope
- 2 PVP2350 passive probes (350 MHz)
- Power cord
- USB cable CB-USBA-USBBFF-150
- Quick start guide
Useful links
- Technical documentation
- User manual
- Oscilloscope - What is it and what is it used for?
| Name | Value |
|---|---|
| Channels | 2 |
| Frequency to | 100 MHz |
| Oscilloscope - Type | digital |
| Oscilloscope - Sampling | 1 GS/s |
| Width | 43 cm |
| Height | 26 cm |
| Depth | 27 cm |
| Weight | 2.382 kg |
