Product description: Seeed Xiao MG24 - Matter / Thread / Bluetooth - Seeedstudio 102010590
Xiao MG24 is an advanced development board designed for IoT projects, based on the EFR32MG24 SoC with an ARM Cortex M33 processor clocked at 78 MHz. It supports modern communication standards such as Matter, Thread, Bluetooth LE 5.3 and ZigBee , which allows you to implement intelligent remote control and automation projects. The board has 4 MB Flash memory , 256 kB RAM , 19 GPIOs and a built-in antenna with a BLE range of up to 50 m. It is characterized by very low power consumption (1.95 μA in sleep mode) and has a built-in 3.7 V Li-Pol charging system. Thanks to its compact dimensions of 21 x 17.8 mm and compatibility with Arduino IDE, Xiao MG24 is an excellent choice for battery-powered IoT applications, sensors or Smart Home automation.
Seeed Xiao MG24 - Matter / Thread / Bluetooth - Seeedstudio 102010590.

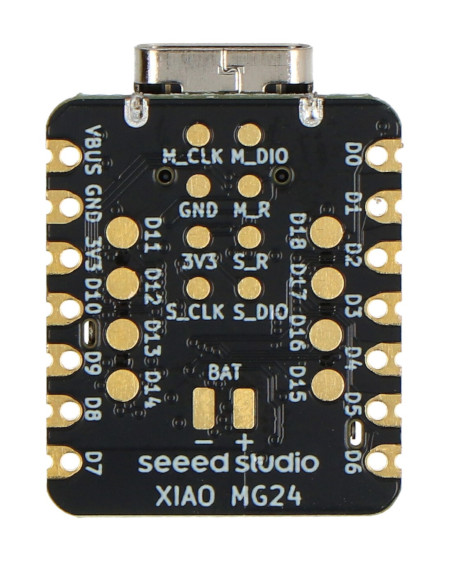

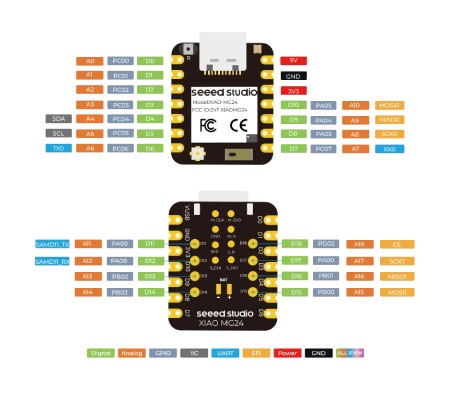

Pins available on the board.
Main Features of Seeed Xiao MG24
- Ultra-low power consumption : just 1.95 μA in deep sleep mode
- Powerful processor : ARM Cortex M33 clocked at 78 MHz with support for DSP and FPU instructions
- Modern communication standards : support for Matter, Thread, Bluetooth LE 5.3 and ZigBee
- Memory : 4 MB Flash and 256 kB RAM for advanced applications
- Small size : compact size of 21 x 17.8 mm, ideal for projects with limited space
- Built-in antenna : BLE range up to 50 m in open area
- Numerous interfaces : 19 GPIO, 2x SPI, 2x I2C and UART
- Battery charging : 3.7 V Li-Pol battery charging system, charging current 200 mA
Arrangement of components on the board
- Reset button
- Charging indicator light
- User diode
- USB Type-C port for power and programming
- Connector for external U.FL antenna
- Built-in antenna
- SWD debugging interface for SAMD11 chip
- SWD Debug Interface for MG24 Chip
- Pin for connecting the battery
- Connector for connecting the battery

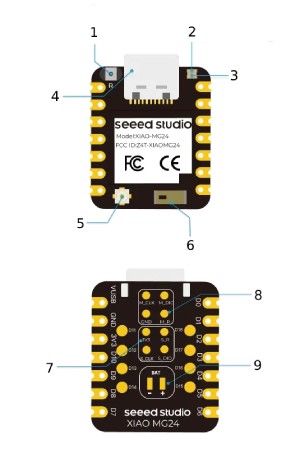

Component layout on the Xiao MG24 board.

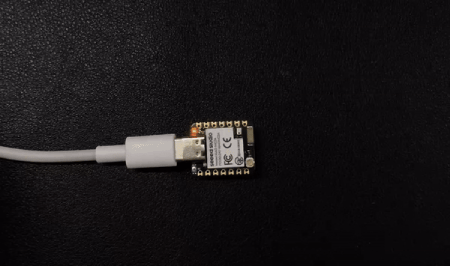

Launching the Blink program results in the orange user diode lighting up.
Xiao MG24 cooperation with Arduino IDE
Xiao MG24 works with Arduino IDE , which allows you to easily program this module. Just install the Arduino environment on your computer, and then add the URL to the board manager:
https://siliconlabs.github.io/arduino/package_arduinosilabs_index.json.
Once you have selected the Xiao MG24 board in the IDE, you can start programming using sample programs such as "Blink". For more detailed instructions, please refer to the user guide on the manufacturer's website.
Xiao MG24 Technical Specification
- Processor: ARM Cortex M33 78 MHz, EFR32MG24 SoC
- Memory: 256 KB RAM, 1536 KB + 4 MB Flash
- Communication: Matter, Thread, ZigBee, Bluetooth LE 5.3
- Interfaces: 19 GPIO, 2x SPI, 1x UART, 2x I2C, PWM
- Power consumption:
- Normal: 6.71mA
- Sleep: 1.91mA
- Deep sleep: 1.95 μA
- Power supply: 5V USB Type-C or 3.7V Li-Pol
- Operating temperature: -20°C to 70°C
- Dimensions: 21 x 17.8 mm
Kit Contents
- 1x Seeed Xiao MG24
- 2x 7-pin strip

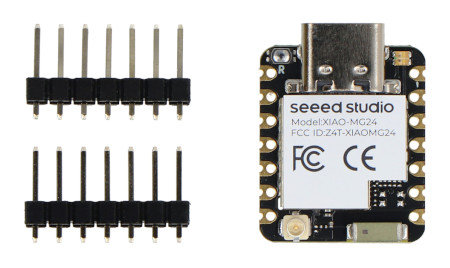

Items included in the set.
