Description

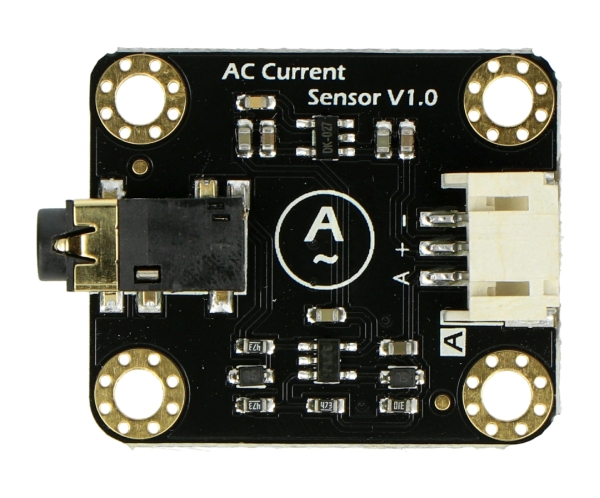

The sensor measures the intensity of the current flowing in a pipeline without its opening. Measurement occurs through the insulation on a single wire, and the output is the analog voltage of 0 to 1 V. It works with the Arduino modules. The kit includes a cable adapted to Gravity DFRobot IO Expansion Shield.
|
The product is compatible with Arduino Sample code and detailed information can be found in the user guide. |
Example of connecting the sensor with Arduino.
Specification
- Supply voltage: from 3.3 V to 5.5 V
- Input current: 0 to 20 A AC
- Output voltage: 0 to 1 VDC
- Operating temperature range: -25°C to 70°C
- Cable length: 1.5 m
- Module dimensions: 32 x 17 mm
- Probe dimensions: 57 x 32 x 20 mm
Set includes
- The main module
- Probe
- Connecting cable
