Gravity - analog AC current sensor - up to 5A - DFRobot SEN0287

Index: DFR-23730 EAN: 6959420915668
Analog AC current sensor from DFRobot with a 1 m long probe . It allows you to measure the current flowing in the wire without having to cut it - the measurement is made through the insulation of a single wire. The measurement range is from 0 A to 5 A. Additionally, the module has a Gravity connector, which streamlines the process of connecting to development boards such as Arduino.
Gravity - analog AC current sensor - up to 5A - DFRobot SEN0287
€23.50
€19.11 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: DFRobot

Product description: Gravity - analog AC current sensor - up to 5 A - DFRobot SEN0287

Analog AC current sensor from DFRobot with a 1 m long probe . It allows you to measure the current flowing in the wire without the need to cut it - the measurement is made through the insulation of a single wire. The measurement range is from 0 A to 5 A. Additionally, the module has a Gravity connector, which streamlines the process of connecting to development boards such as Arduino.

Product compatible with Arduino!

A detailed user guide is available on the manufacturer's website, which includes, among others, instructions for connecting the elements and sample program code.

Gravity - analog AC current sensor - up to 5 A - DFRobot SEN0287.

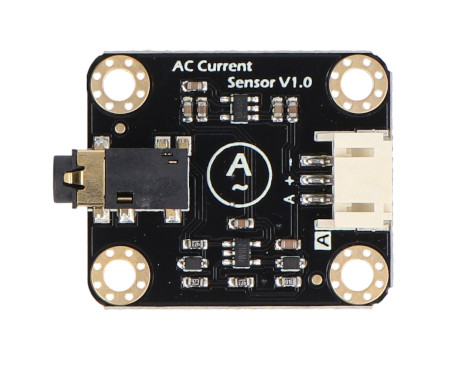

The measurement range is from 0 A to 5 A.

Detailed features of the AC sensor

  • It enables non-contact measurement, which increases safety during work.
  • It is compatible with a microcontroller operating at 3.3 V and 5 V.
  • It can be used when measuring lighting equipment and multi-functional electrical equipment.
  • The 1 m long probe allows for comfortable use.
  • The special design eliminates the need to cut the wires to take measurements.

Suggested use

  • AC motor operation monitoring
  • Lighting measurements - energy consumption
  • Monitoring the operating parameters of autonomous projects

Description of the AC current sensor pinouts

  • 1 - "-" - GND - system ground
  • 2 - "+" - power input in the range from 3.3 V to 5.5 V
  • 3 - "A" - signal output from 0.2 V to 2.8 V DC
  • 4 - 3.5 mm diameter plug 3P - AC transformer input signal

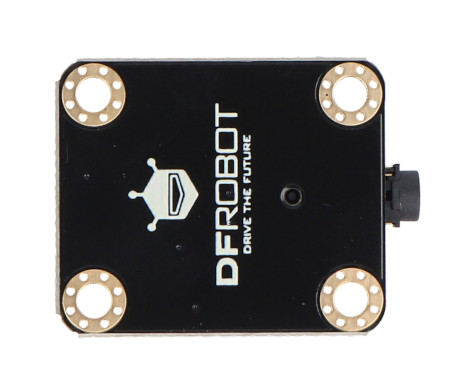

Analog AC current sensor from DFRobot.

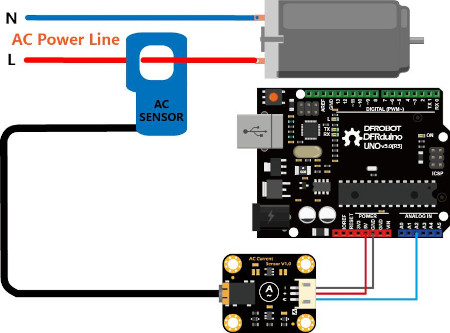

Wiring diagram.

Technical specifications of the sensor and probe

  • AC signal conversion module
  • Type: AC current sensor
  • Type: analog
  • Input voltage range (VCC): from 3.3V to 5.5V
  • Connector interface: Gravity PH2.0-3P
  • AC input voltage range: 0V to 1V AC RMS
  • Relative error: +/- 4%
  • Module dimensions: 32 x 27 mm
  • Module weight: 5 g
  • AC transformer probe type NO
  • AC current range: 0 A to 5 A
  • Signal output: voltage 0V to 1V AC (linear 0A to 5A)
  • Accuracy: +/- 1%
  • Non-linearity: ≤ +/- 0.2%
  • Frequency range: 50 Hz to 1 kHz
  • Operating temperature range: from -25°C to 70°C
  • Cable length: 1 m
  • Probe hole size: 13 x 13 mm
  • Probe weight: 50 g

Set contents

  • AC signal conversion module
  • Open Type AC Transformer Probe (5A)
  • Sensor cable - 3-pin - analog - Gravity

Also check out other Gravity sensors available in our offer!

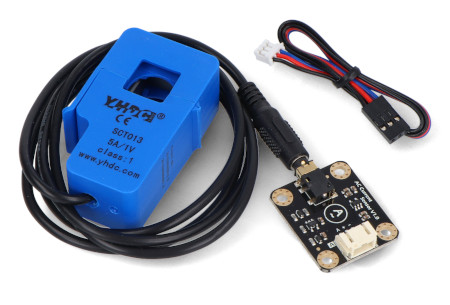

Elements included in the set.

Package width 9.2 cm
Package height 10.5 cm
Package depth 3 cm
Package weight 0.083 kg
