Description of product: DFRobot Gravity URM09 - ultrasonic distance sensor, 2-500cm and temperature I2C sensor
Module with ultrasonic sensor URM09 and three measurement ranges to choose from 2 to 150 / 300 / 500 cm. It also allows for a temperature measurement. Supply voltage is from 3.3 V to 5.5 V. It works with any controllerwith an I2C interface, e.g.Arduino,Raspberry Pi. The frequency of measurement can reachup to 50 Hz. It communicates via I2C interface.The kit includes a cable adapted to DFRobot IO Expansion Shield.
|
The product is compatible withArduino Sample code and detailed information can be found inthe user guide. |
Connection of the ultrasonic distance and temperature sensor URM09
The module works with any microcontroller with I2C interface. To read data, it is sufficient to connect the power source and output pins to respective inputs of the microcontroller.
Example of connecting the sensor withArduino.
Specification of ultrasonic distance and temperature sensor
- Version: V2.1
- Supply voltage: from 3.3 V to 5.5 V
- Average current consumption: 20 mA
- Temperature range: from -10°C to 70°C
- Measuring range of distance: from 2cm to 150 / 300 / 500 cm (adjustable)
- Resolution: 1 cm
- Accuracy: 1%
- Frequency: 50 Hz max.
- Dimensions: 47 x 22 mm

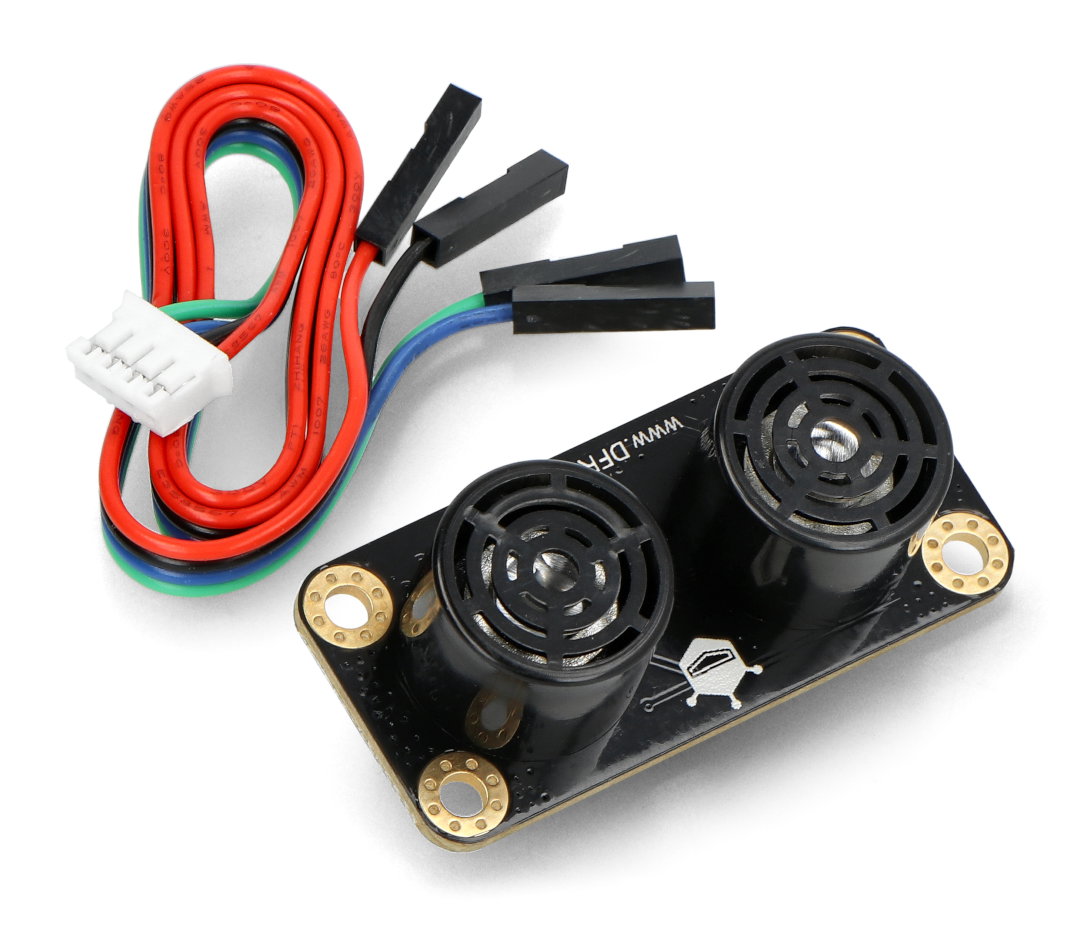

Contents of the set of ultrasonic distance and temperature sensor URM09
- Module DFRobot Gravity URM09
- Gravity cable
