Product description: Intelligent IP30 LoRaWAN e-cigarette smoke detector - white - Milesight GS601
Milesight GS601 is a modern smoke and air quality detector designed for schools, toilets, stairwells, apartments and other enclosed spaces. It uses laser detection technology to identify e-cigarette smoke, combusted nicotine and marijuana . Thanks to LoRaWAN technology, it can operate in a wide frequency range and transmit data to the cloud or building management systems. The sensor has a built-in audible alarm and LED diode , which inform about detected smoke. It can also be configured via NFC , which makes installation and adjustment of operating parameters easier. The solid construction resistant to interference from water vapor and other gases ensures high measurement accuracy in various environmental conditions.
During the first setup, you will need to know the default password that synchronizes your device with the application: 123456 .

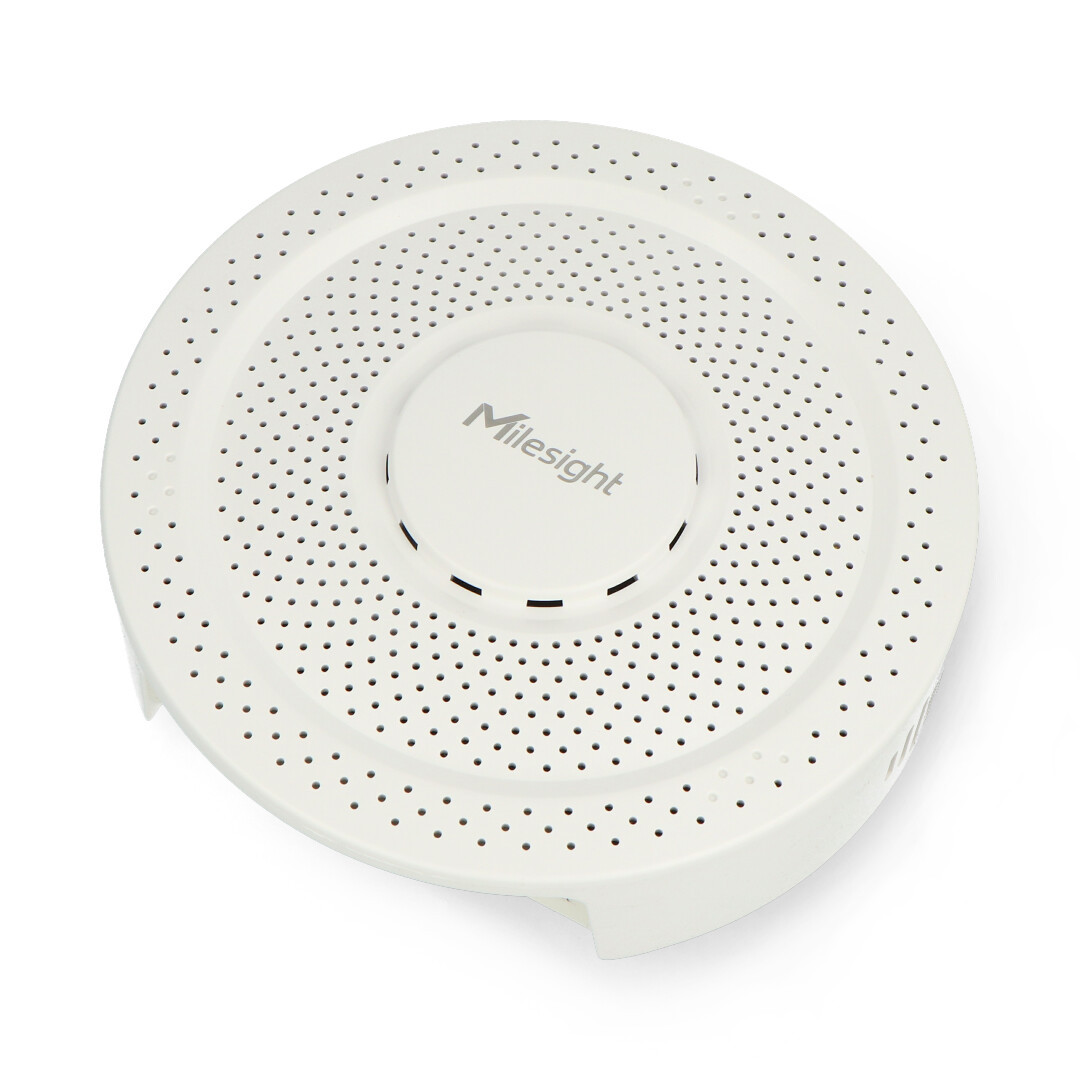

Intelligent IP30 LoRaWAN e-cigarette smoke detector - white - Milesight GS601.
The sensor has a built-in audible alarm.
Main features of the sensor
- E-cigarette and marijuana detection : recognizes tobacco smoke, burnt nicotine and substances contained in e-cigarettes
- Multi-sensor system : monitors temperature, humidity, PM1/2.5/10 and TVOC
- Advanced interference immunity : filter false alarms with anti-interference technology
- LoRaWAN wireless communication : long transmission range and integration with LoRaWAN servers
- NFC Quick Setup : Intuitive device setup via mobile app
- Sabotage protection : built-in vibration sensor protects the device against disassembly
- Audible and visual alarm : smoke detection signal via LED and 70 dB buzzer
- Powered by USB Type-C (5V/1A) : convenient and universal power supply
Milesight Development Platform - intelligent sensor management
The GS601 is compatible with the Milesight Development Platform , which enables remote management and configuration of IoT devices . The platform provides:
- Remote monitoring of air quality and detected alarms
- OTA update support - ability to remotely upload new software versions
- Integration with cloud and BMS systems - support for webhooks and APIs for custom solutions
- Multi-Device Management - Mass Configuration and Diagnostics of LoRaWAN Sensors
Thanks to the platform, you can easily analyze data, respond to events and optimize building management.
The detector monitors the presence of e-cigarette, tobacco smoke and marijuana vapors in rooms.
LoRaWAN wireless communication protocol.
LoRaWAN communication protocol
LoRaWAN is a global communication standard for IoT networks , based on LoRa technology, which is characterized by long range . Thanks to this protocol, devices can communicate with network gateways at a distance of several kilometers in urban environments and up to several dozen kilometers in rural areas. At the same time, LoRaWAN-based devices are known for their low power consumption , making them an ideal choice for applications where batteries must function for years without the need for charging. In response to different network conditions, LoRaWAN can adjust the transmission rate, which helps optimize range and power consumption.
Sensor Technical Specifications
- Model: GS601
- Sensor communication technology: wireless
- Wireless protocol: LoRaWAN
- Frequency: RU 864MHz / IN 865MHz / EU 868MHz / US 915MHz / AU 915MHz / KR 920MHz / AS 923MHz
- Transmitting power: 16 dBm (868 MHz) / 22 dBm (915 MHz)
- Receive Sensitivity: -137 dBm at 300 bps
- Communication mode: OTAA / ABP Class C
- Temperature measurement range: -20°C to 60°C (accuracy ± 0.2°C)
- Humidity measurement range: 0% RH to 100% RH (accuracy ± 2%)
- Vape Index: 0 to 100 (accuracy ±10)
- TVOC: 0 μg/m³ to 2000 μg/m³ (accuracy ± 15%)
- PM1, PM2.5, PM10: from 0 μg/m³ to 1000 μg/m³ (accuracy ± 10 μg/m³)
- Button: 1x Reset
- LED and alarm: 1x diode + buzzer 70 dB
- Configuration: NFC, mobile app
- Power supply: 5V/1A via USB Type-C
- Operating temperature range: -5°C to 45°C
- Relative humidity: 0% to 95% (non-condensing)
- Degree of protection: IP30
- Mounting: ceiling up to a height of 2.7 m to 3 m (3M tape)
- Dimensions: 128 x 40 mm

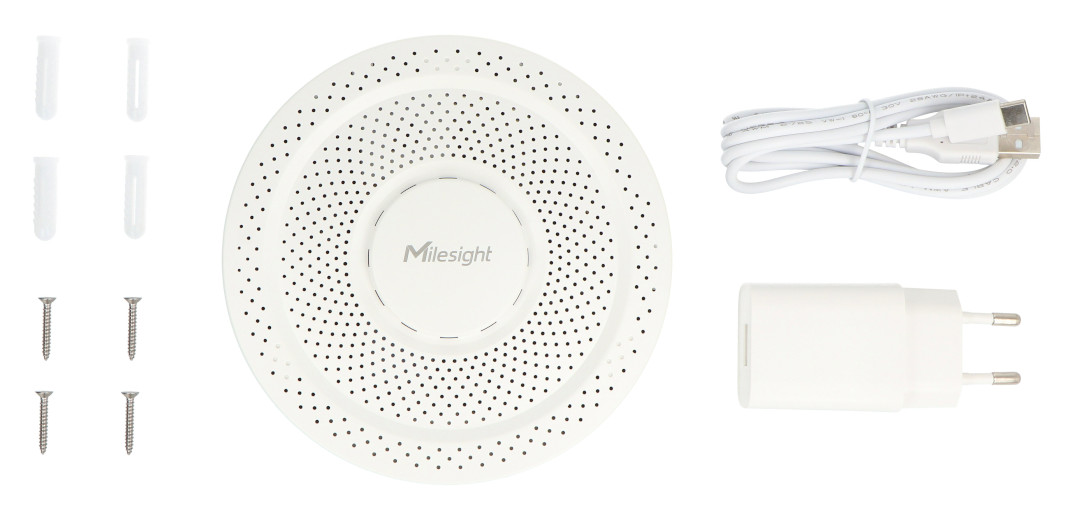

Kit Contents
- 1x Smart IP30 LoRaWAN E-cigarette Smoke Detector - White - Milesight GS601
- 1x Power Supply with USB Type-C Cable
- 4x Screws and mounting plugs

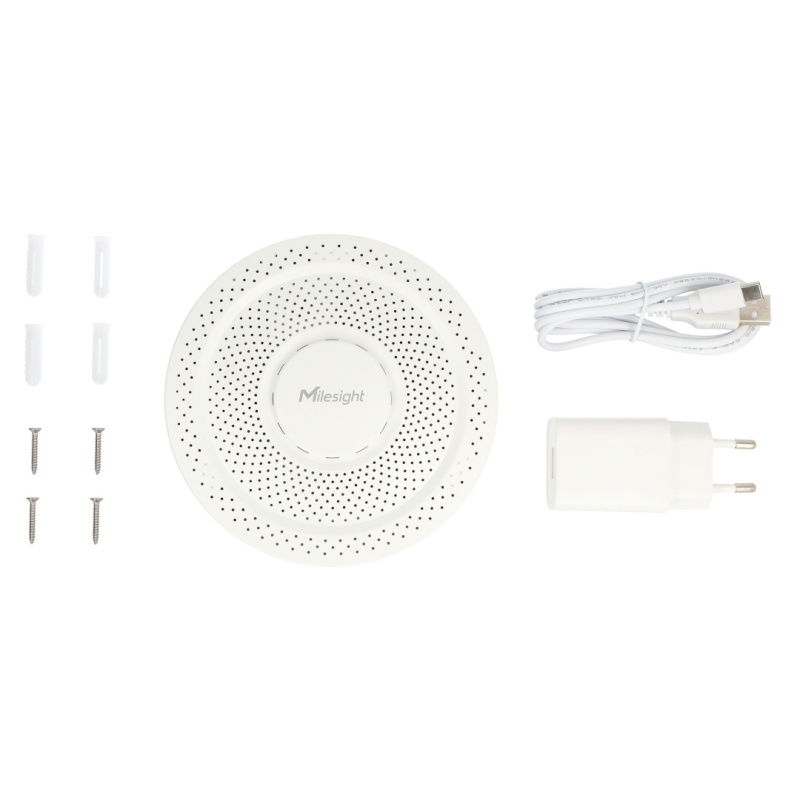

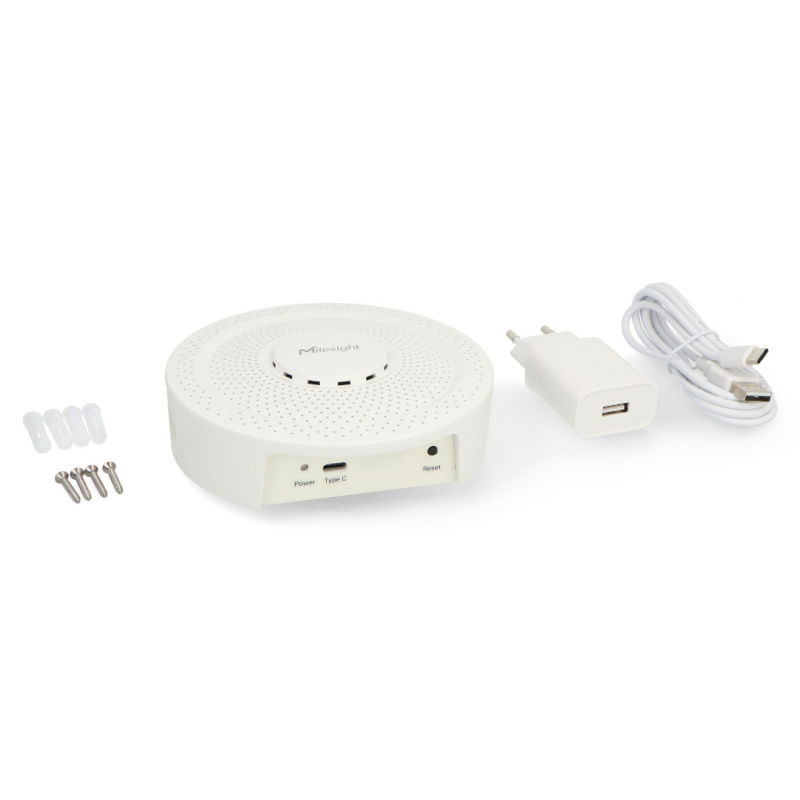

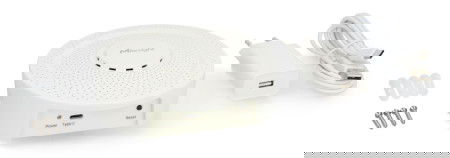

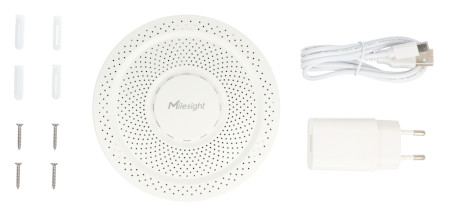

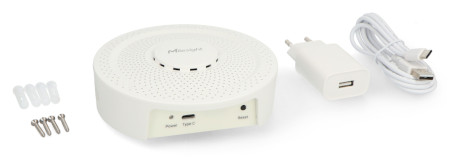

Items included in the set.
