Product description: Intelligent IP30 LoRaWAN air quality sensor - white - Milesight AM103-868M

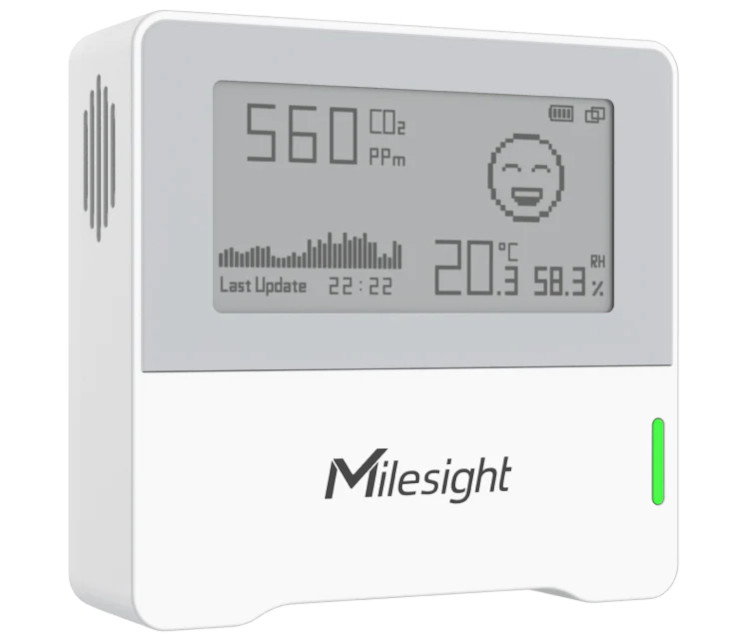

The Milesight AM103 indoor environmental monitoring sensor is an intelligent sensor that is used to monitor air quality in various environments. It uses LoRaWAN technology, which enables remote communication over long distances and is characterized by high protection of sent data. Using high-quality sensor functions, it is able to accurately measure temperature, humidity and CO2 carbon dioxide. It also has the function of informing the user about the current state of air quality. With its compact size and easy installation, it is an ideal smart home solution for various rooms.
Intelligent IP30 LoRaWAN air quality sensor - white - Milesight AM103-868M.
The sensor is responsible for monitoring air quality.
Main features of the sensor
- Wireless communication using the LoraWAN protocol
- Real-time air quality monitoring
- Function of measuring temperature, humidity and CO2 concentration in the room

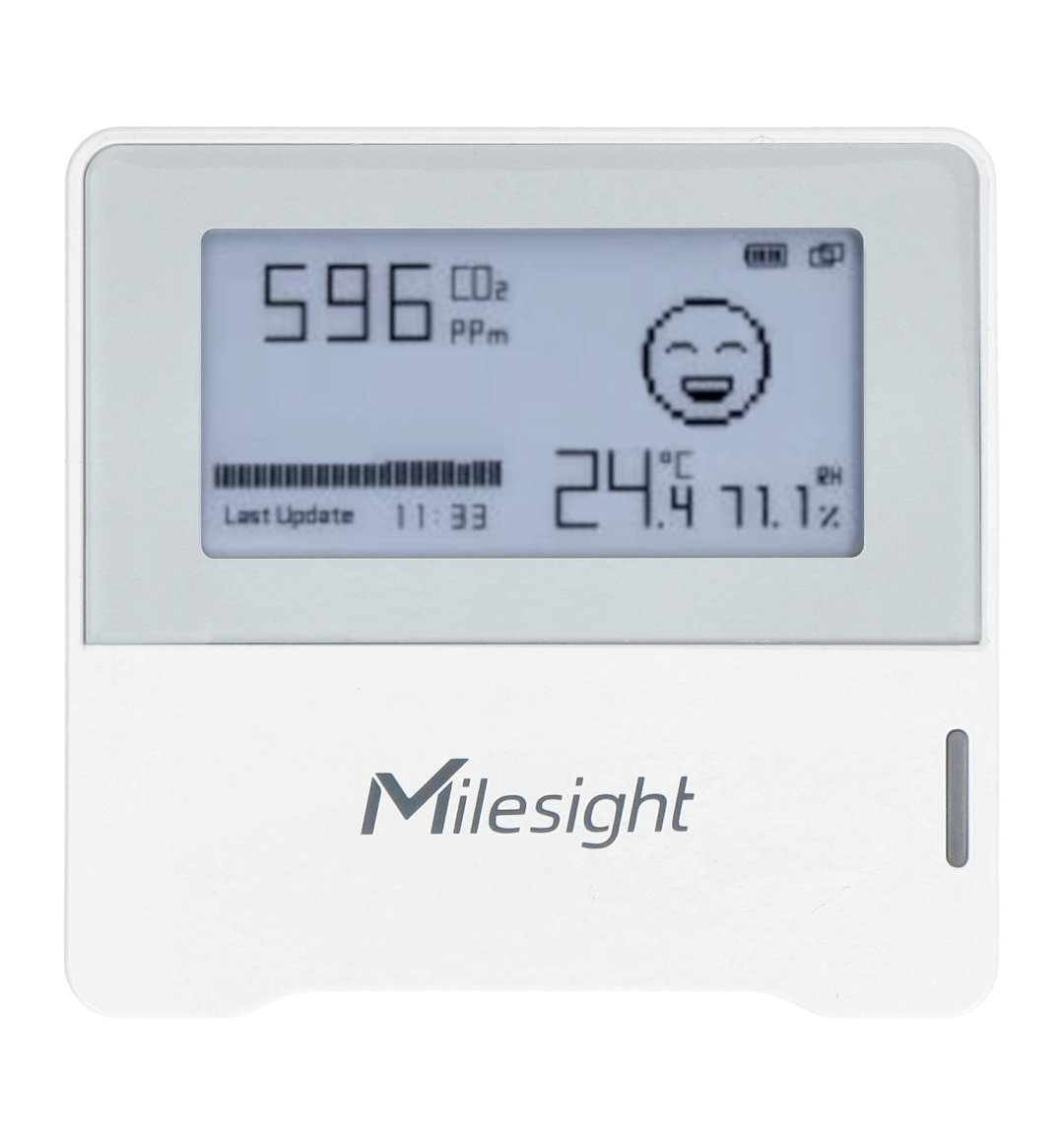

- Built-in 2.13" E-Ink display with dark and light modes
- Sending notifications immediately after detecting exceedance of permissible standards
- LED on the sensor indicating the air quality level using colors (green, orange, red)
- Simple device configuration using NFC short-range wireless technology
- It has a housing with an IP30 protection level
- Designed for wall mounting
- Energy saving - batteries last up to 3 years of use
Air quality monitoring
The Milesight Air Quality Sensor is an indoor air quality monitoring device that provides accurate data on various air parameters in real time. Thanks to its advanced sensors, it is able to detect and measure temperature, humidity and CO2 concentration and inform the user about the current state of the air via a mobile app.
During the first configuration, you will need to know the default password that synchronizes the device with the application: 123456 .
The device also measures the temperature and humidity of the room.
The product is compatible with the free Milesight ToolBox smartphone application.
Energy-saving device

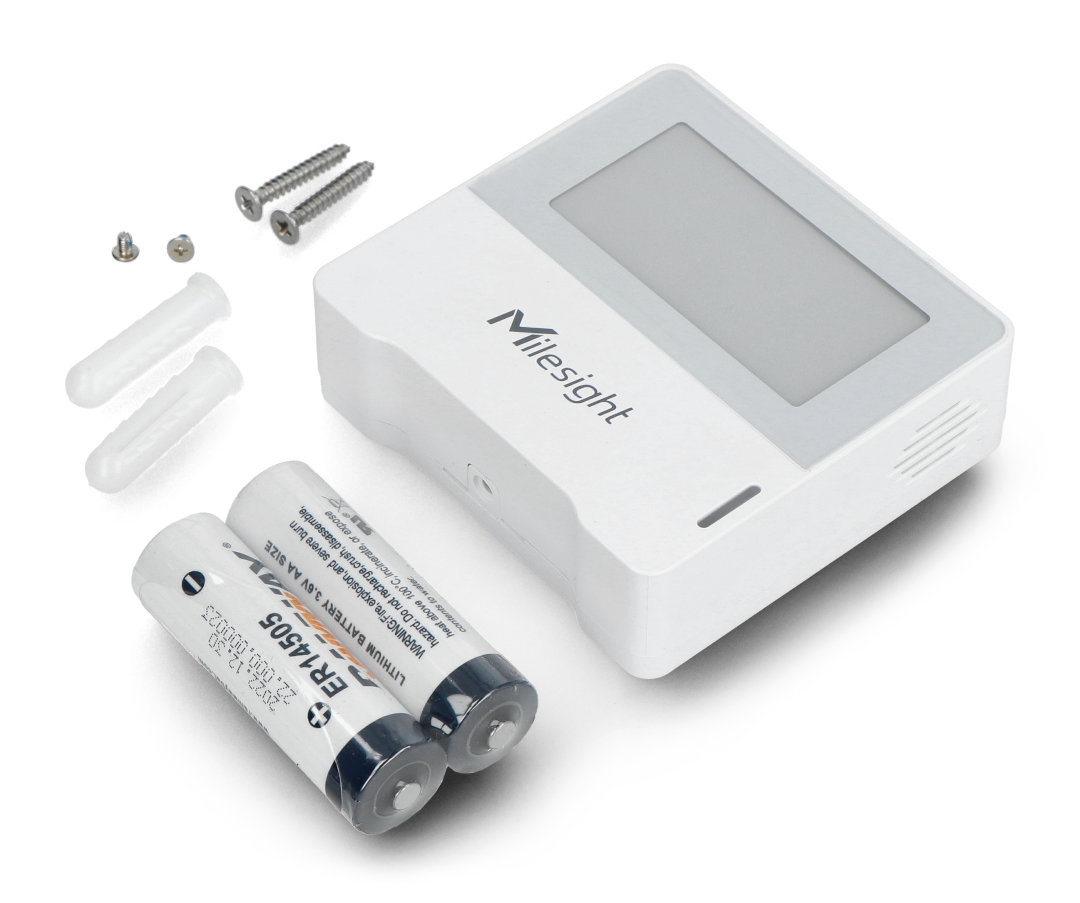

The sensor uses two ER14505 batteries with a capacity of 2700 mAh, which ensure extended operation time of up to 3 years of use. The E-Ink technology used in the device's display also helps to save energy, because electricity is only consumed when changing the display value.
Synchronization with the smartphone application
This product is compatible with the Milesight ToolBox application for smartphones. Thanks to this integration, users can remotely monitor and configure device parameters directly from their phone. Synchronization takes place via NFC technology, which ensures quick and intuitive pairing of the device with the application. Milesight ToolBox allows convenient access to measurement data, record history and sensor configuration settings even when away from home.
Technical specifications of the sensor
- Producer: Milesight
- Model: Ambience Monitoring Sensor AM103
- Product code: AM103-868M
- Sensor connection technology: wireless
- Wireless protocol: LoRaWAN
- Frequency: 868MHz
- Power supply: 2 x ER14505 batteries
- Battery capacity: 2700 mAh
- Battery voltage: 3.6V
- Battery life: up to 3 years of device use
- Temperature measurement range: -20°C to 60°C, ± 0.2°C
- Humidity measurement range: 0% to 100% RH, ± 2% RH
- Carbon dioxide CO2 measurement range: 400 ppm to 5000 ppm, ± (30 ppm + 3% of reading)
- Device operating temperature range: from -20°C to 60°C (E-Ink screen: from 0°C to 40°C)
- The device's operating humidity range: from 0% to 95% RH
- IP degree of protection: IP30
- Application: Milesight ToolBox, Milesight IoT Cloud
- Product color: white
- Dimensions: 68 x 65 x 20.5 mm
LoRaWAN wireless communication protocol.
LoRaWAN communication protocol
LoRaWAN is a global communication standard for IoT networks, based on LoRa technology, which is characterized by a long range. Thanks to this protocol, devices can communicate with network gateways over a distance of several kilometers in urban environments and up to several dozen kilometers in rural areas. At the same time, LoRaWAN-based devices are known for their low power consumption, making them an ideal choice for applications where batteries need to function for years without the need for recharging. In response to different network conditions, LoRaWAN can adjust the transmission rate, which helps optimize coverage and energy consumption.
