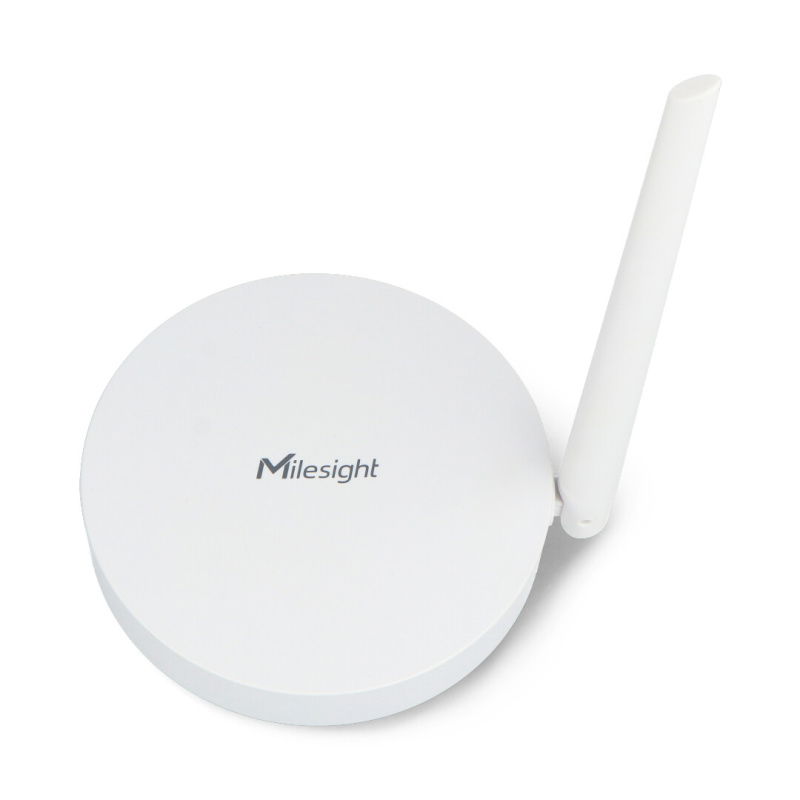

Industrial LoRaWAN Gateway UG63 - white - Milesight UG63-868M
Milesight UG63 is a modern internal LoRaWAN gateway, equipped with 8 control channels and comprehensive WiFi and PoE connectivity options. It is used to wirelessly manage all connected devices on the network. The range of the control unit is up to 15 km in open areas and up to 2 km in built-up areas. This version of the gateway has an external LoRaWAN antenna.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: LoRaWAN WiFi / Ethernet switchboard - white - Milesight UG63-868M
The Milesight UG63 mini switchboard in white is an advanced LoRaWAN network gateway designed for indoor applications. It has 8 control channels and can handle up to 50 devices, making it an ideal solution for offices, universities and underground parking lots. It integrates with applications such as Milesight Toolbox and Mileisght IoT Cloud and connects to smart home devices using WiFi and PoE . The gateway is built with a Cortex-A7 528 MHz processor and 256 MB RAM , which ensures smooth and effective communication in the network. It is also equipped with VPN encryption protocols, which ensures data transmission security. The control unit can be powered via a standard Ethernet or USB-C input.
LoRaWAN WiFi / Ethernet central unit - white - Milesight UG63-868M.
A network gateway is used to manage all smart devices on the network.
Main features of a network gateway
- Indoor LoRaWAN gateway intended for offices and residential homes
- Range up to 15 km in open terrain and 2 km in urban areas
- Support multiple protocols including TCP, MQTT, HTTP, HTTPS
- 8 control channels for versatile communication
- ARM Cortex-A7 processor with a frequency of 528 MHz and 256 MB RAM and 4 GB eMMC memory
- Communication method: WiFi, Ethernet
- Integrated management and monitoring tools such as DeviceHub and Milesight IoT Cloud
- Built-in security and VPN options
- Housing protection class IP30
Mini LoRaWAN network gateway
The LoRaWAN mini network gateway is a revolution in IoT communication for home and office spaces. Thanks to its compact size, it easily integrates with various devices while maintaining high transmission quality. This is an ideal solution for those who want to use LoRaWAN technology without having to install large devices. Its small dimensions do not negatively affect its power and communication ability.
Connection to multiple devices
A network gateway is a device that controls other connected elements in the network and can connect to up to 50 smart devices . Whether it's temperature sensors, smart meters or lighting systems, the switchboard guarantees easy and stable connection to the network.
The LoRaWAN hub allows you to connect 50 devices at the same time.
The product is compatible with the free Milesight ToolBox smartphone application.
8 available communication channels
The LoRaWAN gateway provides unrivaled flexibility in data transmission, offering as many as 8 available communication channels. Users can send and receive information from multiple sources simultaneously , ensuring smooth and reliable operation. This is an ideal solution for complex systems that require multiple data transfers.
Synchronization with the smartphone application
This product is compatible with the Milesight ToolBox application for smartphones. Thanks to this integration, users can remotely monitor and configure device parameters directly from their phone. Synchronization takes place via NFC technology, which ensures quick and intuitive pairing of the device with the application. Milesight ToolBox allows convenient access to measurement data, record history and sensor configuration settings even when away from home.
Technical specifications of the control unit
- Producer: Milesight
- Model: Mini LoRaWAN Gateway UG63
- Product code: UG63-868M
- Device connection technology: wireless
- Wireless protocol: LoRaWAN, WiFi
- Frequency: 868MHz
- Power supply: USB-C or Ethernet RJ45 cable
- Processor: ARM Cortex-A7, 528 MHz
- Memory: 256 MB RAM and 4 GB eMMC
- Number of available channels: 8
- Maximum number of connected devices: up to 50 devices
- Protocol support: TCP, MQTT, HTTP, HTTPS
- Encryption: VPN
- Device operating temperature range: from -20°C to 50°C
- The device's operating humidity range: from 0% to 95% RH
- IP degree of protection: IP30
- Application: Milesight ToolBox, Milesight IoT Cloud
- Product color: white
- Dimensions: Ф 115 x 21 mm (Ф 4.52 x 0.83 inch)
The control unit is powered via a USB-C or RJ45 cable.
LoRaWAN wireless communication protocol.
LoRaWAN communication protocol
LoRaWAN is a global communication standard for IoT networks, based on LoRa technology, which is characterized by a long range. Thanks to this protocol, devices can communicate with network gateways over a distance of several kilometers in urban environments and up to several dozen kilometers in rural areas. At the same time, LoRaWAN-based devices are known for their low power consumption, making them an ideal choice for applications where batteries need to function for years without the need for recharging. In response to different network conditions, LoRaWAN can adjust the transmission rate, which helps optimize coverage and energy consumption.
Useful links
| Name | Value |
|---|---|
| Colour | white |
| Smart Home | Central unit |
| Communication |
|
| Width | 14 cm |
| Height | 14 cm |
| Depth | 5 cm |
| Weight | 0.23 kg |
