Product description: Intelligent IP30 LoRaWAN air quality sensor - white - Milesight AM107-868M
The Milesight AM107 air quality sensor is an intelligent sensor for monitoring indoor air quality. It uses wireless LoRaWAN technology for communication and guarantees reliable data transmission. Using built-in sensors, it is able to accurately measure environmental parameters such as temperature, humidity, carbon dioxide and volatile organic compounds (TVOC) concentrations . Additionally, it is able to measure light intensity and pressure and can detect movement thanks to the PIR sensor. The device has a 2.13" E-Ink screen, thanks to which you can easily read all measurement results. The device can be configured by connecting the device to a mobile application and the NFC short-range wireless protocol. The sensor is powered by two AA alkaline batteries or via a USB port. C, and the white casing with IP30 protection makes the device both functional and aesthetic.

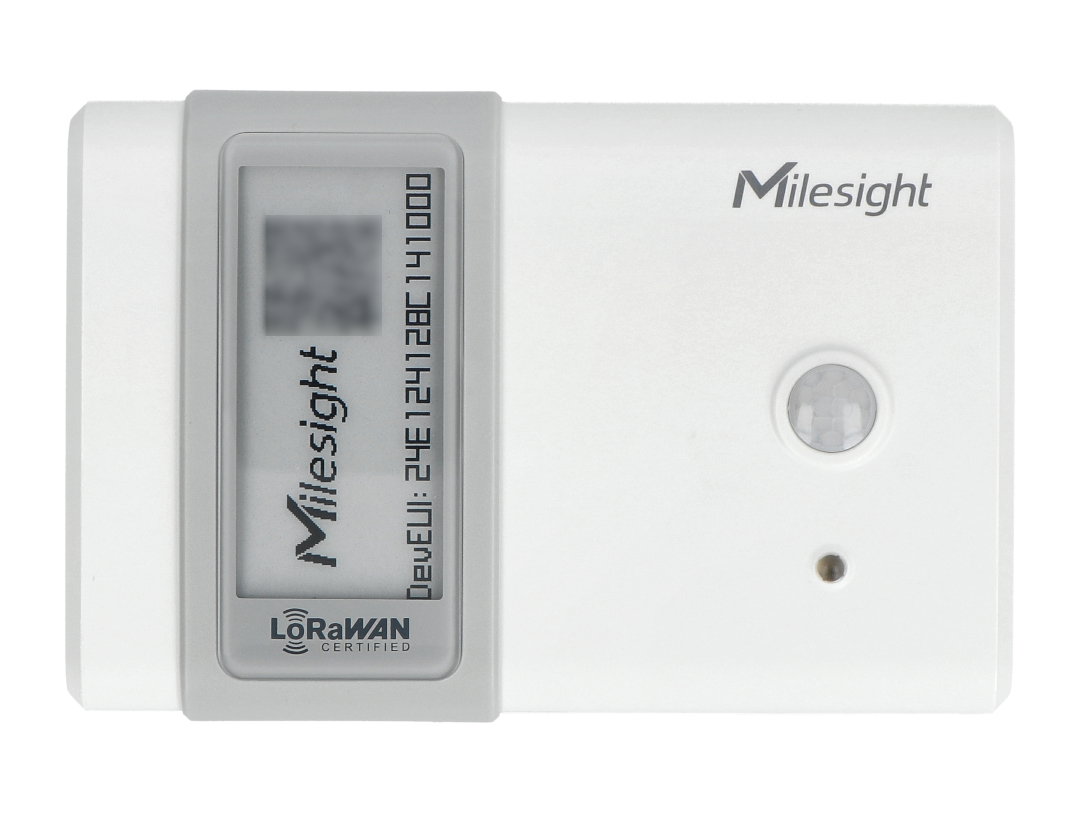

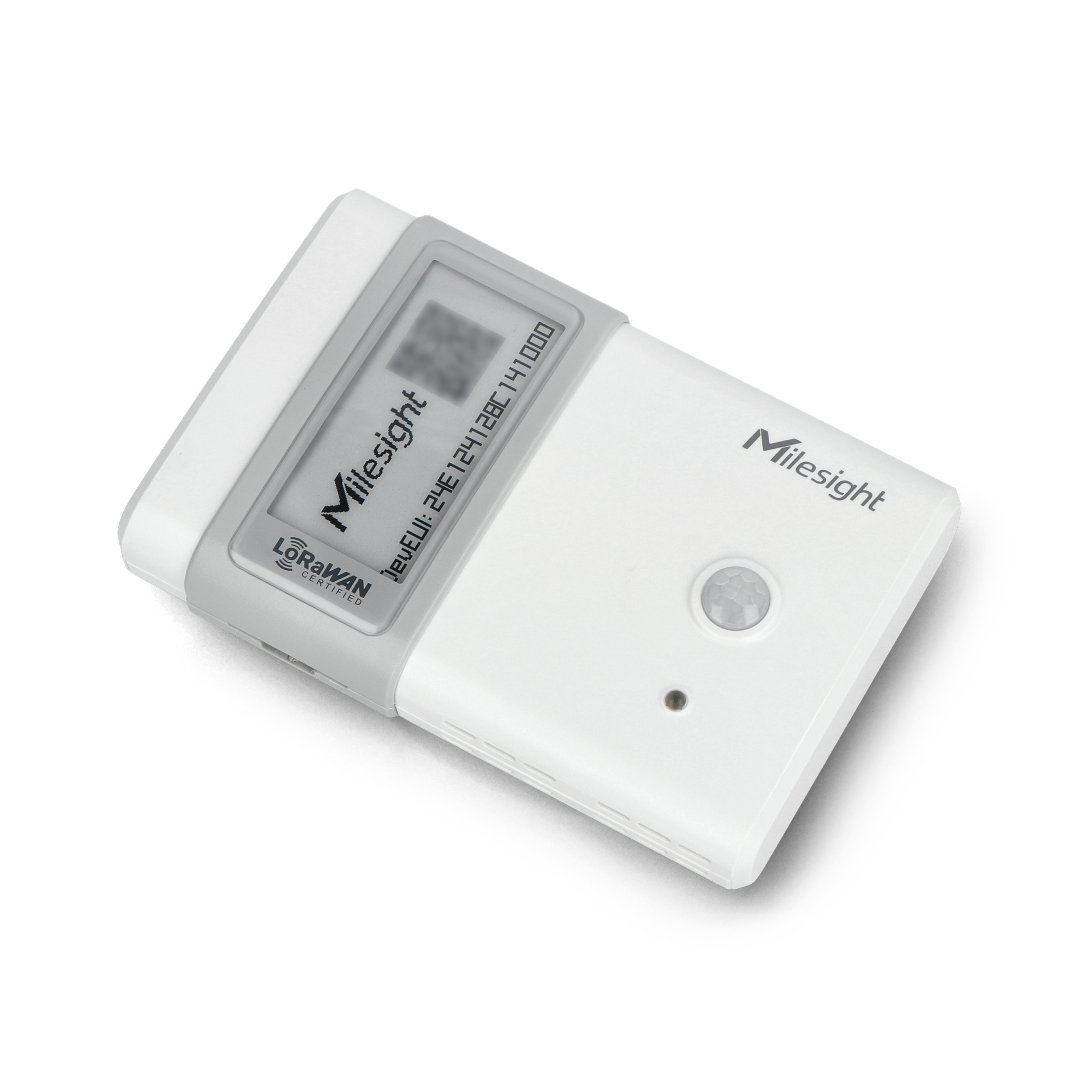

Intelligent IP30 LoRaWAN air quality sensor - white - Milesight AM107-868M.
The sensor can measure and detect 7 different environmental parameters.
Main features of the sensor
- Wireless communication using the LoraWAN protocol
- Real-time air quality monitoring
- Function for measuring temperature, humidity, room pressure, TVOC, light intensity and carbon dioxide
- Indoor motion detection up to 5 m
- Built-in 2.13" E-Ink display
- Sending notifications immediately after detecting exceedance of permissible standards
- Simple device configuration using NFC short-range wireless technology
- It has a housing with an IP30 protection level

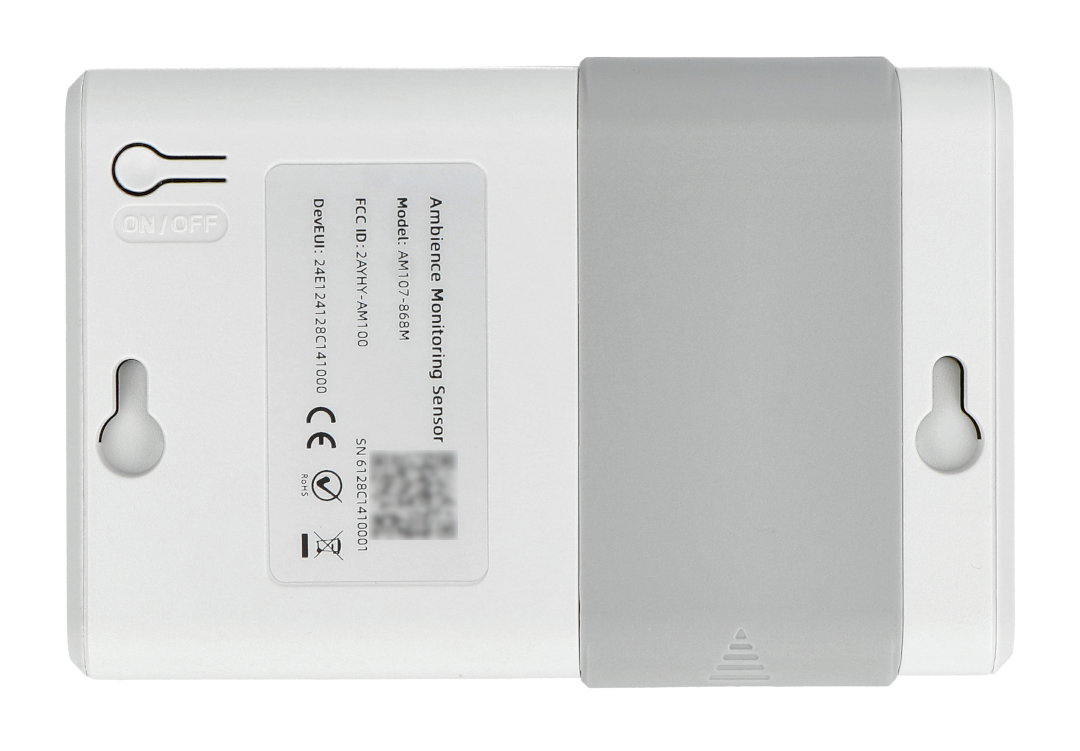

- Designed for wall mounting
- Powered by a USB-C cable or 2 AA batteries for up to 1 year of use
Air quality monitoring
The main function of the Milesight sensor is to monitor indoor air quality by accurately measuring environmental parameters such as temperature, humidity, concentration of carbon dioxide and volatile organic compounds TVOC, which allows maintaining a healthy and comfortable indoor environment.
Additional measurement functions
In addition to monitoring air quality, The Milesight AM107 sensor has the functions of detecting motion, measuring light intensity in the room and the ability to present the collected data on the built-in E-Ink screen. This allows for additional supervision over environmental conditions and activities in a given space.
During the first configuration, you will need to know the default password that synchronizes the device with the application: 123456 .
The device also detects movement in the room.

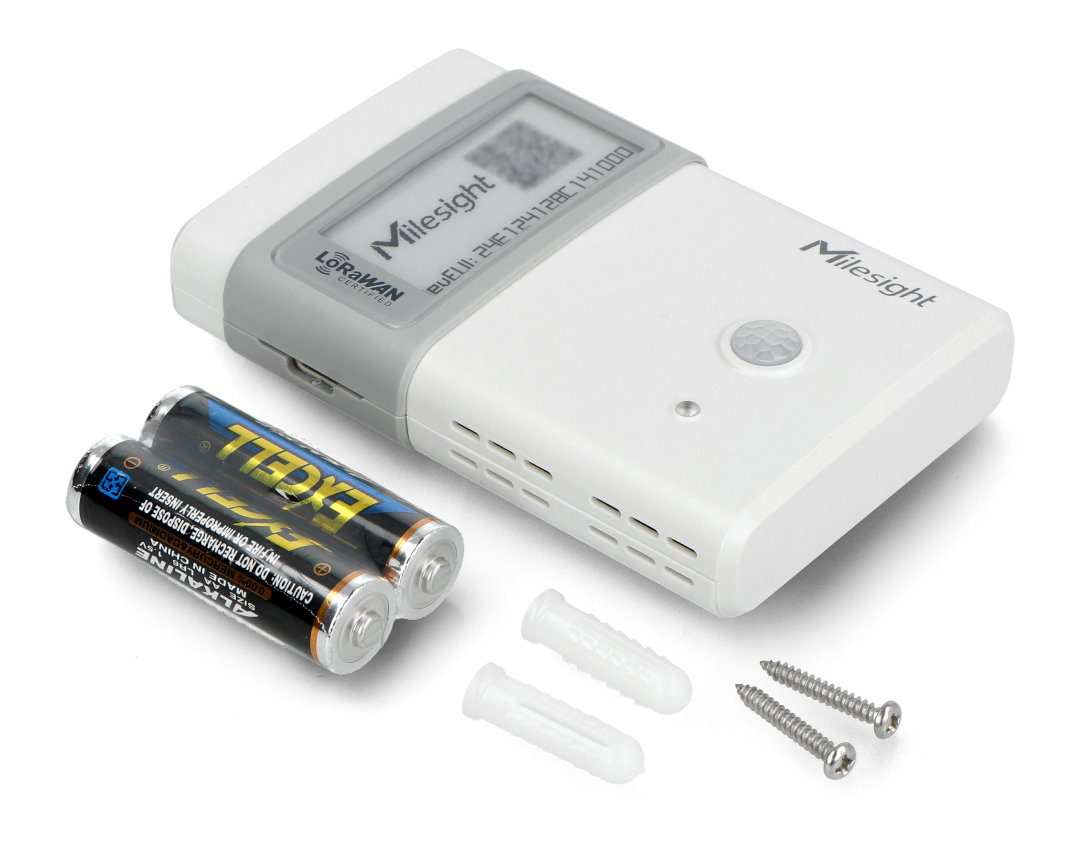

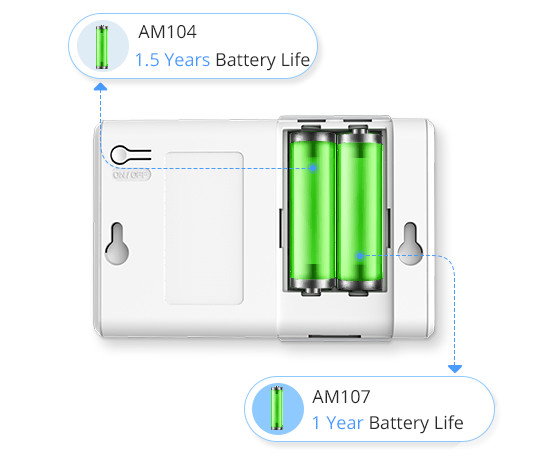

The intelligent sensor is powered by two AA batteries that power the device for up to 1 year of use.
Powering the device
The sensor uses two AA batteries for power supply, which ensure a long operating time, as they can last up to 1 year of use. The device can also be powered via a USB-C cable , which provides a constant supply of electricity to the sensor, so the user can be sure that the device will operate continuously.
Synchronization with the smartphone application
This product is compatible with the Milesight ToolBox application for smartphones. Thanks to this integration, users can remotely monitor and configure device parameters directly from their phone. Synchronization takes place via NFC technology, which ensures quick and intuitive pairing of the device with the application. Milesight ToolBox allows convenient access to measurement data, record history and sensor configuration settings even when away from home.
Technical specifications of the intelligent sensor
- Producer: Milesight
- Model: Ambience Monitoring Sensor AM107
- Product code: AM107-868M
- Sensor connection technology: wireless
- Wireless protocol: LoRaWAN
- Frequency: 868MHz
- Power supply: 2 x AA batteries or USB-C
- Battery voltage: 1.5V
- Battery life: up to 1 year of device use
- Temperature measurement range: from -20°C to 70°C, accuracy ± 0.3°C above 0°C, ± 0.6°C below 0°C
- Humidity measurement range: 0% to 100% RH, accuracy ± 3% (from 10% to 90% RH), ± 5% (below 10% and above 90% RH)
- Motion detection distance: 5 m
- Motion detection area: 94° horizontally, 82° vertically
- Light intensity measurement range: up to 60000 lux, accuracy ± 30%, visible light and infrared
- Carbon dioxide CO2 measurement range: 400 ppm to 5000 ppm, accuracy ± (30 ppm + 3% of reading)
- TVOC VOC measurement range: 0 ppb to 60,000 ppb, accuracy ± 15%
- Pressure measurement range: from 300 hPa to 1100 hPa, accuracy ± 1 hPa
- Device operating temperature range: from 0°C to 45°C
- Operating humidity range of the device: from 0% to 100% RH, no condensation
- IP degree of protection: IP30
- Application: Milesight ToolBox, Milesight IoT Cloud
- Product color: white
- Dimensions: 105 x 70.4 x 21.2 mm
LoRaWAN wireless communication protocol.
LoRaWAN communication protocol
LoRaWAN is a global communication standard for IoT networks, based on LoRa technology, which is characterized by a long range. Thanks to this protocol, devices can communicate with network gateways over a distance of several kilometers in urban environments and up to several dozen kilometers in rural areas. At the same time, LoRaWAN-based devices are known for their low power consumption, making them an ideal choice for applications where batteries need to function for years without the need for recharging. In response to different network conditions, LoRaWAN can adjust the transmission rate, which helps optimize coverage and energy consumption.
