Smart Button WS101 - LoRaWAN - white - Scene version - Milesight WS101-868M

Index: STV-23277 EAN: 6974225035830
The Milesight intelligent touch switch is an interactive button communicating via the LoRaWAN protocol , which provides a range of up to 2 km in the city and up to 15 km in rural areas. The button offers three different press actions that perform appropriate requests depending on the press. Enables easy button configuration via NFC and management via the Milesight Toolbox app .
Smart Button WS101 - LoRaWAN - white - Scene version - Milesight WS101-868M
€61.50
€50.00 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: Milesight

Product description: IP30 LoRaWAN Smart Touch Wall Switch - White - Scene Version - Milesight WS101-868M

The Milesight WS101 intelligent touch switch is a modern interactive smart home button that is used to wirelessly control smart devices . It uses LoRaWAN technology , which allows for wireless communication at a distance of up to 15 km in rural areas and up to 2 km in urban areas. The user can program various functions for specific types of presses , which allows you to control various devices, activate specific scenes or send alarm signals. Built-in LED indicators and buzzer inform about pressing, network and battery status. The device can be easily configured using NFC technology . The Milesight WS101 touch switch is an ideal solution for people looking for advanced and reliable communication solutions.

During the first configuration, you will need to know the default password that synchronizes the device with the application: 123456 .

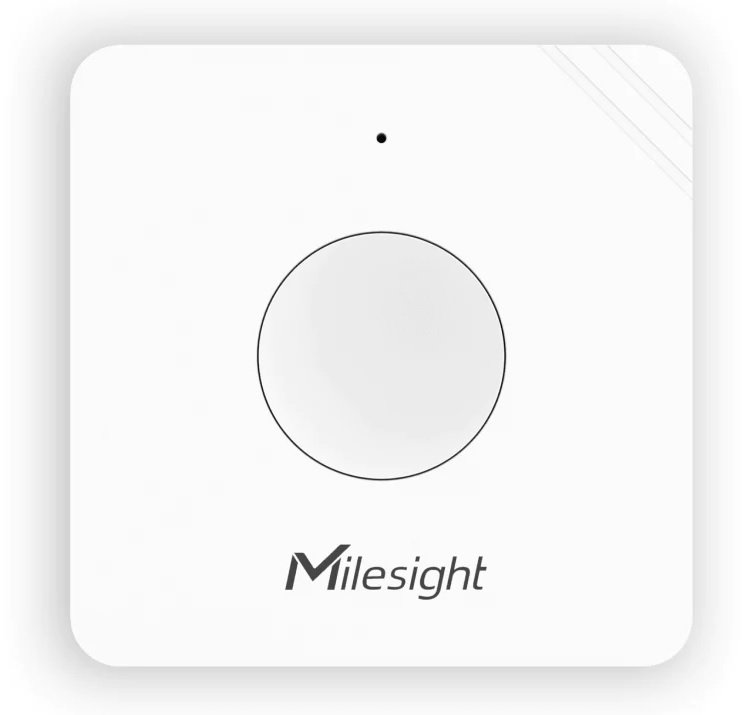

A white Milesight wall switch lies on a white background.

Intelligent IP30 LoRaWAN touch wall switch - white - Scene version - Milesight WS101-868M.

A white Milesight wall switch lies on a white background.

The switch allows you to wirelessly control smart home devices.

Main features of the button

  • Wireless communication using the LoRaWAN protocol
  • It offers three pressure modes that can be freely assigned to actions by the user
  • It allows you to control, turn it on and off and alarm when pressed
  • The ER14335 battery with a capacity of 1650 mAh can operate for up to 5 years
  • Support for the Milesight D2D protocol, which allows direct control of devices without a LoRaWAN network gateway
  • Simple device configuration using NFC short-range wireless technology
  • It has a built-in LED indicator and buzzer
  • Designed to be mounted on flat surfaces using screws or double-sided tape
  • It is compatible with Milesight IoT Cloud solutions
  • It has a housing with an IP30 protection level

Smart switch control

The main function of the Milesight button is to allow the user to wirelessly control smart devices using three press options . The button offers single- and double-click and button-hold modes. Thanks to it, when pressed, the user can, for example, turn on devices, activate specific scenes or activate alarms. It supports many press actions that can be individually defined and adjusted by the user, making it extremely versatile and adaptable to a variety of needs.

Milesight D2D

Milesight D2D is a modern communication protocol that enables direct communication between devices without the need to use a LoRaWAN network gateway . However, to use the functions of this protocol, at least two devices are needed - one control device, sending commands and requests to other devices, and one agent device, that receives and responds to these requests. A description of the available control devices and the agent type can be found on the manufacturer's website .

This product supports the Milesight D2D protocol , which allows direct control of devices without a LoRaWAN network gateway.

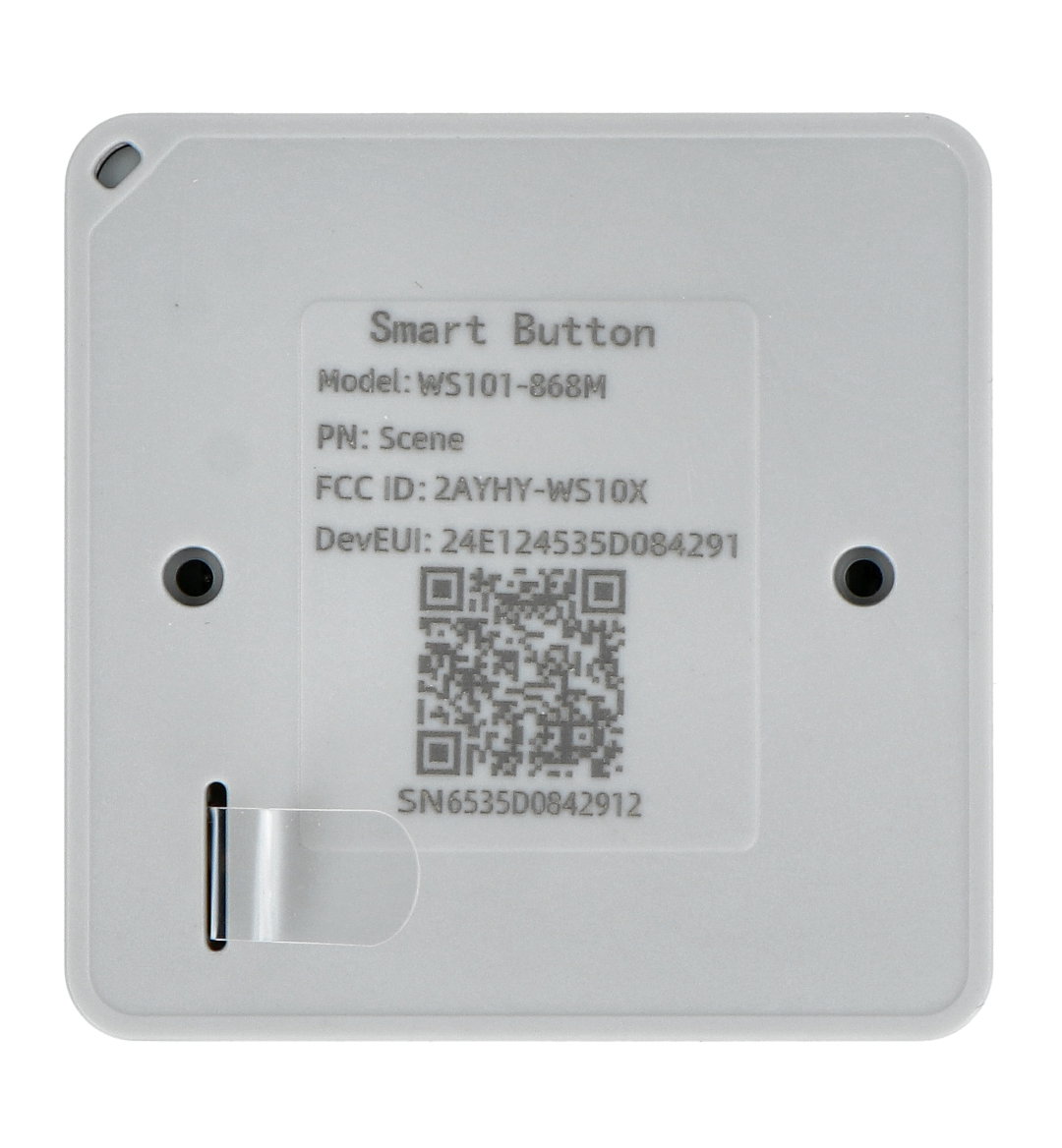

The white Milesight wall switch lies underneath on a white background.

The device offers 3 button control modes.

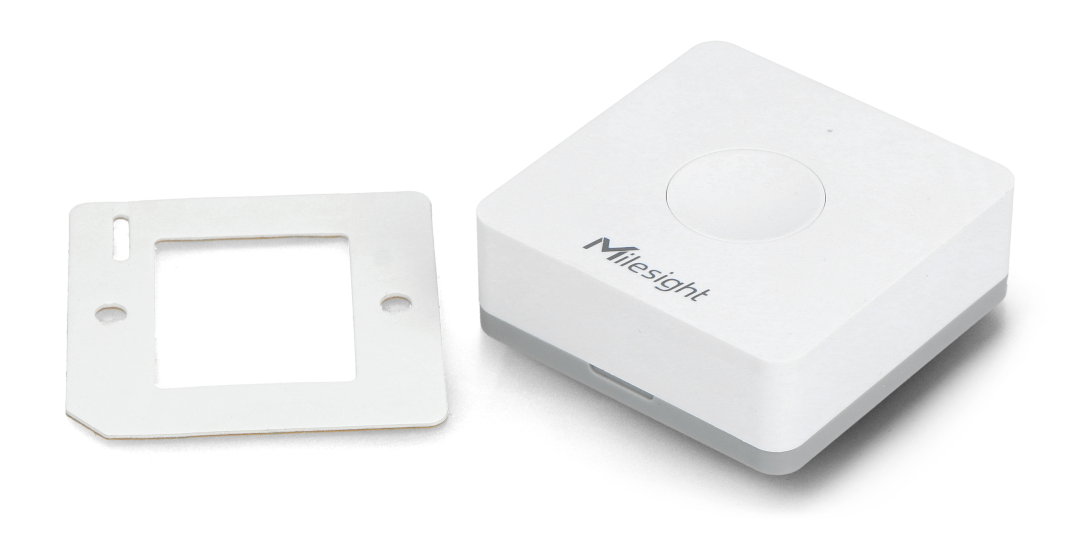

The white Milesight wall switch lies on a white background with a mounting element.

The product is compatible with the free Milesight ToolBox smartphone application.

Energy-saving device

The device is powered by an ER14335 battery with a capacity of 1650 mAh, which enables uninterrupted operation of the smart button for up to 5 years of use . It is an efficient energy solution that reduces operating costs and is more environmentally friendly.

Synchronization with the smartphone application

This product is compatible with the Milesight ToolBox application for smartphones. Thanks to this integration, users can remotely monitor and configure device parameters directly from their phone. Synchronization takes place via NFC technology, which ensures quick and intuitive pairing of the device with the application. Milesight ToolBox allows convenient access to measurement data, record history and sensor configuration settings even when away from home.

You can download the free Milesight ToolBox app on both Android and iOS devices.

Technical specifications of the switch

  • Producer: Milesight
  • Model: Smart Button WS101
  • Product code: WS101-868M
  • Connectivity technology: wireless
  • Wireless protocol: LoRaWAN, Milesight D2D
  • Frequency: 868MHz
  • Power supply: 1 x ER14335 battery
  • Battery capacity: 1650 mAh
  • Battery voltage: 3.6V
  • Battery life: up to 5 years of device use
  • Device operating temperature range: from -20°C to 60°C
  • The device's operating humidity range: from 0% to 90% RH
  • IP degree of protection: IP30
  • Application: Milesight ToolBox, Milesight IoT Cloud
  • Housing material: non-flammable polycarbonate
  • Product color: white
  • Dimensions: 50 x 50 x 18 mm

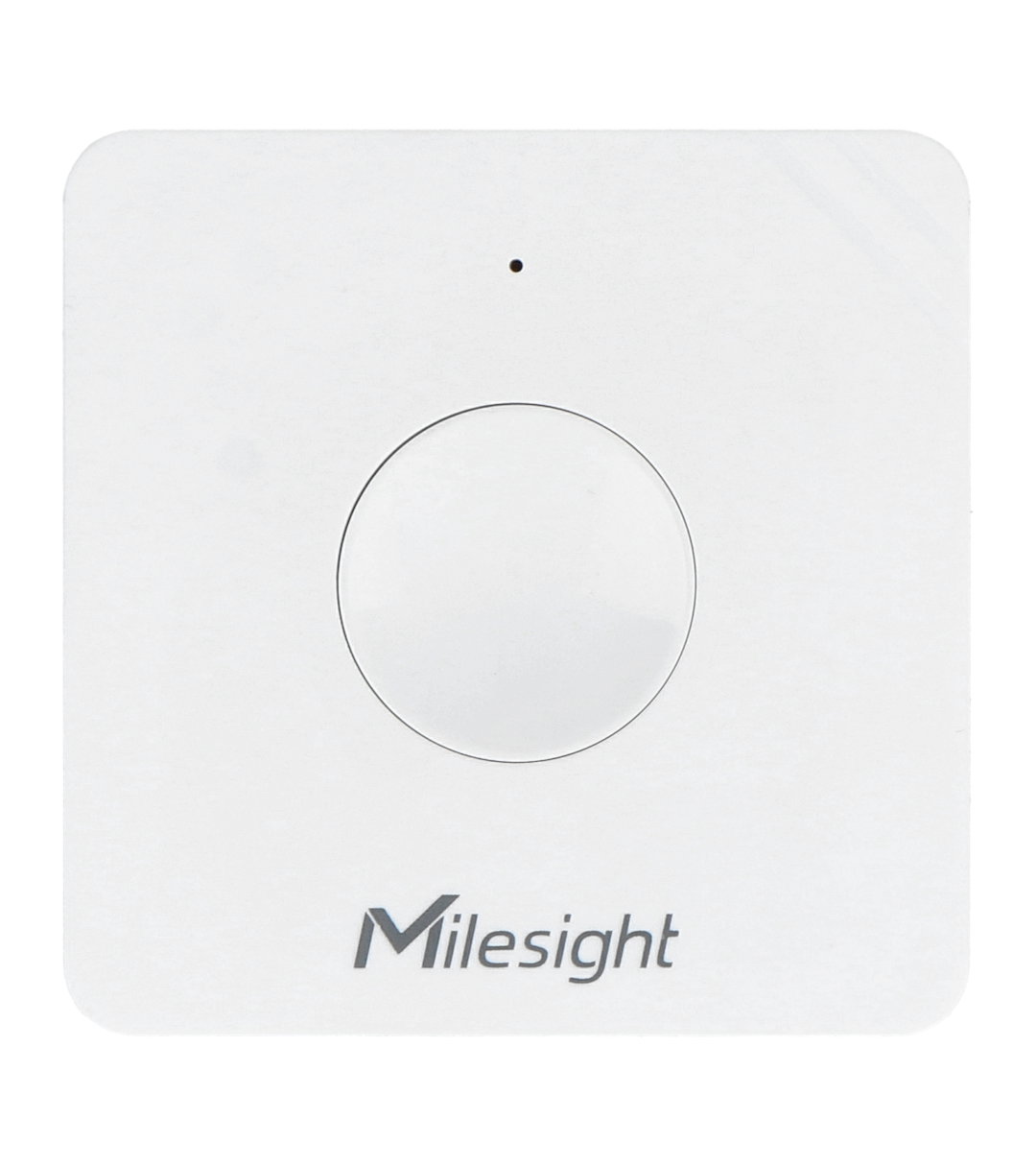

A white Milesight wall switch lies on a white background.

The intelligent device is powered by one battery that can power the device for up to 5 years of use.

Colour white
Smart Home Button
Package width 7.5 cm
Package height 7.5 cm
Package depth 2.5 cm
Package weight 0.06 kg
