Product description: Milesight EM300-ZLD Smart LoRaWAN Zone Flood Sensor with Temperature and Humidity Measurement IP67
The EM300-ZLD is an advanced zone flood detection sensor , ideal for monitoring large areas – from basements and boiler rooms to industrial plants. Equipped with a 3-meter sensor cable , it responds to liquid contact when the water level reaches 5 mm. The sensor also measures temperature and humidity , stores data in internal memory, and transmits it in real time via LoRaWAN . Its robust IP67 design and UV resistance ensure reliable operation in demanding environments. The sensor supports the modern Milesight D2D protocol, allowing you to create a Smart Home system without the standard network gateway required to connect devices.
During the first setup, you will need to know the default password that synchronizes the sensor with the application: 123456 .

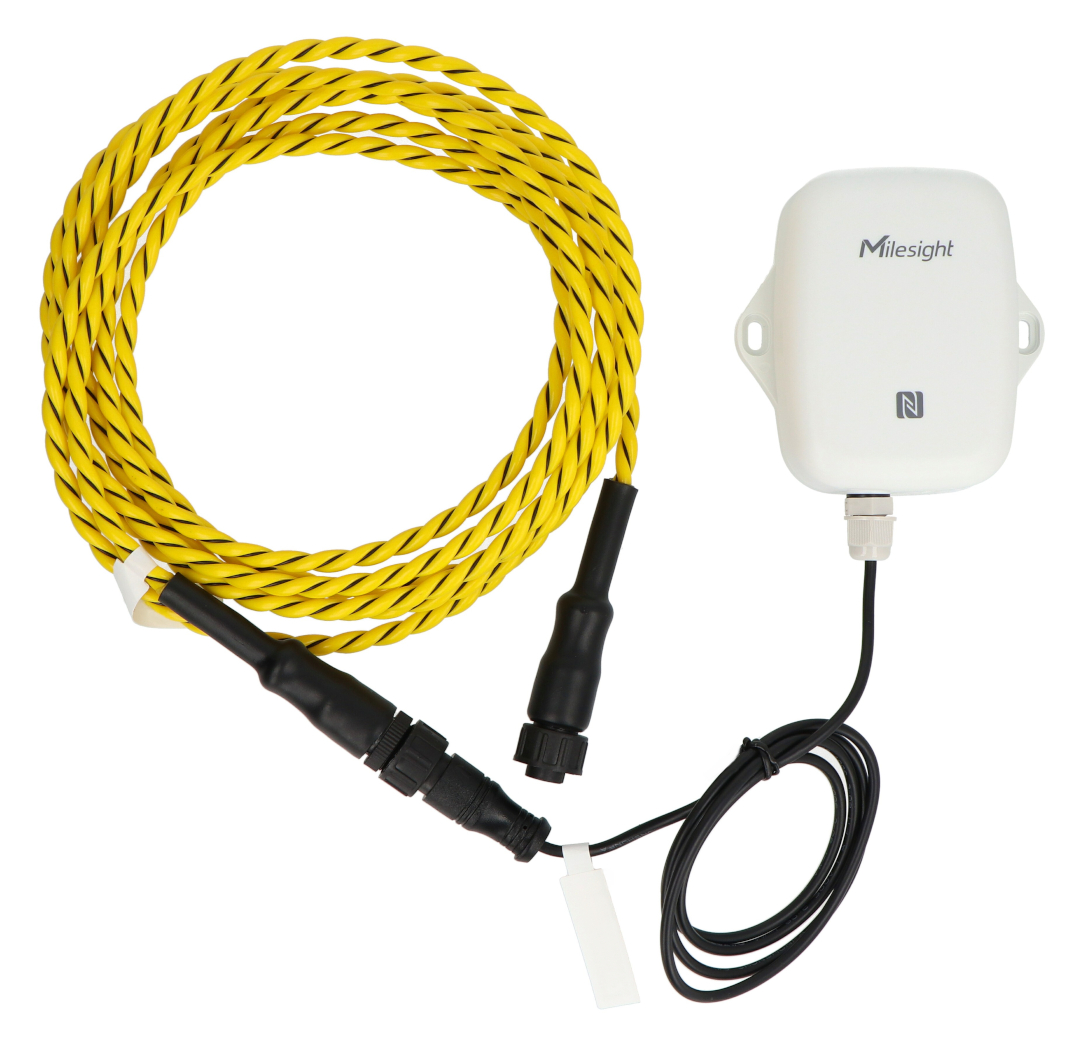

Smart LoRaWAN zone flood sensor with IP67 temperature and humidity measurement - Milesight EM300-ZLD.

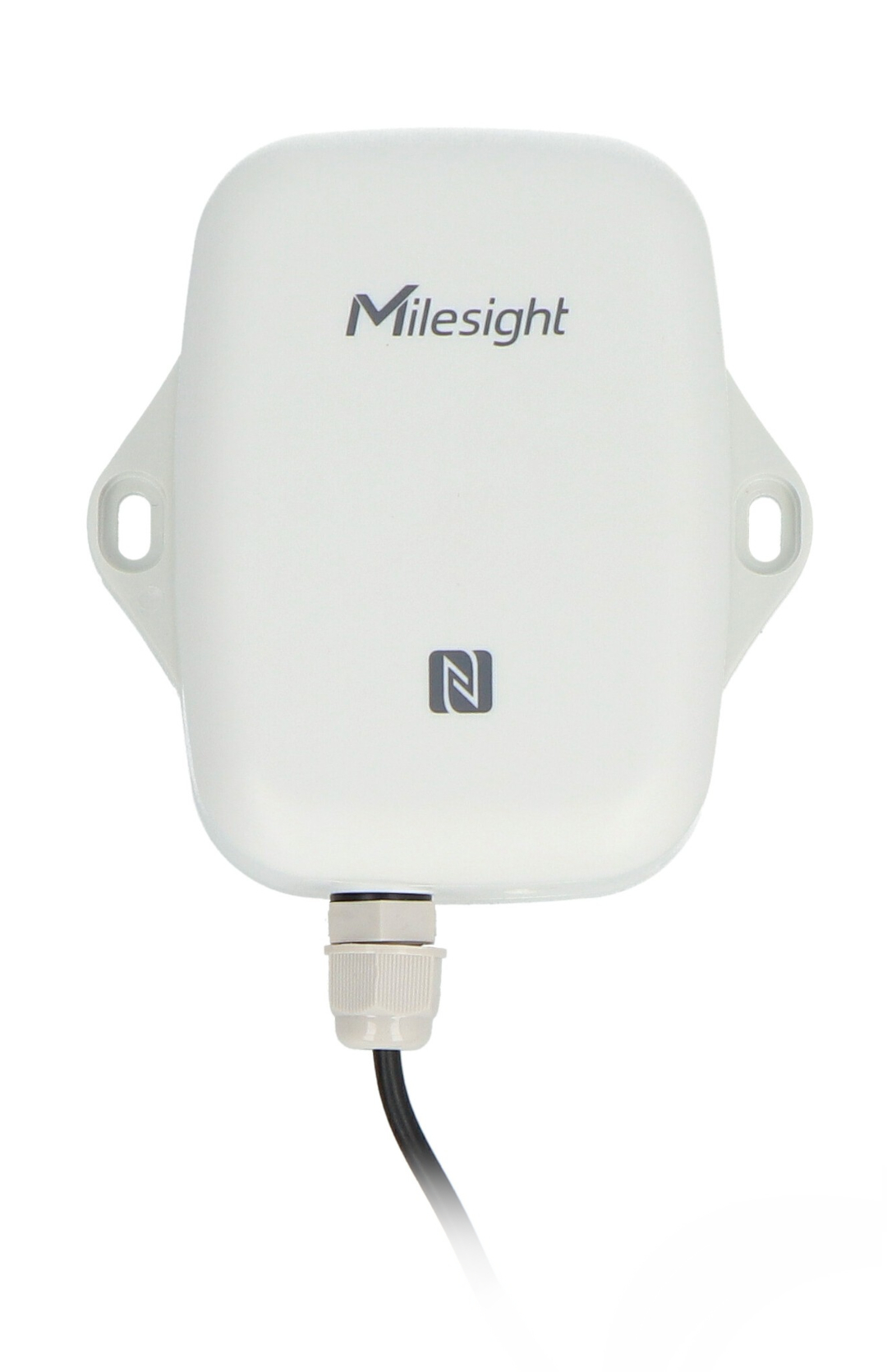

The IP67 housing is resistant to dust and water ingress.
Main features of the sensor
- Zone flood detection : 3m sensor cable that responds to conductive water
- Temperature and humidity measurement : with high accuracy (±0.3°C, ±3% RH)
- IP67 housing : waterproof and UV resistant
- Long battery life : up to 10 years of operation (optional with dual battery)
- Internal memory : stores up to 2800 measurement records
- LoRaWAN transmission range : up to 2 km in the city and 15 km in open areas
- Easy setup : NFC and free Milesight IoT Cloud app
- Milesight D2D support : direct device-to-device communication without gateway
Advanced measurement capabilities and configuration
The EM300-ZLD sensor detects liquid contact through conductivity, responding at a level as small as 5 mm . Built-in temperature and humidity sensors offer high precision (±0.3°C from 0°C to 70°C , ±3% RH from 10% to 90% ). Additionally, alarm thresholds and data reporting schedules can be set. Thanks to its large memory (2,800 entries) and retransmission function, data is secure even in the event of a temporary loss of communication.
Durable construction and operation in difficult conditions
The sensor's design is based on a flammability-rated ABS + PC housing with IP67 certification and UV resistance. It operates in temperatures ranging from -30°C to 70°C and humidity ranging from 0% RH to 100% RH. Mounting is versatile – wall-mounted, using 3M tape, or cable ties. The battery is replaceable. ER18505 4000 mAh provides up to a decade of service-free operation.

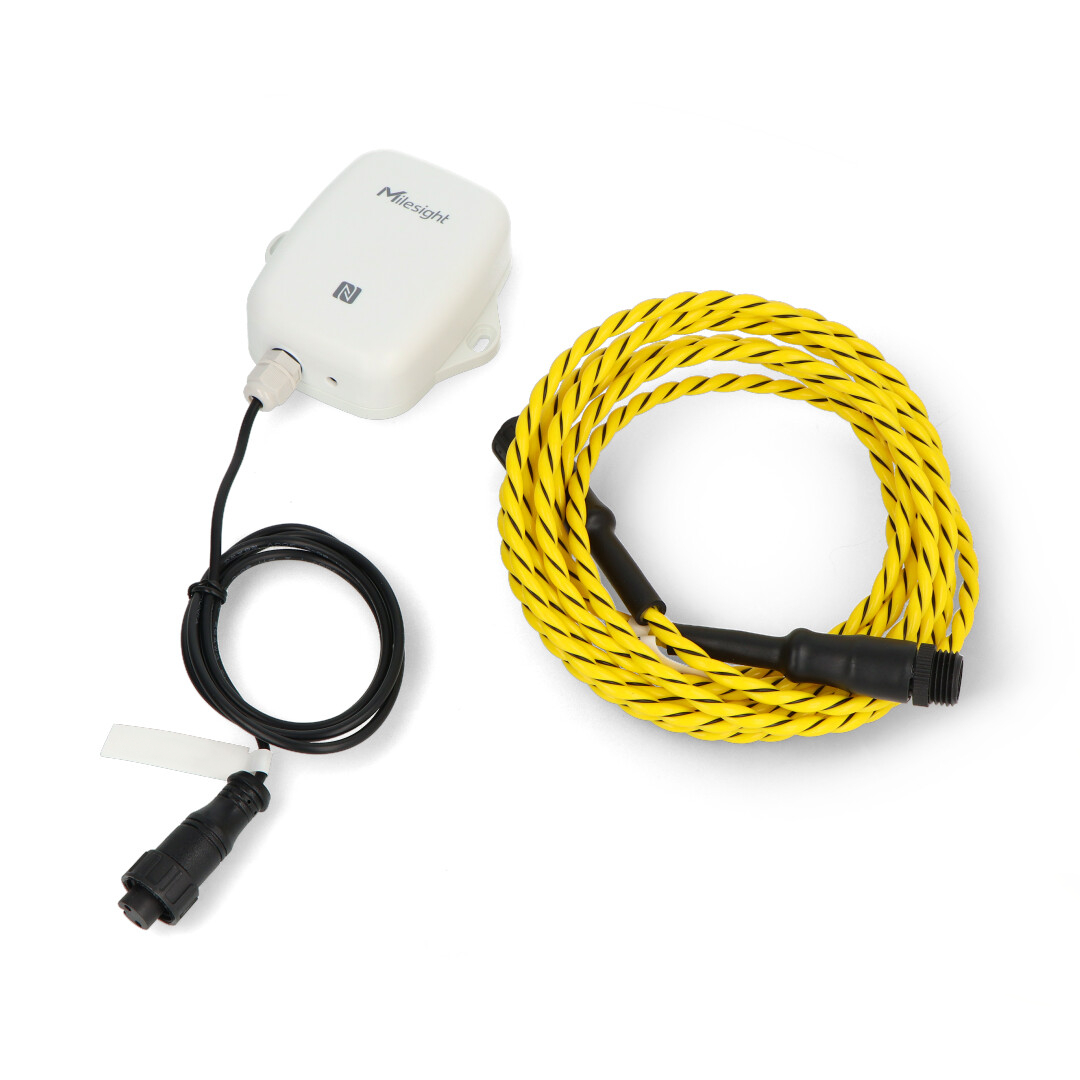

The sensor supports liquid leak detection when the level reaches 5 mm.

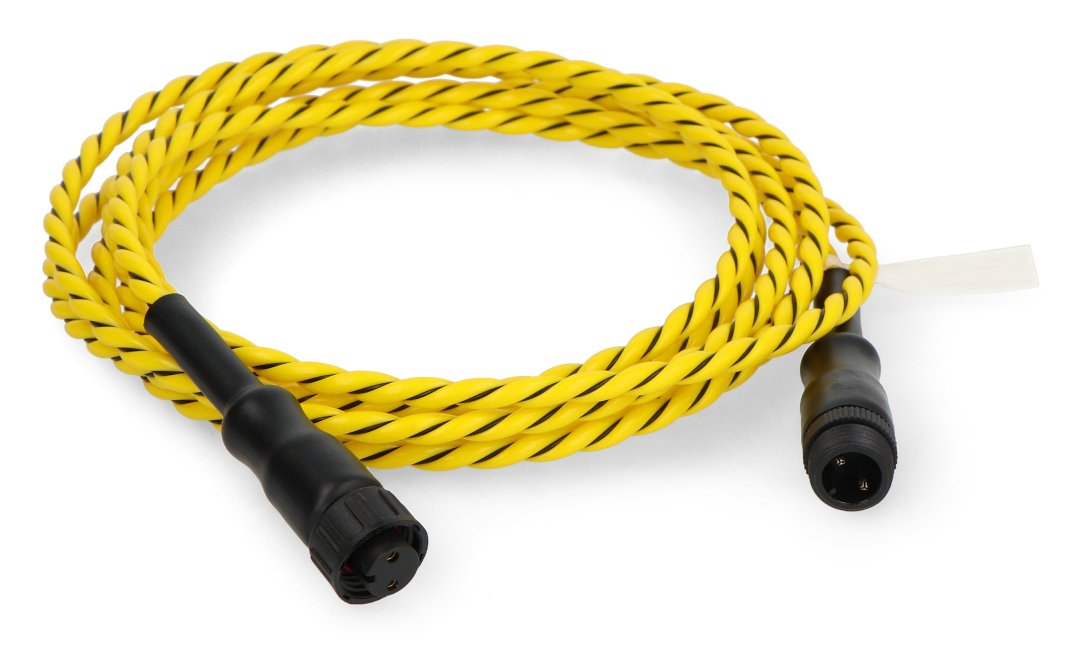

The leak detection probe is up to 3 meters long.
LoRaWAN connectivity and Milesight IoT Cloud integration
LoRaWAN enables long-range data transmission with minimal power consumption, making it ideal for large-scale installations. The EM300-ZLD is compatible with LoRaWAN gateways from various manufacturers and supports the Milesight D2D protocol, enabling direct communication with other Milesight devices. The Milesight IoT Cloud application offers data visualization in the form of dashboards, reports, real-time alerts, and automated actions, such as activating pumps or alarms upon flood detection.
The sensor supports the Milesight D2D protocol, which allows direct control of devices without a LoRaWAN gateway. A description of available control devices and agents can be found on the manufacturer's website.
Sensor technical specifications
- Technology: LoRaWAN, Milesight D2D
- Frequency: EU 868 MHz
- Transmitting power: 16 dBm
- Sensitivity: -137 dBm
- Mode: OTAA/ABP, Class A
- Flood detection: conductive liquid, level from 5 mm
- Sensor cable: 3 m
- Temperature measurement: -30°C to 70°C, accuracy ±0.3°C (0°C to 70°C)
- Humidity measurement: 0% RH to 100% RH, accuracy ±3% (10% RH to 90% RH)
- Memory: 2800 records
- Power supply: ER18505 4000mAh battery (optional 8000mAh)
- Battery life: up to 10 years
- Housing: ABS + PC (fireproof)
- Protection: IP67, UV resistant
- Dimensions: 105.6 x 85.3 x 27 mm
- Weight: 0.5 kg
Contents of the set
- Milesight EM300-ZLD zone flood sensor
- 3 m long sensor cable
- ER18505 4000 mAh battery - built-in
- Mounting elements

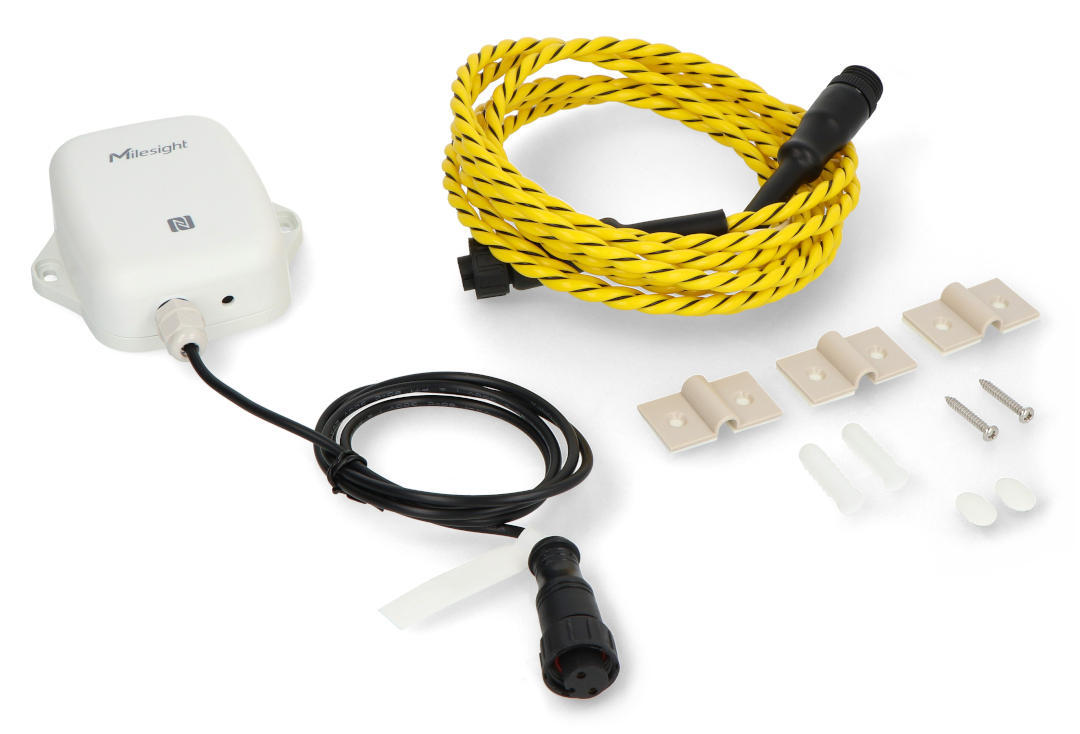

Elements included in the set.
