Product description: LoRaWAN WiFi / Ethernet switchboard - black - Milesight UG56-868M
The Milesight UG56 control unit is an innovative network gateway that is a perfect combination of performance and functionality in a compact form. The indoor LoRaWAN gateway has been designed for use in buildings and industrial spaces. Its advanced architecture allows communication with many devices at the same time, supporting up to 2,000 different smart home devices . Its long range allows connection to devices up to 15 km in open spaces and up to 2 km in densely built-up urban areas. The control unit integrates with BMS systems, offering support for many popular protocols, such as TCP, MQTT and HTTP . It has a built-in web server and offers support for Python SDK and Node-Red .
A network gateway is used to manage all smart devices on the network.
Main features of a network gateway
- Indoor LoRaWAN gateway intended for buildings and industrial plants
- Range up to 15 km in open terrain and 2 km in urban areas
- Support multiple protocols including TCP, MQTT, HTTP, HTTPS
- Programmable with Python SDK and Node-RED
- Compatibility with various BMS systems, including BACNet
- Built-in web server for easy management and configuration of the device
- 4-core processor with a frequency of 1.3 GHz and 512 MB RAM and 8 GB eMMC memory
- External antenna improving signal range and quality
- Communication method: WiFi, Ethernet
- Integrated management and monitoring tools such as DeviceHub and Milesight IoT Cloud
- Built-in security and VPN options
Industrial LoRaWAN network gateway
The internal LoRaWAN switchboard was created for use in places such as production plants or offices. It plays a key role in the LoRaWAN network, controlling devices connected to it remotely . Its main task is to convert radio signals into information, which is then transmitted and processed in the network.
Connection to multiple devices
The Milesight network gateway represents the highest quality thanks to the use of the best available hardware components. It is able to communicate with a variety of sensors, meters and other devices based on LoRaWAN technology, supporting an impressive number of up to 2,000 devices . This enables the creation of advanced and versatile control and monitoring systems in a variety of applications.
The LoRaWAN central unit allows you to connect up to 2,000 devices simultaneously.
The product is compatible with the free Milesight ToolBox smartphone application.
8 available communication channels
The Milesight network gateway is equipped with an 8-channel design, which translates into increased data processing and transmission capacity. Thanks to this solution , it is possible to manage multiple connections simultaneously , which improves the operation of the entire system. This advanced architecture guarantees operational stability and higher performance in various operating conditions, meeting the needs of the most demanding industrial applications.
Synchronization with the smartphone application
This product is compatible with the Milesight ToolBox application for smartphones. Thanks to this integration, users can remotely monitor and configure device parameters directly from their phone. Synchronization takes place via NFC technology, which ensures quick and intuitive pairing of the device with the application. Milesight ToolBox allows convenient access to measurement data, record history and sensor configuration settings even when away from home.
Technical specifications of the control unit
- Producer: Milesight
- Model: Industrial LoRaWAN Gateway UG56
- Product code: UG56-868M
- Device connection technology: wireless
- Wireless protocol: LoRaWAN, WiFi
- Frequency: 868MHz
- Power supply: USB-C or Ethernet RJ45 cable
- Processor: 4-core Cortex-A35, 1.3 GHz
- Memory: 512 MB RAM and 8 GB eMMC
- Antenna connector: 1 x SMA
- Number of available channels: 8
- Maximum number of connected devices: up to 2000 devices
- Embedded web server: yes
- Programming: Python SDK and Node-RED
- Protocol support: TCP, MQTT, HTTP, HTTPS
- Encryption: VPN
- Device operating temperature range: from -20°C to 60°C
- The device's operating humidity range: from 0% to 95% RH
- IP degree of protection: IP30
- Application: Milesight ToolBox, Milesight IoT Cloud
- Product color: black
- Dimensions: 110 x 75 x 24 mm

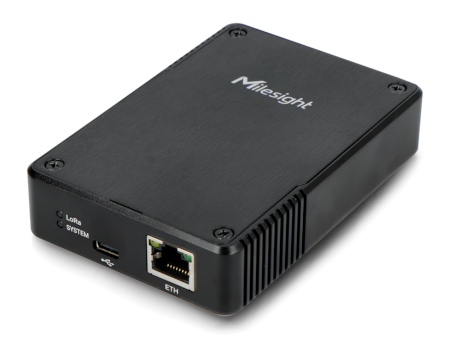

The control unit is powered via a USB-C or RJ45 cable.
LoRaWAN wireless communication protocol.
LoRaWAN communication protocol
LoRaWAN is a global communication standard for IoT networks, based on LoRa technology, which is characterized by a long range. Thanks to this protocol, devices can communicate with network gateways over a distance of several kilometers in urban environments and up to several dozen kilometers in rural areas. At the same time, LoRaWAN-based devices are known for their low power consumption, making them an ideal choice for applications where batteries need to function for years without the need for recharging. In response to different network conditions, LoRaWAN can adjust the transmission rate, which helps optimize coverage and energy consumption.
