Semi-Industrial LoRaWAN Gateway UG65 - white - Milesight UG65-868M-EA
The Milesight UG65 network gateway is an 8-channel LoRaWAN gateway with a network range of up to 15 km. It is equipped with WiFi and Ethernet connectivity, has a built-in web server and programming options via Python SDK and Node-RED. This is a control unit that is ideal for managing extensive intelligent automation systems.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: LoRaWAN WiFi / Ethernet switchboard - white - Milesight UG65-868M-EA
The Milesight UG65 control unit is an advanced, 8-channel LoRaWAN network gateway designed to create extensive networks of intelligent devices . It is equipped with WiFi, PoE connectivity and a built-in web server with MQTT, HTTP and HTTPS API interface. It offers an impressive operating range - up to 15 km in open areas or 2 km in urban areas. The gateway is ideal for smart city projects and smart home systems. It is made of modern components - it has a 4-core 1.5 GHz Cortex-A35 processor , 512 MB RAM and 8 GB eMMC . Additionally, it enables programming thanks to Python SDK and Node-RED and is responsible for the security of data transfer thanks to VPN encryption protocols . All the functions of the device make it an ideal network gateway for building intelligent smart systems.
LoRaWAN WiFi / Ethernet central unit - white - Milesight UG65-868M-EA.
A network gateway is used to manage all smart devices on the network.
Main features of a network gateway
- LoRaWAN communication protocol
- Range up to 15 km in open terrain and 2 km in urban areas
- Support multiple protocols including TCP, MQTT, HTTP, HTTPS
- Programmable with Python SDK and Node-RED
- Built-in web server for easy management and configuration of the device
- 8 available channels enabling simultaneous communication with various devices
- 4-core processor with a frequency of 1.5 GHz and 512 MB RAM and 8 GB eMMC memory

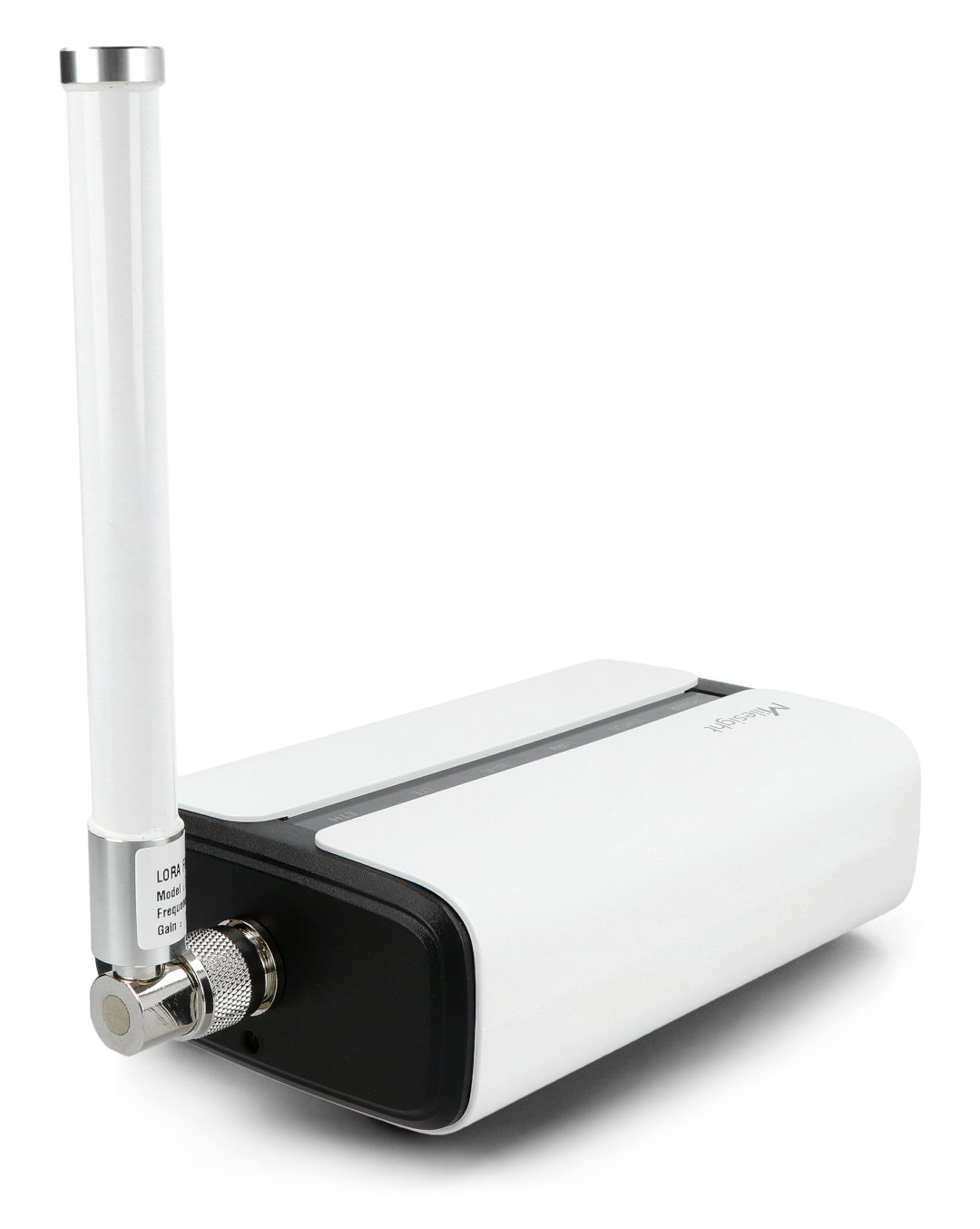

- Optional external antenna improving signal range and quality
- Communication method: WiFi, Ethernet
- Integrated management and monitoring tools such as DeviceHub and Milesight IoT Cloud
- Built-in security and VPN options
- It has an IP65 protection rating
LoRaWAN network gateway
The LoRaWAN network gateway is a key element in IoT networks, enabling communication between LoRa-based devices and network servers . Offers long-distance communication with low power consumption, making it ideal for a wide range of applications.
Connection to multiple devices
Thanks to advanced technology and wide range, the LoRaWAN network gateway is able to support up to 2,000 devices simultaneously . This allows for central collection, processing and analysis of data from many sensors, devices and monitors distributed over a large area.
The LoRaWAN central unit allows you to connect up to 2,000 devices simultaneously.
The product is compatible with the free Milesight ToolBox smartphone application.
8 available communication channels
The device has as many as 8 communication channels, which allows the LoRaWAN gateway to transmit data from various sources simultaneously and uninterrupted . This provides greater flexibility in network configuration, enabling optimal use of bandwidth and effective management of network traffic.
Synchronization with the smartphone application
This product is compatible with the Milesight ToolBox application for smartphones. Thanks to this integration, users can remotely monitor and configure device parameters directly from their phone. Synchronization takes place via NFC technology, which ensures quick and intuitive pairing of the device with the application. Milesight ToolBox allows convenient access to measurement data, record history and sensor configuration settings even when away from home.
Technical specifications of the control unit
- Producer: Milesight
- Model: Semi-Industrial LoRaWAN Gateway UG65
- Product code: UG65-868M-EA
- Device connection technology: wireless
- Wireless protocol: LoRaWAN, WiFi
- Frequency: 868MHz
- Power supply: 9 V to 24 V, DC Jack or Ethernet RJ45 cable
- Processor: 4-core Cortex-A53, 1.5 GHz
- Memory: 512 MB RAM and 8 GB eMMC
- External Antenna Connector: 1 x N-Female External Connector
- Number of available channels: 8
- Maximum number of connected devices: up to 2000 devices
- Embedded web server: yes
- Built-in USB-C port: yes
- Programming: Python SDK and Node-RED
- Protocol support: TCP, MQTT, HTTP, HTTPS and others
- Encryption: VPN - OpenVPN, IPsec, PPTP, L2TP, GRE, DMVPN
- Device operating temperature range: from -40°C to 70°C
- The device's operating humidity range: from 0% to 95% RH
- IP rating: IP65
- Application: Milesight ToolBox, Milesight IoT Cloud
- Product color: white
- Dimensions: 180 x 110 x 56.5 mm
The control unit is powered via a DC Jack or RJ45 cable.
LoRaWAN wireless communication protocol.
LoRaWAN communication protocol
LoRaWAN is a global communication standard for IoT networks, based on LoRa technology, which is characterized by a long range. Thanks to this protocol, devices can communicate with network gateways over a distance of several kilometers in urban environments and up to several dozen kilometers in rural areas. At the same time, LoRaWAN-based devices are known for their low power consumption, making them an ideal choice for applications where batteries need to function for years without the need for recharging. In response to different network conditions, LoRaWAN can adjust the transmission rate, which helps optimize coverage and energy consumption.
