Liquid level magnetic sensor CMW115

Index: AKS-15233 EAN: 5903351249638

Durable, high quality float sensor, measures liquid levels. It is used where control of liquid measurement is needed all the time. The sensor is mountedofloat with a magnet. Under the influence of water force, the reed relay closes or opens, moving along the tube.

Liquid level magnetic sensor CMW115
€16.90
€13.74 tax excl.
Waiting time: 3-5 days
Temporarily unavailable
PayPal payment
Manufacturer: OEM

Product description: Magnetic liquid level sensor

Durable, high quality floatsensor, measuresliquid levels. It is used where control over the measurement of liquids is still necessary, e.g. in water tanks. The sensor is equipped with a float and a magnet. Under the influence of water force, the reed switch shuts or opens, moving along the tube. The sensor has small dimensions:Ø 17 mm,length 118 mm.

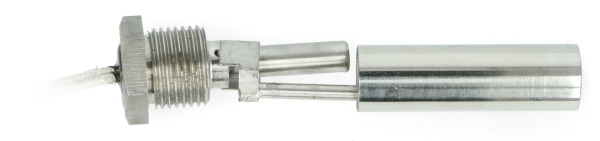

Magnetyczny czujnik poziomu wody CMW115Magnetic liquid level sensor CMW115.

Liquid level sensor specifications

  • Type of sensor: magnetic, floating
  • Type of substance being measured: liquid
  • Sensor length: 118 mm
  • The diameter of the sensor: 17 mm
  • Cable length: about 0,5 m

Rysunek techniczny i wymiary magnetycznego czujnika cieczy CMW115

Sensor water level
Package width 11.6 cm
Package height 3 cm
Package depth 3 cm
Package weight 0.05 kg

Marek

05/10/23

Question: Hello, Please tell me the operating parameters of the CMW 115 sensor. What is the maximum AC/DC switching current, what is the maximum transfer current, breakdown current. Greetings, Marek Dobry
Answer: The sensor is based on a reed switch, the maximum value is 0.1 A and 50 V DC.

Product reviews

Liquid level magnetic sensor CMW115

5/5

Average grade

2

Customers opinion
The following opinions are collected
and verified by
an external partner Trustmate
and come from the post-purchase process.
Damian K. 27.04.2022 Confirmed purchase Translated review
cut off
Tadeusz 28.03.2024 Confirmed purchase
