Grove - GSR sensor - electrical resistance of the skin

Index: SEE-11314 EAN: 5903351246545

Module from the Grove series equipped with GSR sensor using the galvanic-skin reaction. It is powered with the voltage of 3.3 V or 5V. The sensors of this type are used in psychophysiology, they reflect the stress response, experienced emotions, and activity level.

€12.80
€10.41 tax excl.
In stock, shipping 24 hours!
Check quantity
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: Seeedstudio
Compatibility: Arduino Raspberry Pi

Description

The module is equipped with a sensor GSR, using the galvanic-skin reaction. Strong emotions cause the stimulus that is transmitted to the sympathetic nervous system causing increased secretion of sweat through the sweat glands so it changes the electrical resistance of the skin depending on its moisture. Sensors of this type are used in psychophysiology, they reflect the stress response, experienced emotions, and activity level. It is powered with the voltage of 5 V. It has an analog input that makes it compatible with most commissioning modules, including Raspberry Pi and Arduino.

Connection

The module is equipped with Grove interface that facilitates its connection to the Arduino along with Base Shield v2.0 or Raspberry with Hat from GrovePi+.

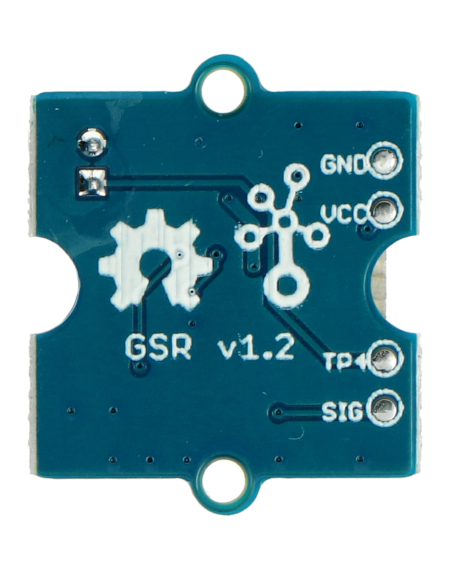

czujnik GSR

Pin Description
GND The ground of the system.
VCC The supply voltage of 5 V.
TP1 / NC Not connected.
SIG The control signal.

The product is compatible with Arduino

The manufacturer provides a user manual for Arduino.



Specification

  • Supply voltage: 3.3 V / 5 V
  • Sensitivity: adjustable by potentiometer
  • Interface: Analog
  • Set includes:
    • GSR sensor
    • Fingerbands required for measurement
    • Connection cable, Grove type
  • Dimensions: 24 x 20 x 9.8 mm
  • Weight: 29 g

Sensor - type resistance
