Product description: STLINK-V3MINIE - debugger and programmer for STM32 microcontrollers - STMicroelectronics
STLINK-V3MINIE is a module manufactured by STMicroelectronics - a leader among the creators of semiconductor technologies. The module uses JTAG / SWD interfaces, which makes it suitable for debugging and programming any STM32 microcontrollers. Virtual COM port for host PC allows communication with target microcontroller via UART interface.
Kit contents
- STLINK-V3MINIE - debugger and programmer for STM32 microcontrollers - STMicroelectronics
- Connection cable

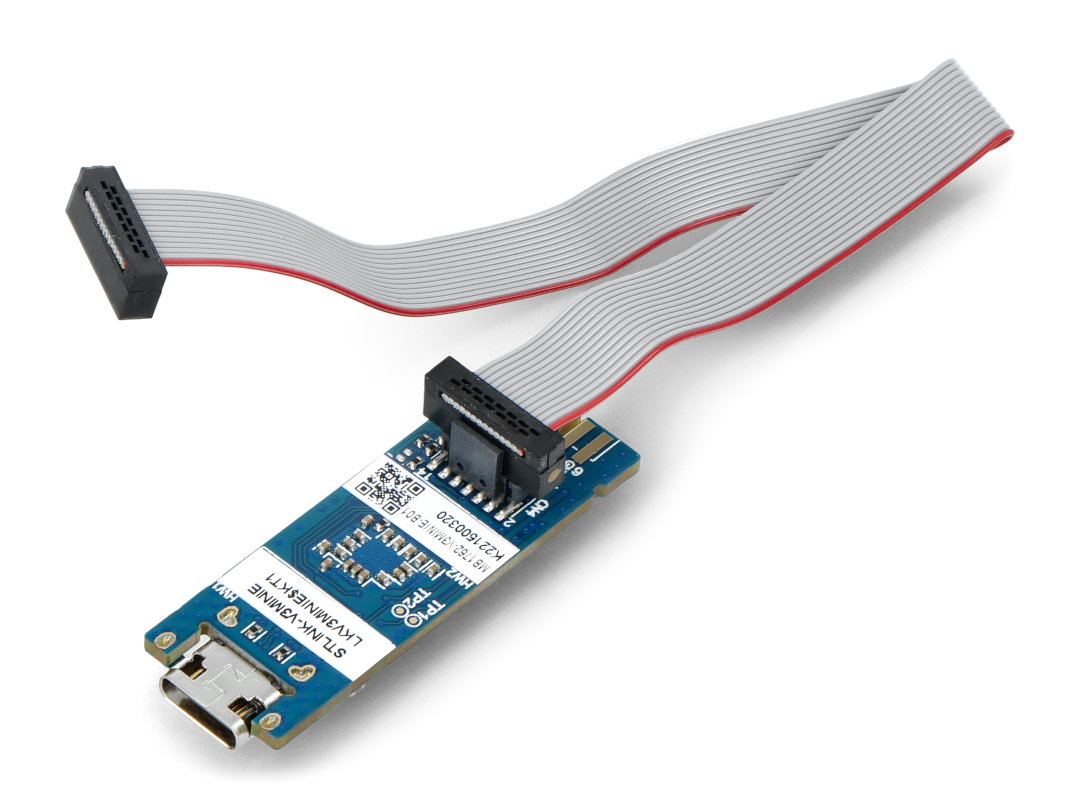

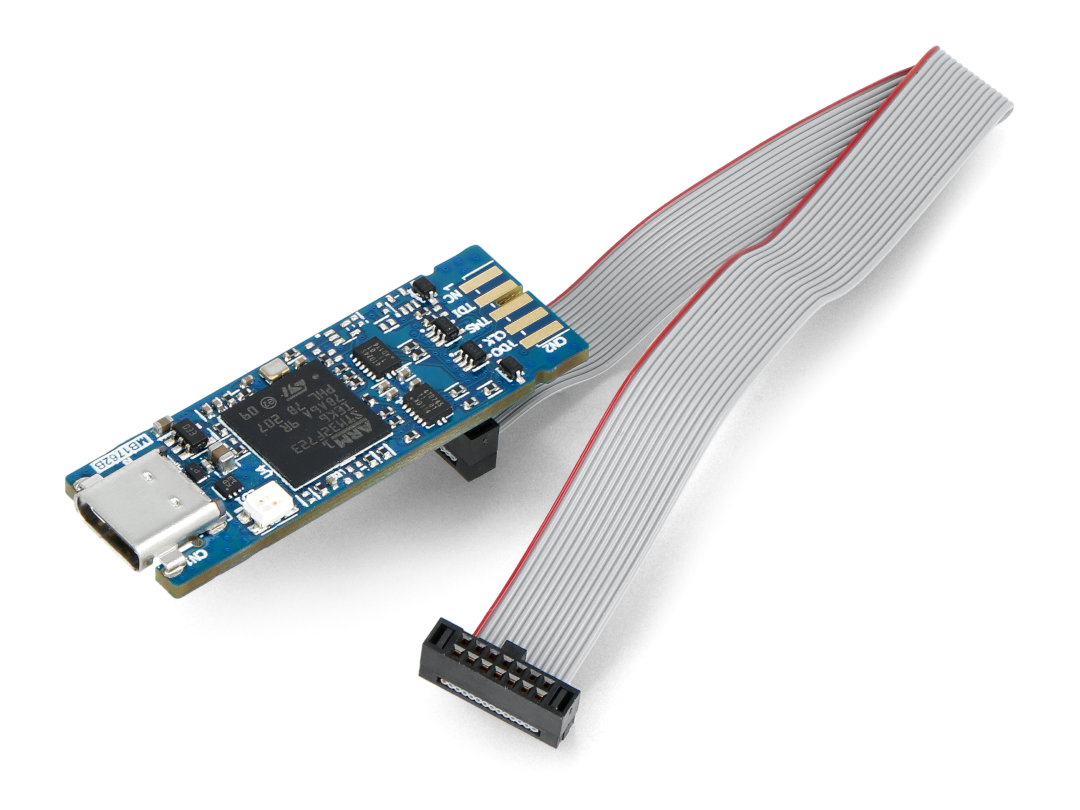

STLINK-V3MINIE - elements included in the kit.

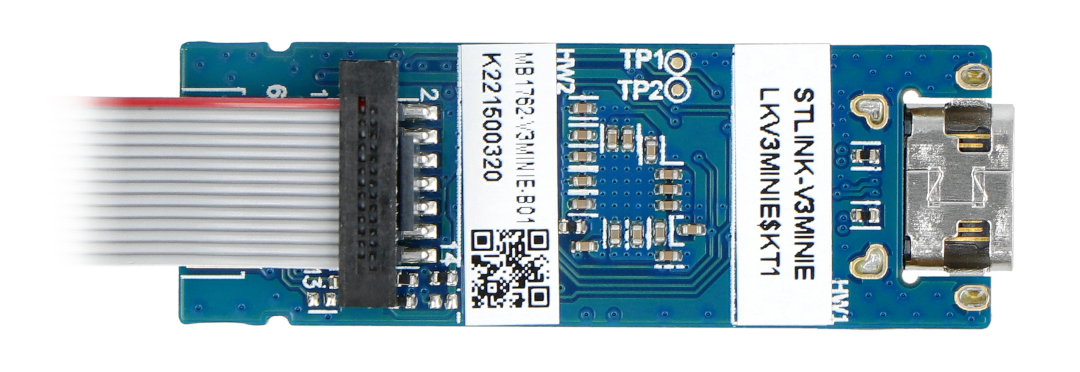

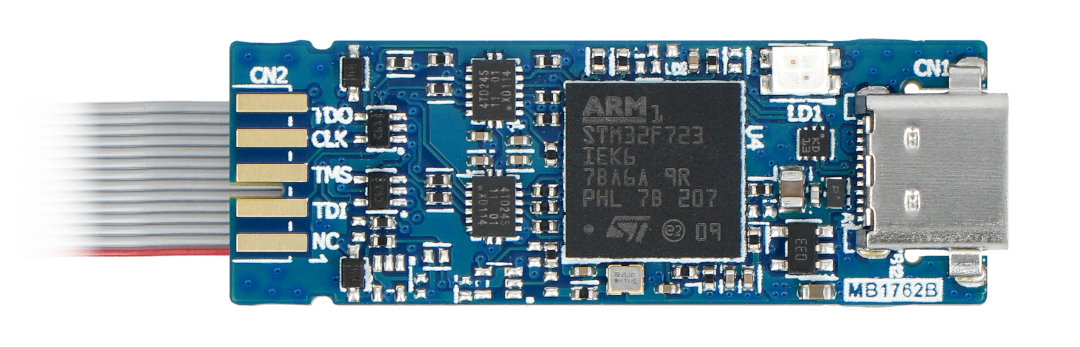

STLINK-V3MINIE - debugger and programmer for microcontrollers, equipped with a USB type C connector.
Special features of the STLINK-V3MINIE
- Independent programmer / debugger for STM32 microcontrollers
- Equipped with a high-speed USB 2.0 interface
- The software is updated via the USB port
- FLASH drag and drop programming
- Support for JTAG communication, SWD (Serial Wire Debug), SWV (Serial Wire Viewer) and virtual COM port (VCP)
Programmer user manual
- Install or update the IDE or STM32CubeProgrammer (STM32CubeProg) to support the STLINK-V3MINIE programmer with the necessary drivers.
- Use the supplied cable or the BTB edge connector to connect the STLINK-V3MINIE and the module being programmed.
- Use the USB A - USB C cable to connect STLINK-V3MINIE to the computer.
- Check that the COM LED is red.
- Open a utility or the STM32CubeProgrammer software tool.
More information can be found on the manufacturer 's website.
STLINK-V3MINIE - debugger and programmer for STM32 microcontrollers - STMicroelectronics.
STLINK-V3MINIE has compact dimensions that are 15.24 x 43.47 mm.
Technical specification of the module
- Purpose: programmer / debugger
- Power supply: via USB type C connector
- Support for JTAG communication up to 21 MHz
- Support for SWD and SWV communication up to 24 MHz
- Virtual COM port: VPC frequency up to 15 Mb / s
- Supported Operating Systems: Windows 10, Linux 64-bit, or macOS
- Status communication: two-color LED
- Board connectors:
- USB Type-C
- STDC14 pins 1.27 mm
- 2.0 mm soldering pads for BTB (Board to board) connection
- Tile dimensions: 15.24 x 43.47 mm
