Product description: Rebel RB-830 Universal Meter

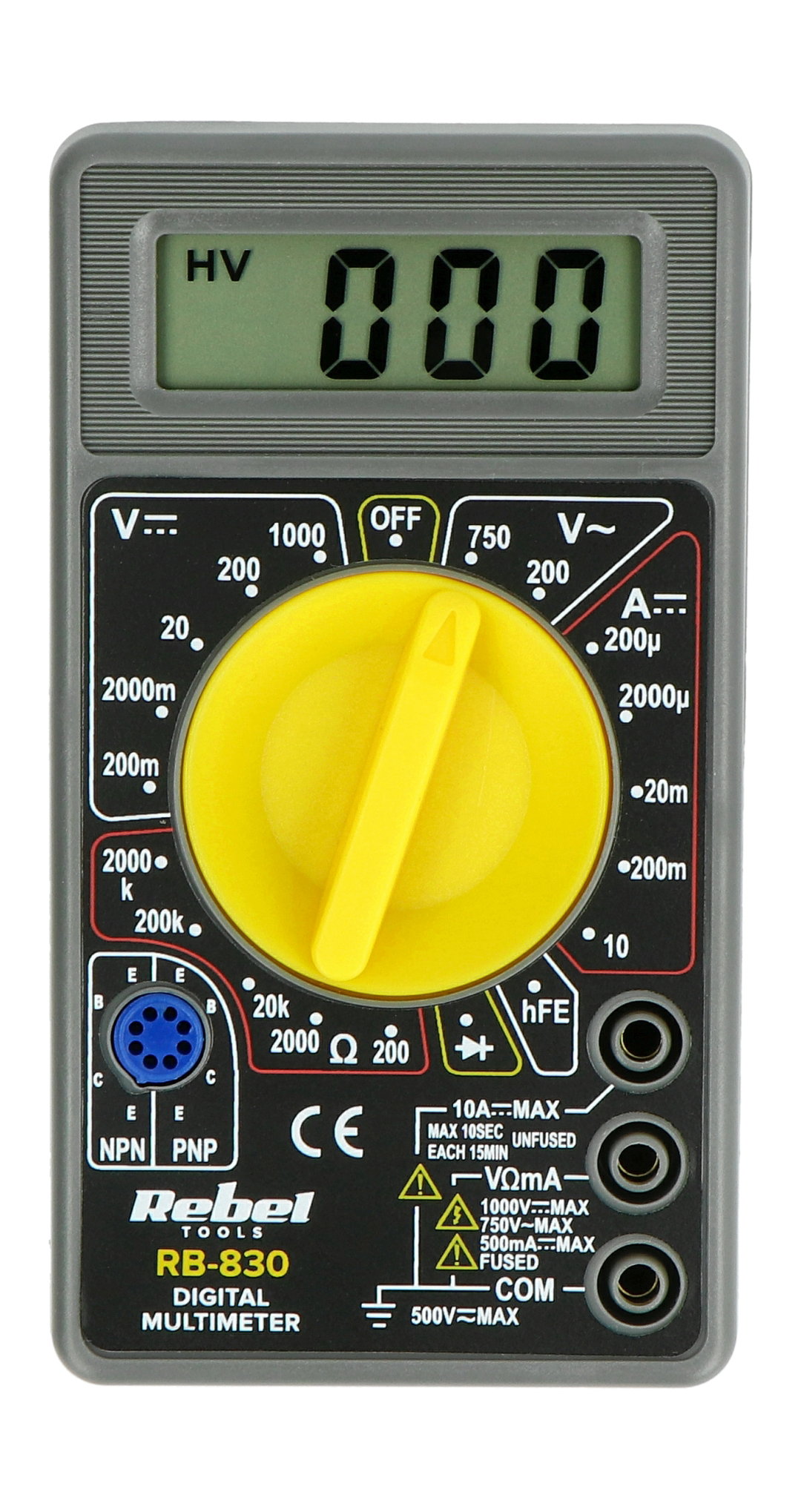

Universal meterallows you to performbasicelectrical and electronic measurements. With the use of multimeter you can measure current DC to10 A, voltage DC to1000 Vor AC to750 V. It is also possible to measure resistance up to a maximum of2000 kΩ. Ranges are switched with the yellow knob. Additionally, the device has a separate socket for testingtransistorsanddiodes. The meter is equipped with automatic polarity detection. RB-830 is powered by a9 V batteryand has a low battery indicator.
The maximum reading that can be displayed is 1999.

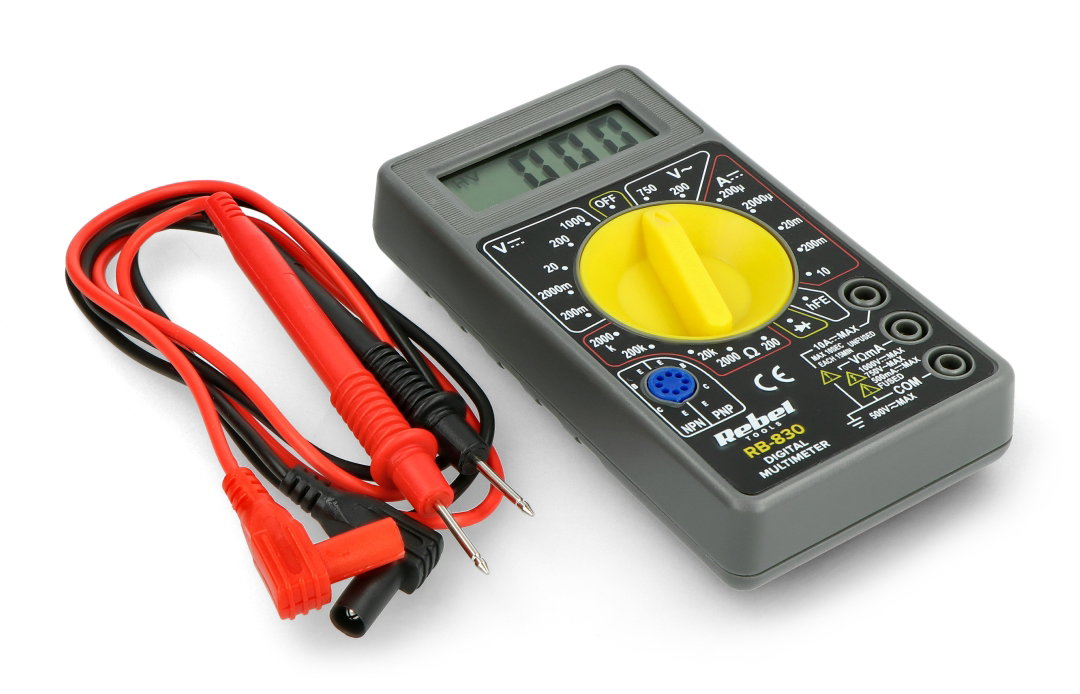

The set includes test leads for the meter.
Main features
- DC voltage measurement: up to 1000 V (1%+5)
- AC voltage measurement: up to 750 V (2%+10)
- Current measurement DC: up to 10 A (2%+10)
- Resistance measurement: up to 2000 kΩ (1%+4)
- Diode tester
- Transistor tester
- Protection in mA range (up to 500 mA)
- Manual selection of ranges
- Automatic polarity detection
- Low battery indicator
- Sampling rate: 2 times per second
- Maximum reading: 1999
- Operating temperature: 0°C to 40°C with humidity below 85%
- Power supply: 9 V
- Display dimensions: 45 x 13 mm
- Overall device dimensions: 122 x 66 x 24 mm
- Weight: 107 g
Technical specification
| PARAMETER | RANGE |
|---|---|
| DC voltage | 200 mV / 2000 mV / 20 V / 200 V / 1000 V |
| AC voltage | 200 V / 750 V |
| DC DC current | 2000 µA / 20 mA / 200 mA / 10 A |
| AC alternating current | no |
| Resistance | 200 Ω / 2000 Ω / 20 kΩ / 200 kΩ / 2000 kΩ |
| Electrical capacitance | no |
| Frequency | no |
| Testerbattery | no |
| Temperature | no |
| Continuity measurement | no |
| Diode tester |
yes |
| Sounder | no |
| Crossing the range | yes |
| Battery indicator | yes |
| Display | LCD 1999 (45 x 13 mm) |
| Range switching mode | manual |
| Transistor tester | yes |
| Data storage | no |
| Illumination | no |
| Auto shut-off | no |
| Dimensions | 122 x 66 x 24 mm |
| Weight | 107 g |
| Power supply | battery 1 x 9V 6F22 battery (included) |
| Operating conditions |
|
Advantages
- Allows for a wide range of measurements: DC current up to 10 A, DC voltage up to 1000 V, AC voltage up to 750 V, and resistance up to 2000 kΩ.
- Equipped with a separate socket for testing transistors and diodes.
- Features automatic polarity detection and a low battery indicator.
- Includes test leads for immediate use.
- Compact and lightweight design with overall dimensions of 122 x 66 x 24 mm and weight of only 107 g.
- Manual selection of ranges via an easy-to-use yellow knob.
- Clear display with dimensions of 45 x 13 mm that can show readings up to a maximum value of 1999.

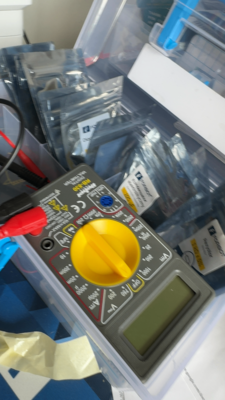

- Positive reviews highlight its multifunctionality, ease of use, accuracy, good price-performance ratio, and robust build quality.
Disadvantages
- Limited functionalities as it does not measure AC current (alternating current).
- Lacks advanced features such as electrical capacitance measurement, frequency measurement, temperature measurement, continuity measurement with sounder, data storage capability or illumination.
