Universal Meter Rebel RB-30D

Index: LEC-18390 EAN: 5901890058186

Ask a question

Remove from wishlist Add to wishlist

Universal meter for making basic measurements such as: DC voltage measurement, AC voltage measurement, DC current measurement, resistance measurement. It also has diode tester, circuit continuity and battery tester functions. The meter is also equipped with a special connector that makes it possible to measure transistors.

€9.50

€7.72 tax excl.

Notify me when available

Check quantity

Manufacturer: Rebel

Product description: RB-30D Universal Meter Rebel

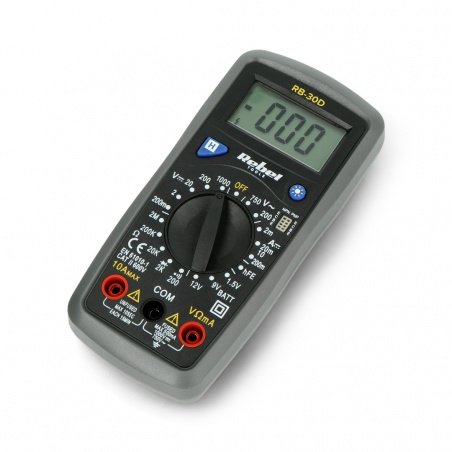

Universal meterforbasic measurementssuch as: DC voltage measurement, AC voltage measurement, DC current measurement, resistance measurement. It also has diode tester, continuity of circuit and battery tester functions. The meter is also equipped with a special connector that makes it possible to measure transistors. The measurements are displayed on a large, backlitLCD display. The device is equipped with a "freeze" function, so calledData HOLD. To adjust the measuring ranges the knob located in the middle of the device is used, the multiplexer can also automatically recognize the polarity, so it will display the"-"sign in case of its inversion. The device is powered by twoAAA batteriesincluded in the set.

W zestawie znajdują się również pasujące sondy pomiarowe.

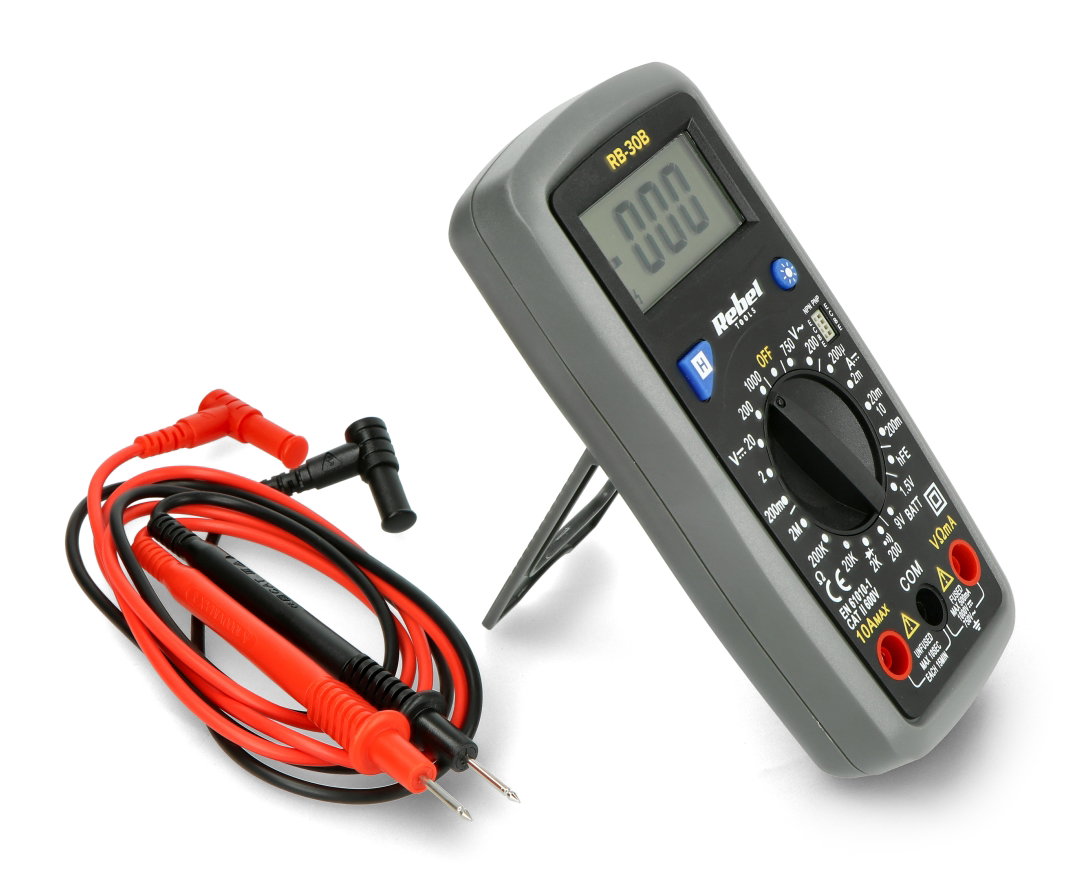

Matching measurement probes are also included.

Parameter	Range
AC voltage measurement	750 V (resolution: 1 V, accuracy: 2% + 10 digits) 200 V (resolution: 100 mV, accuracy: 2% + 10 digits)
DC voltage measurement	1000 V (resolution: 1 V, accuracy: 1% + 5 digits) 200 V (resolution: 100 mV, accuracy: 0.8% + 5 digits) 20 V (resolution: 10 mV, accuracy: 0.8% + 5 digits) 2 V (resolution: 1 mV, accuracy: 0.8% + 5 digits) 200 mV (resolution: 100 uV, accuracy: 0.5% + 3 digits)
Resistance measurement	2 MΩ (resolution: 1 kΩ, accuracy: 1% + 4 digits) 200 kΩ (resolution: 100 Ω, accuracy: 1% + 4 digits) 20 kΩ (resolution: 10 Ω, accuracy: 1% + 4 digits) 2 kΩ (resolution: 1 Ω, accuracy: 1% + 4 digits) 200 Ω (resolution: 0.1 Ω, accuracy: 1% + 10 digits)
DC current measurement	10 A (resolution: 1 mA, accuracy: 2% + 10 digits) 200 mA (resolution: 100 uA, accuracy: 2% + 2 digits) 20 mA (resolution: 10 uA, accuracy: 1.8% + 2 digits) 2 mA (resolution: 1 uA, accuracy: 1.8% + 2 digits)
Battery tester	Yes, 12 V (resolution: 10mV, internal resistance: 1.2 kΩ) 9 V (resolution: 10mV, internal resistance: 900 Ω) 1.5 V (resolution: 1 mV, internal resistance: 3 kΩ)
Continuity tester	Yes, up to 30 Ω
Diode tester	Yes
Transistor tester	Yes
Power supply	2 x AAA batteries (included)
Display	LCD 45 x 21 mm
Dimensions	160 x 76 x 32 mm
Weight	150 g

Useful links

User manual

Meter - DC voltage	yes
Meter - Diode tester	yes
Meter - Battery tester	yes
Meter - Frequency	no
Meter - AC voltage	yes
Meter - AC current	no
Meter - Capacitance	no
Meter - Auto Range	no
Meter - DC current	yes
Meter - Resistance	yes
Meter - Transistor tester	yes
Meter - sound	no
Meter - Inductance	no
Meter - Backlight	yes
Meter - Temperature	no
Meter - Data Hold	yes
Package width	11 cm
Package height	17 cm
Package depth	5 cm
Package weight	2.64 kg
