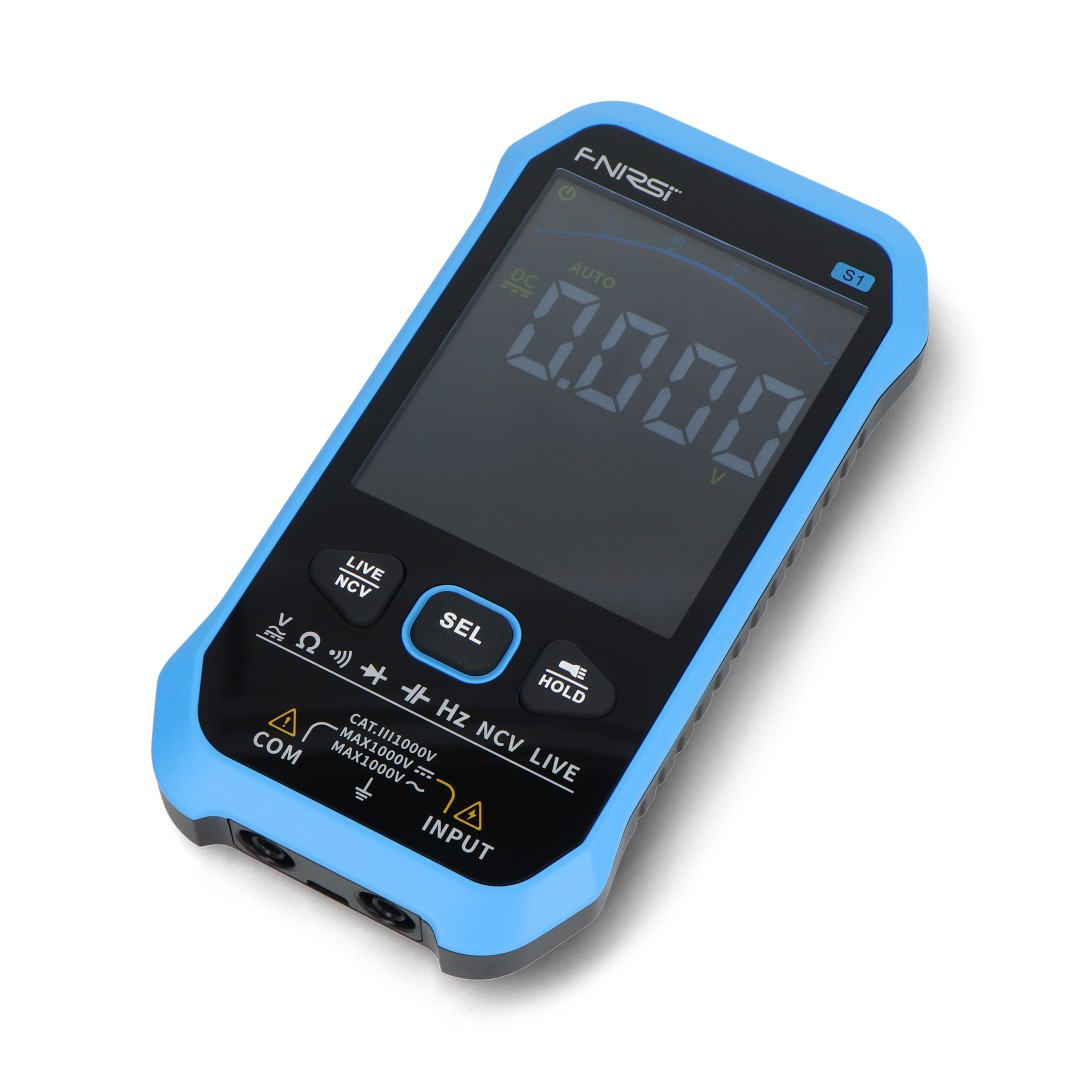

Product description: True RMS multimeter with NCV function - FNIRSI S1
The FNIRSI S1 digital multimeter is designed for quick and safe diagnostics of electrical installations and electronics. The device measures AC and DC voltage, resistance, frequency, and temperature , and also provides a continuity test with an audible signal . True RMS technology ensures reliable results even with irregular waveforms, which is important when working with switched-mode power supplies and controllers. The built-in NCV function with visual and audible indication allows voltage detection without contact with the conductor, while the phase and neutral conductor testing mode facilitates basic installation tests. The multimeter is powered by a 1000 mAh battery charged via USB Type-C , has an auto-off function, and a flashlight , which is useful for measurements in dimly lit areas.
True RMS multimeter with NCV function - FNIRSI S1.

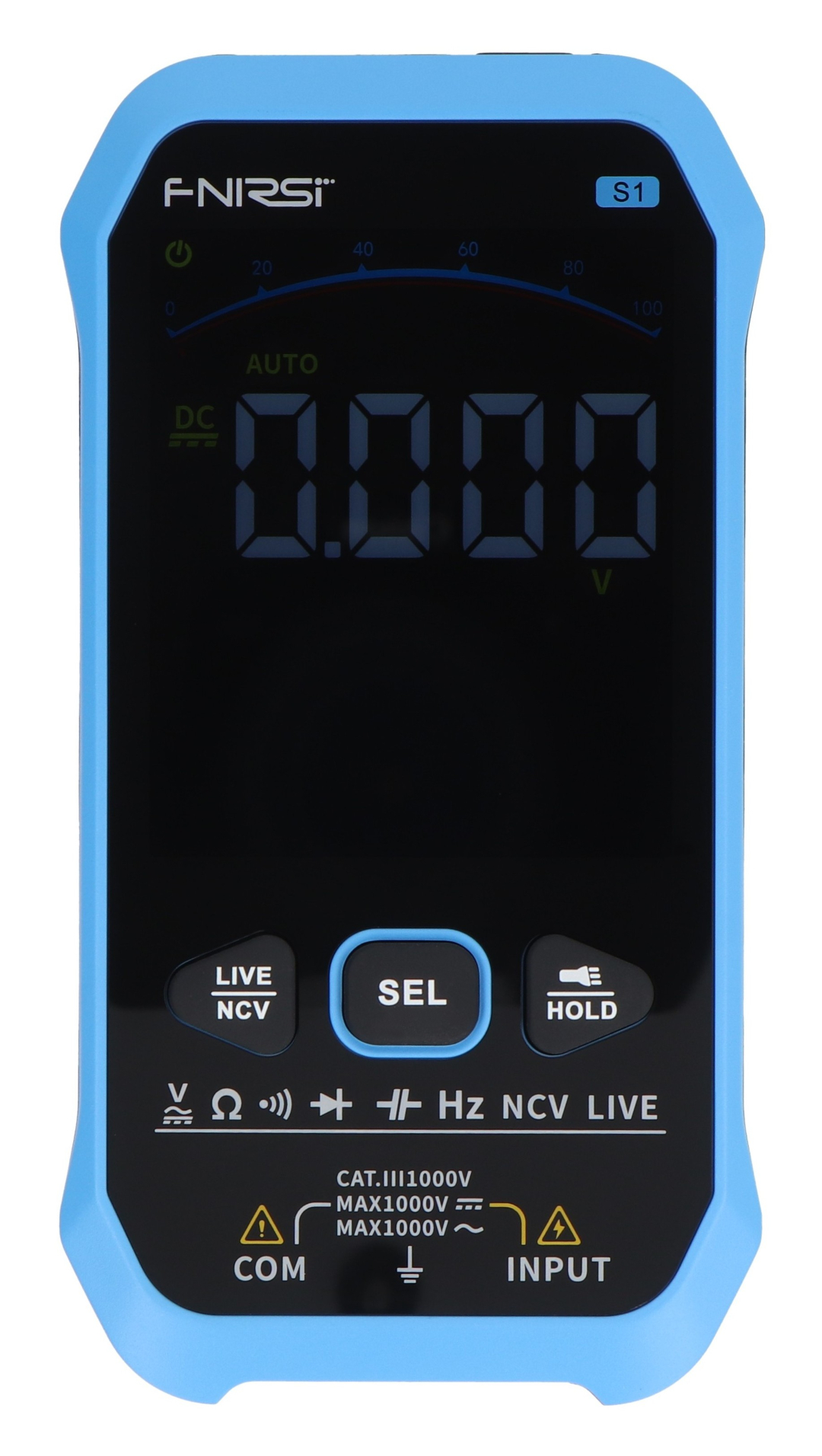

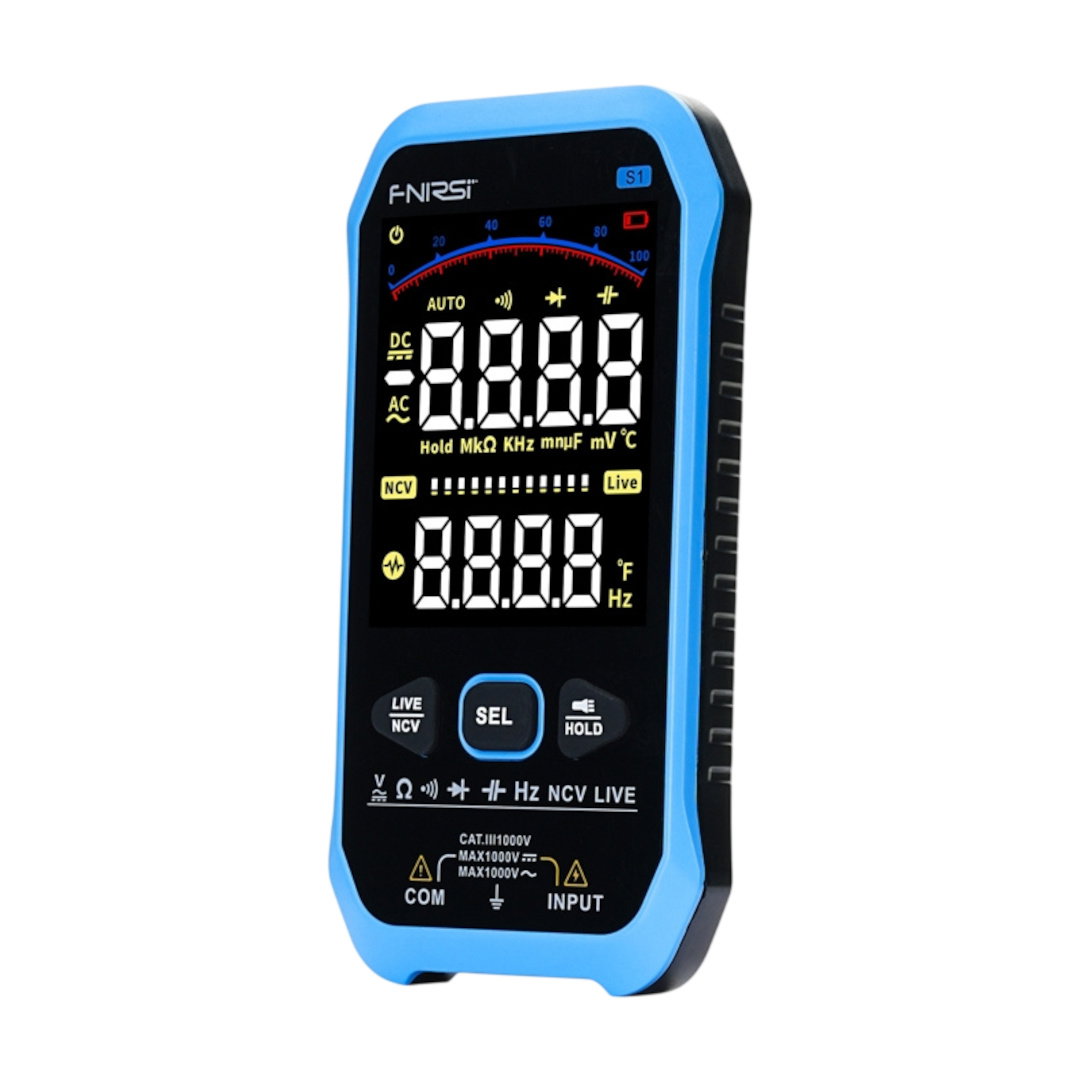

The VA HD color display ensures excellent visibility, even in low light conditions.
Main features of the FNIRSI S1 multimeter
- Large VA HD display : high-contrast color screen for clear reading
- True RMS : more accurate measurements of irregular signals
- Automatic identification : intelligent measurement type recognition and automatic range switching
- NCV : non-contact voltage detection with sound and light indication
- Smart Anti-Burn : protection against overload and burnout in case of incorrect operation
- Data Hold : freezes the result on the screen for convenient reading
- Flashlight : built-in lighting for working in dark places
- 1000 mAh battery : built-in power, charged via USB Type-C
- Phase and neutral test : quick identification of wires in the installation
Applications of the FNIRSI S1 digital multimeter
The FNIRSI S1 multimeter is a versatile measuring tool that 's perfect for both home workshops and professional service work . With features like True RMS, continuity testing, NCV voltage detection, and temperature measurement, the device allows you to quickly diagnose problems in electrical installations and electronic systems. The FNIRSI S1 can be used for, among other things:
- diagnostics and service of PCBs and consumer electronics
- measurements in home and workshop installations and quick cable tests
- repairs of household appliances, computers and mechanical devices
- basic diagnostics of automotive installations
- electrician and installer work, including NCV voltage detection
| Measurement parameters of the FNIRSI S1 multimeter | |||
|---|---|---|---|
| Measurement | Measuring range | Resolution | Accuracy |
| DC voltage | from 0 V to 10 V / from 10 V to 100 V / from 100 V to 1000 V / 1000 V | 0.001V/0.01V/0.1V/1V | ±(0.8% reading + 3 digits) / for 1000 V ±(1.2% reading + 3 digits) |
| AC voltage | from 0 V to 10 V / from 10 V to 100 V / from 100 V to 1000 V / 1000 V | 0.001V/0.01V/0.1V/1V | ±(0.8% reading + 3 digits) / for 1000 V ±(1.2% reading + 3 digits) |
| Resistance | from 0 Ω to 1000 Ω / from 1 kΩ to 100 kΩ / from 100 kΩ to 1000 kΩ / from 1 MΩ to 100 MΩ | 0.1 Ω / 0.01 kΩ / 0.1 kΩ / 0.01 MΩ | ±(0.8% of reading + 3 digits) / for highest range ±(1.2% of reading + 3 digits) |
| Circuit continuity | from 0 Ω to 100 Ω | 0.1 ohm | sound signal at resistance ≤ 50 Ω |
| Temperature | from -20°C to 0°C / from 1°C to 400°C / from 401°C to 1000°C | 1°C | ±(5% reading + 4 digits) / ±(1% reading + 3 digits) / ±(2% reading + 5 digits) |
| Capacity | from 0 nF to 10 nF / from 10 nF to 100 nF / from 100 nF to 1000 nF / from 1 µF to 10 µF / from 10 µF to 100 µF / from 100 µF to 1000 µF / from 1 mF to 10 mF | 0.001 nF / 0.01 nF / 0.1 nF / 0.001 µF / 0.01 µF / 0.1 µF / 0.001 mF | ±(4.5% reading + 5 digits) |
| Frequency | 0 Hz to 10 Hz / 10 Hz to 100 Hz / 100 Hz to 1000 Hz / 1 kHz to 10 kHz / 10 kHz to 100 kHz / 100 kHz to 1000 kHz / 1000 kHz to 10 MHz | 0.001 Hz / 0.01 Hz / 0.1 Hz / 0.001 kHz / 0.01 kHz / 0.1 kHz / 1 kHz | ±(0.1% reading + 3 digits) |
| Diode test | diode voltage drop measurement | 0.001V | test current approx. 1 mA / open circuit voltage approx. 3.2 V |

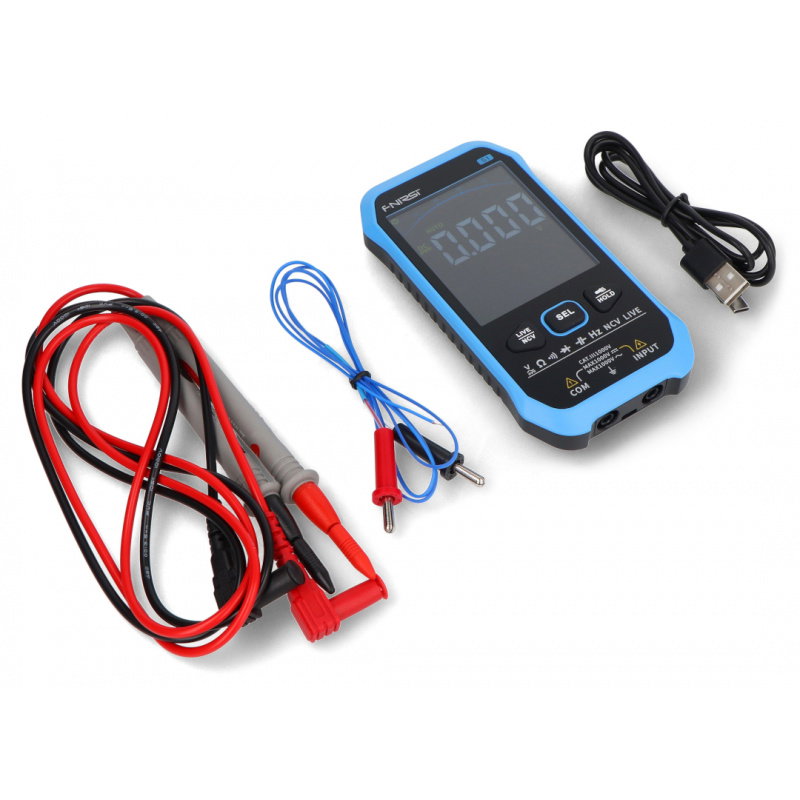

Elements included in the set.
Technical specifications of the meter
- Model: S1
- Maximum range: 9999
- Voltage measurement: AC / DC
- True RMS: Supported
- Continuity test: supported (beep)
- Resistance: Supported
- Frequency: Supported
- Valid value: 50 Hz to 1 kHz
- NCV (Non-Induced Voltage): Supported
- Live mode: supported
- Data Hold: Supported
- Analog: supported
- Low Voltage Indication: Supported
- Auto Power Off: Supported
- Flashlight: Supported
- Diodes: built-in
- Display: VA color screen
- Housing material: ABS
- Safety level: CAT III 1000 V
- Power supply: 1000 mAh lithium battery
- Charging: USB Type-C
- Dimensions: 143 x 75 x 19 mm
- Weight: 135 g

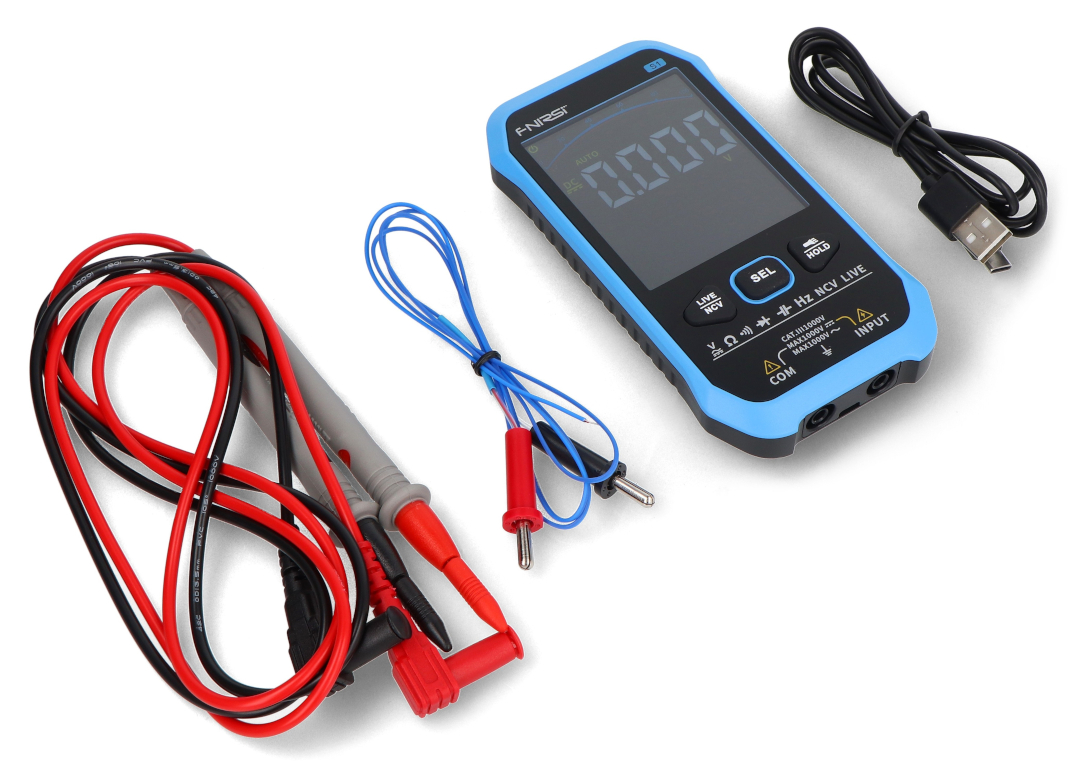

Contents of the set
- FNIRSI S1 digital multimeter
- Measuring cables
- Temperature measurement probe
- USB charging cable
- User manual
