Product description: Rebel RB-10B universal pocket meter
Universalmeasuring toolfor DC voltage, AC voltage, resistance, capacity and frequency. The meter is also equipped with many additional functions allowing, among others, to measure frequency and signal filling during voltage measurement, testing of diodes up to1.5 Vand circuit continuity up to30 Ω. To switch between the functions of the device, a knob located in the central part of the meter and the Select button are used. The product is also equipped with function buttons:REL- for averaging results,HOLD- to stop the measurement. On the right side there is space to store thepermanently connected probes. The whole is protected by a protective flap, which combined with the small size of the device makes it possible to take them anywhere. Rebel RB-10B meter is powered byCR2032batteriesin the device.

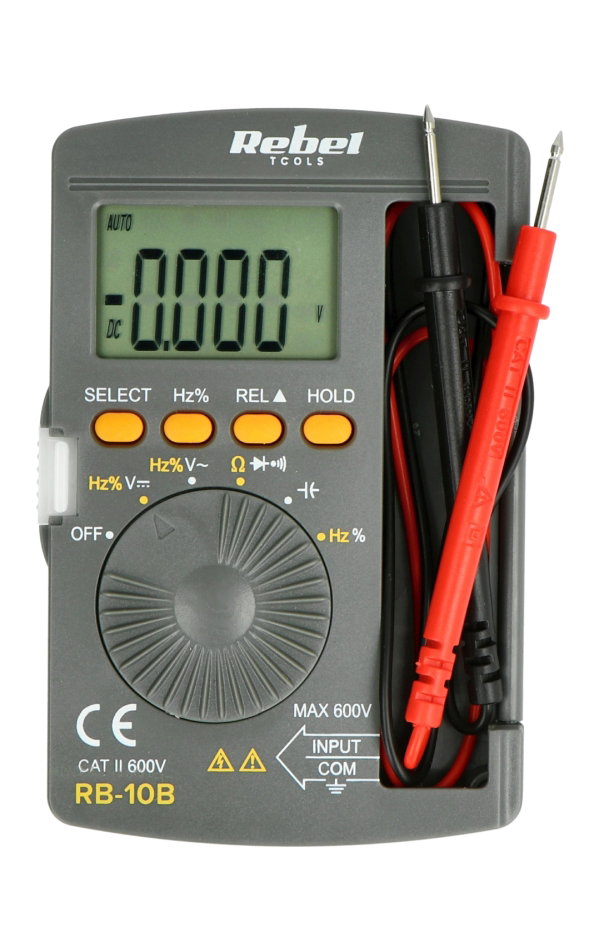

Rebel pocket meter.
Technical specification of the RB-10B meter
| Parameter | Scope |
|---|---|
| DC DC voltage | 400 mV / 4 V / 40 V / 400 V / 600 V |
| AC alternating voltage | 400 mV / 4 V / 40 V / 400 V / 600 V |
| Overload protection | 600 V (for 200 mV range: 250 V DC/AC) |
| Resistance | 400 Ω / 4 kΩ / 40 kΩ / 400 kΩ / 4 MΩ / 40 MΩ |
| Capacity | 40 nF / 400 nF / 4 µF / 40 µF / 1000 µF |
| Frequency | 5 Hz / 50 Hz / 5 kHz / 50 kHz / 500 kHz / 5 MHz |
| Temperature | 0°C to 40° with humidity below 80%. |
| Automatic range selection | Yes |
| Standby | No |
| Beacon | No |
| Circuit continuity tester | Yes, up to 30 Ω |
| Diode tester | Yes, up to 1.5 V |
| Battery tester | No |
| Data Hold function | Yes |
| Battery indicator | Yes |
| Backlighting | No |
| Dimensions | 115 x 76 x 17 mm |
| Power supply | battery CR2032 |
| Mass | 105 g |
