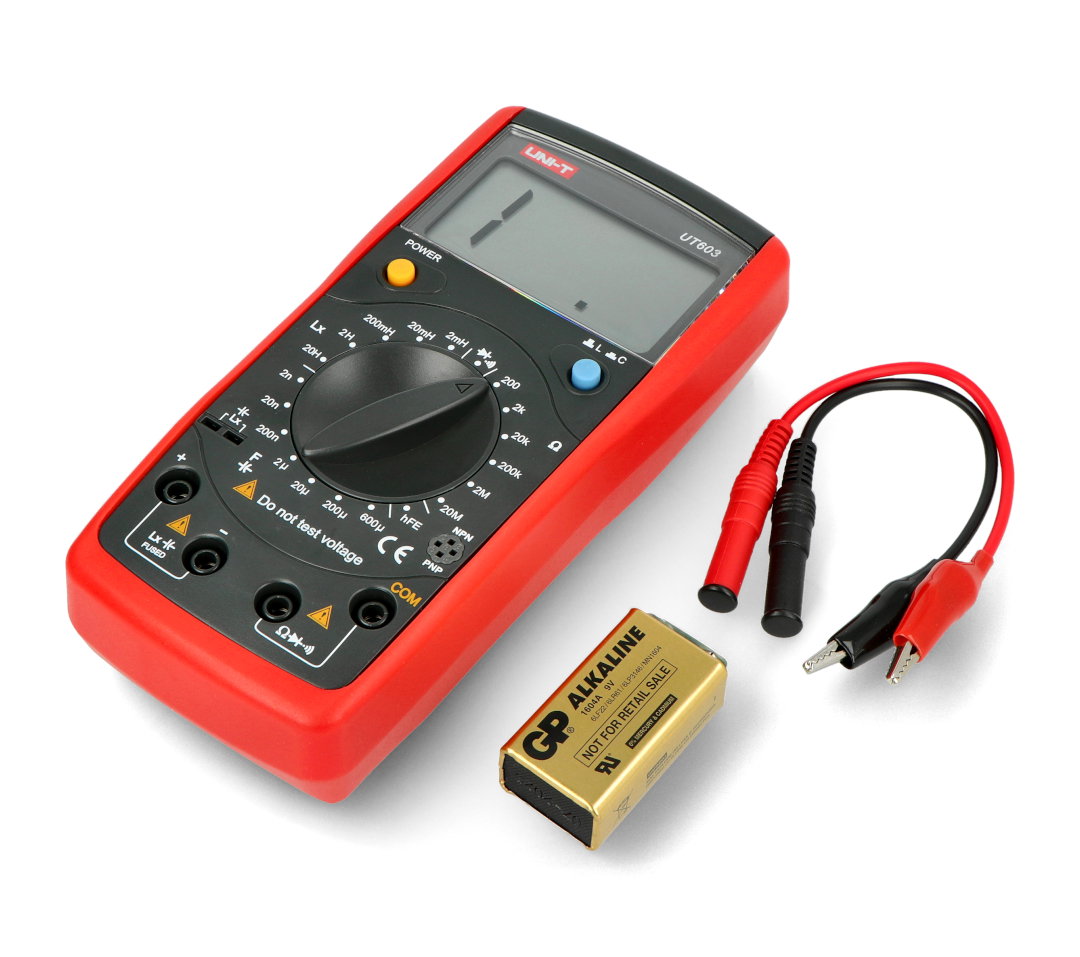

Product description: UNI-T UT603 RLC resistance, capacitance and inductance meter
Multimeterallows to measureresistance to 200 MΩ , capacitance to 600 µF and inductance to 200 H.You can also test diodes, transistors and check the continuity of the circuit. The meter is powered by a9 V batteryincluded in the set. The set also includes test leads with crocodile connectors. The meter does not measure voltage or other values.
Othermeasuring devicesare available in our shop's assortment.
UNI-T UT603 meter.| Specification UNI-T UT603 | |
|---|---|
| Capacity | 2 nF / 20 nF / 200 nF / 2 µF / 20 µF / 200 µF / 600 µF ± (1% + 5) |
| Inductance | 2 mH / 20 mH / 200 mH / 2 H / 20 H / 200 H ± (2% + 8) |
| Resistance | 200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ / 20 MΩ / 200 MΩ ± (0.8% + 1) |
| Diode tester | yes |
| Circuit continuity | yes |
| Transistor tester | yes |
| Changing measuring ranges | manual |
| Low battery indicator | yes |
| Maximum reading | 2000 |
| Power supply | 9 V (6F22) |
| Display size | 61 x 32 mm |
| Dimensions | 172 x 83 x 38 mm |
| Weight | 287,2 g |
| Accessories | 9 V battery and short test leads with crocodiles |
