LCR meter with ESR measurement - 100kHz - ZOYI ZT-DQ01

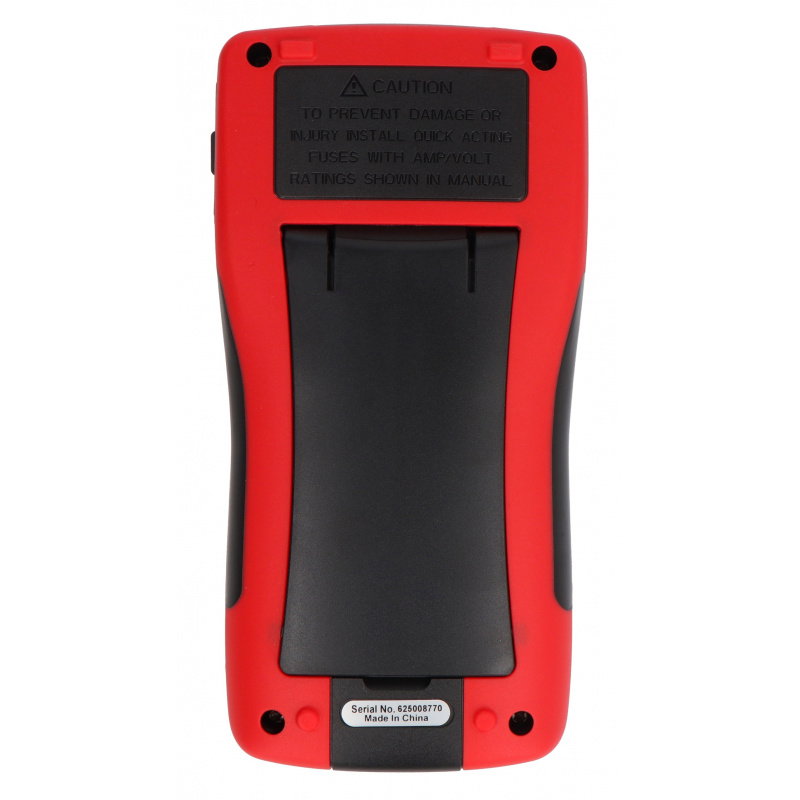

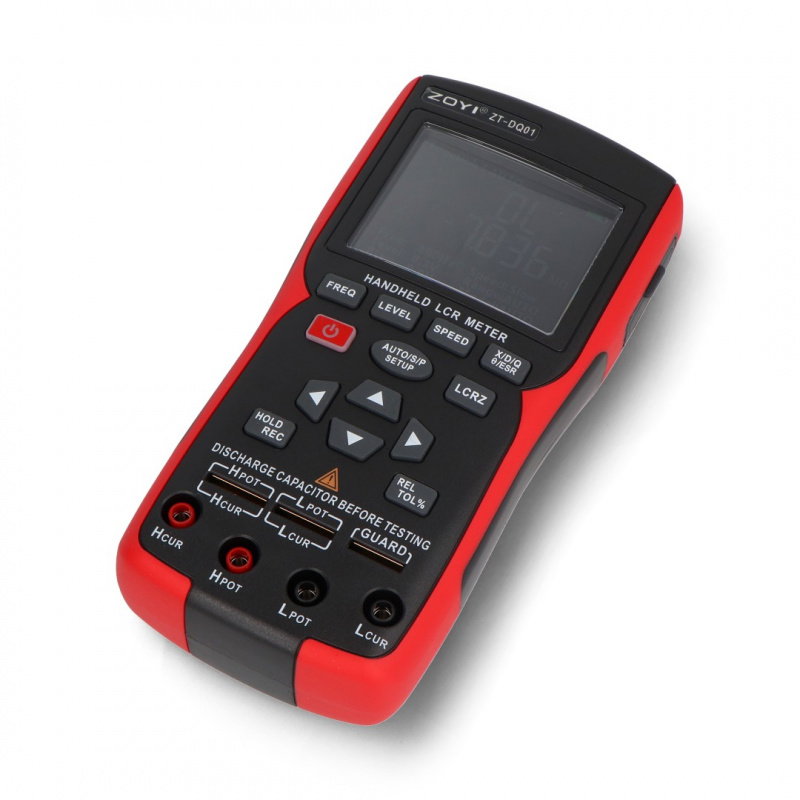

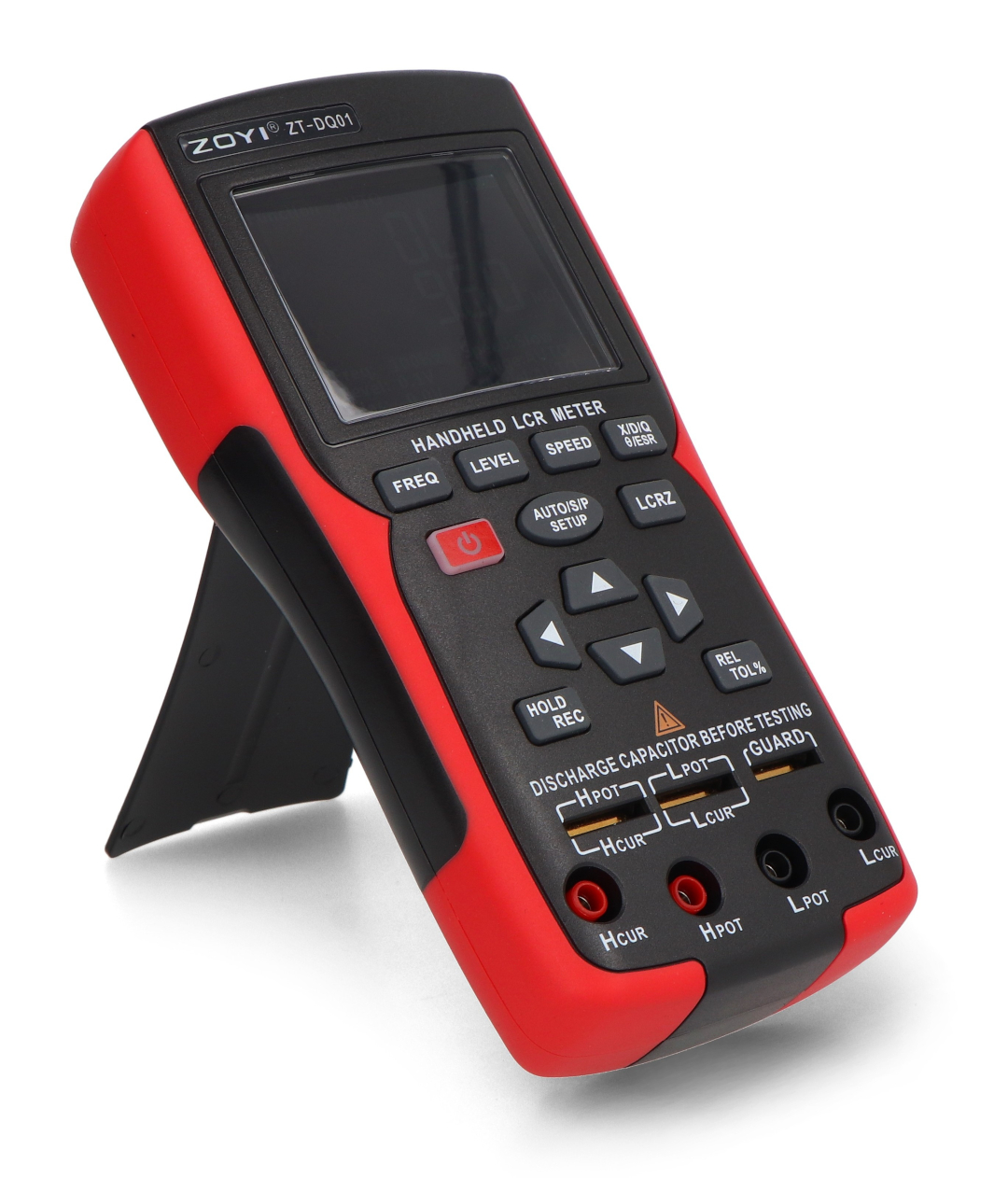

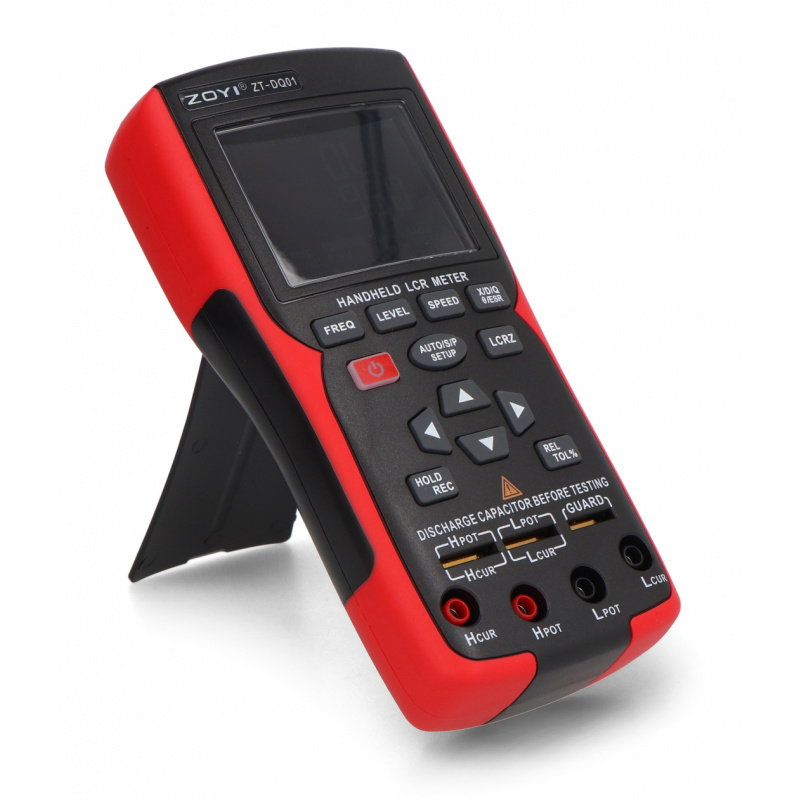

The ZOYI ZT-DQ01 is a precision handheld LCR meter designed for measuring resistance, capacitance, inductance, and impedance . It supports 4-wire Kelvin measurement , five test frequencies from 100 Hz to 100 kHz , and L, C, R, Z, X, D, Q, θ, and ESR parameters . It is equipped with a 2.8" color TFT screen, pass/fail tolerance function, result storage, and a 2000 mAh battery.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: LCR meter with ESR measurement - 100 kHz - ZOYI ZT-DQ01

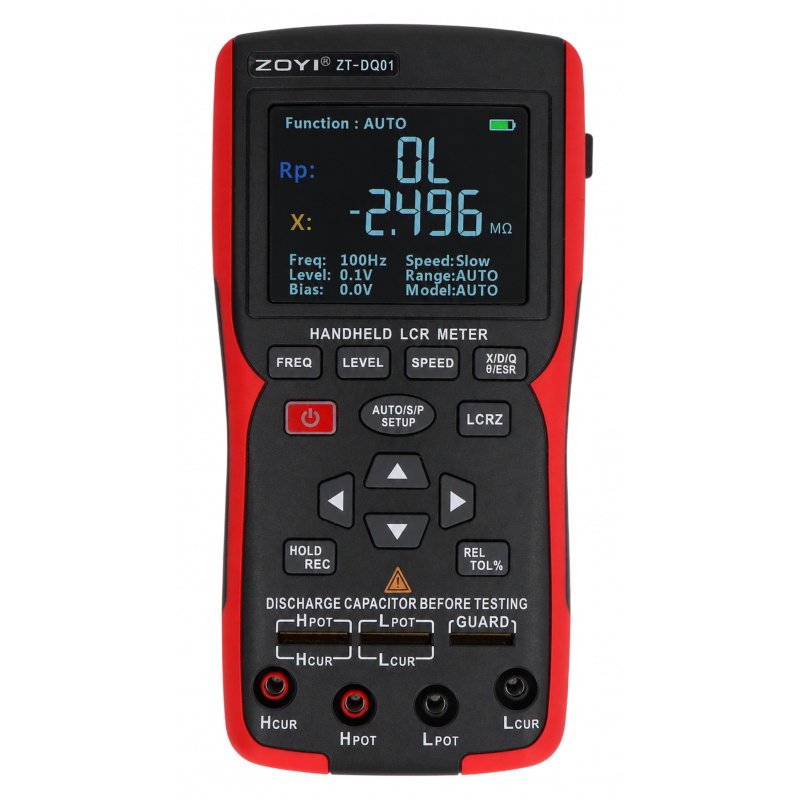

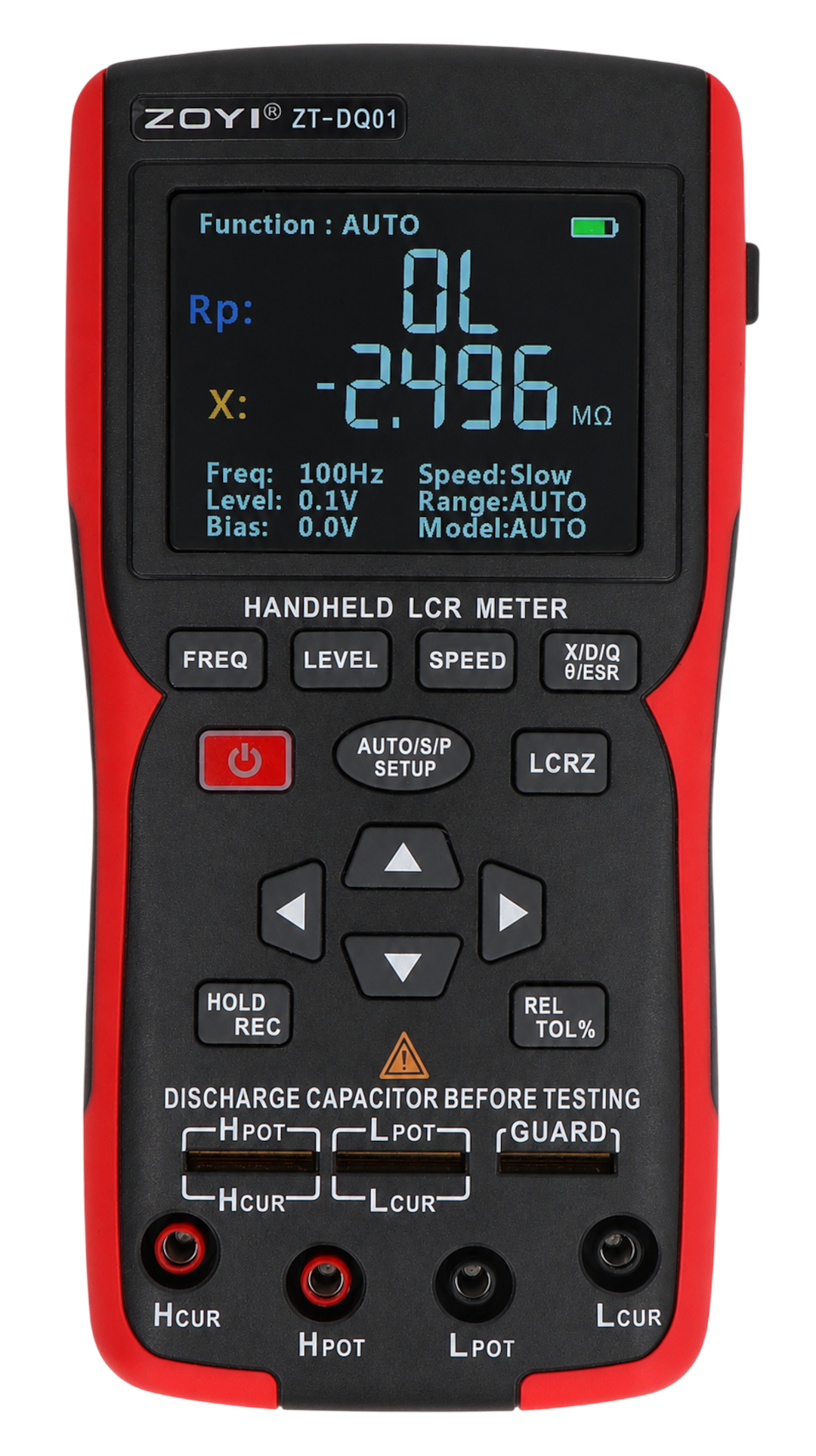

The ZOYI ZT-DQ01 is a handheld, precision LCR meter designed for testing resistors , capacitors , inductors, and other passive components. The device measures the basic parameters L, C, R, and Z , as well as additional parameters X, D, Q, θ, and ESR . The 4-wire Kelvin measurement system reduces the influence of lead and contact resistance, which is particularly important when measuring low-resistance components. The meter offers five test frequencies from 100 Hz to 100 kHz , three test voltage levels, and an adjustable measurement speed. Results are presented on a clear 2.8" color TFT display with a resolution of 320 x 240 px.
LCR meter with ESR measurement - 100 kHz - ZOYI ZT-DQ01.
The ZT-DQ01 meter is a portable, precise LCR bridge designed to measure resistance, capacitance, inductance and impedance.
Main features of the ZOYI ZT-DQ01 digital bridge
- LCR measurement : allows you to measure inductance, capacitance, resistance and impedance
- 4-wire Kelvin measurement : increases measurement accuracy by reducing the influence of wire and connection resistance
- Basic parameters : L, C, R and Z
- Additional parameters : X, D, Q, θ and ESR
- Five measurement frequencies : 100 Hz, 120 Hz, 1 kHz, 10 kHz and 100 kHz
- Three test levels : 0.1 V, 0.3 V and 0.6 V
- Adjustable measurement speed : slow, medium and fast mode
- Automatic component recognition : makes it easy to perform basic RLC component measurements
- Serial and Parallel Mode : Allows matching of the surrogate model to the element under test
- Electrolytic capacitor measurement : dedicated ECAP mode and ESR measurement option
- Tolerance function : automatic comparison of the result with the nominal value and presentation of the PASS or FAIL message
- Data Hold and Recording : Possibility to hold values and save measurement results
- Relative measurement REL : allows you to reset the reference value
- Communication with a computer : USB Type-C connector enables data transfer and supports the SCPI protocol
- User calibration : ability to calibrate the meter and restore factory data
- TFT color screen : 2.8" diagonal and 320 x 240 px resolution
- Battery power : built-in 2000 mAh lithium battery
- Auto-off : You can set the auto-off time or deactivate the function.
ZOYI ZT-DQ01 measurement accuracy
| Type of measurement | Range | 100Hz / 120Hz | 1 kHz | 10 kHz | 100 kHz |
|---|---|---|---|---|---|
| Capacity | from 1 mF to 100 mF | 5% ± 5 | 5% ± 5 | - | - |
| from 1 µF to 1 mF | 1% ± 5 | 1% ± 5 | - | - | |
| from 1 nF to 1 µF | 2% ± 5 | 0.5% ± 5 | 0.5% ± 5 | 1% ± 5 | |
| from 1 pF to 1 nF | - | 1.5% ± 5 | 2% ± 5 | 2% ± 5 | |
| Inductance | from 1 H to 100 H | 3% ± 5 | 3% ± 5 | - | - |
| from 1 mH to 1 H | 0.5% ± 5 | 0.5% ± 5 | - | - | |
| from 10 µH to 1 mH | 3% ± 5 | 0.5% ± 5 | 0.5% ± 5 | 1.5% ± 5 | |
| from 1 µH to 10 µH | - | 3% ± 5 | 3% ± 5 | 4% ± 5 | |
| Resistance | from 100 kΩ to 10 MΩ | 5% ± 5 | 3% ± 5 | - | - |
| from 1 kΩ to 100 kΩ | 0.4% ± 5 | 0.3% ± 5 | 0.3% ± 5 | 0.5% ± 5 | |
| from 1 Ω to 1 kΩ | 1.5% ± 5 | 0.3% ± 5 | 0.3% ± 5 | 0.5% ± 5 | |
| from 0.01 Ω to 1 Ω | 4% ± 5 | 3% ± 5 | 3% ± 5 | 5% ± 5 |
Technical specifications of the ZOYI ZT-DQ01 meter
- Type: Handheld Digital LCR Meter
- Measurement technique: 4-wire Kelvin measurement
- Display: 2.8" color TFT
- Display resolution: 320 x 240 px
- Main measurement parameters: L, C, R, Z
- Additional parameters: X, D, Q, θ, ESR
- Measurement modes: automatic, resistance, capacitance, inductance, impedance, electrolytic capacitor
- Fallback modes: serial, parallel, automatic
- Capacitance range: up to 100,000 µF
- Inductance range: up to 100 H
- Resistance range according to the accuracy table: 0.01 Ω to 10 MΩ
- Highest declared accuracy: 0.3%
- Test frequencies: 100 Hz, 120 Hz, 1 kHz, 10 kHz, 100 kHz
- Test voltage levels: 0.1V, 0.3V, 0.6V
- Measurement speed: 1 measurement/s, 1 measurement/2 s or 1 measurement/4 s
- Output impedance: 100 Ω
- Range selection: automatic or manual
- Manual ranges: 100 Ω, 1 kΩ, 10 kΩ, 100 kΩ
- Data Hold: Yes
- Results recording: yes
- Relative measurement REL: yes
- Tolerance function: PASS / FAIL
- Communication with computer: USB Type-C, SCPI protocol
- Calibration: short circuit, open circuit and resistance values from 10 mΩ to 10 MΩ
- Brightness adjustment: 25%, 50%, 75%, 100%
- Sound signal: on/off
- Auto power off: 15 min, 30 min, 45 min, 60 min or off
- Battery: lithium, 2000 mAh
- Charging: USB Type-C, 5V
- Declared working time: up to 13 hours
- Housing material: ABS + TPE
- Operating temperature: 0°C to 40°C
- Operating humidity: less than 75%
- Storage temperature: -20°C to 60°C
- Storage humidity: less than 80%
- Dimensions: 177 x 89 x 40 mm
- Weight: 345 g without battery

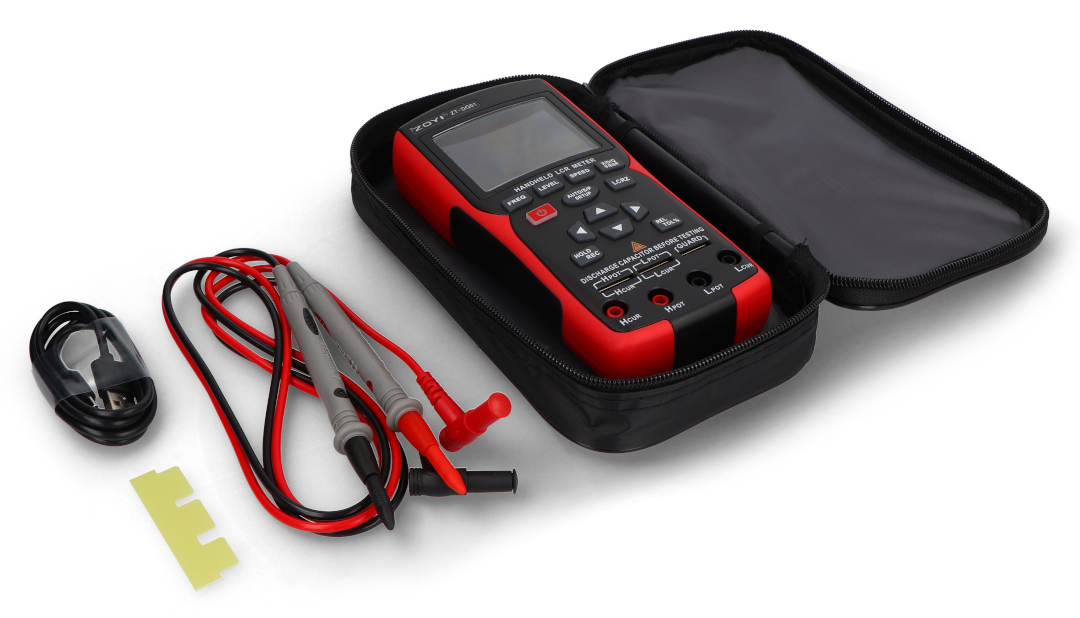

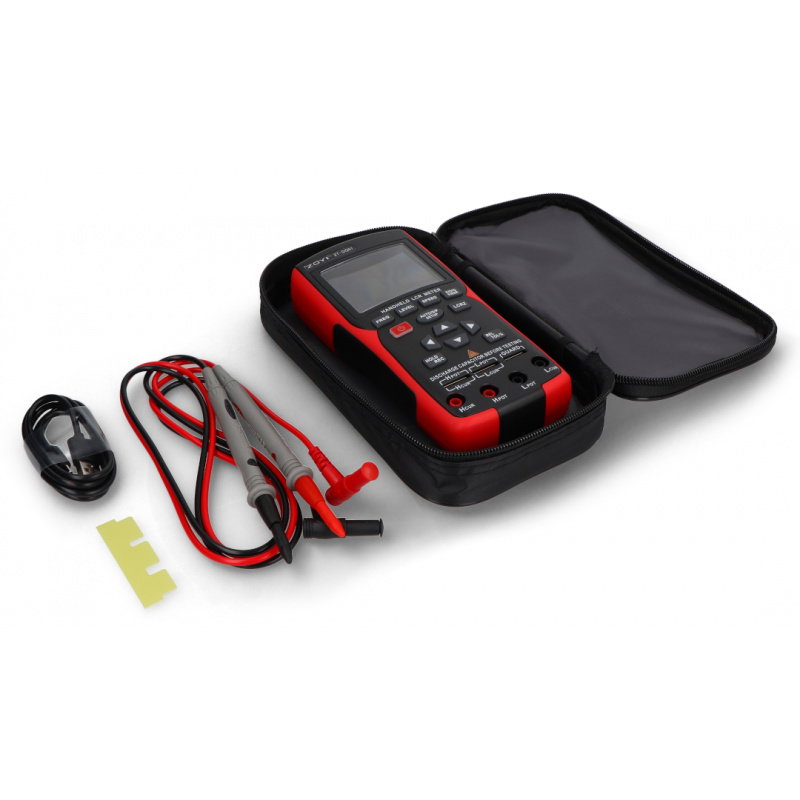

Contents of the set
- 1x ZOYI ZT-DQ01 LCR Meter
- 1x Set of test leads
- 1x Socket short circuit calibration board
- 1x USB cable
- 1x Case
Useful links
| Name | Value |
|---|---|
| Meter - DC voltage | no |
| Meter - Diode tester | no |
| Meter - Battery tester | yes |
| Meter - Frequency | no |
| Meter - AC voltage | no |
| Meter - AC current | no |
| Meter - Capacitance | yes |
| Meter - Auto Range | yes |
| Meter - DC current | no |
| Meter - Resistance | yes |
| Meter - Transistor tester | no |
| Meter - sound | yes |
| Meter - Inductance | yes |
| Meter - Backlight | yes |
| Meter - Temperature | no |
| Meter - Data Hold | yes |
| Width | 23 cm |
| Height | 14 cm |
| Depth | 7 cm |
| Weight | 0.608 kg |
