Product description: LCR meter - measuring tweezers for SMD components - ZOYI ZT-MD1
The ZOYI ZT-MD1 is a portable LCR meter in the form of a measuring tweezers that facilitates the diagnosis of small electronic components, including SMD components. The device automatically identifies and measures resistance, capacitance, and inductance , and also supports diode and continuity testing. The measurement range is 10 mΩ to 10 MΩ for resistance, 1 pF to 20 mF for capacitance, and 1 µH to 60 H for inductance . The meter allows you to select a test frequency of 100 Hz, 1 kHz, or 10 kHz and a test voltage of 0.1 V, 0.3 V, or 0.6 V. A clear OLED display presents measurement results and parameters, and the rotatable screen orientation facilitates reading during operation. The built-in 3.7 V Li-Po battery with a capacity of 400 mAh is charged via a USB Type-C port.

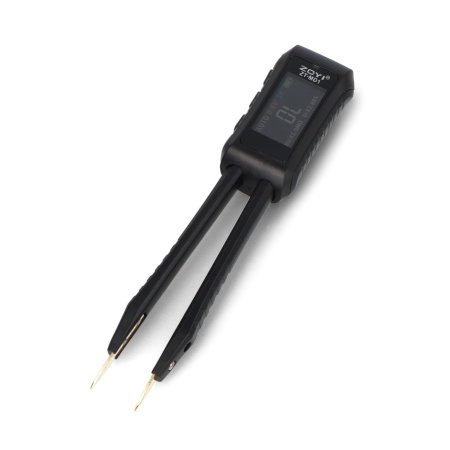

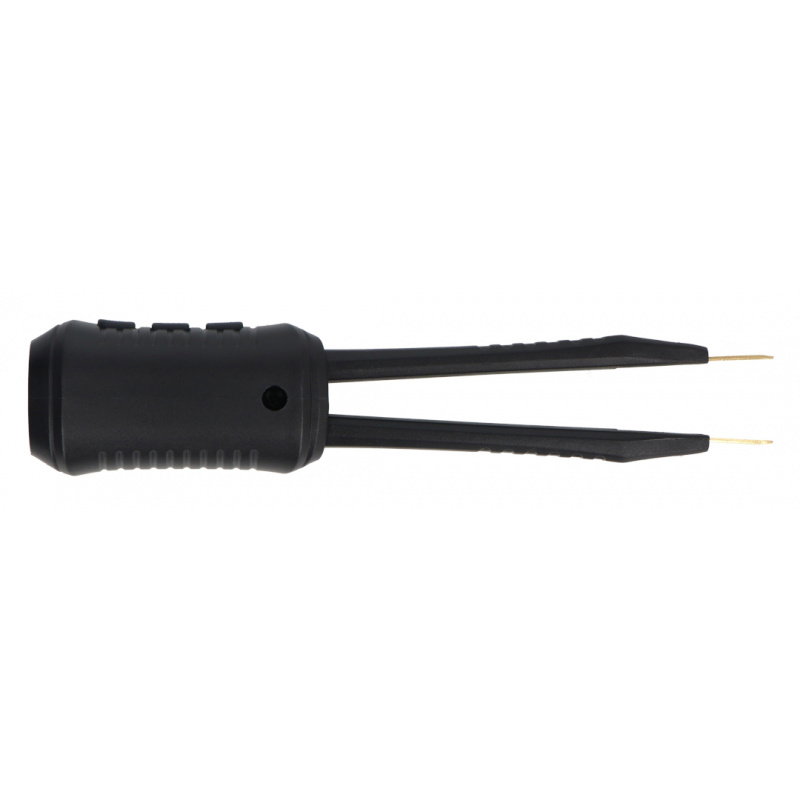

LCR meter - measuring tweezers for SMD components - ZOYI ZT-MD1.

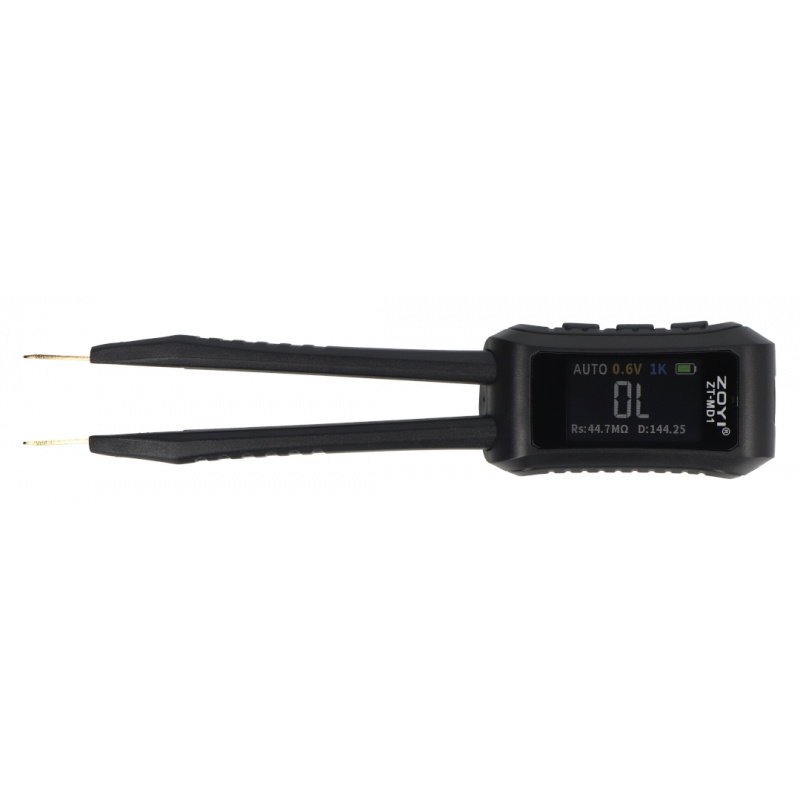

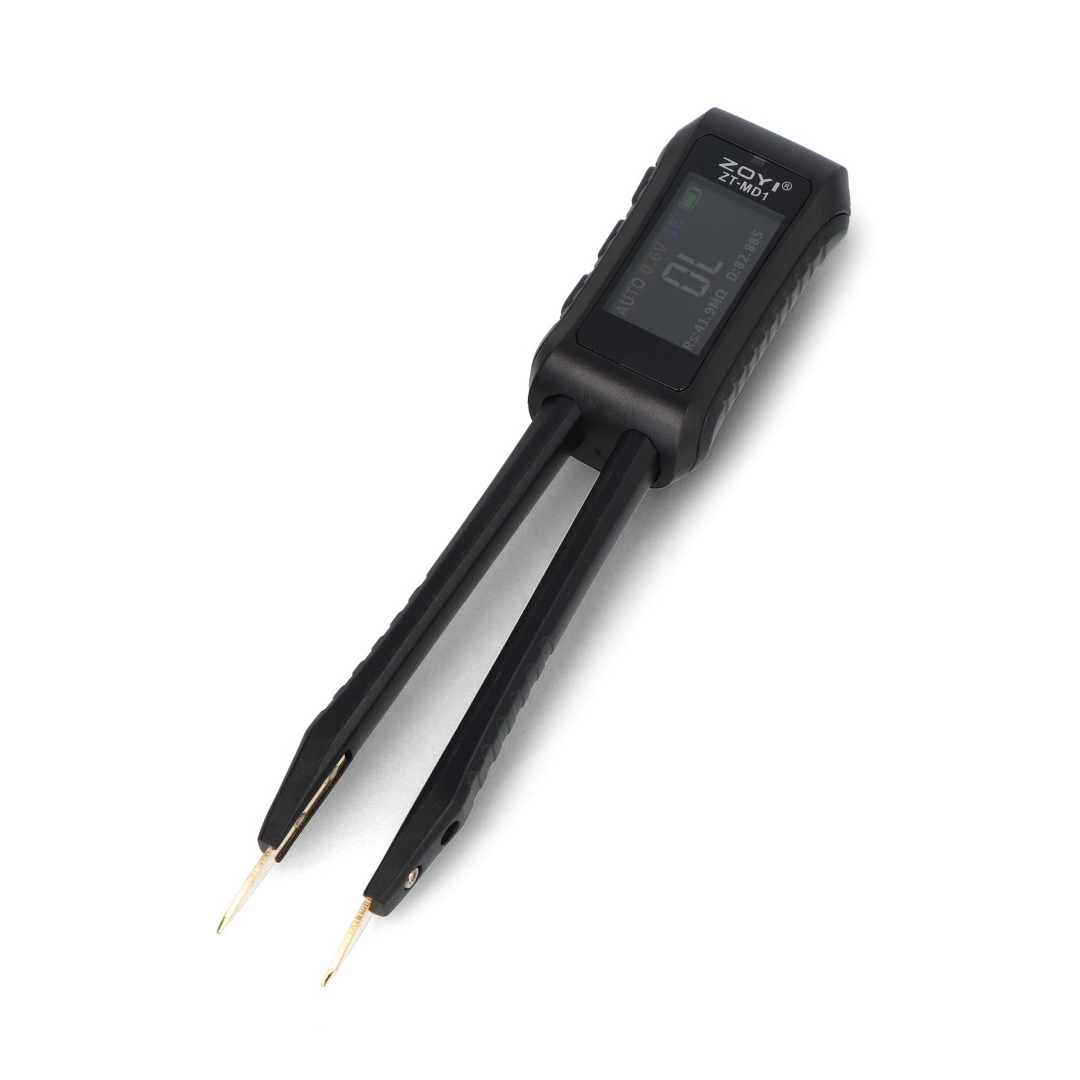

The OLED display clearly presents measurement results.
Main features of the ZOYI ZT-MD1 measuring tweezers
- Tweezers design : allows for convenient gripping and direct measurement of small electronic components, including SMD components
- LCR measurement : supports resistance, capacitance and inductance measurement
- Automatic Identification : AUTO mode makes it easy to recognize and measure basic RLC elements
- Wide measurement ranges : resistance from 10 mΩ to 10 MΩ, capacitance from 1 pF to 20 mF and inductance from 1 µH to 60 H in dedicated measurement modes
- Adjustable test frequency : selectable 100 Hz, 1 kHz or 10 kHz
- Adjustable measurement voltage : available values: 0.1 V, 0.3 V and 0.6 V
- Additional LCR parameters : the device presents the parameters L, C, R, D, Q, Rs, Z and X
- Diode and Continuity Test : Additional modes expand the meter's diagnostic capabilities.
- Color OLED display : provides a clear presentation of measurement values and settings
- Change screen orientation : ability to set the display orientation to left or right
- User Calibration : Supports 0Ω to 10MΩ and OPEN calibration, as well as factory reset
- Replaceable measuring tips : gold-plated tweezers tips can be replaced if worn or damaged
- Built-in battery : 3.7 V Li-Pol battery with a capacity of 400 mAh enables mobile operation without a permanent power connection

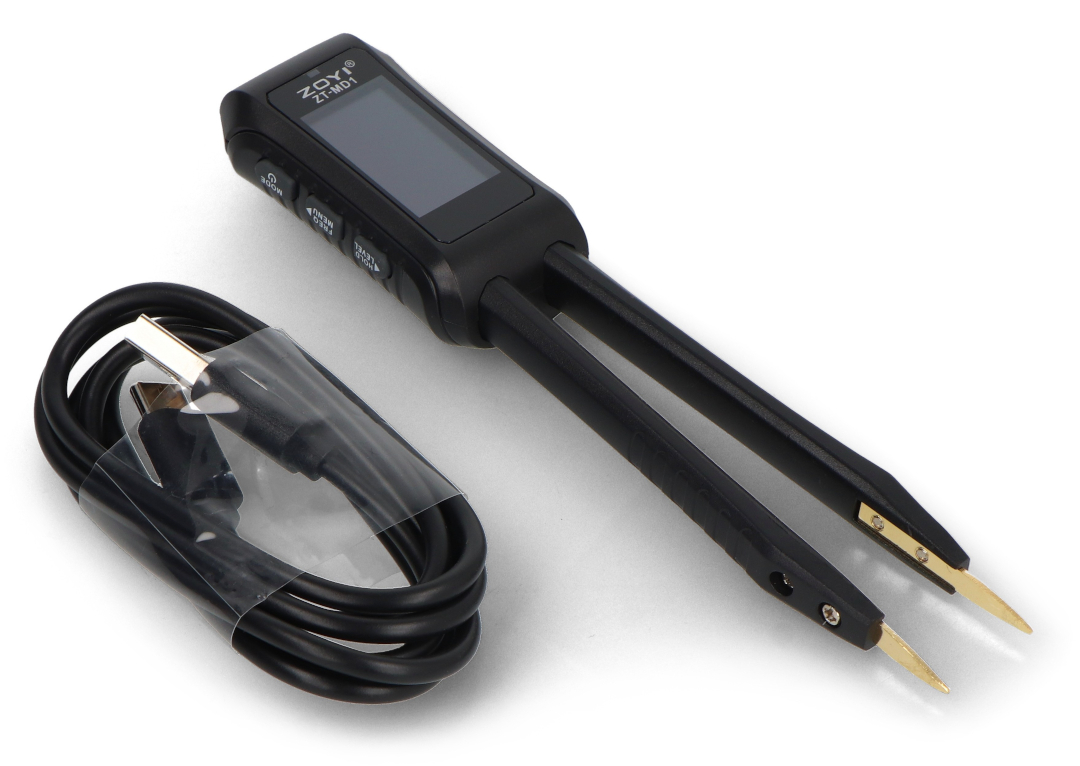

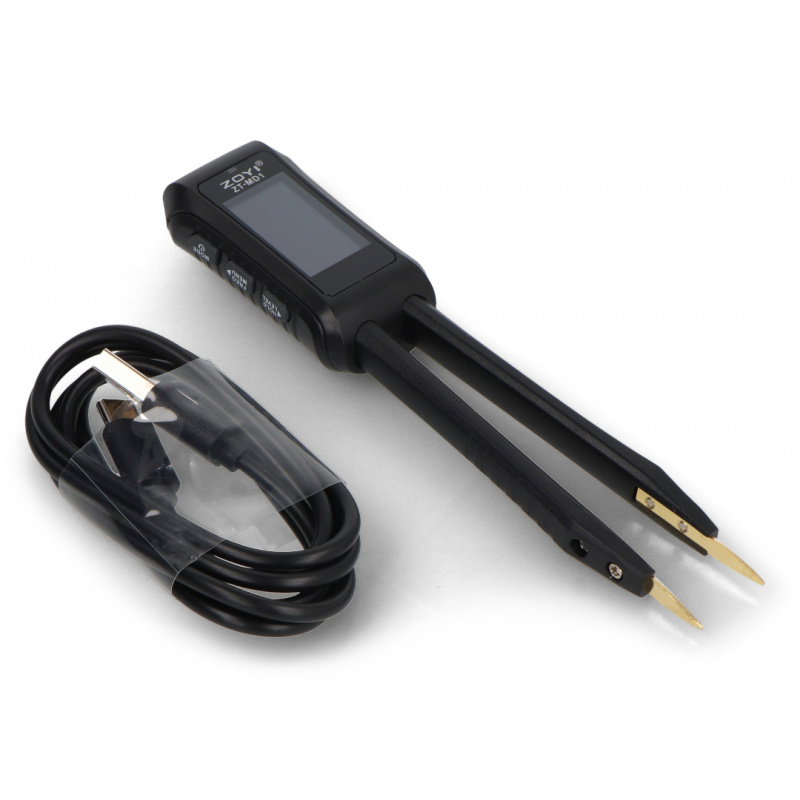

- USB Type C : the connector is used to charge the battery and communicate with the computer during software updates
| ZOYI ZT-MD1 measurement parameters | |||||
|---|---|---|---|---|---|
| Function | Range | Accuracy at 100 Hz | Accuracy at 1 kHz | Accuracy at 10 kHz | Measuring range |
| Resistance | from 1 MΩ to 10 MΩ | 5% ± 5 | 5% ± 5 | - | Auto mode: 10 mΩ to 10 MΩ Resistance mode: 10 mΩ to 10 MΩ |
| from 1 kΩ to 1 MΩ | 1% ± 5 | 0.5% ± 5 | 1% ± 5 | ||
| from 1 Ω to 1 kΩ | 1% ± 5 | 0.5% ± 5 | 0.5% ± 5 | ||
| from 10 mΩ to 1 Ω | 3% ± 5 | 3% ± 5 | 3% ± 5 | ||
| Capacity | from 1 mF to 20 mF | 5% ± 5 | 5% ± 5 | - | Auto mode: 50 pF to 5 mF Capacitance mode: 1 pF to 20 mF |
| from 1 µF to 1 mF | 2% ± 5 | 2% ± 5 | 2% ± 5 | ||
| from 1 nF to 1 µF | 2% ± 5 | 0.5% ± 5 | 0.5% ± 5 | ||
| from 1 pF to 1 nF | - | 5% ± 5 | 5% ± 5 | ||
| Inductance | from 1 H to 60 H | 5% ± 5 | 5% ± 5 | - | Automatic mode: from 5 µH to 60 H Inductance mode: 1 µH to 60 H |
| from 1 mH to 1 H | 2% ± 5 | 2% ± 5 | 2% ± 5 | ||
| from 10 µH to 1 mH | 2% ± 5 | 0.5% ± 5 | 0.5% ± 5 | ||
| from 1 µH to 10 µH | - | 5% ± 5 | 5% ± 5 | ||
| Parameters | L, C, R, D, Q, Rs, Z, X | ||||
| Modes | automatic, resistance, capacitance, inductance, diode test, continuity test | ||||
| Test frequencies | 100 Hz, 1 kHz, 10 kHz | ||||
| Measuring voltages | 0.1V, 0.3V, 0.6V | ||||
Technical specifications of the ZOYI ZT-MD1 meter
- Type: Digital LCR Tweezers Meter
- Display: OLED
- Range selection: automatic
- Measurement refresh rate: 1 measurement/s
- Hold function: yes
- Measurement modes: AUTO, resistance, capacitance, inductance, diode, continuity
- Resistance measurement range: 10 mΩ to 10 MΩ
- Capacitance measurement range: 1 pF to 20 mF
- Inductance measurement range: 1 µH to 60 H
- Diode forward voltage measurement: 0.1 V to 0.6 V, approximate value
- Test frequencies: 100 Hz, 1 kHz, 10 kHz
- Measurement voltages: 0.1 V, 0.3 V, 0.6 V
- Supported parameters: L, C, R, D, Q, Rs, Z, X
- Calibration: 0 Ω to 10 MΩ and OPEN
- Factory reset: yes
- Software update: yes, via USB Type-C
- Screen orientation: left or right
- Volume control: 0% to 100%
- Backlight brightness adjustment: from 10% to 100%
- Auto power off: off or from 5 min to 120 min
- Low battery indication: yes
- Battery: Li-Pol 3.7 V, 400 mAh
- Charging: USB Type-C, 5V
- Housing material: ABS
- Operating temperature: 0°C to 40°C
- Operating humidity: less than 75%
- Storage temperature: -20°C to 60°C
- Storage humidity: less than 80%
- Dimensions: 146 x 30 x 18 mm
- Weight: 37 g

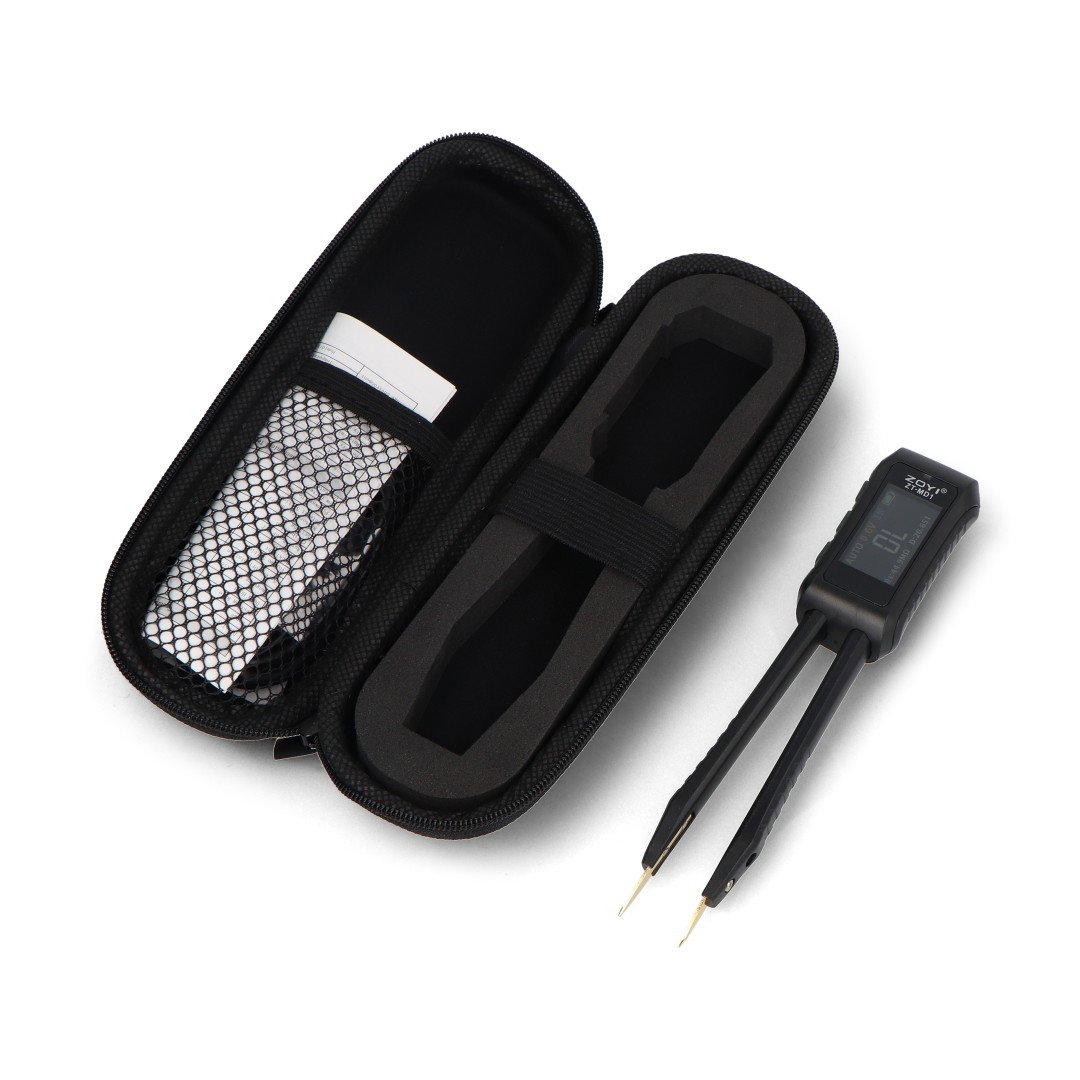

The meter comes with a case that allows for convenient transport.
