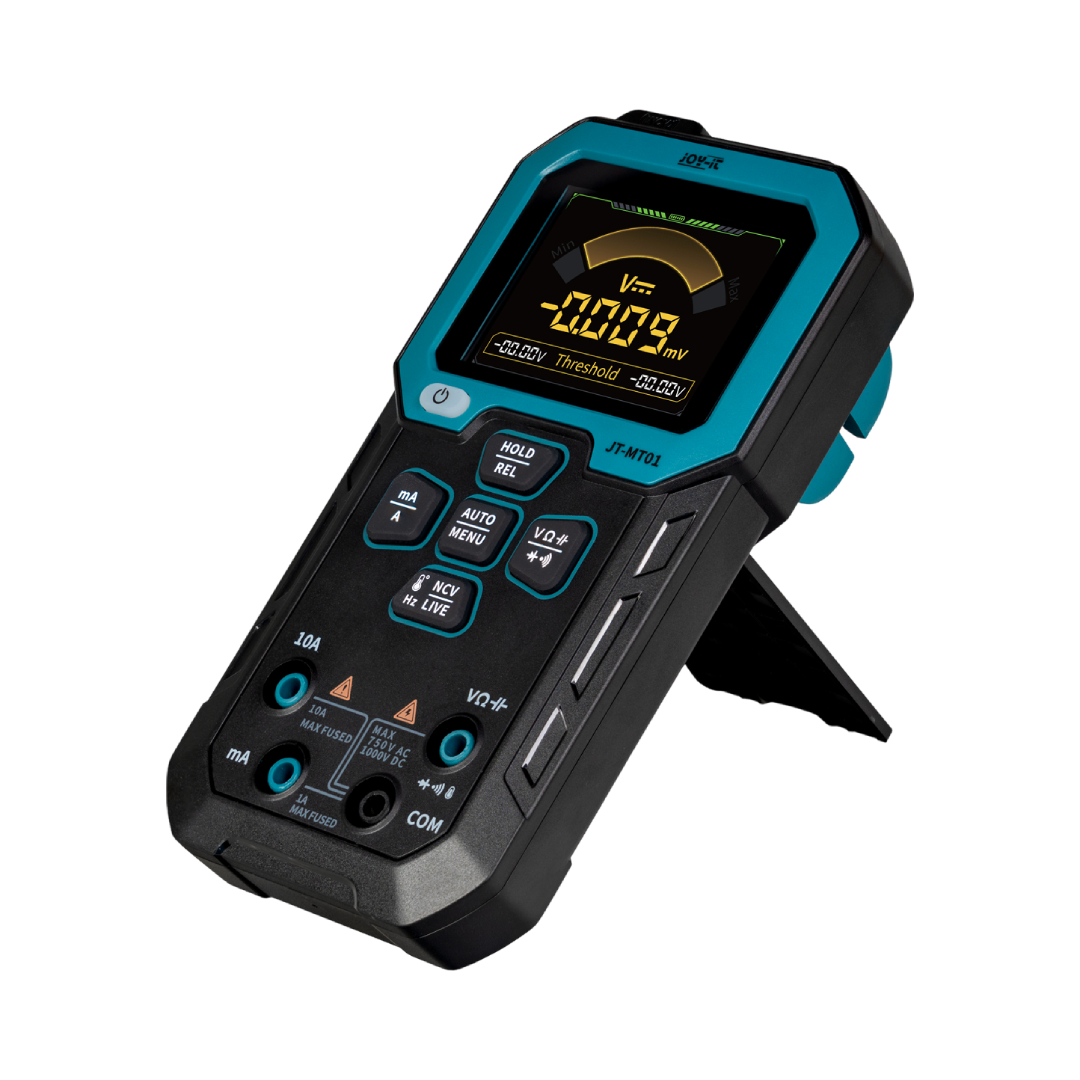

Product description: Joy-IT MT01 universal meter
MT01 is a modern multimeter designed for demanding users - both professionals and DIY enthusiasts. The device allows you to measure a wide range of electrical parameters: AC/DC voltage, current, resistance, capacitance, frequency and temperature. The integrated NCV function (non-contact voltage detection) allows you to quickly locate live wires without the need for physical contact with the wire. The MT01 multimeter features a large, clear 2.4'' TFT screen and a convenient user interface with three operating modes: normal , recording mode and monitoring with threshold alarm . The internal memory allows you to save up to 8 sets of measurement data . The included foldable stand and probe holder on the back of the housing make everyday work easier. The device is powered by a 1500 mAh battery, charged via USB Type-C , and its compact size and low weight make it an exceptionally mobile measurement solution.
Joy-IT MT01 universal meter.
MT01 is a modern multimeter designed for demanding users - both professionals and DIY enthusiasts.
Special Features
- Wide range of measurements: voltage, current, resistance, capacitance, frequency, temperature
- NCV function: non-contact detection of voltage in wires
- 2.4'' TFT display: clear screen with a resolution of 240 x 320 px
- Three working modes: normal, data recording, monitoring with alarm
- Internal memory: saves up to 8 measurements
- Integrated stand and probe holder: comfortable work in various conditions
- 1500mAh battery: powered by USB Type-C
Technical specification of the meter
- Measuring voltage: up to 999.9 V DC / 750 V AC
- Current: up to 9,999 A (AC/DC)
- Resistance: up to 99.99 MΩ
- Capacity: up to 99.99 mF
- Frequency: up to 9.999 MHz
- Measurement temperature:
- probe: -50°C to 300°C
- device: -55°C to 1300°C
- Accuracies:
- DC voltage: ± (0.5% + 3 digits)
- AC voltage: ± (1% + 3 digits)
- DC current: ± (1.2% + 3 digits)
- AC current: ± (1.5% + 3 digits)
- Resistance: up to 9.999 MΩ: ± (0.5% + 3 digits), above: ± (1.5% + 3 digits)
- frequency: ± (0.1% + 2 digits)
- Capacitance: up to 999.9 μF: ± (2% + 5 digits), above: ± (5% + 20 digits)
- temperature: ± (2.5% + 5 digits)
- Power supply: 1500 mAh battery (USB Type-C charging, 5V/1A)
- Display: TFT 2.4'' (240 x 320 px)
- Input fuses: 1A, 10A
- Operating conditions: 0°C to 40°C, humidity <75%
- Dimensions: 152 x 80 x 38 mm
- Weight: 178 g

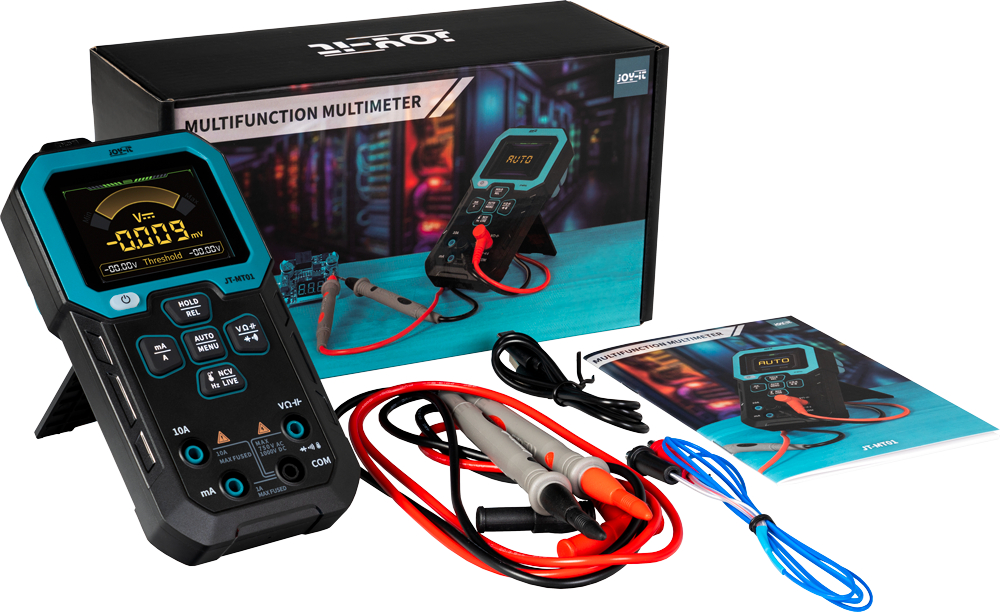

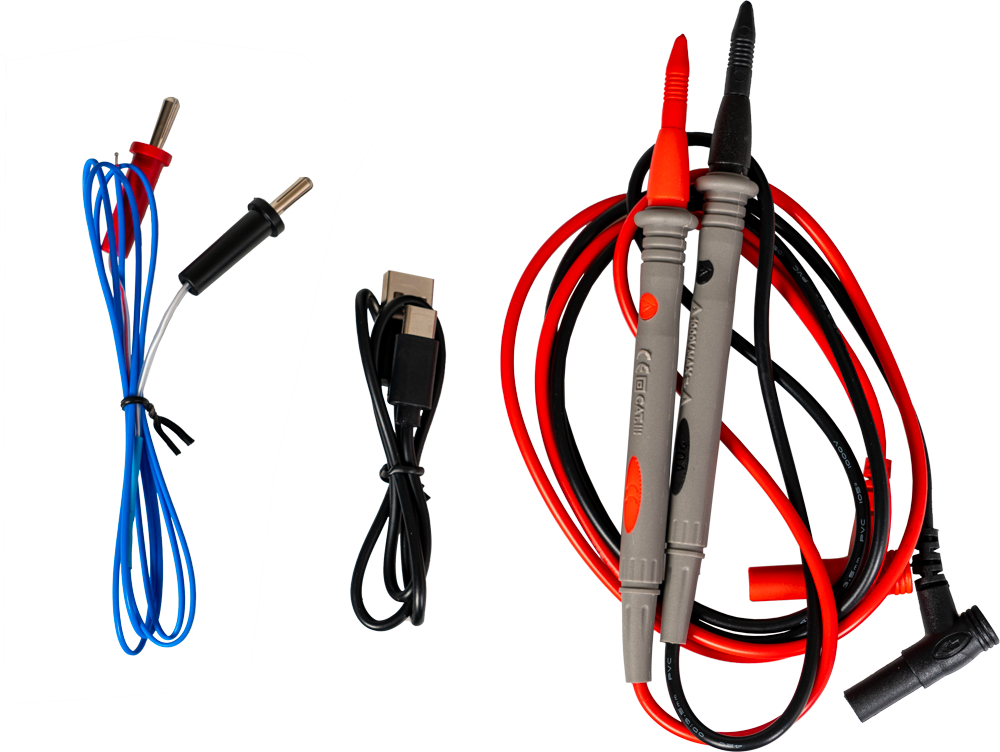

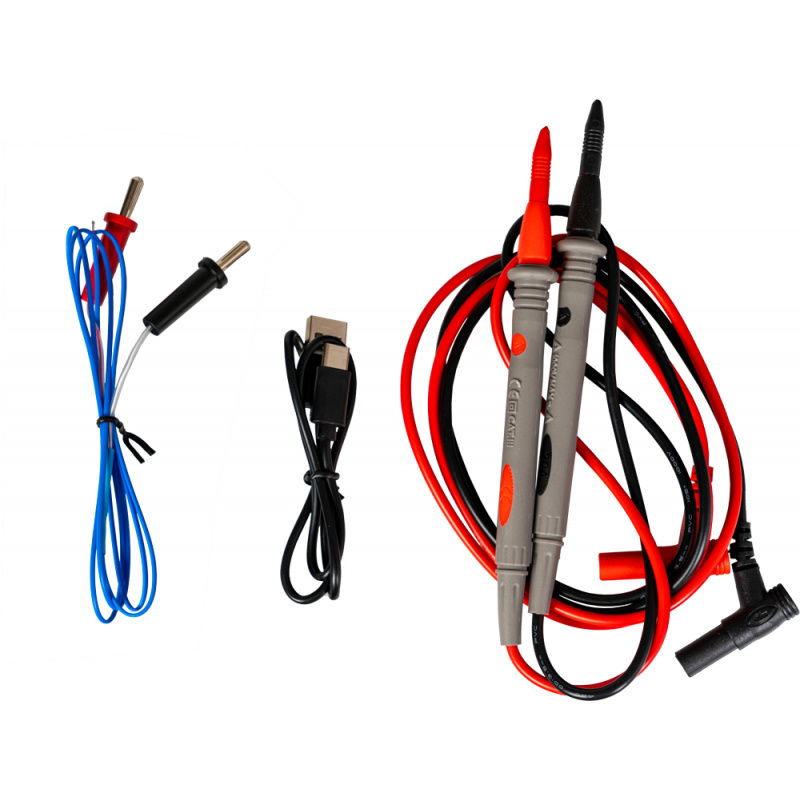

Kit Contents
- 1x JT-MT01 Multimeter
- 1x USB Type-C Cable
- 2x Measuring probes
- 1x Temperature probe
- 1x User Manual

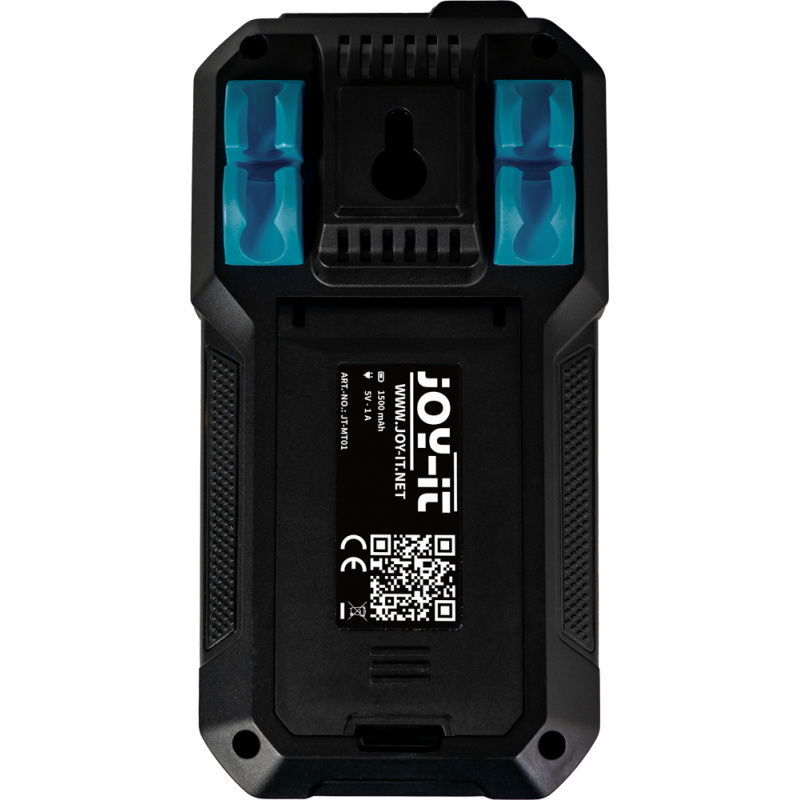

The included foldable stand and probe holder on the back of the housing make everyday work easier.
