Product description: True RMS universal meter - ZOYI ZT-980
The ZOYI ZT-980 digital multimeter is a versatile, manual-ranging meter equipped with True RMS and a VCF filter, ensuring precise voltage and current measurements, even with distorted signals up to 1 kHz. It provides accurate readings of AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle, and temperature from -20°C to 1000°C . It supports diode, transistor, and continuity testing . The NCV function allows for non-contact detection of live wires, increasing work safety. A large, backlit LCD display , flashlight, HOLD, MAX/MIN, and REL functions, as well as a fold-out stand and probe holder, make the ZT-980 an exceptionally functional tool for any electronics technician or DIY enthusiast.

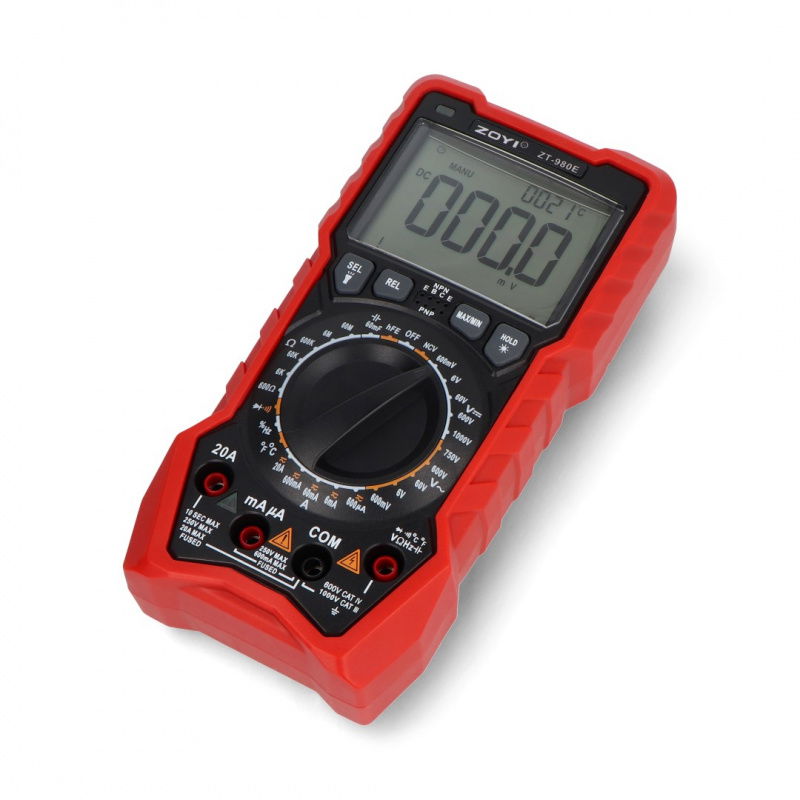

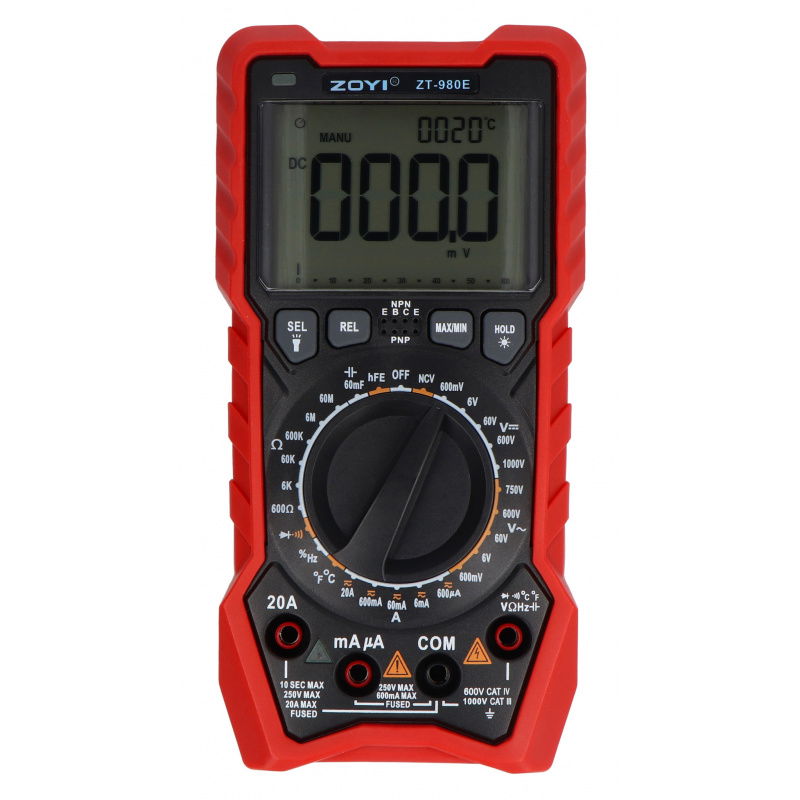

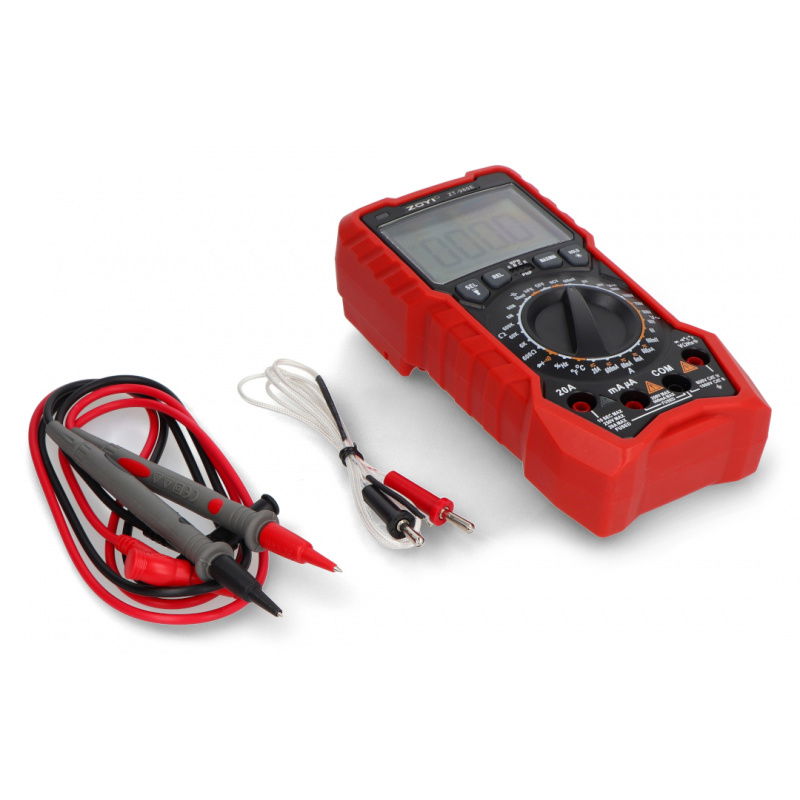

True RMS universal meter with NCV function - ZOYI ZT-980.
| Technical specifications of the ZT-980 meter | |
|---|---|
| Producer | ZOYA |
| Model | ZT-980 |
| Meter type | digital multimeter with manual ranging |
| True RMS | Yes |
| VCF (RMS voltage filter) | yes, up to 1 kHz |
| NCV | yes - non-contact voltage detection |
| DC voltage measurement | up to 1000 V |
| AC voltage measurement | up to 750 V |
| DC/AC current measurement | up to 20 A |
| Resistance measurement | up to 60 MΩ |
| Capacity measurement | up to 60 mF |
| Frequency measurement | up to 9.999 MHz |
| Fill factor measurement | from 1% to 99% |
| Temperature measurement | from -20°C to 1000°C |
| Diode tester | yes, up to 2 V |
| Continuity tester | Yes |
| hFE transistor tester | Yes |
| Battery tester | 1.5V / 9V / 12V |
| Square wave generator | Yes |
| Display | Backlit LCD, max reading 6000 |
| Special features | HOLD, REL, MAX/MIN, discharge indicator, flashlight |
| Power supply | 3 x AAA batteries |
| Dimensions | 180 x 90 x 45 mm |
| Contents of the set | |
| |
