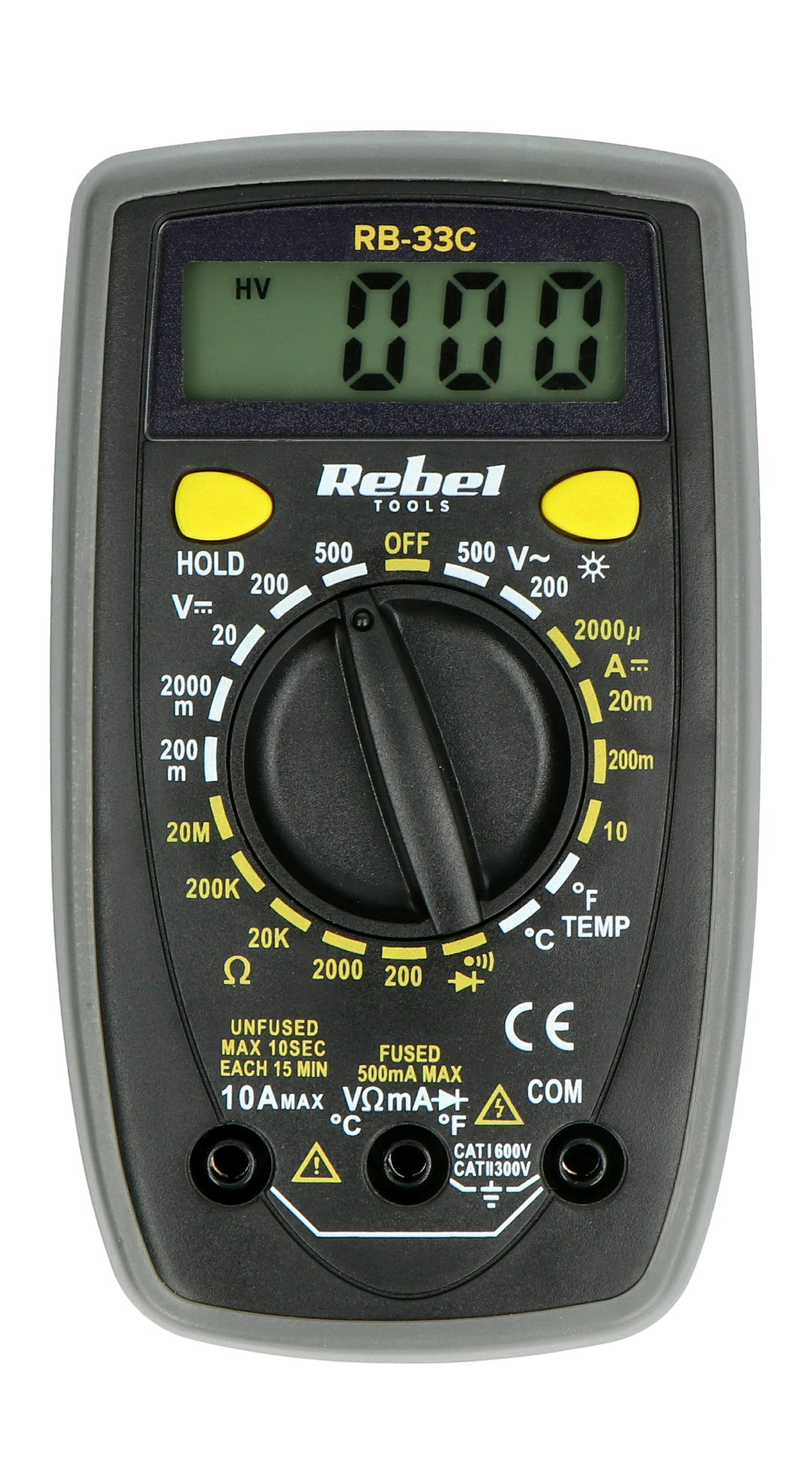

Product description: RB-33C Universal Meter Rebel
RB-33C is Rebel'smeterwhich allows to make basic measurements such as: DCvoltagemeasurement,AC voltagemeasurement,DC current,resistanceandtemperaturemeasurement. In addition, the device is equipped with a function that allows you totest diodesand check thecontinuity ofthe circuit. The measurements are presented on a45 x 21 mmLCD display, the display has an additional backlight activated by a yellow physical button located on the right side of the device. The display also shows markings indicatinglow battery statusandreversed polarity.
Manual selection of measuring ranges is done with the use of a black knob located in the center of the device.
All necessary probes and a 9 V battery are supplied with the meter.
Selection of the meter's functions
All measurement functions and their ranges are set using theknoblocated in the central part of the device. The ranges aredescribed in a clear and concise wayso that even people who have not used this type of instrument before will not find it difficult to use the Multimeter. TheMultimeteralso has aData Holdfunction that allows you to "freeze" the measurement displayed at a given moment. This function is activated by a button on the left hand side.

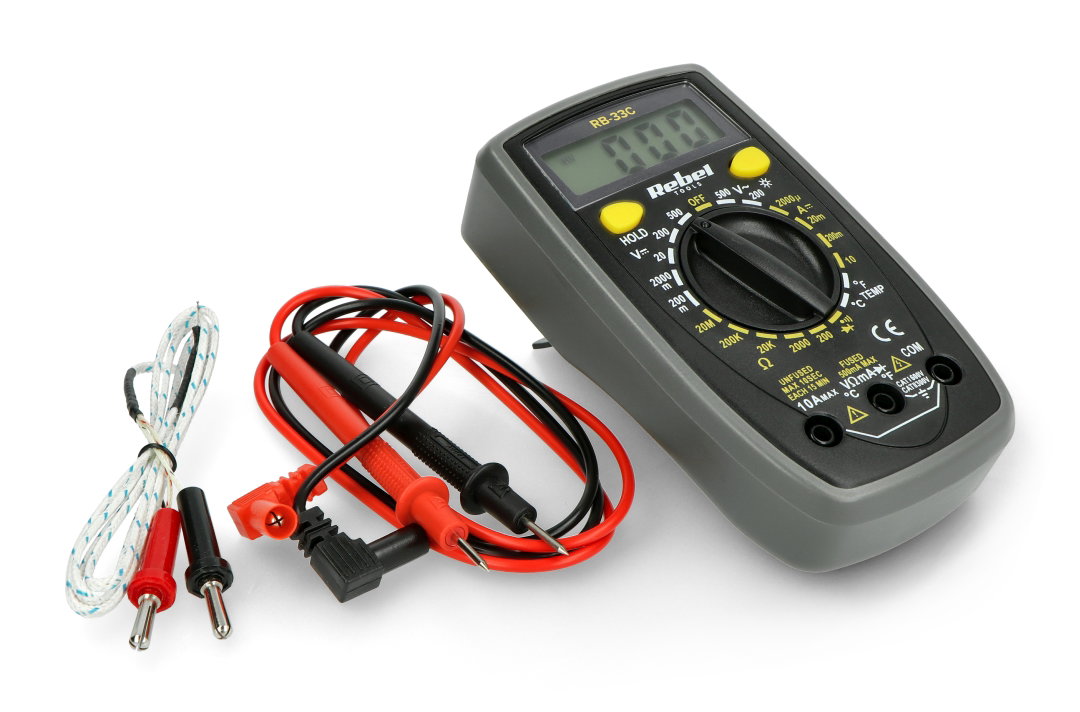

The set includes
- Universal meter Rebel RB-33C
- Measuring probes
- Thermocouple type K - probe for temperature measurement
Technical specification
| Parameter | Range |
|---|---|
| DC voltage | 200 mV / 2000 mV / 20 V / 200 V / 500 V |
| AC voltage | 200 V / 500 V |
| DC DC current | 2000 µA / 20 mA / 200 mA / 10 A |
| AC alternating current | no |
| Resistance | 200 Ω / 2000 Ω / 20 kOhm / 200 kΩ / 20 MΩ |
| Capacitance | no |
| Inductance | no |
| Frequency | no |
| Temperature | yes |
| Automatic range selection | no |
| Standby mode | no |
| Sounder | no |
| Transistor tester | no |
| Diode tester | yes |
| Battery tester | no |
| Data Hold function | yes |
| Battery indicator | yes |
| Backlight | yes |
| Display | LCD 1999 (45 x 21 mm) |
| Dimensions | 160 x 76 x 32 mm |
| Power supply | 9 V battery (included) |
| Weight | 150 g |
