Product description: True RMS multimeter - ZOYI ZT-219
The ZT-219 digital multimeter is a compact and versatile true RMS meter designed for professional measurements of voltage, current, resistance, capacitance, frequency, and temperature . It measures DC voltage up to 1000 V, AC voltage up to 750 V , current in the µA-A range up to 20 A , resistance up to 199.99 MΩ , and capacitance up to 9.999 mF . The NCV function allows for non-contact voltage detection, while diode testing and a buzzer facilitate circuit diagnostics. The meter is equipped with REL, HOLD, MAX/MIN functions, auto ranging, and a backlit display . Temperature measurement is possible using a thermocouple or the built-in sensor . The ZT-219 is ideal for workshops, service centers, and hobby projects.

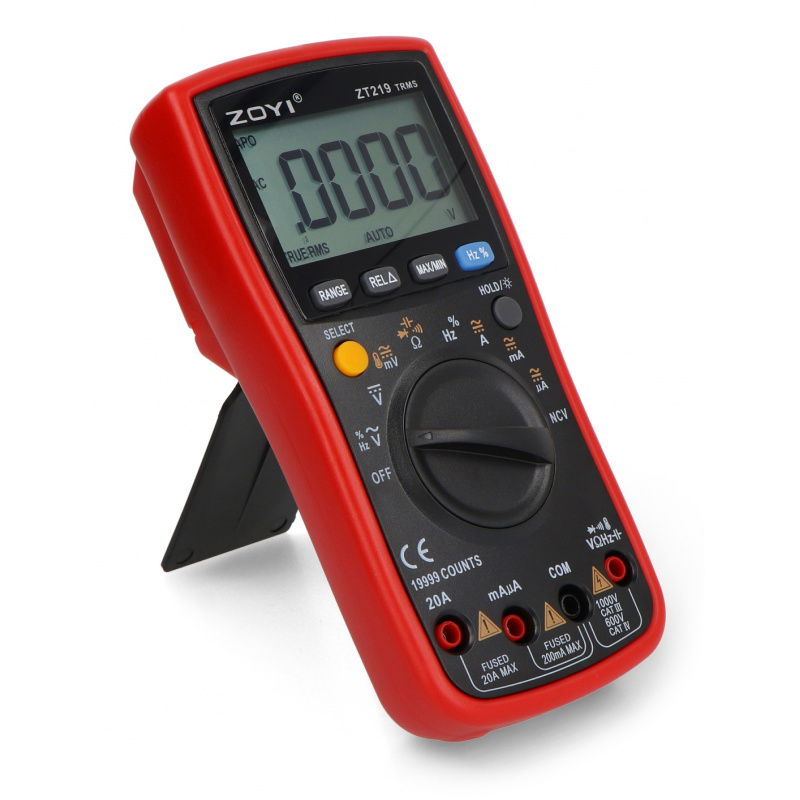

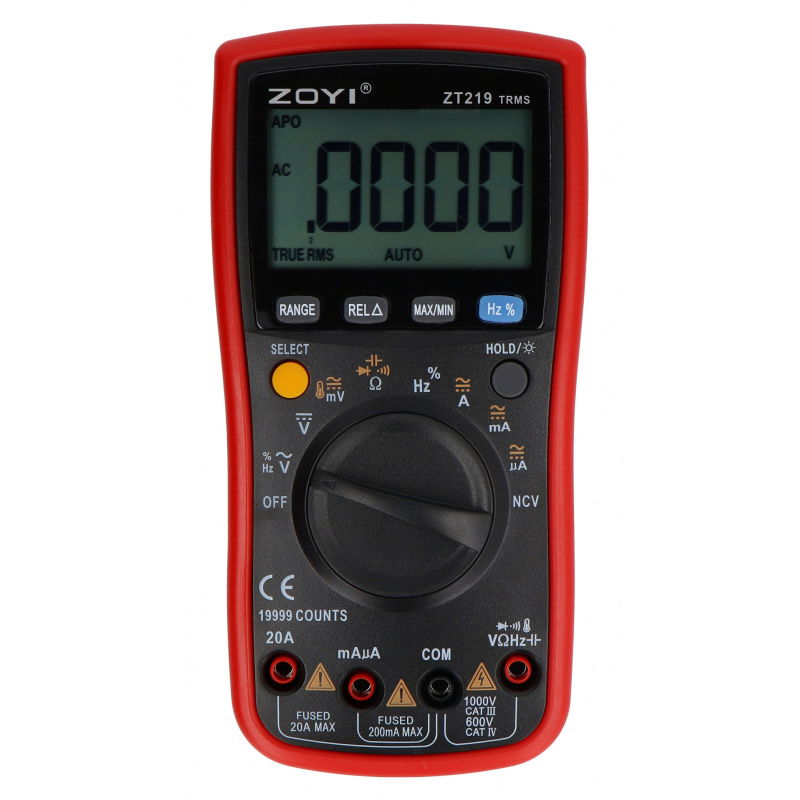

True RMS Multimeter - ZOYI ZT-219.

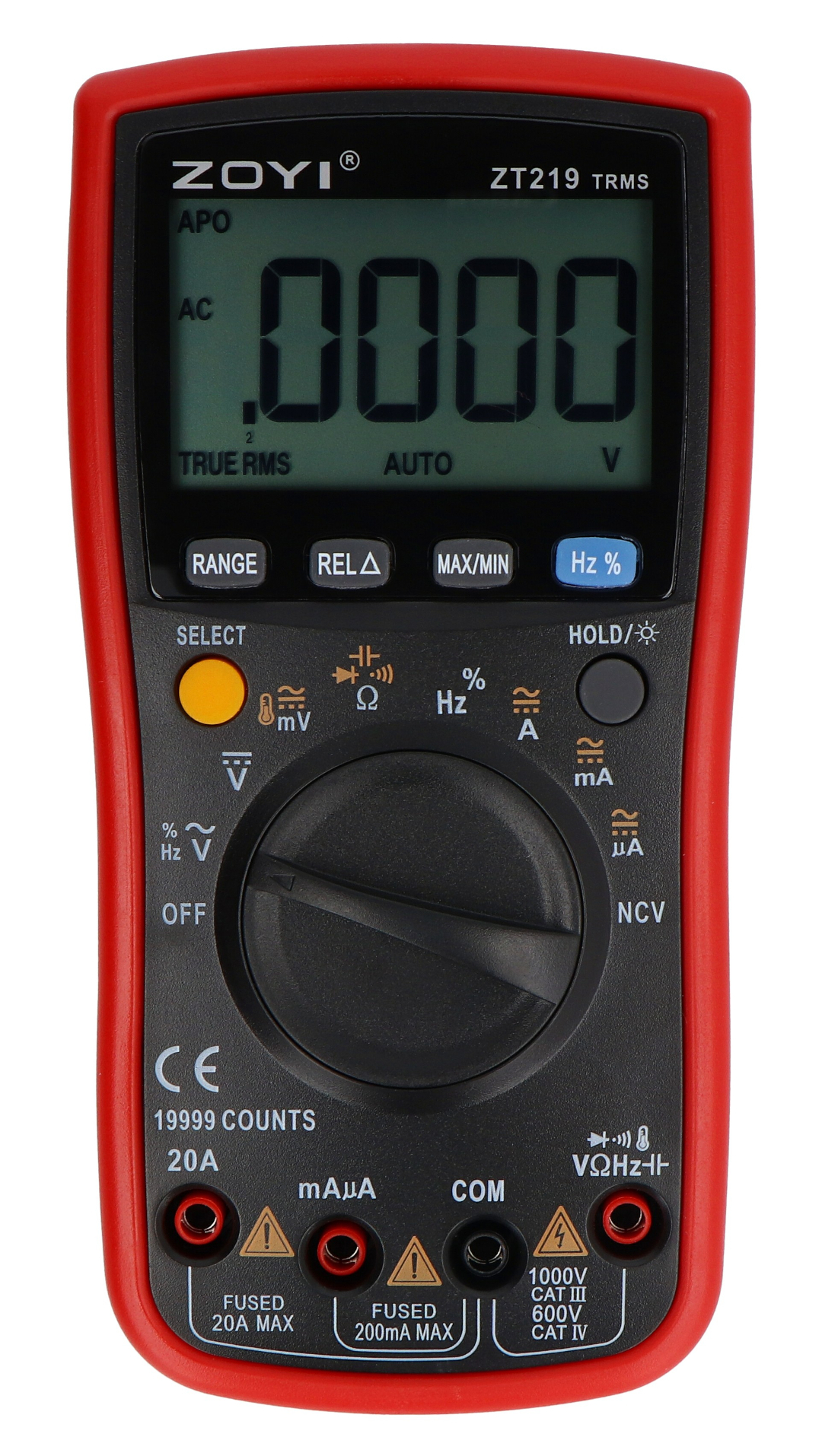

The ZT-219 meter has a built-in True RMS converter.
Main features of the ZT-219 meter
- True RMS measurement: precise reading of the effective value of AC voltage and current
- NCV: Non-contact AC voltage detection
- Temperature measurement: via thermocouple or internal sensor
- Voltage range: up to 1000 V DC and 750 V AC
- Current measurement: up to 20 A (DC / AC)
- Resistance measurement: up to 199.99 MΩ
- Capacitance measurement: up to 9.999 mF
- Frequency measurement: up to 9.999 MHz
- REL function: relative measurements (reference zeroing)
- HOLD function and backlight: stop measurement and easy reading
- Auto Power OFF: Saves battery life when idle
Measurement functions and ergonomics of use
The ZT-219 multimeter measures DC voltage up to 1000 V , AC voltage up to 750 V , current in three ranges (A, mA, µA) up to 20 A , and resistance up to 199.99 MΩ . It also supports capacitance, frequency, and duty cycle measurements. The device automatically selects the appropriate range , making operation much easier for less experienced users. Function buttons allow for quick mode switching, and functions such as MAX/MIN and REL support measurement analysis. Thanks to its ergonomic design and intuitive interface, the ZT-219 is ideal for everyday service work.

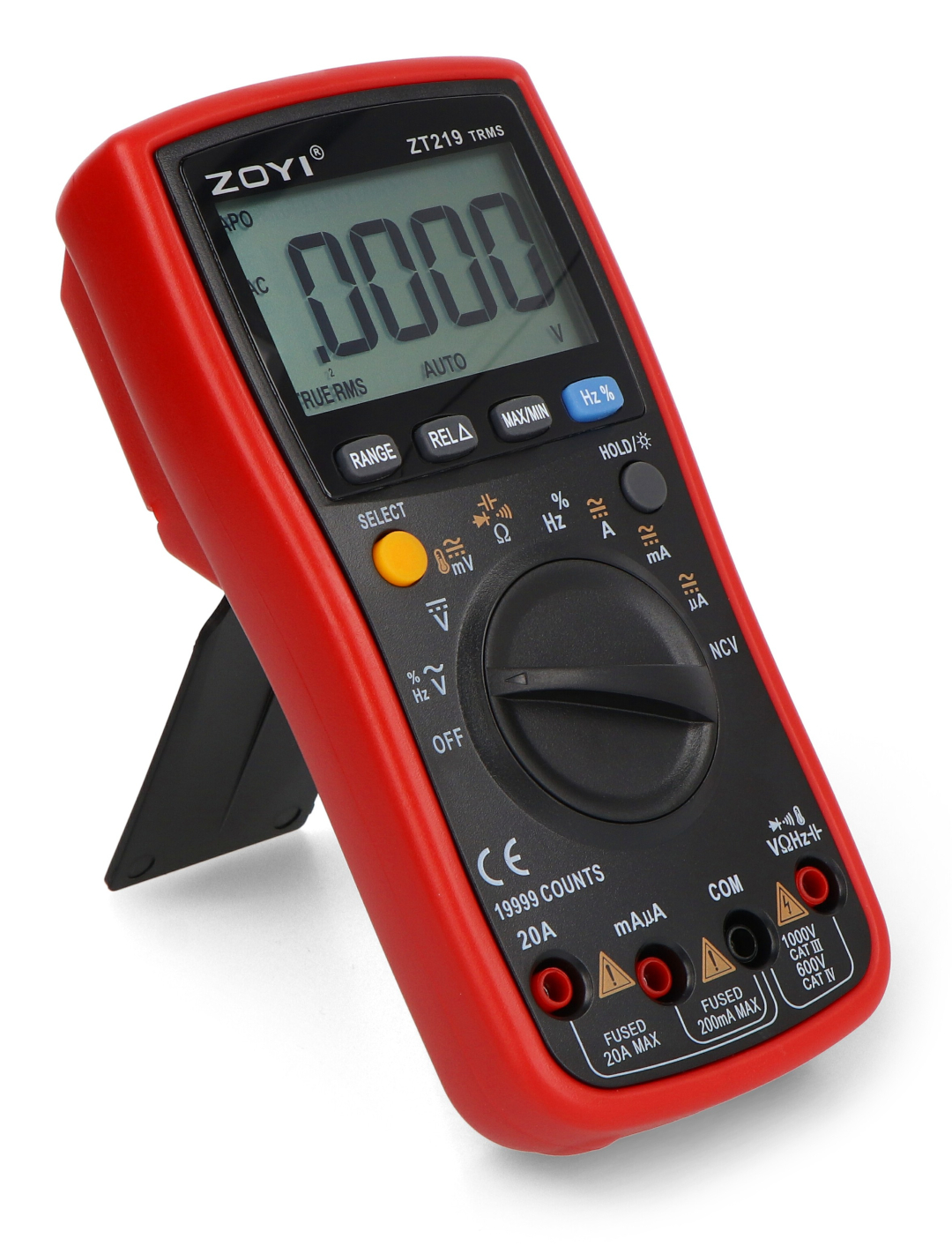

The multimeter offers functions such as an acoustic continuity tester and a semiconductor diode test.
Versatile applications and practical accessories
The ZT-219 multimeter is ideal for use in electronics workshops, home appliance repair shops, electrical installations, and laboratory work . It allows you to test digital circuits, measure power parameters, monitor component health, and quickly detect circuit faults. Temperature measurement using a thermocouple is useful for thermal diagnostics, and the NCV function ensures the safe location of live wires. The kit includes a carrying case, a set of test leads, and a temperature probe, making the ZT-219 ready to use right out of the box.
| Measurements and functions of the ZT-219 multimeter | |||
|---|---|---|---|
| Function | Range | Resolution | Accuracy |
| DC voltage (V) | 1.9999V / 19.999V / 199.99V / 1000V | from 0.0001 V to 0.1 V | ±(0.05% + 3 digits) |
| DC voltage (mV) | 19.999 mV / 199.99 mV | from 0.001 mV to 0.01 mV | ±(0.05% + 3 digits) |
| AC voltage (V) | 1.9999V / 19.999V / 199.99V / 750V | from 0.0001 V to 0.1 V | ±(0.3% + 3 digits) |
| AC voltage (mV) | 19.999 mV / 199.99 mV | from 0.001 mV to 0.01 mV | ±(0.3% + 3 digits) |
| DC current (A) | 1.9999A / 19.999A | from 0.0001 A to 0.001 A | ±(0.5% + 3 digits) |
| DC current (mA / µA) | 19.999 mA / 199.99 mA / 199.99 µA / 1999.9 µA | from 0.001 mA to 0.1 µA | ±(0.5% + 3 digits) |
| AC current (A) | 1.9999A / 19.999A | from 0.0001 A to 0.001 A | ±(0.8% + 3 digits) |
| AC current (mA / µA) | 19.999 mA / 199.99 mA / 199.99 µA / 1999.9 µA | from 0.001 mA to 0.1 µA | ±(0.8% + 3 digits) |
| Resistance | from 199.99 Ω to 199.99 MΩ | from 0.01 Ω to 0.01 MΩ | ±(0.2% to 5% + 3-5 digits) |
| Capacity | from 9.999 nF to 9.999 mF | from 0.001 nF to 0.001 mF | ±(2% - 5% + 5-20 digits) |
| Frequency | from 99.99 Hz to 9.999 MHz | from 0.01 Hz to 0.001 MHz | ±(0.1% + 2 digits) |
| Duty Cycle | from 1% to 99% | 0.001% | ±(0.1% + 2 digits) |
| Temperature | from -20°C to 1000°C / from -4°F to 1832°F | 1°C / 1°F | ±(2.5% + 5 digits) |
| Additional functions | |||
| Diode tester | ✔ | ||
| Continuity tester | ✔ | ||
| NCV (Non-Contact Voltage Detector) | ✔ | ||
| True RMS | ✔ | ||
| HOLD function | ✔ | ||
| MAX/MIN function | ✔ | ||
| REL function | ✔ | ||
| Auto Power OFF | ✔ | ||
| Automatic/manual range change | ✔ | ||
| Maximum indication | 19,999 | ||
Technical specifications of the meter
- Model: ZT-219
- Power supply: 2x AA batteries
- Effective value measurement: TrueRMS
- Changing ranges: automatic or manual
- Display: large LCD screen with backlight
- Maximum reading: 19,999
- Functions: HOLD, MAX/MIN, REL, Auto Power OFF
- Measurements: Duty Cycle in %, resistance, capacitor capacitance, frequency, temperature °C and °F, semiconductor diode tester, continuity tester with acoustic buzzer
- Current measurement: up to 20 A
- Current measurement ranges: A / mA / µA
- Voltage measurement: in V and mV ranges
- Built-in diode: semiconductor for measuring ambient temperature
- Thermocouple operation: outdoor temperature measurement
- Dimensions: 180 x 90 x 45 mm
- Weight: 319 g
Kit contents
- 1x Multimeter ZT-219
- 1x Set of test leads
- 1x Temperature measurement probe - thermocouple
- 1x User Manual
- 1x Carrying Case

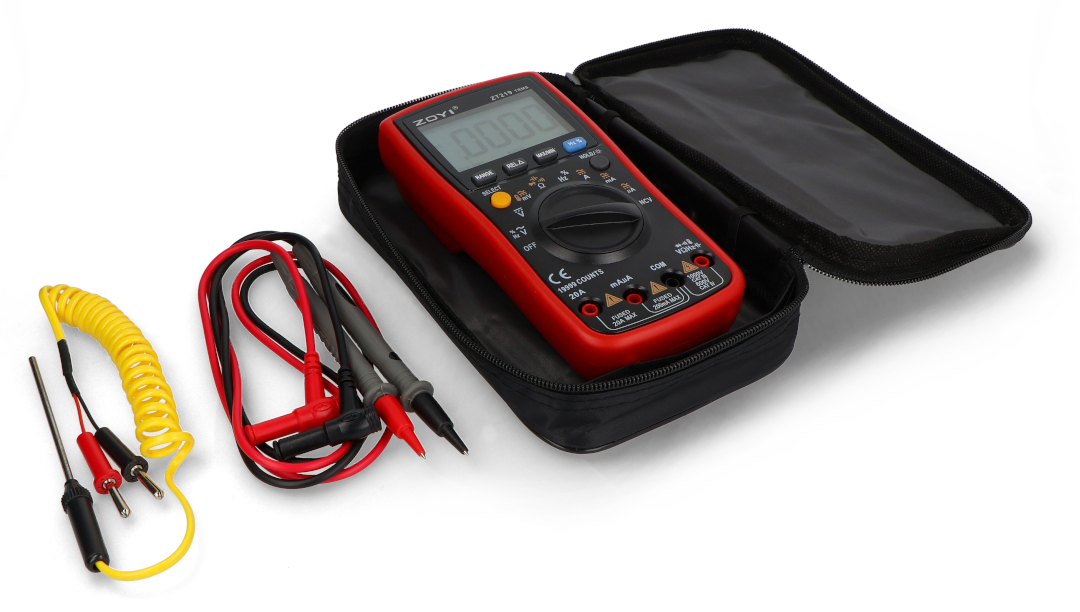

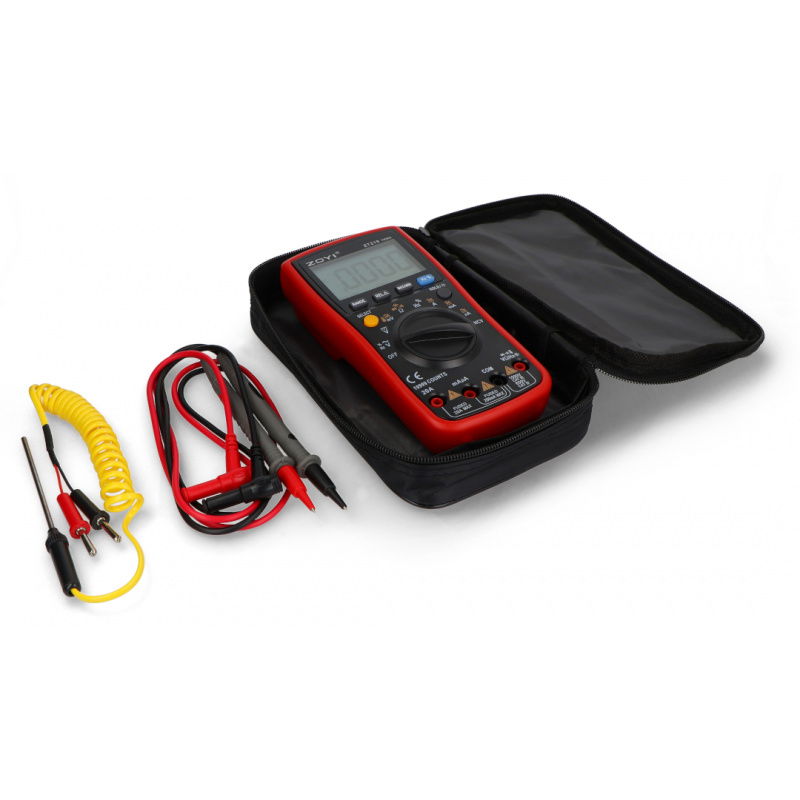

Elements included in the set.
