Product description: Luxonis Oak-D Pro W PoE - IMX378 - AI Kit for Image Recognition - Fixed-Focus
Oak-D Pro W PoE is a camera manufactured by Luxonis , which is part of a family of open hardware smart camera systems powered by Intel's Movidius Myriad X coprocessor. It offers 4 TOPS processing power and gives you the ability to run any AI model. It is equipped with an IR LED (for night-vision) and an IR laser point projector (off by default), enabling active depth measurement. The device is equipped with three cameras - two OV9282 1280 x 800 px stereo cameras and one IMX378 Fixed-Focus camera for capturing color images at a resolution of 4032 x 3040 px. Luxonis Oak-D Pro W PoE uses Power-over-Ethernet (PoE) technology for communication and power. Fully compliant with 802.3af and PoE Class 3 standards at 1000BASE-T (1Gbps) speeds. It has an industrial M12 PoE connector (instead of RJ45), an additional M8 connector for IO connectivity , a USB 2.0 port (D+, D-), an IOs camera connector (FSIN, STROBE), a power port and one auxiliary GPIO.

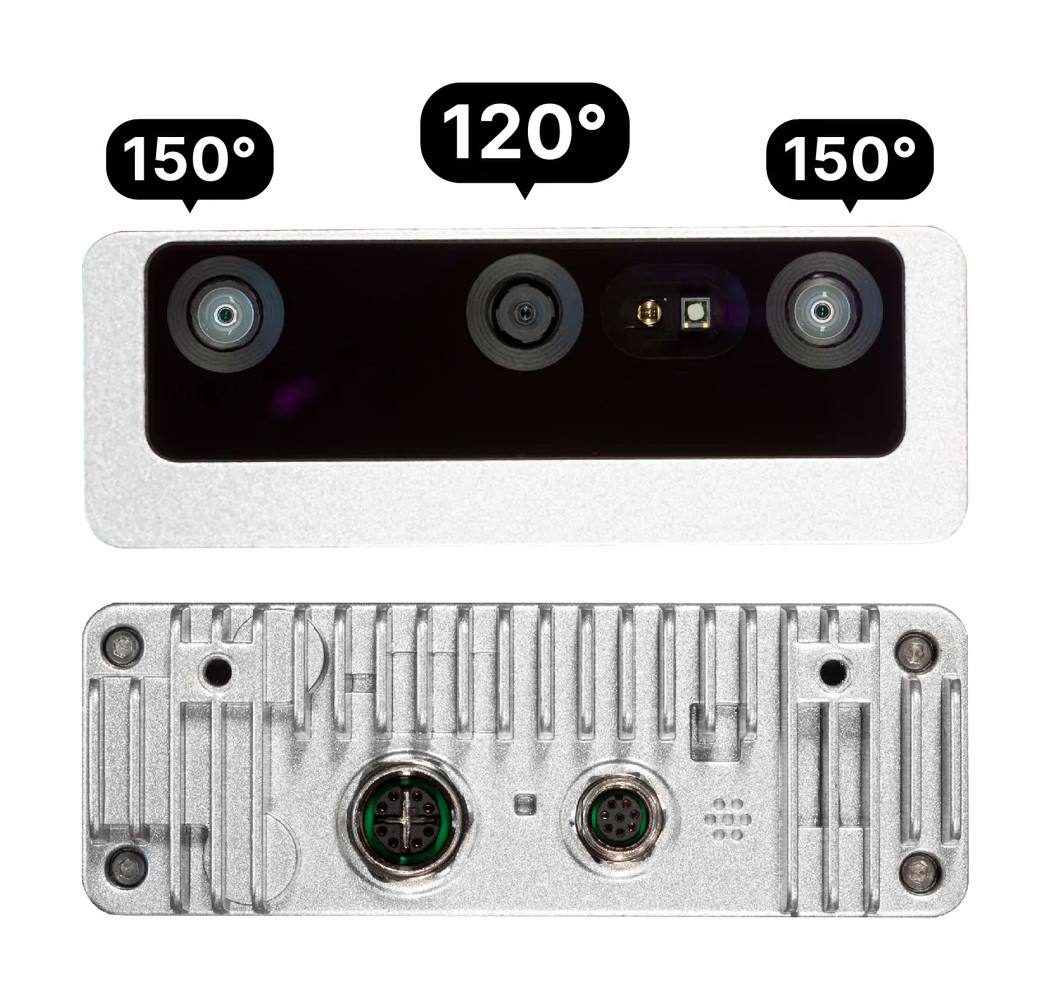

Luxonis Oak-D Pro W PoE - IMX378 - AI set for image recognition - Fixed-Focus.
Kit contents.
Main Features Luxonis Oak-D Pro W PoE
- Equipped with M12 X-Coded Ethernet connector, 802.3af PoE, 1 Gbps Ethernet and M8 connector
- Closed in a sealed IP65 housing
- 4 TOPS of processing power (1.4 TOPS for AI)
- IR LED illumination enables observation of low-light and no-light environments
- Ability to run any AI model, also with non-standard architecture and construction (models must be converted )
- Encoding H.264, H.265, MJPEG - 4K / 30fps, 1080p / 60fps
- Computer vision : warp/warp, resizing, cropping with ImageManip, edge detection, feature tracking, and activation of custom CV features
- 120 fps stereo depth perception with filtering
- 2D and 3D object tracking
Kit contents
- Luxonis Oak-D Pro W PoE - IMX378 - AI Kit for Image Recognition - Fixed-Focus
- Cable with M12 - RJ45 connector, 2 m long
- Cable with M8 connector - male-male, 2 m long
Technical specification Luxonis Oak-D Pro W PoE
- RGB camera:
- sensor: IMX378
- type: Fixed-Focus
- resolution: 12 Mpx (4032 x 3040 px)
- maximum frame rate: 60 fps
- sharpness: from 60 cm to infinity
- field of view (D / H / V): 120° / 95° / 70°
- pixel size: 1.55 µm x 1.55 µm
- stereo camera
- sensor: OV9282
- resolution: 1 Mpx (1280 x 800 px)
- maximum frame rate: 120 fps
- focus: from 18 cm to infinity
- field of view (D / H / V): 150° / 128° / 80°
- improved FOV depth: 106° / 97° / 70°
- pixel size: 3µm x 3µm
- infrared work: yes
- Spot projector
- Ams Belago1.1 Dot-Pattern Infrared Illuminator
- Number of points: 4700
- HFOI* 50%: 78 ± 7%
- VFOI* 50%: 61° ± 7%
- VSCEL wavelength: 940nm
- Connectors: M12 X-Coded Ethernet, 802.3af PoE, 1 Gbps Ethernet and M8 connector
- PoE powered: yes
- Dimensions: 111 x 40 x 31.3mm
- Weight: 184g
Connection example .
