Product description: Controller for addressable RGB WiFi LED strips and strips - ESP32 - WLED - GL-C-015WL

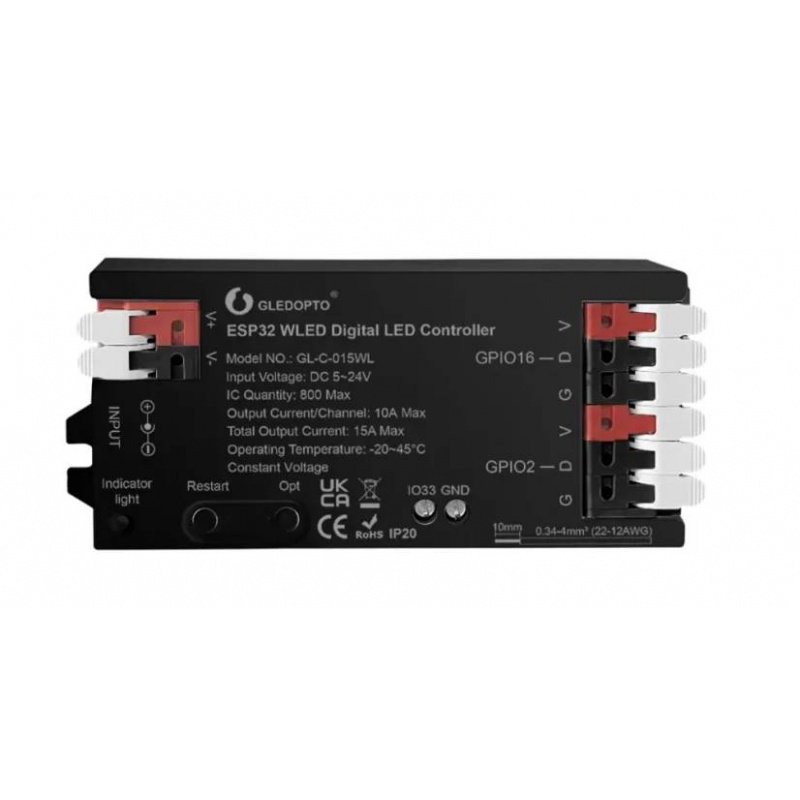

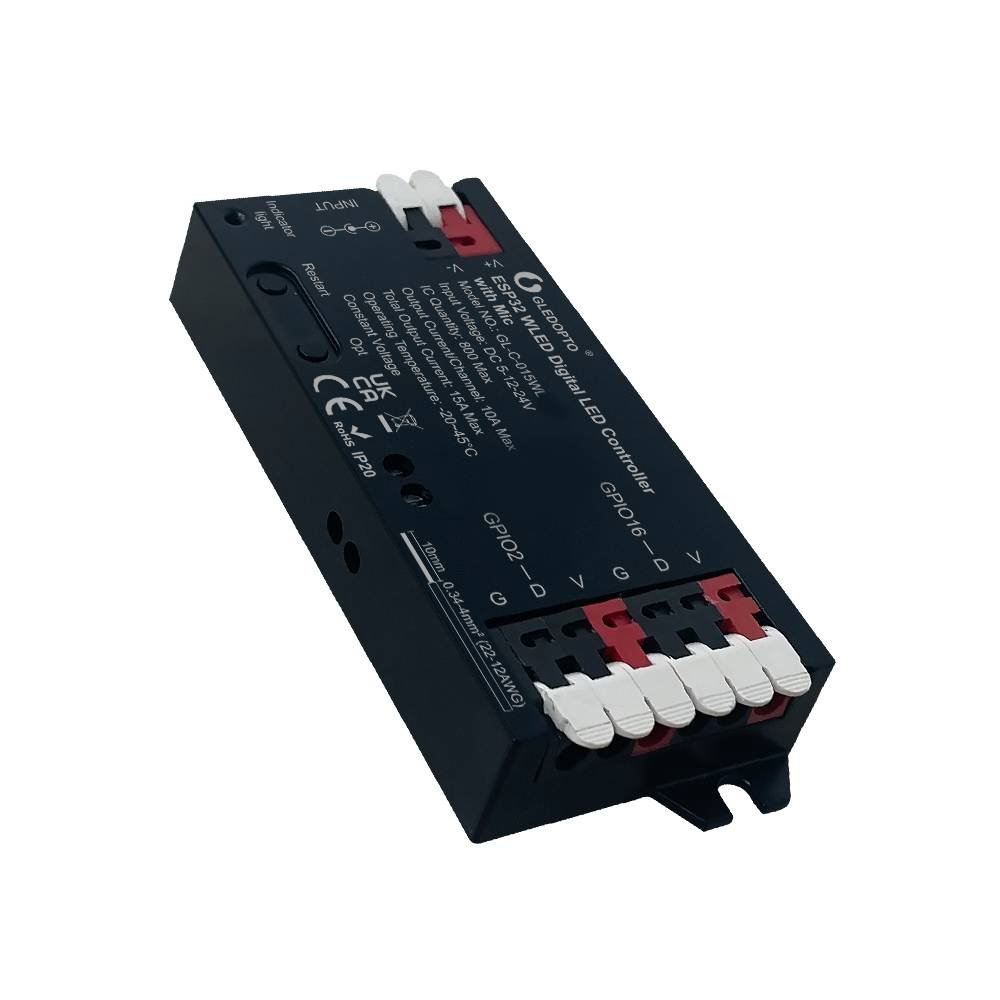

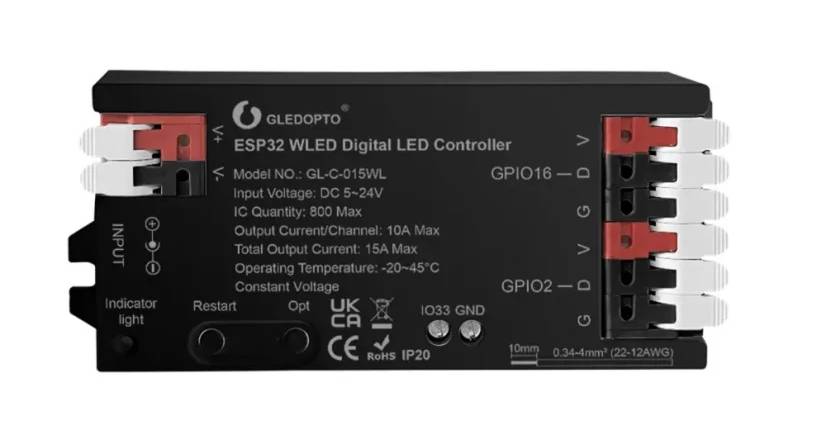

The GL-C-015WL is a compact WiFi LED controller designed for advanced digital lighting installations. Utilizing a powerful ESP32 chip and WLED firmware, the module enables the creation of dynamic lighting effects, synchronization of LED segments, and control from a smartphone, computer, or home automation system. The controller operates with a voltage of 5V to 24V DC and offers a maximum output current of 15A , with a single channel supporting up to 10A . The GL-C-015WL model features two GPIO data outputs – the default GPIO16 and an additional GPIO2 , which can be configured in the WLED app. Connectors marked V / D / G should be connected to the VCC / DATA / GND wires of the LED strip , respectively. The additional IO33 pin can be used as an extended GPIO for DIY and automation projects.

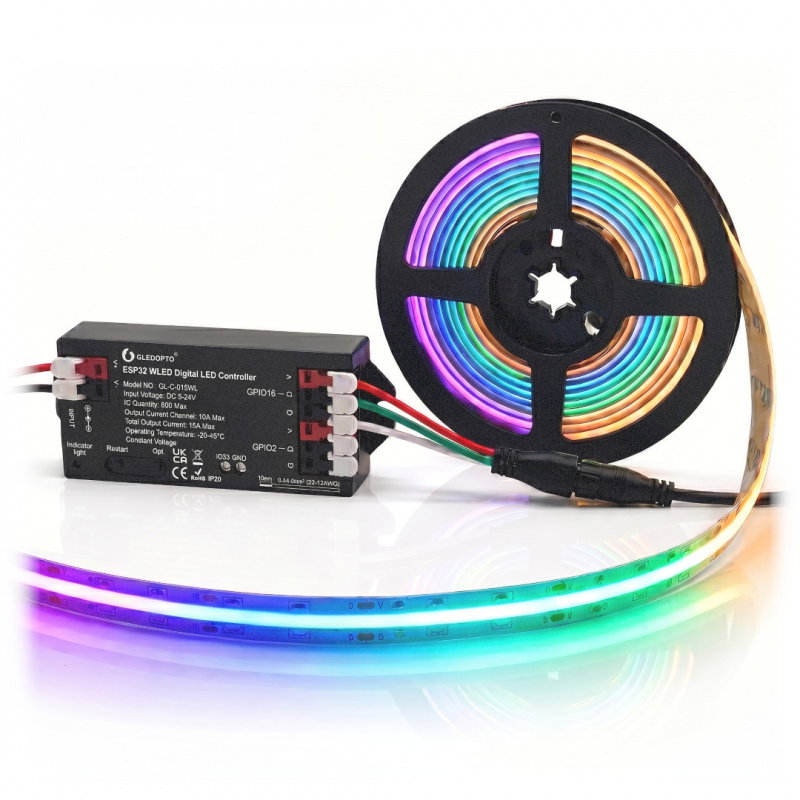

Controller for addressable RGB WiFi LED strips and strips - ESP32 - WLED - GL-C-015WL.
Thanks to its compatibility with WLED, the controller allows you to create complex lighting effects synchronized between multiple devices.
Main features of the LED driver
- ESP32 chip : fast operation and stable WiFi communication
- WLED Support : Compatible with popular LED lighting control systems
- Operating voltage from 5 V to 24 V DC : wide compatibility with LED strips
- Maximum output current 15 A : ability to support extensive LED installations
- Two GPIO data outputs : GPIO16 and GPIO2 for controlling addressable tapes
- Additional pin IO33 : possibility of connecting buttons, sensors and DIY elements

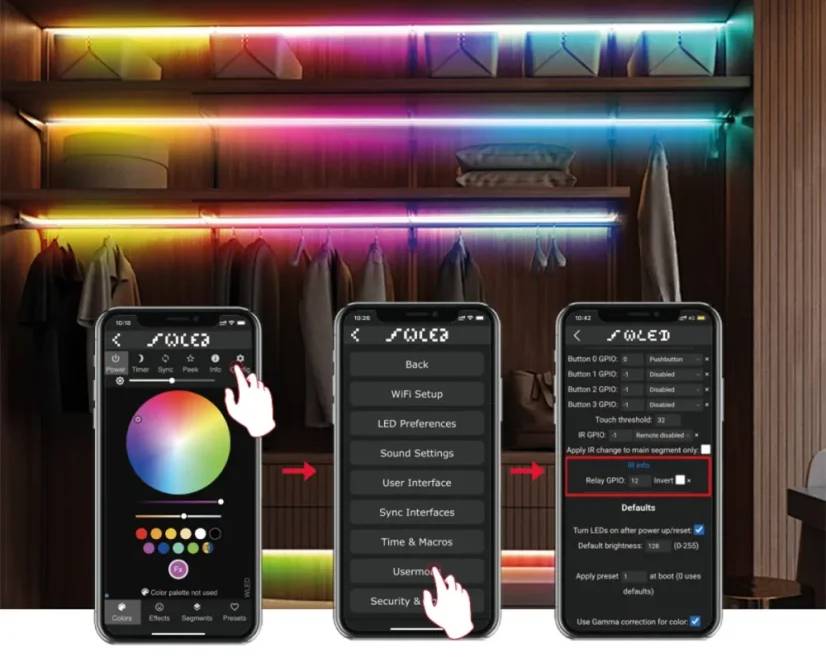

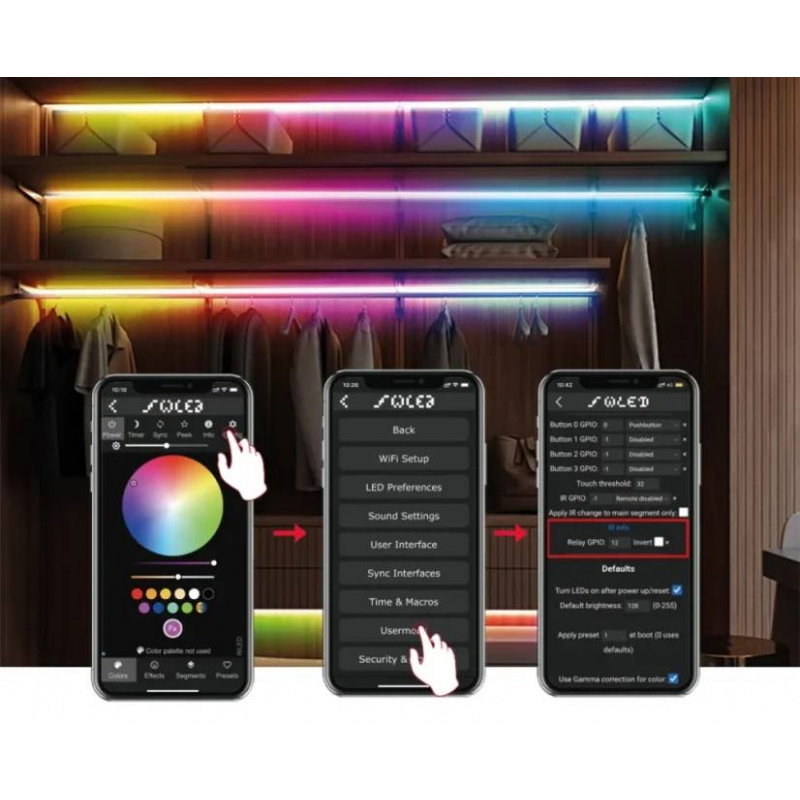

- WiFi control : configuration and operation via the WLED app
- Support for LED segments : ability to create independent light zones
- Compact housing : easy installation in lighting installations
- Safe PC housing : flame-retardant material for increased safety of use
Technical specifications of the controller
- Model: GL-C-015WL
- Driver Type: Digital WiFi LED Driver
- Control system: ESP32
- Software: WLED
- Supply voltage: DC 5 V to 24 V
- Maximum total current: 15 A
- Maximum current per channel: 10 A
- Maximum pixel support: 800 IC
- Communication: WiFi
- Number of output channels: 2
- Default data output: GPIO16
- Additional data output: GPIO2
- Additional GPIO pin: IO33
- Housing material: flame retardant PC
- Degree of protection: IP20
- Operating temperature: -20°C to 45°C
- Supported LED chips: WS2811, WS2811F, WS2812B, WS2814A, SK6812, SM16703, SM16703SP3, FL19038, FW1935
- Connector type: quick-release
- Color: black
- Dimensions: 108 x 45 x 18 mm
- Weight: 0.05 kg
Contents of the set
- 1x GL-C-015WL Controller

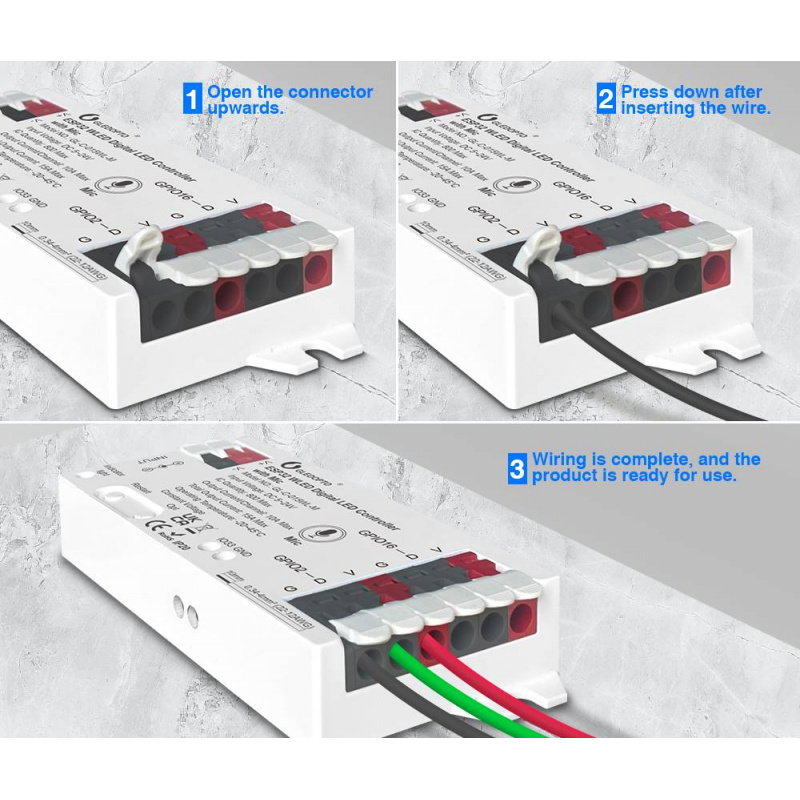

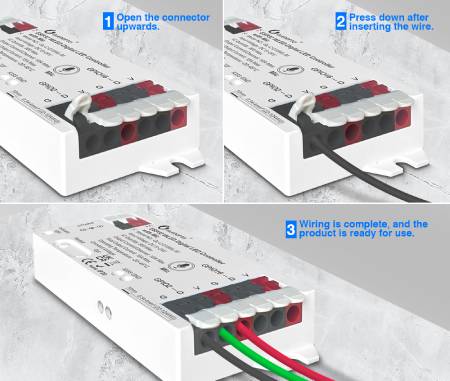

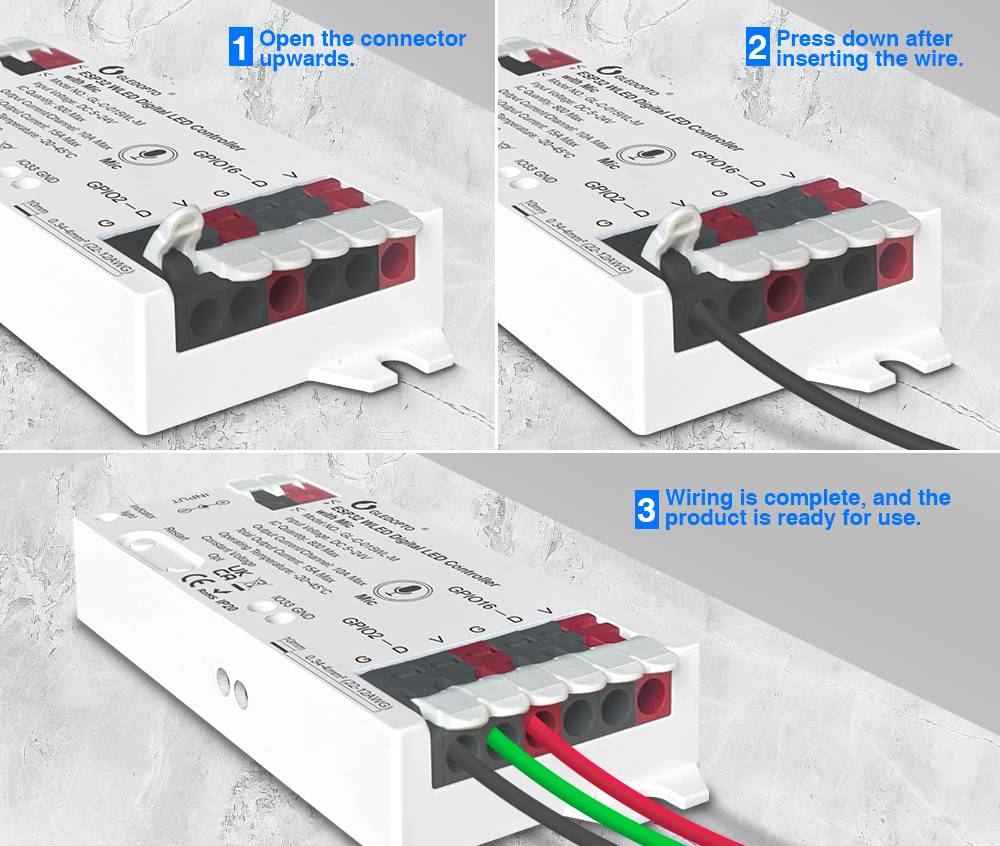

Quick connectors allow for convenient connection of the installation without the need for soldering.
