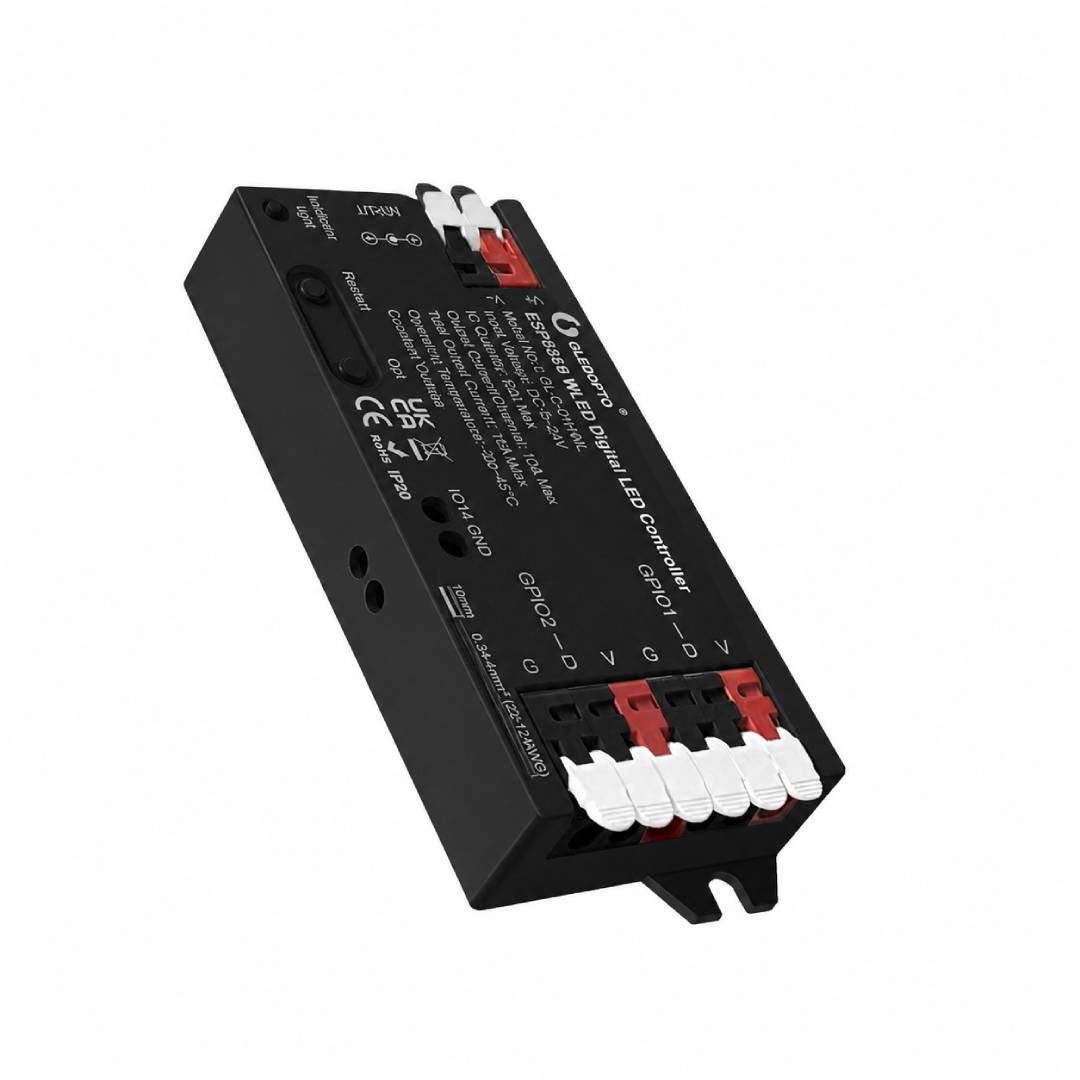

Product description: Controller for addressable RGB WiFi LED strips and strips - ESP8266 - WLED - GL-C-014WL

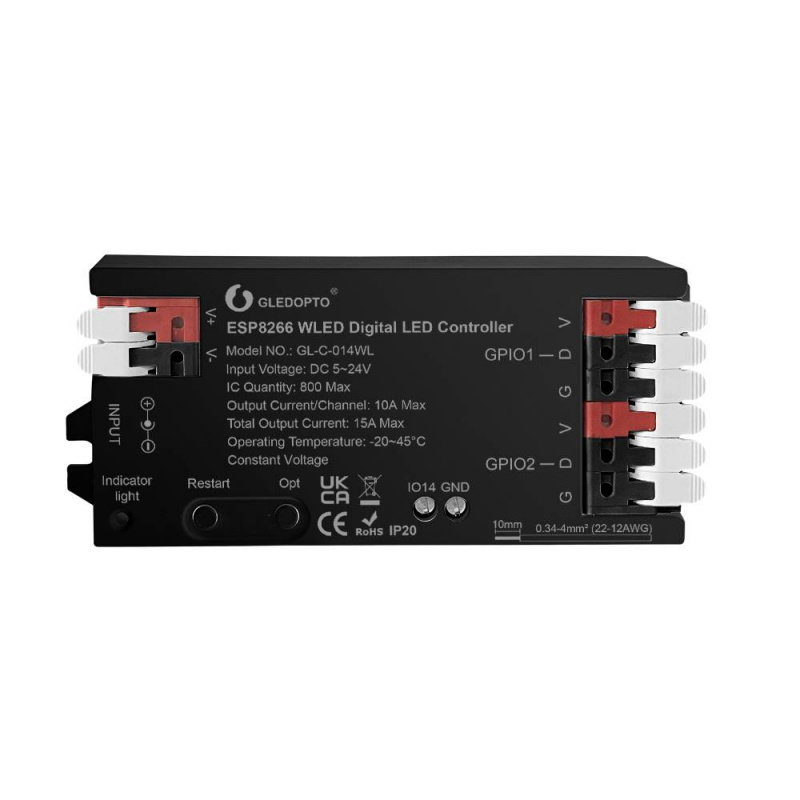

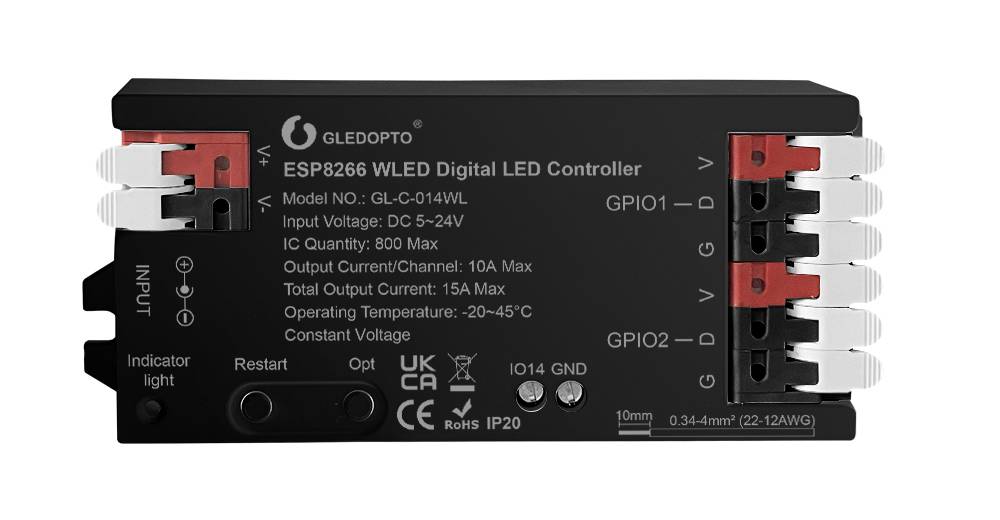

The GL-C-014WL is a compact digital LED strip controller based on the ESP8266 chip with pre-installed WLED software. It enables convenient control of addressable LED lighting over a WiFi network using a mobile app or web browser . The controller supports a DC supply voltage from 5V to 24V , a maximum current of 15A , and up to 10A per channel , making it suitable for both small decorative installations and more complex LED lighting systems. The GL-C-014WL model works with popular LED chips such as the WS2812B, WS2811, SK6812, and WS2814A . The controller is equipped with three output channels and convenient quick- connect connectors for quick, solderless wiring. Connectors marked V, D, and G correspond to the VCC, DATA, and GND lines of the LED strip. By default, the data signal is transmitted through the GPIO2 output, while the additional GPIO1 channel can be activated and configured in the WLED app. The additional IO14 pin can be used as an expandable GPIO signal for custom applications. The controller offers over 100 dynamic lighting effects , the ability to segment the LED strip , synchronize effects between WLED devices, and create custom presets and lighting scenes. Support for the WLED app makes setup quick and intuitive, even for novice users.

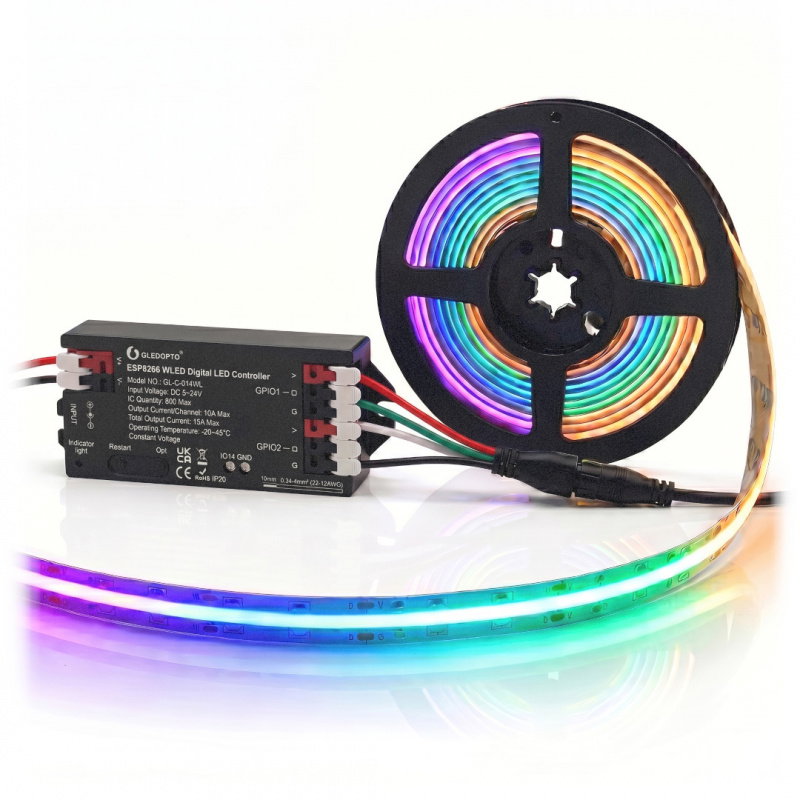

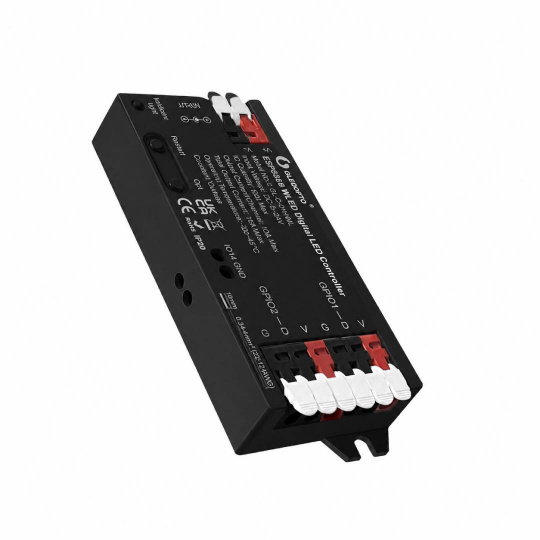

Controller for addressable RGB WiFi LED strips and strips - ESP8266 - WLED - GL-C-014WL.
Thanks to its compatibility with WLED, the controller allows you to create complex lighting effects synchronized between multiple devices.
Main features of the LED driver
- ESP8266 with WLED : ready-to-use driver with pre-installed WLED software

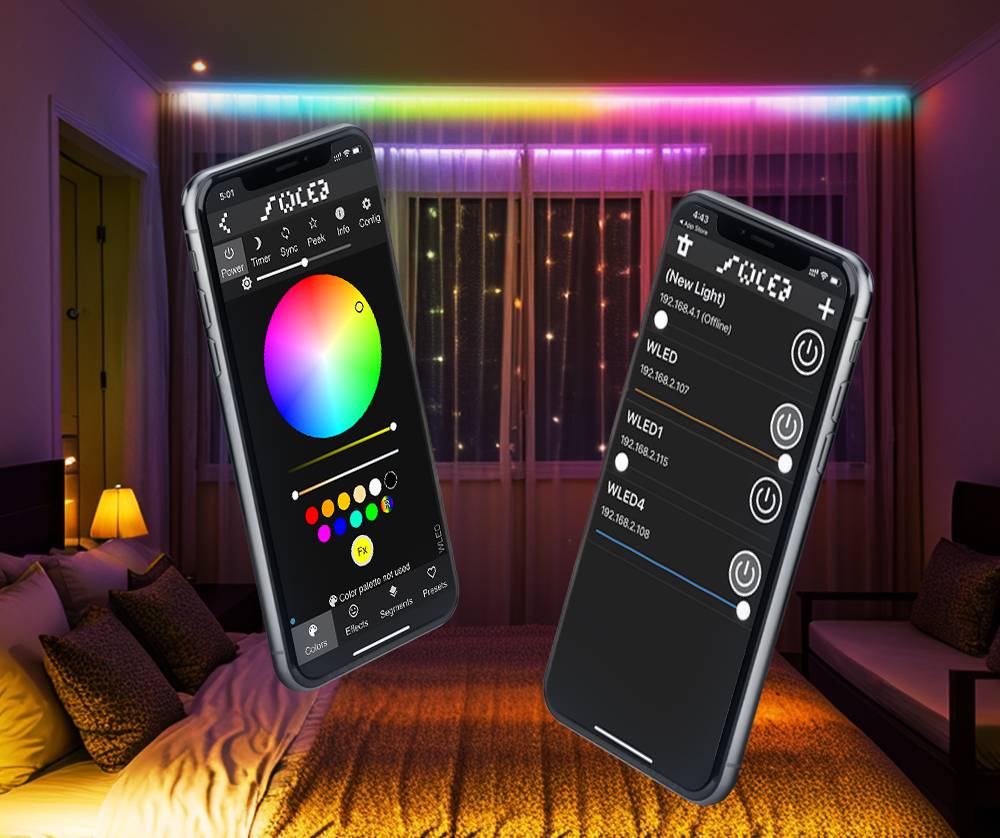

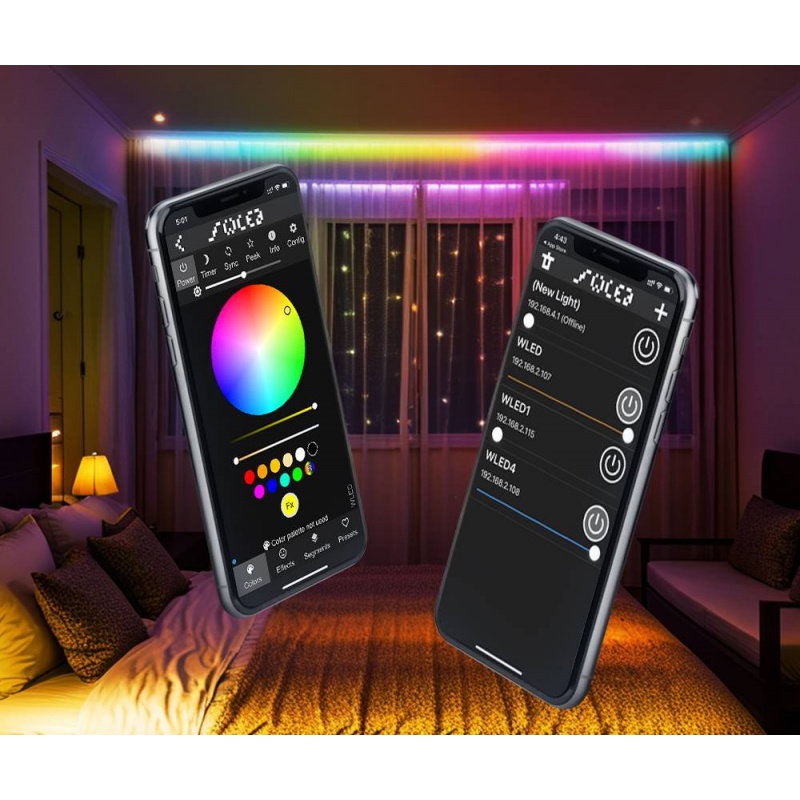

- WiFi control : configuration and operation via smartphone or web browser
- Multi-LED strip support : compatible with WS2812B, SK6812, WS2811, SM16703 and many others
- Over 100 dynamic effects : ready-made lighting animations and the ability to create your own scenes
- LED strip segmentation : independent control of selected lighting sections
- Effect synchronization : cooperation of multiple WLED controllers on one WiFi network
- Quick-connect wire connectors : convenient and quick connection of the installation without the need for soldering
- Relay configuration : possibility of automatic disconnection of the LED strip power supply
- Function buttons : restart, change effects and reset WLED settings
- High current capacity : up to 10 A per channel and a maximum of 15 A total load
Controller technical specifications
- Model: GL-C-014WL
- Driver type: digital WiFi LED controller
- Control system: ESP8266
- Software: WLED
- Supply voltage: DC 5 V to 24 V
- Maximum total current: 15 A
- Maximum current per channel: 10 A
- Maximum pixel support: 800 IC
- Communication: WiFi
- Number of output channels: 3
- Housing material: flame retardant PC
- Degree of protection: IP20
- Operating temperature: -20°C to 45°C
- Supported LED chips: WS2811, WS2811F, WS2812B, WS2814A, SK6812, SM16703, SM16703SP3, FL19038, FW1935
- Connector type: quick-release
- Color: black
- Dimensions: 108 x 45 x 18 mm
- Weight: 0.05 kg
Contents of the set
- 1x GL-C-014WL Controller

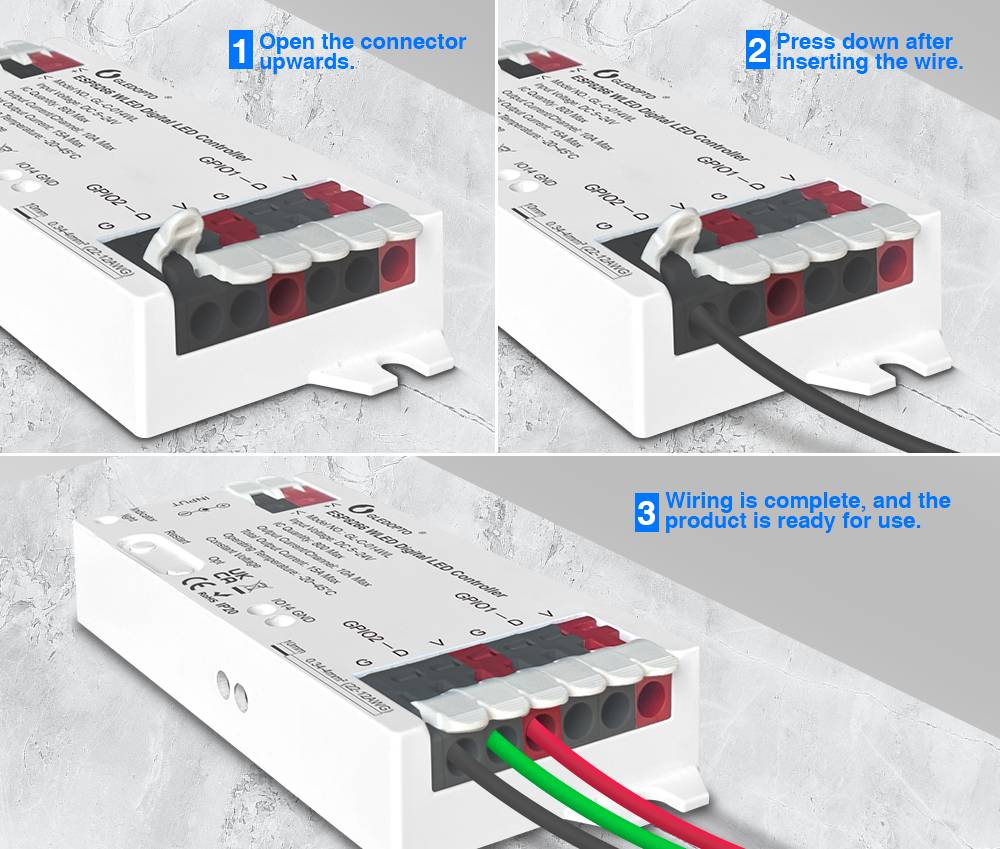

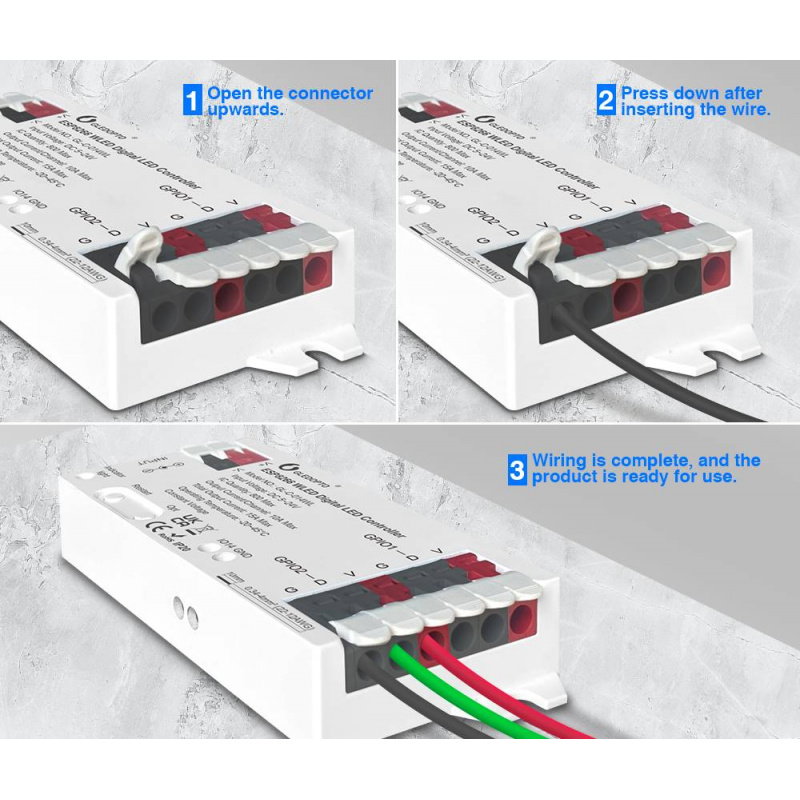

Quick connectors allow for convenient connection of the installation without the need for soldering.
