Product description: BleBox wLightBox v3 - RGBW WiFi LED driver - Android / iOS application
The WiFi controller of colored LED strips and strips allows you to control RGB / RGBW lighting using a smartphone. BleBox wLightBox v3 can work in the following modes: RGB, RGBW, RGBCCT, CCT, 2xCCT, 5xMONO . The module supports voltages of 12 V and 24 V and a maximum current of 15 A (3 A / channel). Thanks to the built-in WiFi system, it is possible to control it directly (the controller transmits its own WiFi network), locally or remotely from anywhere in the world (the controller connected to the home WiFi network). The dedicated wBox application allows you to control many devices at once (using groups and scenes). A motion sensor operating with a voltage of 12 V / 24 V and a physical button can be connected to the device. The controller can be integrated with voice assistants such as Google Home and Amazon Alexa, it is also ready to be integrated into the home automation system - Home Assistant.

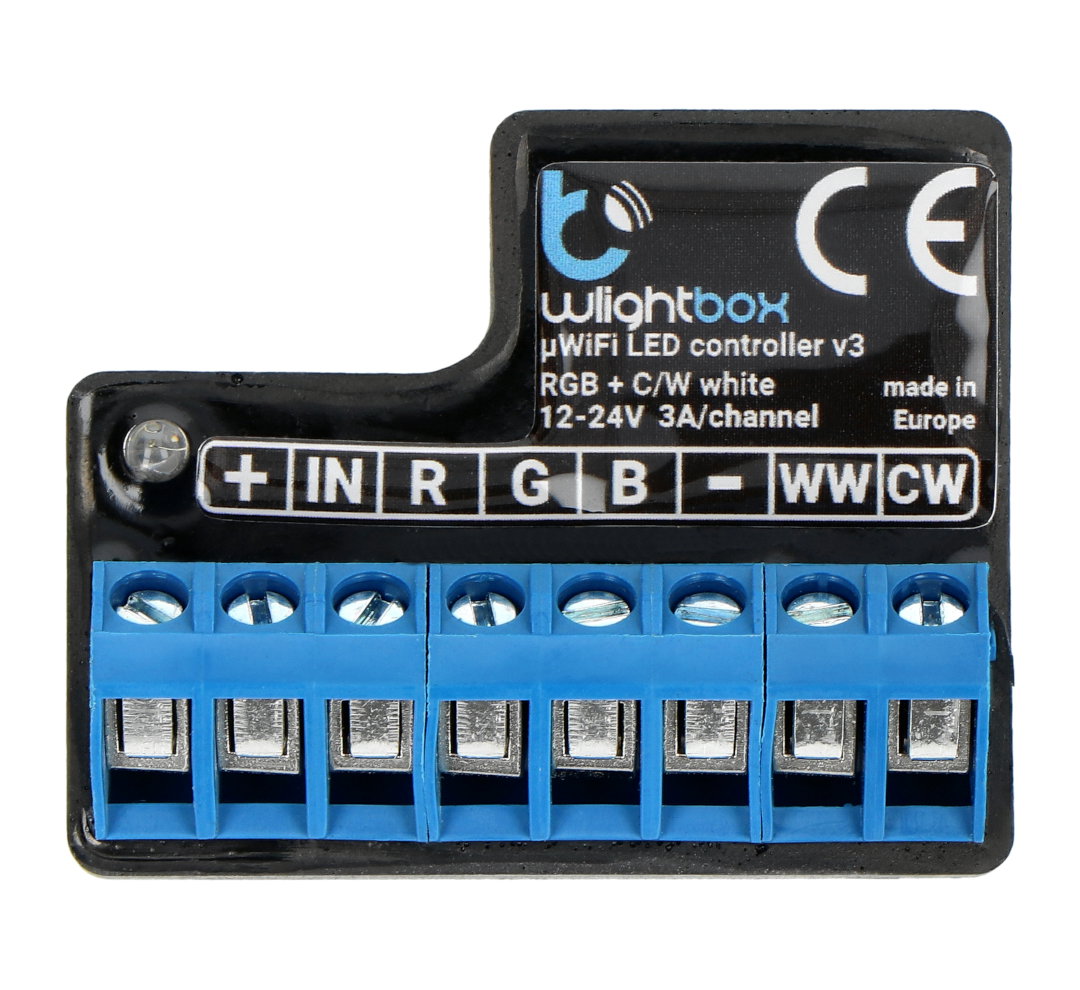

BleBox wLightBox v3 - RGBW WiFi LED driver - Android / iOS application.
Application of BleBox in LightBox v3.
Application of BleBox LED driver in LightBox v3
The BleBox wLightBox v3 controller can be used to control any LED lighting with a voltage of 12 V to 24 V. It will perfectly fulfill its role as a WiFi controller for:
- LED lighting in the suspended ceiling
- LED lighting on the kitchen counter
- LED lighting in furniture
- LED night lighting of buildings, premises (schedule and astronomical clock)
- LED lighting in clubs, bars, shop windows (creator of lighting effects)
- decorative LED lighting, used in buses, trucks or yachts (remote control)
- LED lighting used in the aquarium, paludarium, terrarium, vivarium or plant breeding (schedule + light spectrum control)
Control of multi-colored LED strips
The wLightBox v3 module allows you to control RGB, RGBW and RGBCCT LED strips. In the RGBCCT mode, it is possible to illuminate the room with a white color (warm WW or cold CW) or RGB color. Depending on the LED strip:
- in RGB mode, select a color from the color palette
- in RGBW mode, select a color from the color palette and independently control the brightness of the white channel
- in RGBCCT mode, select a color from the color palette and independently control the brightness and color temperature of the white LEDs
In the RGBCCT and CCT, CCT x2 modes, you can control the brightness and temperature of the light. It is possible to set the effect of gentle brightening and a gentle change of color from warm to cold.
The wLightBox v3 driver also allows for manual control of each channel. This allows you to obtain the appropriate spectrum of light using LED lighting.

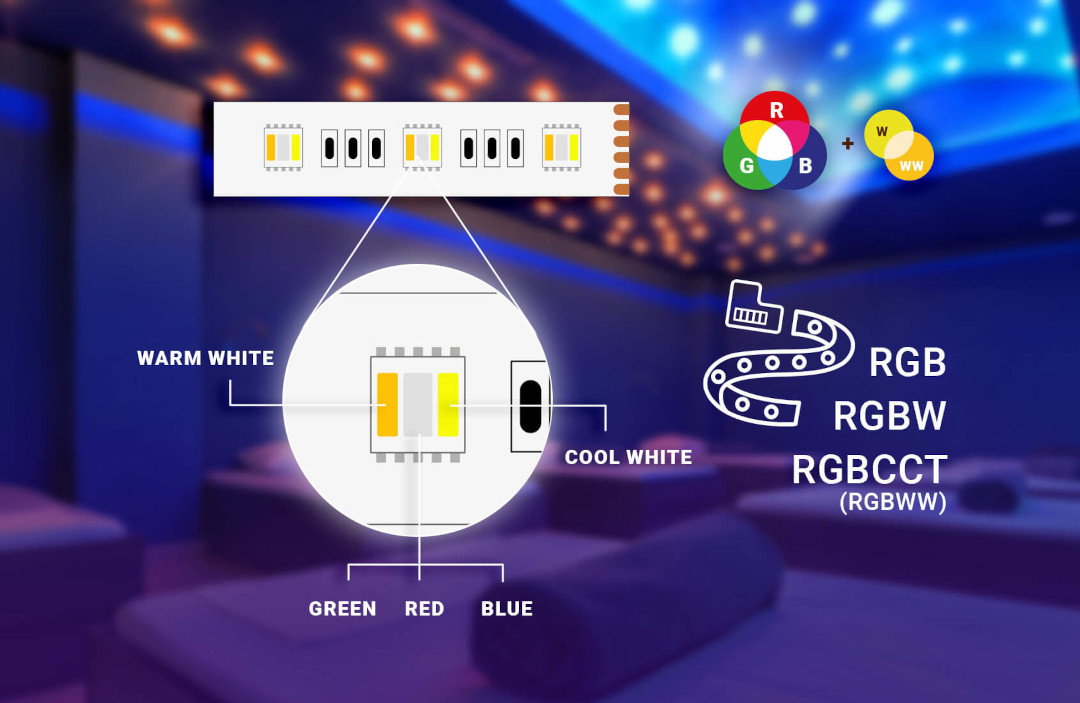

Control of many different LED strips.
Many possibilities of controlling the wLightBox v3 module.
Controlling the BleBox module in LightBox v3
The wLightBox v3 module can be controlled using a dedicated wBox application as well as a dedicated uWiFi - uRemote remote control and battery inBox modules, e.g. for wireless, battery wall switches. With the help of powered modules from the actionBox family, you can also create a central button to control multiple modules without running wires.
BleBox driver specification wLightBox v3
- Supply voltage: 12 V to 24 V DC
- Power Consumption: Less than 1W
- Maximum current: 15 A (3 A / channel)
- Number of outputs: 5
- Maximum load: 360W
- Output type: open-drain, PWM, ground controlled
- Color Mode: RGB / RGBW / RGB or W / RGBCCT / CCT / 2x CCT / 5x MONO
- Number of inputs: 1
- Supported buttons: monostable (bell) without backlight
- Type of inputs: low-voltage, logical, push-button, shorted to GND
- Mounting method: in an electrical installation box, under the button, in the device casing
- Protections: reversed polarity, ESD
- Communication standard: µWiFi, compatible with WiFi, 802.11g
- Type of transmission: two-way with confirmation, encrypted
- Transmission frequency: 2.4 GHz
- API: open (technical.belbox.eu)
- Communication type: direct connection (as an Access Point), WiFi connection via a standard router, connection with access from anywhere in the world (only Internet access required)
- Compatible devices and systems: Apple iPhone, Apple iPad, iPad Mini, Android, computers and mobile devices supporting HTML5
- Housing: made of halogen-free polyurethane composition, self-extinguishing for thermal class B (130°C)
- IP class: IP20
- Dimensions: 43x37x22mm

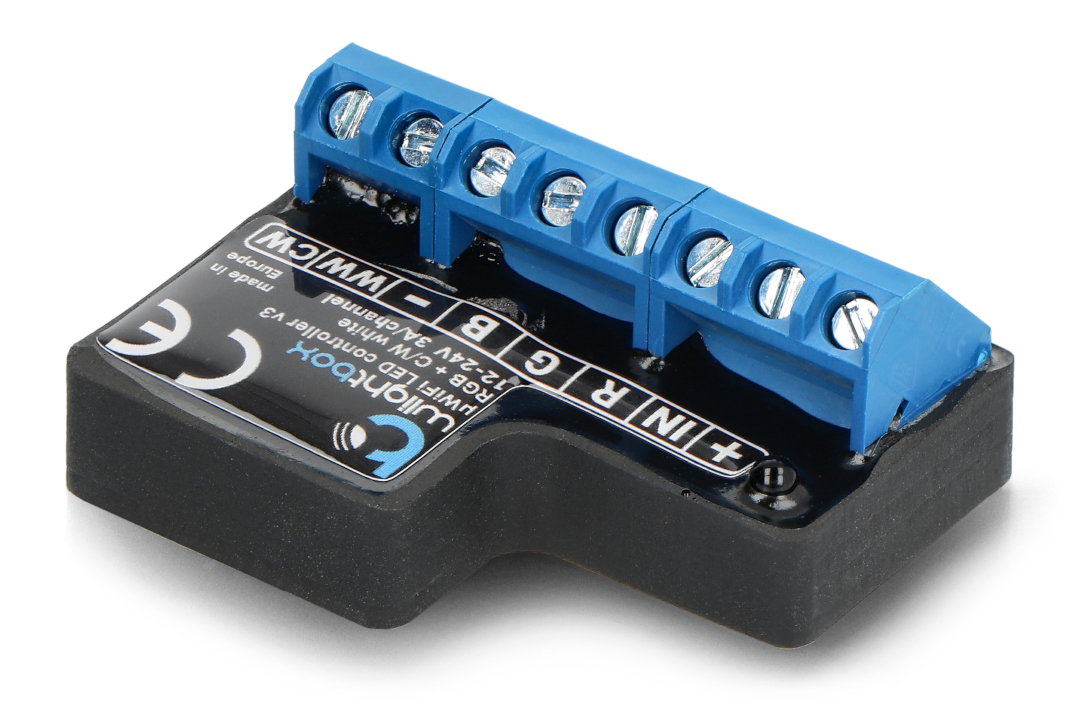

WiFi LED RGB / RGBW / RGBWCC controller - BleBox wLightBox v3.
