All-in-One (E) capacitive fingerprint reader - with ARM Cortex - UART - rectangular - Waveshare 22059

Index: WSR-21615
Integrated, capacitive fingerprint reader from Waveshare . It was equipped with a UART interface . The reader is based on a high-performance Cortex processor with high-security commercial fingerprint algorithms, and supports fingerprint enrollment, image acquisition, feature search, template generation and storage, fingerprint matching and much more.
All-in-One (E) capacitive fingerprint reader - with ARM Cortex - UART - rectangular - Waveshare...
€31.00
€25.20 tax excl.
Delivery 5 pcs scheduled for 2023-10-18
Waiting for delivery
PayPal payment
Manufacturer: Waveshare
Compatibility: Raspberry Pi

Product description: Capacitive fingerprint reader All-in-One (E) - with ARM Cortex - UART - rectangular - Waveshare 22059

Integrated, capacitive fingerprint reader from Waveshare . It was equipped with a UART interface . The reader is based on a high-performance Cortex processor with high-security commercial fingerprint algorithms, and supports fingerprint enrollment, image acquisition, feature search, template generation and storage, fingerprint matching and much more.

Capacitive fingerprint reader All-in-One (E) - with ARM Cortex - UART - rectangular - Waveshare 22059.
Capacitive fingerprint reader All-in-One (E) - with ARM Cortex - UART - rectangular - Waveshare 22059.

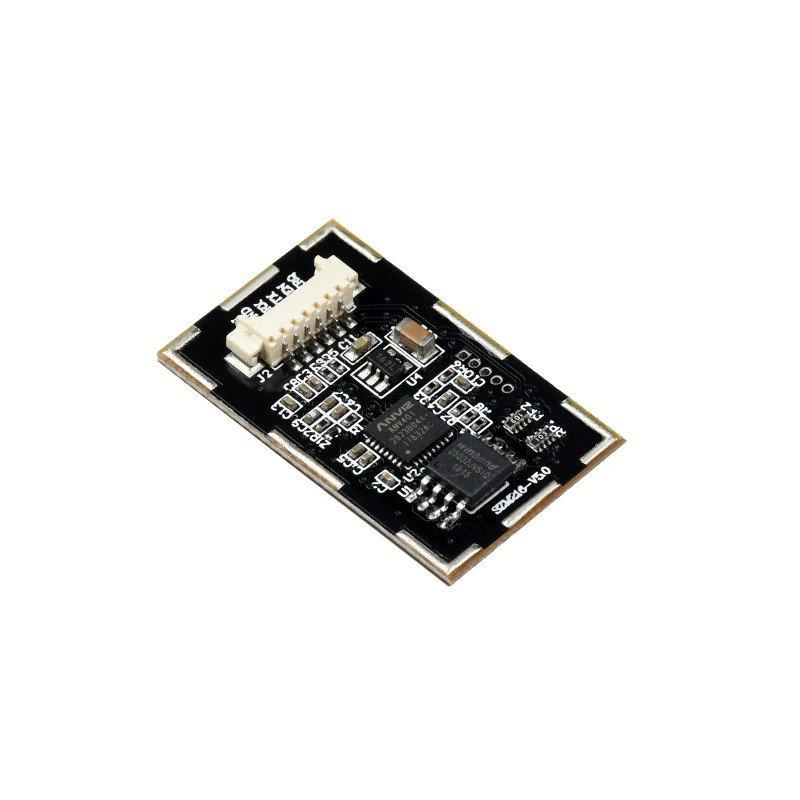

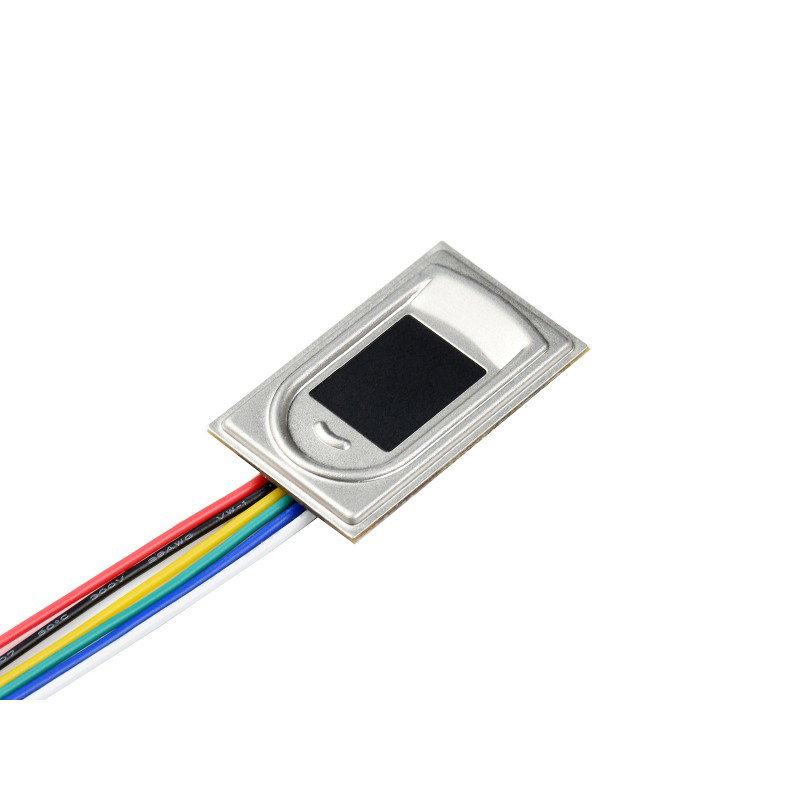

All-in-One capacitive fingerprint reader from Waveshare.

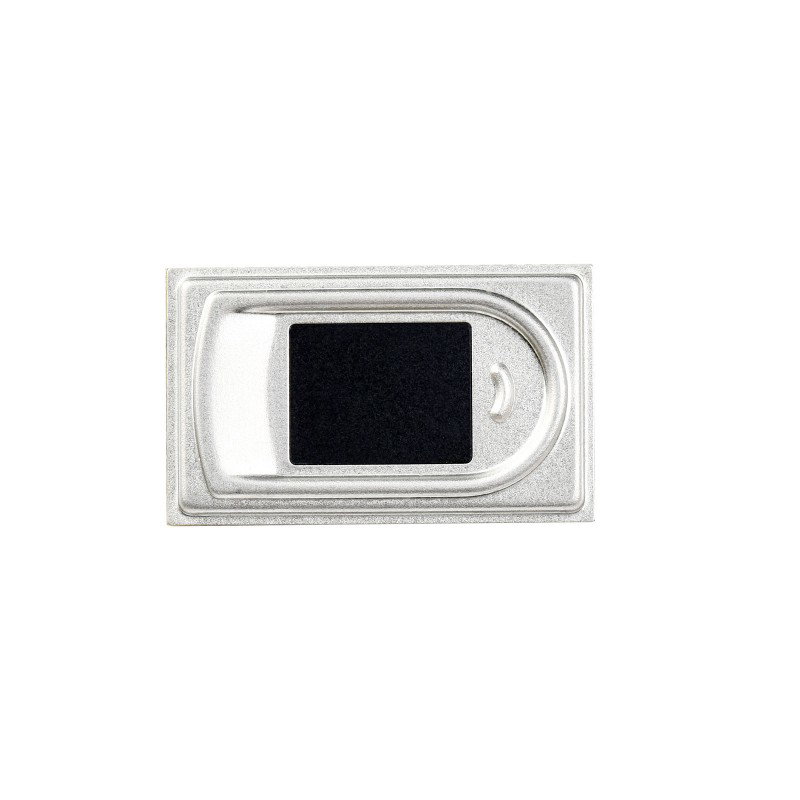

All-in-One capacitive fingerprint reader from Waveshare .

The main features of the fingerprint reader module

  • Also suitable for beginners - easy to use with a few simple commands, no knowledge of fingerprint technology or the internal structure of the module required
  • Commercial fingerprint algorithm, stable performance, fast identification
  • Very sensitive detection, it is enough to lightly touch the identifying area (without pressing) to trigger the reader
  • Highly integrated hardware, processor and sensor in one small chip, suitable primarily for small size applications
  • Allows you to freely input / output fingerprint images, fingerprint function files and other fingerprint related activities
  • Equipped with a built-in UART connector, easy to connect to hardware platforms such as STM32 and Raspberry Pi

Pinout description

  • VIN - power pin 3.3 V
  • GND - the ground of the system
  • RX - serial data input (TTL level)
  • TX - serial data output (TTL level)
  • RST - RESET pin, sleep control interface:
    • high level: module power supply - start
    • low level: module shutdown - sleep
  • WAKE - wake up pin, when the RST pin is in the low state (sleep), the module will be activated, when the finger touches the collector surface, it will go high
Application of a fingerprint reader.

Application of a fingerprint reader.

Reader technical specification

  • Type: capacitive touch sensor, fingerprint reader
  • Image: 508 DPI
  • Resolution: 160 x 160 px
  • Image grayscale: 8
  • Measurement area: 13.9 x 10.6 mm
  • Fingerprint capacity: 3000
  • Adjustment time: <200 ms (1: N and N ≤ 100)
  • False Acceptance Rate: <0.001%
  • Rejection Rate: <0.1%
  • Working voltage: 3.3V
  • Working current: <50 mA
  • Sleep current: <16 uA
  • ESD: 8KV contact discharge / 15KV air discharge
  • Communication interface: UART
  • Transmission speed: 19200 bps
  • Sensor dimensions: 20.4 x 33.4 mm

Kit contents

  • Capacitive fingerprint reader All-in-One (E) - with ARM Cortex - UART - rectangular
  • 6-pin connection cable
Package width 7 cm
Package height 5 cm
Package depth 2.5 cm
Package weight 0.013 kg
