Tuya M1 - PIR motion sensor ZigBee

Index: REM-16914 EAN: 5903794120365

A motion sensor (PIR) capable of detecting movement of moving people and larger animals within a range of 7 meters and an angle of 120°. Connects to the ZigBee network version 3.0, a control panel is required for proper operation. The sensor is powered by three AAA batteries. The device is mounted with 3M tape.

Tuya M1 - PIR motion sensor ZigBee
€16.18 tax excl.
Shipping in 24 hours
PayPal payment
Manufacturer: Tuya

Product description: Tuya M1 - ZigBee PIR motion detector

IntelligentMotion Detector (PIR)communicates withZigBeenetworkversion 3and 812.15.4. It can detect people and larger animals within a range of7 metersand has a viewing angle of120°. The sensor is powered bythree AAA batteries(included). There is a3Madhesive layer on the bottom of the unit for mounting. A connection to theZigBee gatewayis required for proper operation.

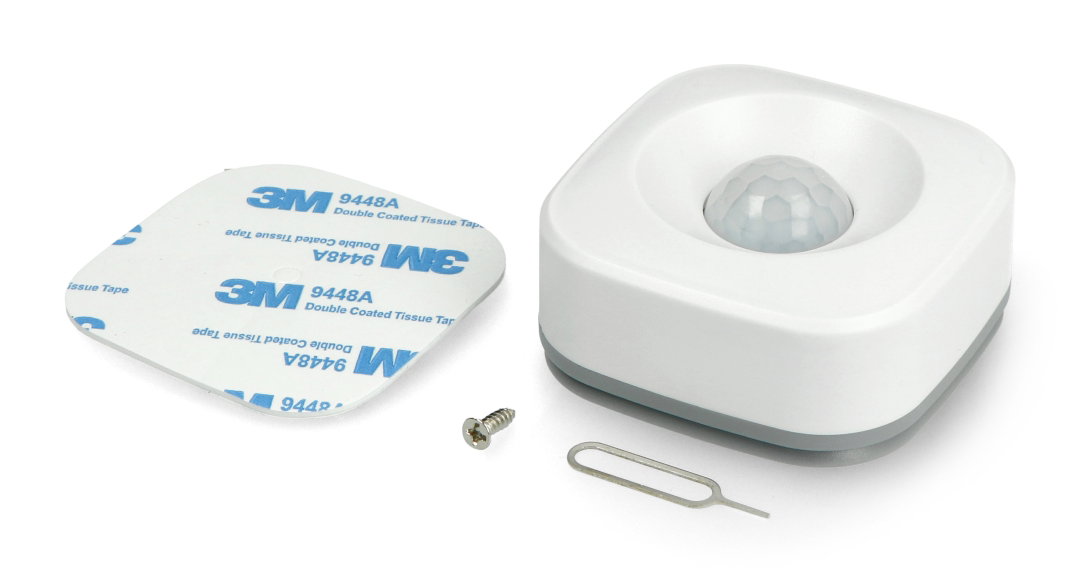

Zawartość zestawu czujnika PIR M1The contents of the PIR M1 motion sensor kit.

Main features of the M1 motion detector

  • Allows the detection of movement and movement of people and larger animals
  • He works in the passive infrared PIR range
  • The detection range is 7 m
  • The angle of motion detection is 120°
  • Easy installation and convenient adjustment
  • Can be placed on furniture, mounted on the wall or hung from the ceiling
  • Compatible with other ZigBee devices


For proper operation the device requires a connection tothe Zigbee gateway, which can be purchased separately.

PIR M2 motion detector specification

  • ZigBee protocol: version 3.0 according to standard 802.15.4
  • Antenna type: built-in
  • Status indicator: LED
  • Power supply: 3 x AAA battery
  • Detection range: 7 m
  • Detection angle: 120°
  • Operating temperature: 0°C to 60°C
  • Application: Tuya or Smart Life (ZigBee PBX required for operation)
  • Dimensions: 60 x 50 mm + stand
  • Weight: 50 g

The set includes

  • PIR M1 motion detector
  • Reset needle
  • Screw
  • Adhesive layer
  • Battery AAA - 3 pcs.
  • Instruction

Voltage to 4.5 V
Voltage from 4.5 V
Sensor - type PIR
Sensor - assembly mounting mas
Smart Home Motion sensor
Communication ZigBee
Package width 6.7 cm
Package height 6.7 cm
Package depth 3.2 cm
Package weight 0.097 kg
