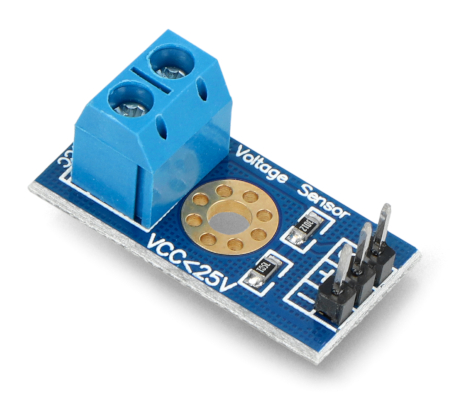

Voltage divider 5V/25V for Arduino

Index: MOD-08231 EAN: 5904422311285

A voltage divider is used, when the measured voltage has a larger value than the A/D converter's range. The device works in the range from 0 V to 25 V. The output voltage has a value of from 0 to 5 V and is proportional to the input voltage.

Voltage divider 5V/25V for Arduino
€0.76
€0.62 tax excl.
Available
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: OEM
Compatibility: Arduino

Description

A voltage divider is used, when the measured voltage has a larger value than the A/D converter's range. The device works in the range from 0 V to 25 V. The output voltage has a value of from 0 to 5 V and is proportional to the input voltage.

Specification

  • Supply voltage: 5 V
  • Measuring range: from 0 V to 25 V
  • Output voltage: proportional to input in the range from 0 V to 5 V
  • Dimensions: 27 x 13 x 12 mm



The product is compatible with Arduino

Online, you can findthe user manual, along with examples forthe Arduino.



Connection

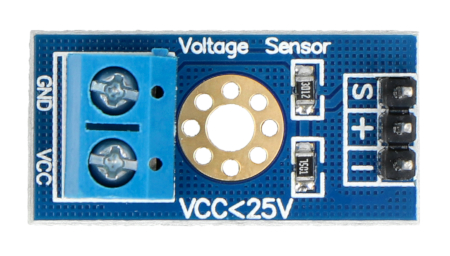

The sensor communicates with the microcontroller in analog way. It has 3 pins and 2-pin screw connector for connecting the measured voltage. Pins from the controller's side, are as follows:

Pin Description
S The output voltage from 0 to 5 V.
+ Not connected.
- The ground of the system.
