Arduino Uno R4 WiFi - ABX00087

Index: ARD-23292 EAN: 7630049204591
Arduino Uno R4 WiFi - original Arduino Uno module with efficient 32-bit Renesas RA4M1 ARM Cortex M4 microcontroller. The board is equipped with 256 kB Flash memory and 32 kB SRAM memory, 14 digital inputs/outputs , including 6 PWM, 6 ADC and 1 DAC. It has popular communication interfaces such as SPI, I2C, UART and CAN. It works with a voltage of 5 V. The ESP32-S3-Mini chip is responsible for WiFi and Bluetooth communication. The Uno R4 WiFi has a matrix of 12x8 addressable red LEDs and a Qwiic connector.
Arduino Uno R4 WiFi - ABX00087
€29.90
€24.31 tax excl.
Available
Shipping in 24 hours
PayPal payment
Arduino Uno R4 - version:
Manufacturer: Arduino

Product description: Arduino Uno R4 WiFi - ABX00087

Arduino Uno R4 WiFi - original Arduino Uno module with efficient 32-bit Renesas RA4M1 ARM Cortex M4 microcontroller. The board is equipped with 256 kB Flash memory and 32 kB SRAM memory, 14 digital inputs/outputs , including 6 PWM, 6 ADC and 1 12-bit DAC. It has popular communication interfaces such as SPI, I2C, UART and CAN. It works with a voltage of 5 V. The ESP32-S3-Mini chip is responsible for WiFi and Bluetooth communication. The Uno R4 WiFi has a matrix of 12x8 (96) addressed red LEDs and a Qwiic connector .

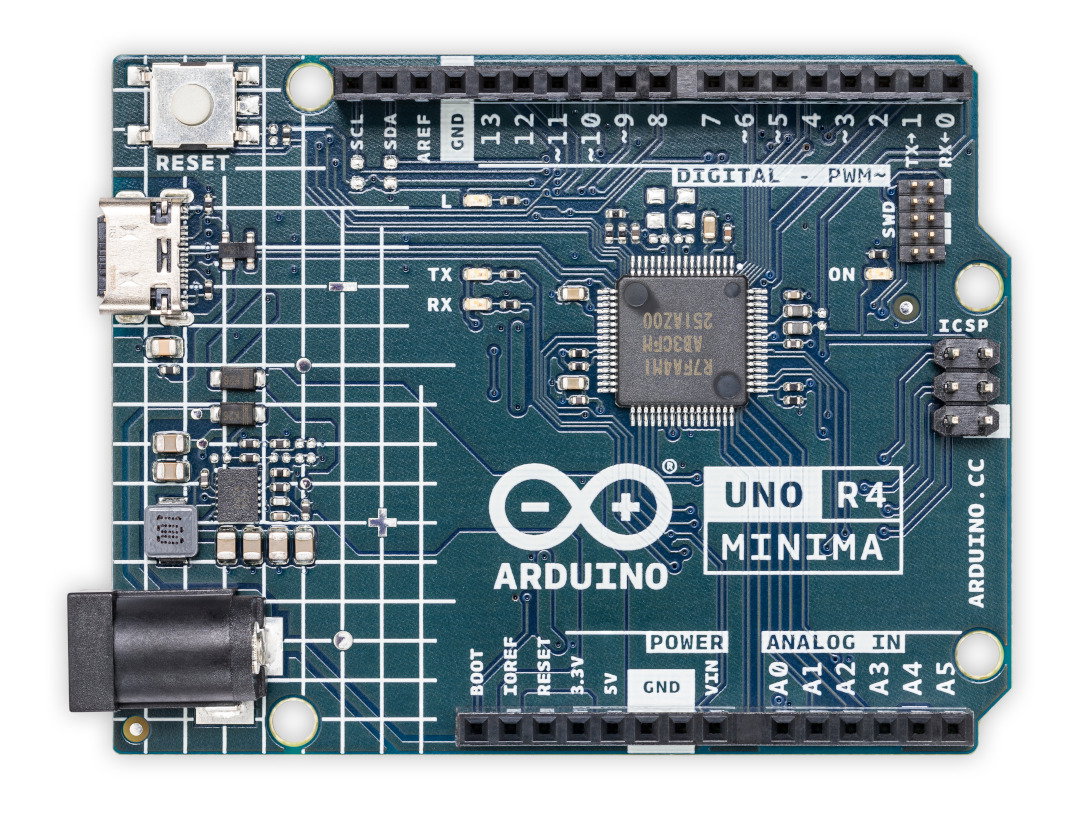

Arduino Uno R4 is available in two versions: WiFi and Minima - check what distinguishes these two boards !

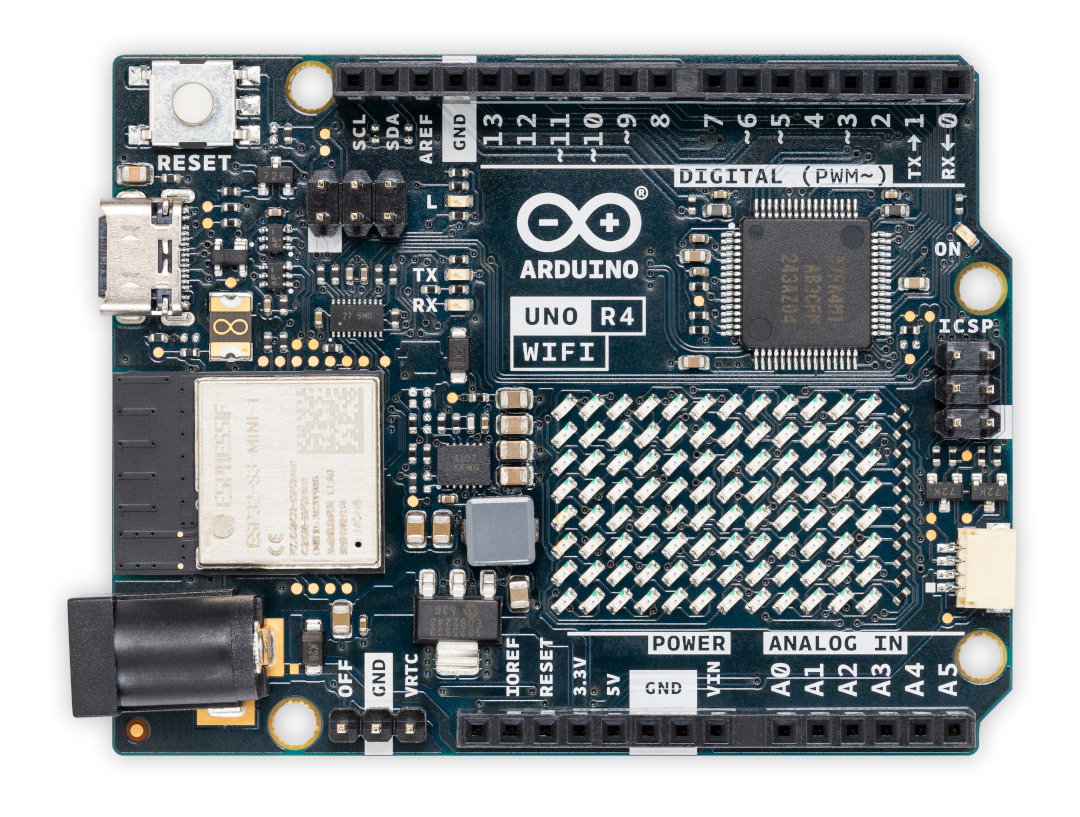

Arduino Uno R4 WiFi Arduino Uno R4 WiFi - ABX00087.

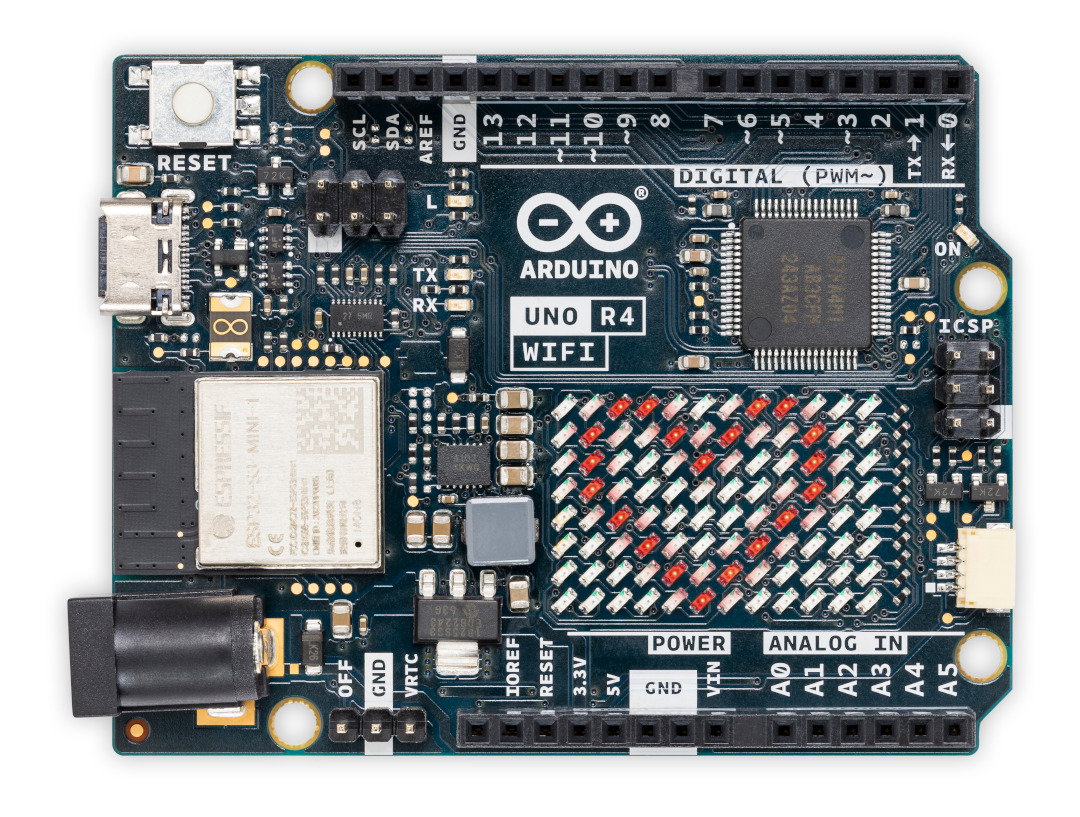

Arduino Uno R4 WiFi with LED matrix Arduino Uno R4 WiFi is equipped with a matrix of 96 red LEDs.

The main features of the original Arduino Uno R4 modules

  • Hardware backward compatibility - Arduino Uno R4 has the same pinout and logic voltage (5 V) as Arduino Uno R3 . This means that all overlays and designs can be easily transferred to the new version of the board.
  • New on-board components - The Uno R4 version has several new on-board components, such as a 12-bit digital-to-analog converter (DAC), CAN BUS, OP AMP and SWD debug port. Thanks to them, you can significantly extend the functionality of your projects.
  • More memory and faster processor - Increased memory (16x) and processor clock speed (3x) allow you to perform more precise calculations and handle more complex projects.
  • HID over USB-C - The Arduino Uno R4 allows you to simulate a mouse and keyboard via USB Type-C. This feature allows you to create an interesting user interface with minimal effort.
  • High supply voltage range - the Uno R4 board can be powered with a voltage of up to 24 V. The circuit has been equipped with a number of protections to minimize the risk of damage to the board or PC by incorrect connection of wires by the user. The RA4M1 microcontroller is also equipped with overcurrent protection.
  • Capacitive touch support - the RA4M1 microcontroller used in the Arduino Uno R4 natively supports capacitive touch.

What distinguishes the Arduino Uno R4 WiFi?

  • WiFi and Bluetooth wireless communication - Uno R4 WiFi is equipped with the ESP32-S3-Mini coprocessor, which allows you to create IoT projects thanks to WiFi and Bluetooth wireless communication.
  • 12x8 LED matrix - there is a 12x8 matrix of bright red LEDs on the board (96 points in total). This is the perfect functionality for creative projects using animations or for plotting sensor data, without the need for additional components.
  • Qwiic connector - Arduino Uno R4 WiFi has a built-in Qwiic I2C socket, which allows you to quickly and easily connect I2C modules equipped with the same connector to the board, without the need for soldering.
  • Diagnosing errors in real time - the board is equipped with a "error catching" mechanism that detects operations that may cause its failure, e.g. division by zero. When an error is detected, the board will print a detailed explanation of the error and its causes on the serial monitor.

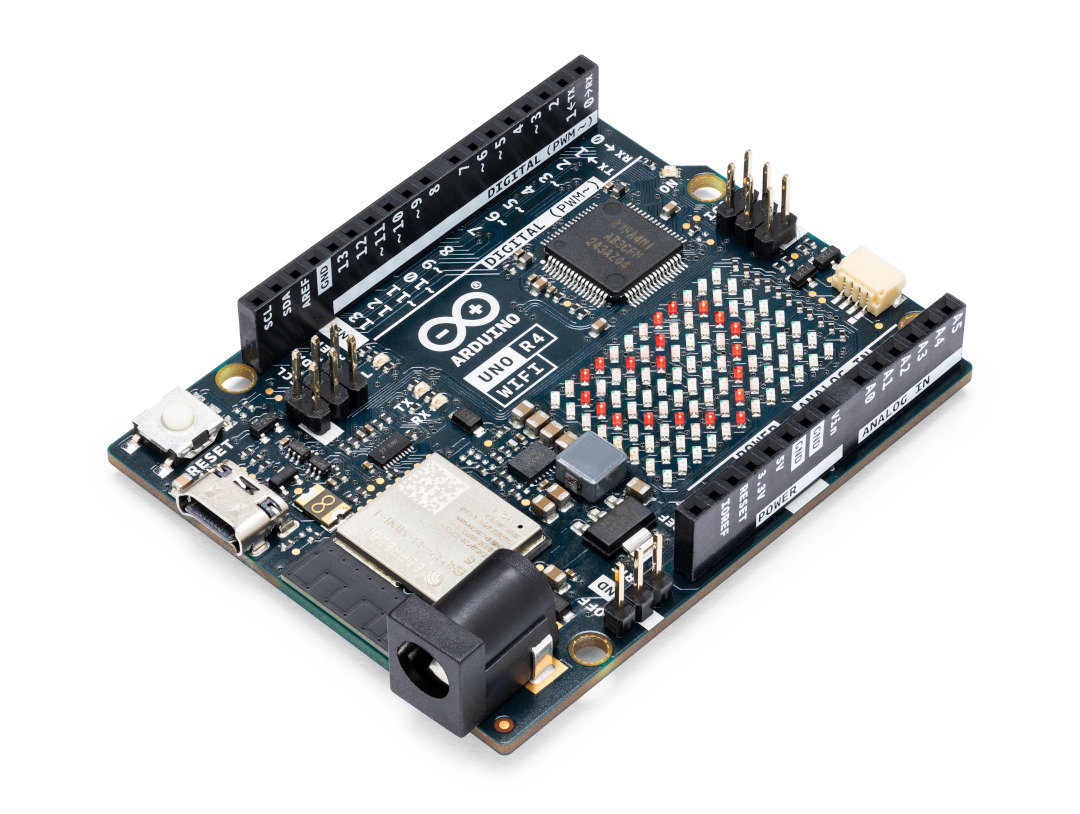

Arduino Uno R4 WiFi Arduino Uno R4 WiFi with ESP32-S3 chip.
Arduino Uno R4 WiFi Qwiic There is a Qwiic connector on the board.

Plug and Play

The Arduino Uno R4 WiFi board is equipped with a Qwiic connector that allows you to connect one or many available modules from the wide Qwiic ecosystem. After using the appropriate adapter, it is also possible to connect modules of other ecosystems, such as Grove .
Combined with the well-known ecosystem of Arduino Uno shields , Uno R4 WiFi becomes a very versatile platform for creating projects without the need for a breadboard or soldering.

Specification and comparison of Arduino Uno R4 WiFi and Arduino Uno R4 Minima
Arduino Uno R4 WiFi Arduino Uno R4 Minima
Model Arduino Uno R4 WiFi Arduino Uno R4 Minima
Microcontroller
Renesas R7FA4M1AB3CFM#AA0 ARM Cortex M4
Memory
  • RA4M1: 256KB Flash / 32KB SRAM
  • ESP32-S3: 384KB ROM, 512KB SRAM
256KB Flash / 32KB SRAM
Logic voltage
5V
Current efficiency of I/O pins
8mA/pin
input voltage
from 6V to 24V
Clock timing
  • RA4M1: 48mhz
  • ESP32-S3: up to 240 MHz
48Mhz
programming port
USB Type-C
WiFi/Bluetooth ESP32-S3-Mini lack
LED matrix 12x8 (96 red LEDs) lack
Additional connectors
  • Qwiic connector
  • pin OFF
  • VRTC pin
lack
digital pins
14
PWM
6
ADC
6
TO GIVE
1 (12-bit)
SLEEPS
1
I2C
2 (SDA, SCL / A4, A5 and Qwiic)
1
CAN
1
Dimensions
68.85 x 53.34mm

Voltage to 6.0 V
Voltage from 24.0 V
Voltage output from 5.0 V
Output voltage to 5.0 V
Nominal output voltage 5.0 V
UC - Microcontroller Renesas RA4M1
UC - Microcontroller ESP32-S3
UC - Core Cortex M4
UC - Flash 256 kB
UC - RAM 32 kB
UC - core 1. Single Core
UC - Digital pins 14
UC - analog in 6
UC - freq 48 MHz
UC - C/A 1
UC - PWM 6
UC - WiFi yes
UC - USB USB C
UC - Bluetooth yes
UC - I2C yes
UC - UART yes
UC - SPI interface yes
UC - CAN interface yes
Package width 6 cm
Package height 8.5 cm
Package depth 2.5 cm
Package weight 0.435 kg
