Servo RDS3115 360° continuous rotation - standard - kit

Index: OST-14261 EAN: 5903351242325

Digital standard servo. Works as a variable speed motor. Speed when the power is 7.2 V is 0.14 sec/60°. Torque: 15 kg*cm Size: 40 x 20 x 40.5 mm Weight: 64 gr. The set includes round servo horns, screws and two mounts.

Servo RDS3115 360° continuous rotation - standard - kit
€16.90
€13.74 tax excl.
Delivery 10 pcs scheduled for 2024-03-15
Waiting for delivery
PayPal payment
Manufacturer: OpenPlatform

Product description: Servo RDS3115 360° continuous operation - standard - set

Digital standard servo. Works as a variable speed motor. Speed when the power is 7.2 V is 0.14 sec/60°. Torque: 15 kg*cm Size: 40 x 20 x 40.5 mm Weight: 64 gr. The set includes round servo horns, screws and two mounts.

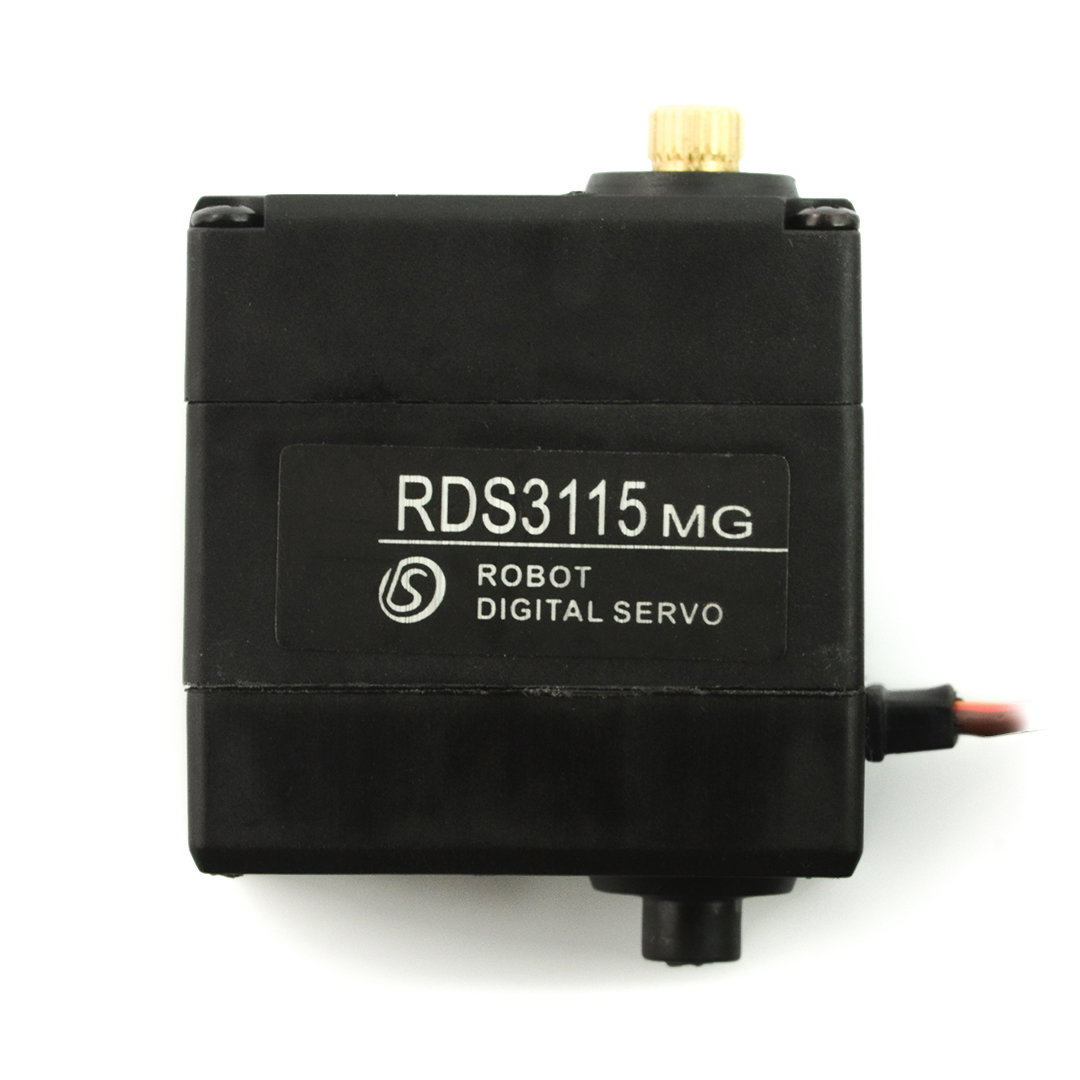

Serwo RDS3115

Technical characteristics of the servo RDS3115

  • Supply voltage: 5 V to 7.2 V
  • Continuous motion
  • Metal gears
  • Control signal: 50 Hz-330 Hz
  • Dimensions: 40.0 x 20.0 x 40.5 mm
  • Weight: 64 g

  • Parameters for 5 V:
    • Torque: 13.5 kg*cm (1,32 Nm)
    • Speed: 0.16 s/60°
    • Current consumption without load: 80mA
    • Current consumption at load: 1.3 A
    • Current consumption at rest: 4 mA

  • Options for 7.2 V:
    • Torque: 15.0 kg*cm (1,47 Nm)
    • Speed: 0.14 sec/60°
    • Current consumption without load: 100mA
    • Current consumption at maximum load: 1.5 A
    • Current consumption in idle state: 5 mA

Serwo RDS3115

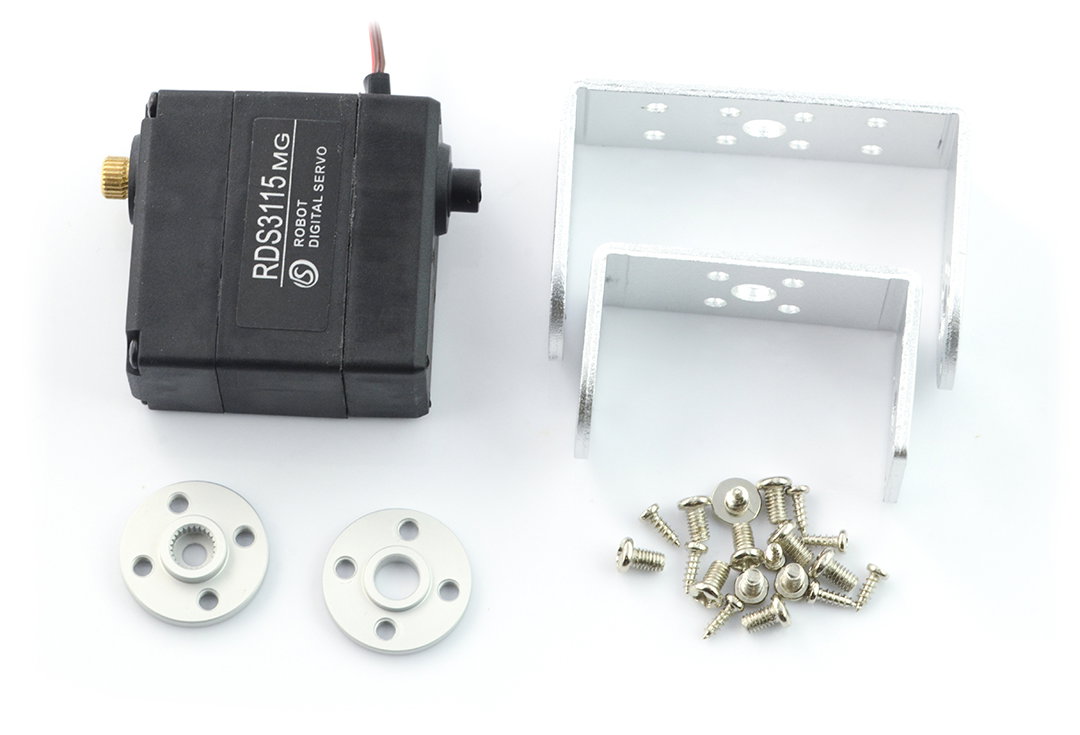

The kit contains the servo RDS3115

  • Servo RDS3115
  • Two round servo horns
  • Two mounts
  • Screws

Length 40 mm
Width 20 mm
Height 41 mm
Voltage to 5.0 V
Voltage from 7.2 V
Mass 64 g
Servo - Range 360 °
Servo - Size standard
Servo - Speed 0,14 s/60°
Servo - Type digital
Package width 7 cm
Package height 10 cm
Package depth 4.9 cm
Package weight 0.153 kg
