Description: Servo EF90D 360 - micro - with wheel and tyre.
The ElecFreaks EF90D digitalservo system, completewith wheel and tyre, is ideal for projects requiringlightweight, high-performance mechanisms. It has a360°swivel angle and uses the pulse width to adjust the rotation speed. The operating voltage isbetween 3 V and 5.5 V. Mounting screws,ploughsanda wheeland tyre are included. The EF90D 360° Digital Server can be used for many projects. It is used in mechanical arm modules,Smart Carmodules as well as in simple small robot projects.

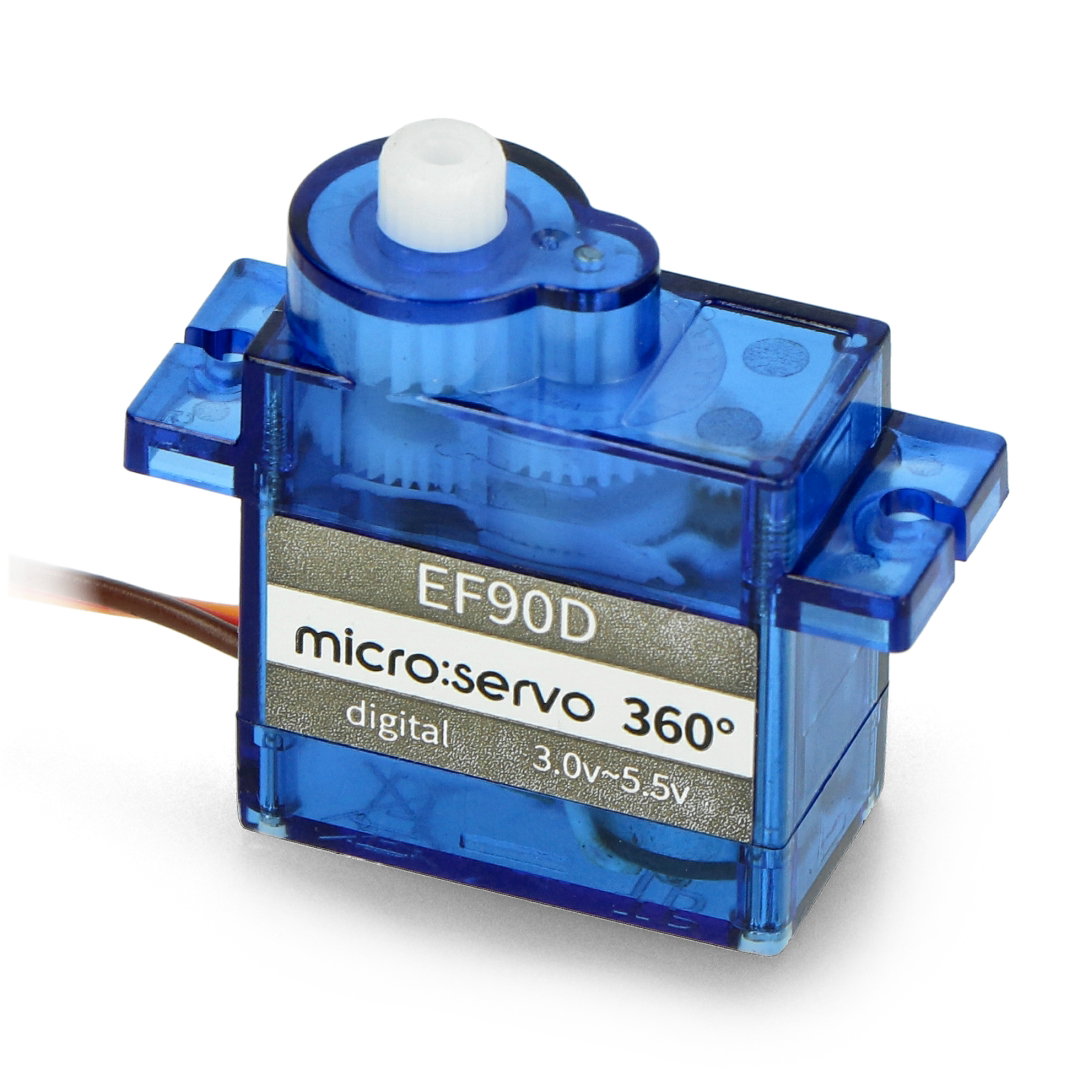

Digital 360° servo.
Technical specifications for the 360° digital servo
- Servo type: digital
- Version: EF90D
- Operating voltage: 3 V to 5.5 V DC
- Output torque: 1.6 kg/cm
- Angle of rotation: 360°
- The width of the dead band: 5 us
- Operating temperature: -30°C to 60°C
- Connector type: JR / FUTABA Common
- Weight: 40g

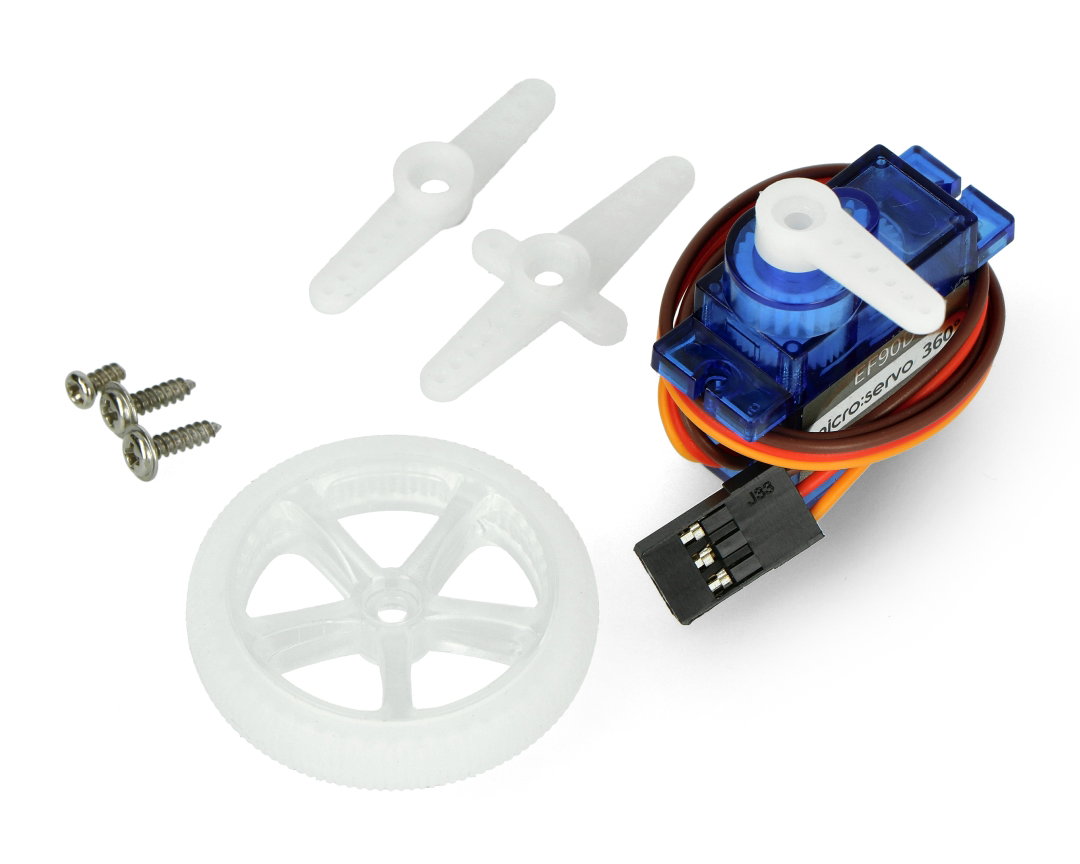

Contents of the servo kit with wheel and tyre.
Set contents
- EF90D 360° servo
- Connecting cable
- Orchids
- Mounting screws - 3 pcs.
- Wheel with tyre
