Product description: Servo MG-90S - micro - 180° - metal gear
Micro servo with a weight of 13,4 g. It is characterized by stable work, accurate angle and easy installation. It has a metal gearbox. The operating voltage is from 4.8 V to 6 V. With 6 V supply, the torque of the servo is 2.2 kg*cm. At the same time, the servo can run smoothly with minimal power and can be powered by ordinary battery or USB. Moreover, users can directly control the servo using servo libraries in Arduino IDE. The power cord length is 30 cm and the product dimensions are 22.8 x 12.2 x 28.5 mm.

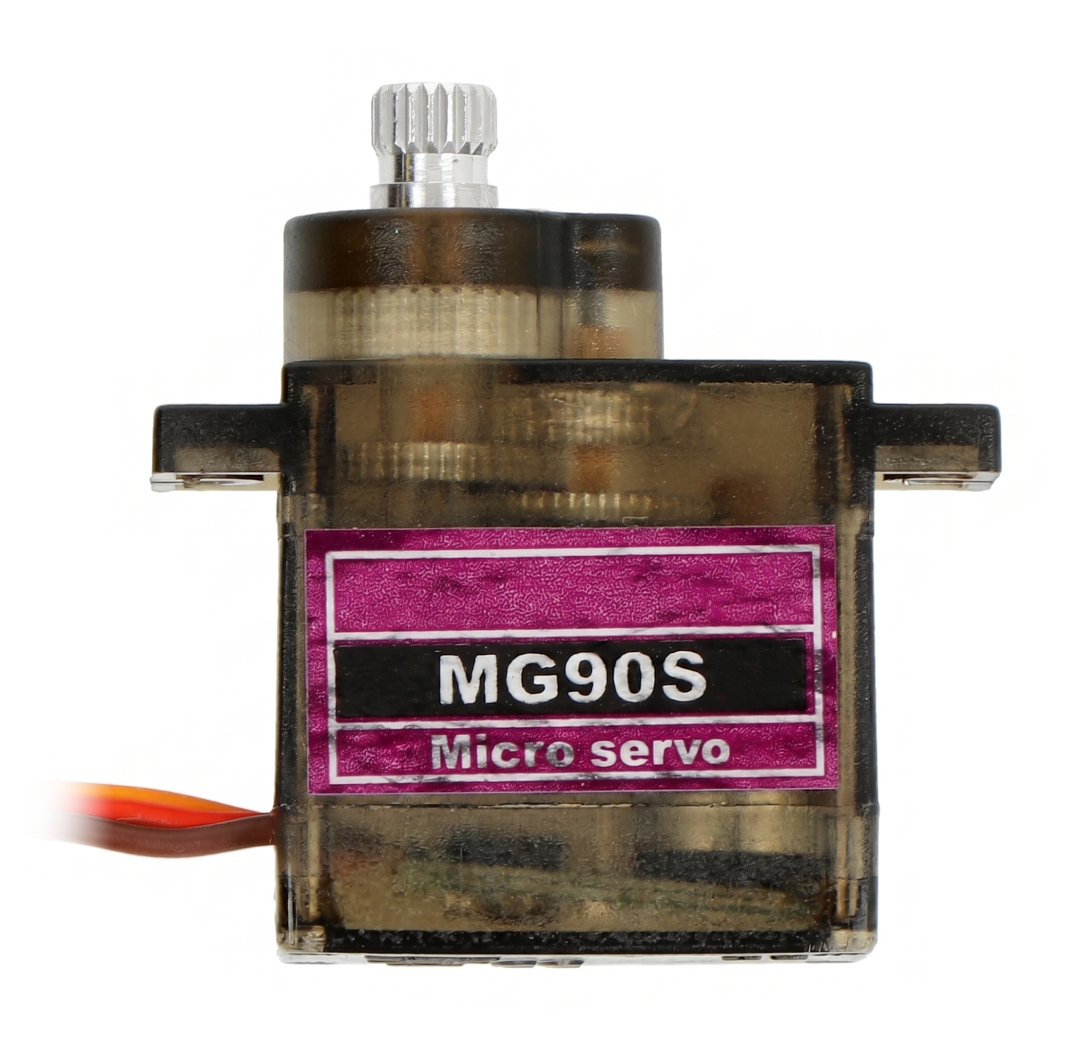

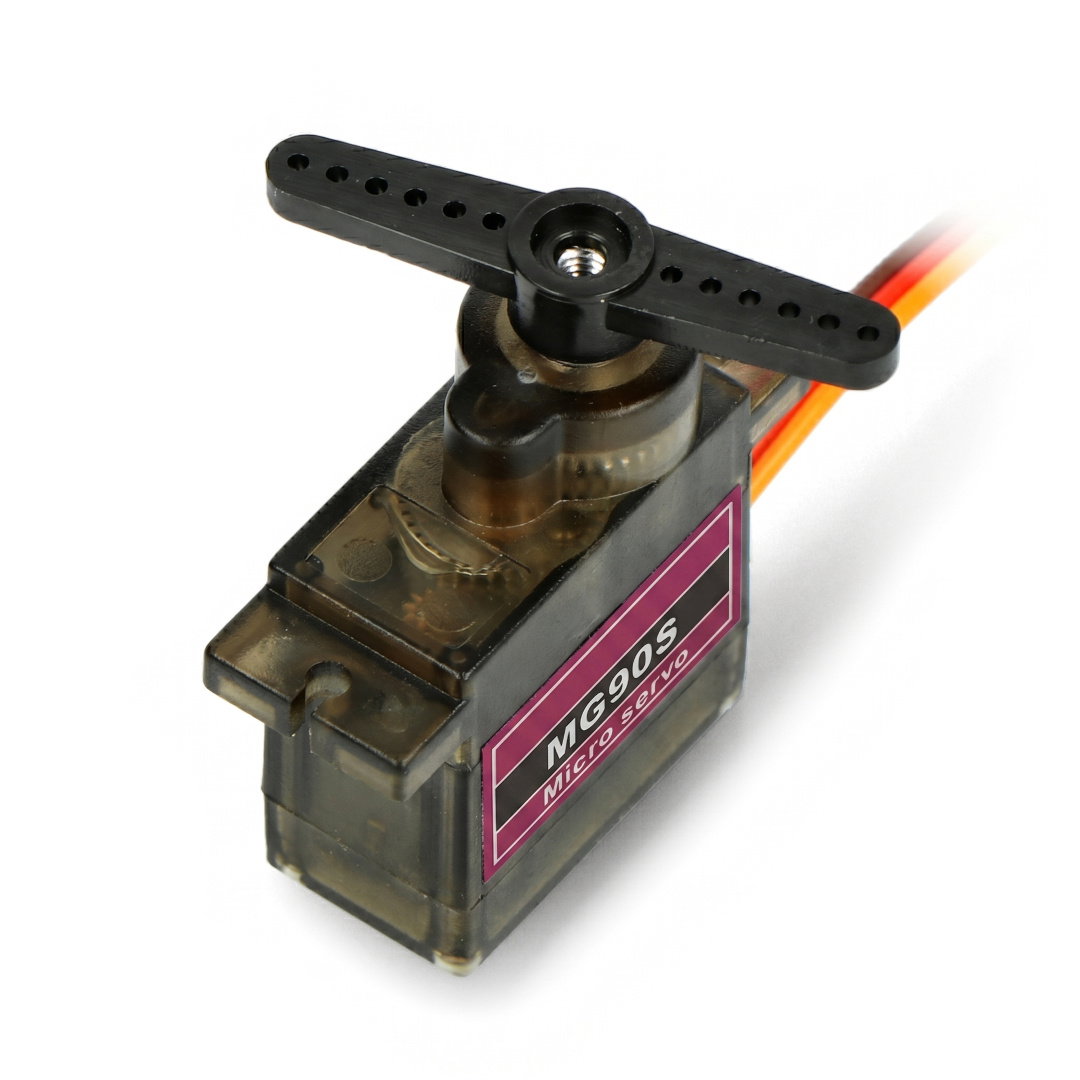

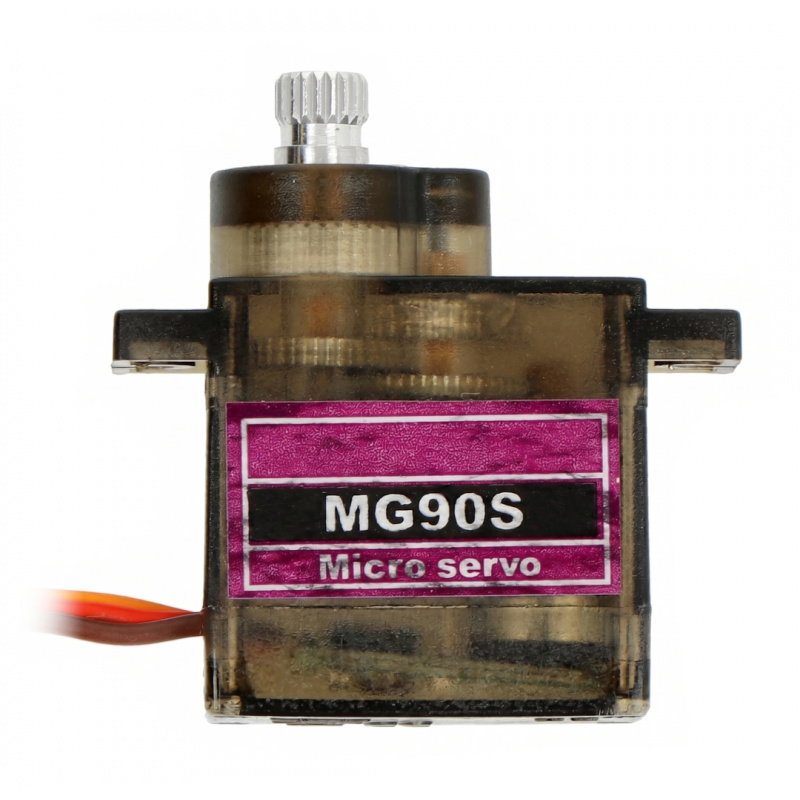

Servo MG-90S - micro.

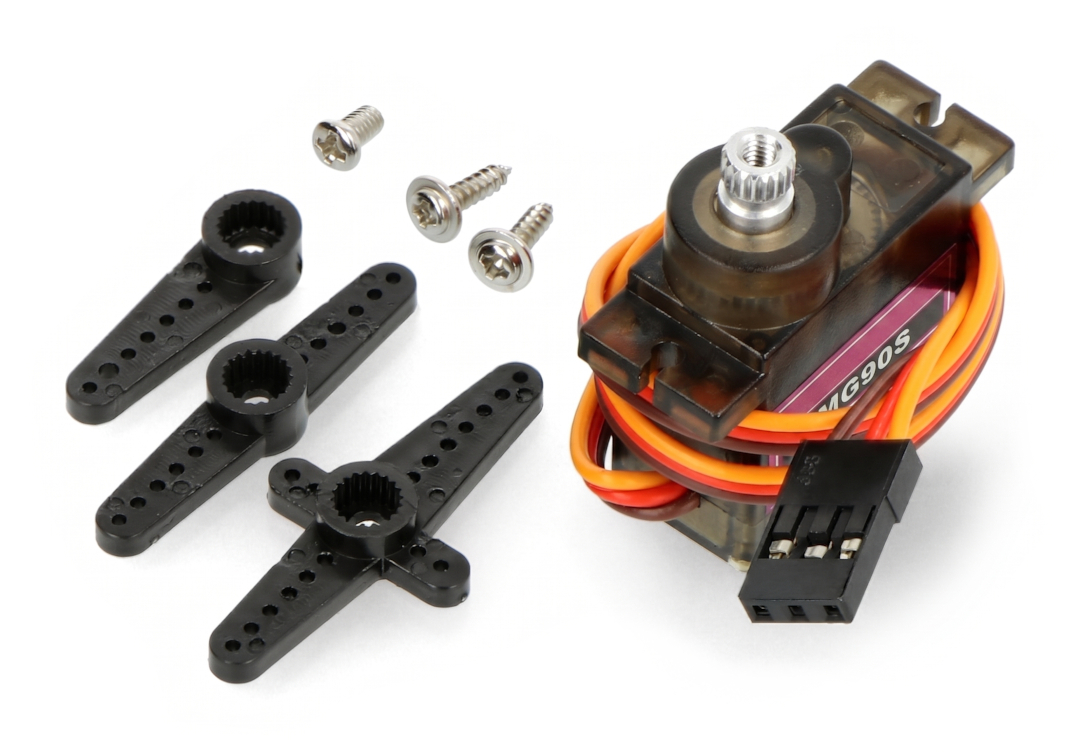

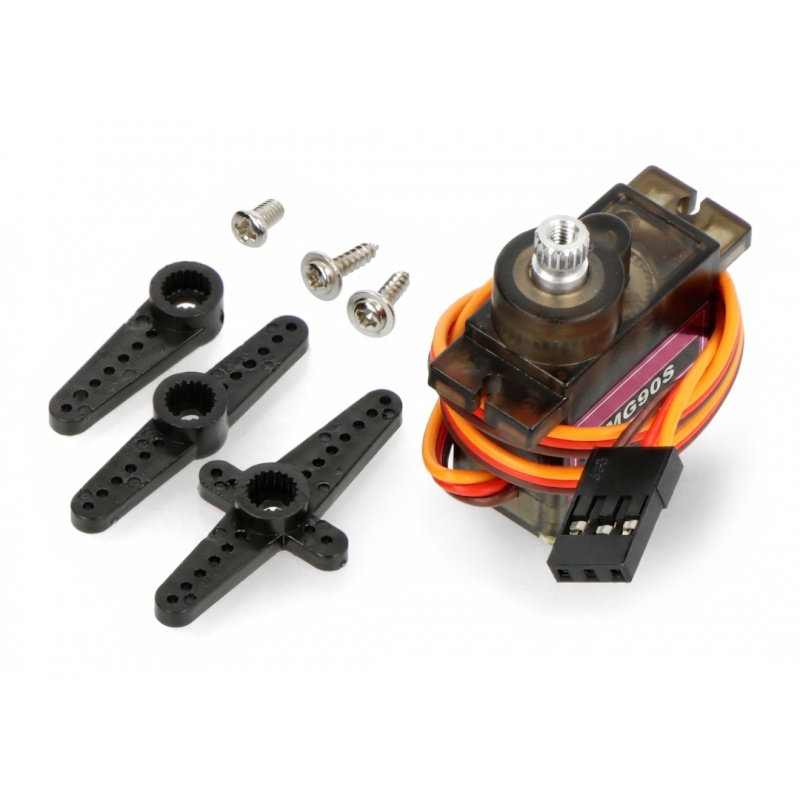

Elements included in the set.
Servo specifications
- Model: MG-90S
- Housing material: plastic
- Servo type: micro
- Supply voltage: from 4.8 V to 6.0 V
- Parameters for 4.8 V:
- Torque: 1.8 kg*cm (0.2 Nm)
- Speed: 0.1 s/60°.
- Parameters for 6.0 V:
- Torque: 2.2 kg*cm (0.23 Nm)
- Speed: 0.08 s/60°
- Range of motion: 0° to 180°
- Cable length: 30 cm
- Dimensions: 22.8 x 12.2 x 28.5 mm
- Weight: 13.4 g
