SenseCAP S2104 - Soil Moisture and Temperature Sensor - LoRaWAN - Seeedstudio 114992870

Product description: SenseCAP S2104 - soil temperature and moisture sensor - LoRaWAN - Seeedstudio 114992870

The SenseCAP S2104 wireless soil temperature and humidity sensor, which uses the LoRaWAN long-range protocol and Bluetooth for communication. SenseCAP S2104 has been closed in a housing with IP66 tightness class, thanks to which it can be successfully used in industrial conditions. The sensor measures soil moisture in the range from 0% to 100% (m 3 / m 3 ) and temperature in the range from -40 ° C to 80 ° C. It is based on FDR technology, which allows for quick configuration, safe connection, accurate and wide-range measurements and simple calibration. The device ensures low maintenance costs thanks to its durability, long battery life and built-in Bluetooth for OTA configuration and remote device management.

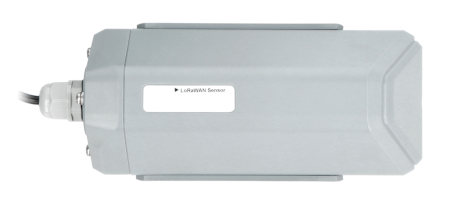

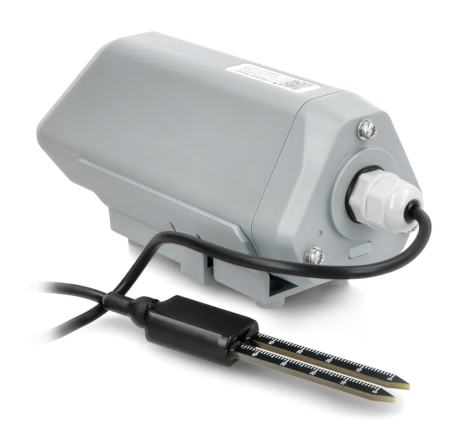

SenseCAP S2104 soil temperature and moisture sensor.

Main features of the SenseCAP S2104 sensor

• Simple configuration : no code required, the environment allows users to complete the configuration in four steps.
• SenseCAP mobile app : The SenseCAP Mate app allows users to manage sensors with a variety of functions.
• Minimal maintenance cost : the sensor is closed in a sealed IP66 housing, configured via Bluetooth and equipped with a 19 Ah battery.
• Compatible with worldwide LoRaWAN networks: works with various types of LoRaWAN gateways and multiple LoRaWAN web servers (helium, TTN, etc.) to enable fast connection to local LoRaWAN networks.
• High Performance Guarantee : Passed rigorous reliability tests to ensure high performance and long life.

Easy configuration of the soil temperature and moisture sensor

The SenseCAP S2104 Soil Temperature and Moisture Sensor provides scanning and playback capabilities, allowing users to complete the setup in 4 simple steps. The module is friendly to people with limited technical facilities, it allows you to avoid time-consuming configuration and quickly start measuring humidity and temperature.

1. Download the SenseCAP Mate app
2. Connect to the sensor via Bluetooth
3. Set parameters:

• Platform and frequency plan
• Uplink interval
• EUI and key
• The sensor data will be available in the application and the web portal

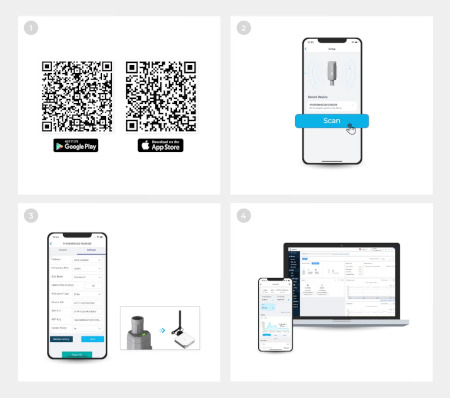

LoRaWAN SenseCAP S2104 sensor configuration.

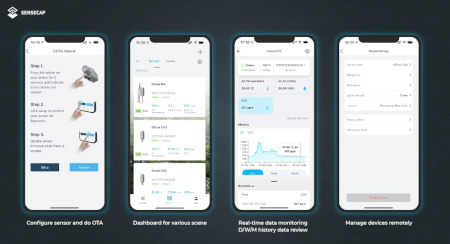

SenseCAP Mate mobile app.

SenseCAP Mate mobile app

SenseCAP Mate is a powerful data visualization and remote device management tool. It allows users to view data on a clean interface while checking the status of devices via Bluetooth communication. Moreover, users can set threshold values (focus on the data they need to take action on), time intervals (improve battery performance) and set alarms if the data read is out of a safe range.

Minimal maintenance cost

The SenseCAP S2014 can transmit data at distances of up to 2 km in urban areas and up to 10 km in undeveloped areas, while maintaining lower power consumption during data transmission. Bluetooth remote monitoring can also benefit from large-scale deployment, providing the greatest efficiency by saving time and labor for deploying and managing devices. Together with a removable battery that lasts up to 10 years of use and an industrial IP66 housing that can operate in temperatures from -40 ° C to 85 ° C and harsh environmental conditions, it meets the need for LoRaWAN based IoT solutions.

1. Wireless data transmission within a range of up to 2 km in urban areas and up to 10 km in a straight line of sight.
2. Bluetooth communication for quick device configuration via the app.
3. IP66 tightness class.
4. Ultra low energy consumption. The battery lasts for 10 years of use of the sensor.
5. Soil humidity and temperature sensor.

Low operating cost of the sensor.

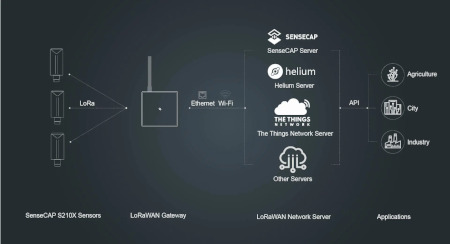

Compatible with worldwide LoRaWAN networks

SenseCAP can work with a variety of LoRaWAN networks, offering multi-server connectivity and broad integration with IoT platforms. Refer to the User Guide to learn more about the separate network architecture when selecting different LoRaWAN servers and network platforms.

High performance guaranteed

SenseCAP S210x sensors have undergone 6 reliability tests prior to market launch and meet the requirements for operation in extreme environmental conditions. The manufacturer ensures that the performance and durability of the sensors meet their specifications throughout their entire life cycle.

High performance guaranteed.

Examples of sensor application.

Application of the SenseCAP S2104 sensor

• Irrigation systems. Accurate monitoring of soil moisture is essential for efficient and effective agricultural irrigation techniques. The S2104 is a soil moisture and temperature sensor that can help you increase your yield. The right percentage of soil moisture also maintains nutrients in the root zone.
• Planting in greenhouses and gardens. Soil moisture and temperature are strongly related to farm productivity. Excessive humidity leads to crop loss and plant mortality, and too little humidity leads to root diseases and wasted water.
• Management of turf and lawn. The successful implementation of soil moisture and temperature monitoring also applies to turf / lawn management. The SenseCAP S2104 can help turf managers achieve real savings and benefits by scientifically and accurately analyzing turf and lawn moisture.
• Drought monitoring. Regional droughts can seriously affect the economy and even lead to hunger in some parts of the world. Soil moisture is critical to understanding the interaction between the atmosphere and the earth's surface. Accurate knowledge of soil temperature and moisture content with the SenseCAP S2104 can help predict and characterize droughts.

SenseCAP S2104 sensor specification

• Soil temperature:
• measuring range: -40 ° C to 80 ° C
• accuracy:
• 0 ° C to 50 ° C: ± 0.5 °
• -40 ° C to 0 ° C, 50 ° C to 80 ° C: ± 1 ° C
• resolution: 0.1 ° C
• Soil moisture:
• measuring range: from 0% to 100%
• accuracy:
• 0% to 50%: ± 3%
• 50% to 100%: ± 5%
• resolution:
• 0% to 50%: 0.1%
• 50% to 100%: 0.5%
• Model: S2104
• Microcontroller: Wio-E5
• Supported protocol: LoRaWAN v1.0.3 Class A
• Built-in Bluetooth: parameters can be changed via the app
• LoRaWAN Channel Plan: IN865 / EU868 / US915 / AU915 / AS923 / KR920 / RU864 (supports 7 plans)
• Transmission power: 19 dBm
• Sensitivity: -136 dBm for SF12 BW = 125 kHz
• Communication range: from 2 km to 10 km (depending on the terrain)
• Tightness class: IP66
• Working temperature: -40 ° C to 85 ° C
• Working humidity: 0% to 100% RH
• Battery life: 10 years
• Battery capacity: 19 Ah
• Battery Type: Standard Size D SOCI2
• Probe length: 5 m
• Weight: 405 g

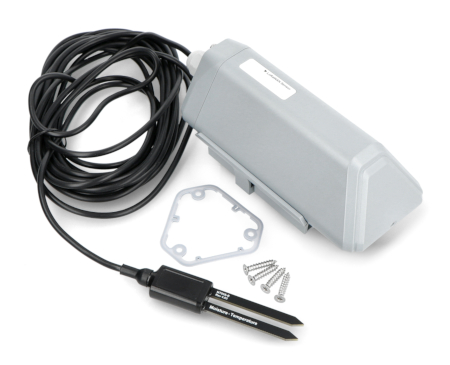

Kit contents

• SenseCAP S2104
• Handle
• KA 4 x 20 mm self-drilling screws
• Quick User Guide
