Product description: SenseCAP S1000 V2 10in1 - sensor for building a weather station - Seeedstudio 101991024
SenseCAP S1000 V2 is an advanced all-in-one weather sensor that provides precise measurements of ten different environmental parameters . Thanks to its versatility, it allows monitoring air temperature , relative humidity , barometric pressure , light intensity and precipitation (thanks to the use of optical technology). Additionally, the sensor measures wind speed and direction using ultrasonic sensors, as well as the concentration levels of PM2.5, PM10 and CO2. The device operates in a wide temperature range from -40°C to 85°C and has IP66 protection , which makes the sensor resistant to water, dust and temperature fluctuations. It is also compatible with RS485 and SDI-12 communication protocols, which enable easy integration with various environmental monitoring and management systems.
The manufacturer has prepared a user's guide that makes it easier to start working with the sensor.

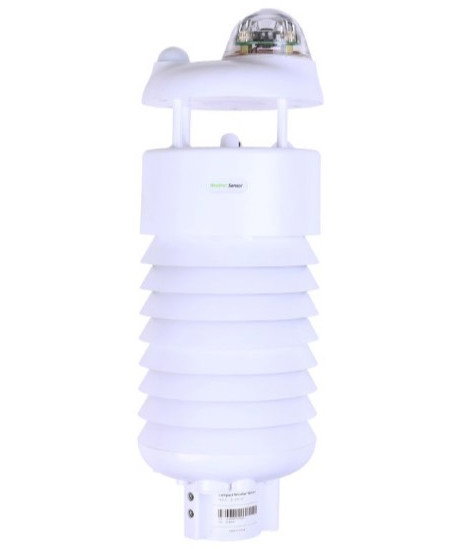

SenseCAP S1000 V2 10in1 - sensor for building a weather station - Seeedstudio 101991024.
The sensor is used to monitor up to 10 environmental parameters.
Main features of the sensor
- Measures 10 key environmental parameters: air temperature, relative humidity, barometric pressure, light intensity, precipitation (optical), wind speed and direction (ultrasonic), PM2.5, PM10 and CO2
- Ensures reliable sensor operation in harsh environments with an IP66-rated design that is waterproof and dustproof, and a wide operating temperature range from -40°C to 85°C
- Enables easy integration with systems thanks to RS485 and SDI-12 interfaces
- It is equipped with a thermostatically controlled heating system for applications in very cold environments
- Perfect for smart city applications, precision agriculture, environmental monitoring and other projects requiring accurate weather data
Applications of the SenseCAP S1000 V2 sensor
The SenseCAP S1000 V2 sensor is widely used in various sectors. It enables farmers to optimize irrigation processes and harvest harvests , and contributes to protection against drought and excessive water consumption . It works well in monitoring air quality, which is important for cities and industrial areas. SenseCAP S1000 V2 also provides data necessary to optimize urban traffic and infrastructure management . Additionally, in the renewable energy sector, this sensor helps optimize the location of wind turbines and solar installations .
SenseCAP ONE sensors
The SenseCAP ONE series of weather sensors are compact devices that users call "all-in-one". They include a wide range of sensors that enable monitoring as many as 10 key weather parameters - air temperature, air humidity, atmospheric pressure, light intensity, wind speed and direction, precipitation, PM 2.5 and PM 10 concentration and CO2 level . This comprehensive solution allows for highly precise tracking of atmospheric conditions in one compact device (the ability to measure individual values depends on the selected sensor model).
SenseCAP ONE series from Seeedstudio.
Application of SenseCAP ONE.
Modbus RTU RS485 and SDI-12 communication protocols
RS485 is a data transmission standard enabling serial communication over long distances and in difficult environmental conditions . It is often used in industrial systems due to its ability to maintain reliable communication even in the presence of electromagnetic interference.
SDI-12 is an interface standard for connecting microprocessors with environmental sensors, where the number "12" means 1200 baud, i.e. the data transmission speed. It is particularly popular in environmental monitoring applications because it allows multiple sensors to be connected to a single data recording device simply and efficiently .
Check out other Seeedstudio products on our website
offer!
High reliability of SenseCAP sensors
Seeedstudio products are characterized by high quality and reliability , which is confirmed by numerous tests carried out at the production stage. Before the modules are finally released from the factory, the manufacturer conducts a series of tests to ensure that the modules will function perfectly in extreme conditions throughout their entire life cycle. The SenseCAP ONE series has passed 6 reliability tests , which include:
- Wind tunnel - measurement of wind direction and speed in an artificially changing environment,
- High and low temperature test - determines operation in extremely unfavorable temperature conditions,
- Structural test - determines whether the collected values from multiple devices are consistent and highly precise,
- Three-axis vibration test (xyz) - assesses the impact of vibration on sensor measurements,
- Waterproofness and tightness test - checking whether the module meets the requirements for operation in a difficult environment,
- R&D and production test - to check the performance of multiple devices in factory conditions.
Reliability tests performed before the product is released to the market.
Technical specifications of the sensor
- Model: SenseCAP S1000 V2
- Measured values:
- air temperature: range from -40°C to 85°C, accuracy ± 1°C, resolution 0.01°C
- relative humidity: range 0% to 100% RH, accuracy ± 1.5% RH, resolution 0.01% RH
- barometric pressure: range from 300 hPa to 1250 hPa, accuracy ± 50 Pa, resolution 10 Pa
- light intensity: range from 0 lx to 200,000 lx, accuracy ± 5% of reading, resolution 5 lx
- wind speed: standard range 0 m/s to 60 m/s, extended range up to 75 m/s, withstand range up to 80 m/s, accuracy ± 0.3 m/s (≤10 m/s); ± 3% (from 10 m/s to 50 m/s); ± 5% (>50 m/s), resolution 0.1 m/s
- wind direction: range from 0° to 360°, accuracy ± 3°, resolution 0.1°
- rainfall intensity: range from 0 mm/h to 200 mm/h, accuracy ± 10%, resolution 0.2 mm/h
- PM2.5: range from 0 µg/m³ to 1000 µg/m³, accuracy ± 10% (from 100 µg/m³ to 1000 µg/m³); ± 10 µg/m³ (from 0 µg/m³ to 100 µg/m³), resolution 1 µg/m³
- PM10: range from 0 µg/m³ to 1000 µg/m³, accuracy ± 15% (from 100 µg/m³ to 1000 µg/m³); ± 15 µg/m³ (from 0 µg/m³ to 100 µg/m³), resolution 1 µg/m³
- CO2: range from 400 ppm to 5000 ppm, accuracy ± (30 ppm + 3% of reading) range from 400 ppm to 5000 ppm, resolution 1 ppm
- Sensor power supply: 12 V to 24 V
- Heating power supply: 24V
- Protocol: RS485 (MODBUS-RTU) / SDI-12
- IP tightness class: IP66
- Cable length: 3 m
- Operating temperature and humidity: -40°C to 85°C, 0% to 100% RH
- Weight: 2 kg
Set contents
- 1x SenseCAP S1000 V2 10in1 - sensor for building a weather station
- 1x M12 8-pin communication cable
- 1x cable with a USB Type-C connector for device configuration
- 6x mounting screw
- 1x flat washer for opening the configuration port
