Grove - Smart IR Gesture Sensor - with IR camera PAG7646J1 - Seeedstudio 101991067

Index: SEE-23755
Intelligent Smart IR Gesture Sensor module from Seeedstudio enabling the recognition of over 15 gestures. The manufacturer placed the PAG7646J1 IR camera and the PAG7661QN artificial intelligence system on the board, which processes the data collected by the camera and thus enables the implementation of complex applications and scenarios. Gestures can be detected at a distance of 5 cm to 40 cm . The module is also equipped with a connector compatible with the Grove system, which significantly facilitates subsequent prototyping.
Grove - Smart IR Gesture Sensor - with IR camera PAG7646J1 - Seeedstudio 101991067
€23.90
€19.43 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: Seeedstudio

Product description: Grove - Smart IR Gesture Sensor - gesture sensor with IR camera PAG7646J1 - Seeedstudio 101991067

Intelligent Smart IR Gesture Sensor module from Seeedstudio enabling the recognition of over 15 gestures. The manufacturer placed the PAG7646J1 IR camera and the PAG7661QN artificial intelligence system on the board, which processes the data collected by the camera and thus enables the implementation of complex applications and scenarios. Gestures can be detected at a distance of 5 cm to 40 cm . The module is also equipped with a connector compatible with the Grove system, which significantly facilitates subsequent prototyping.

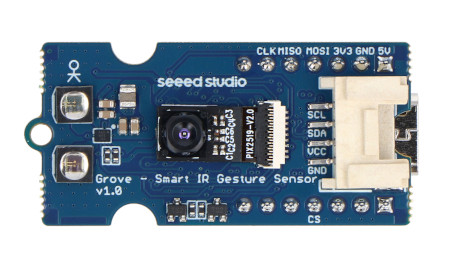

Grove - Smart IR Gesture Sensor - gesture sensor with IR camera PAG7646J1 - Seeedstudio 101991067.

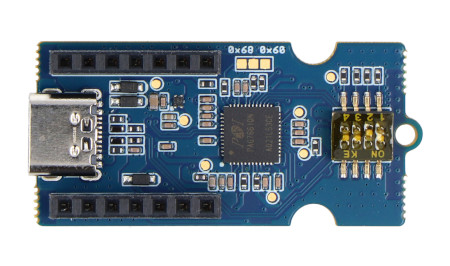

Gestures can be detected at a distance of 5 cm to 40 cm.

Special features of the module

  • Compact size and lots of possibilities: on a small board measuring 43 x 21 mm, the manufacturer placed an IR camera using an AI algorithm for gesture recognition.
  • Detection of over 15 gestures : has the ability to recognize gestures such as N-finger swipe, pinch, tap, grab, rotate, thumb up, thumb down, static gesture (1 to 5 fingers) or swipe with a detection range of 5 cm to 40 cm .
  • High compatibility with peripheral devices : it is equipped with a Grove connector, is compatible with the XIAO series interface, and also supports I2C and SPI communication, using which images obtained with the camera can be sent to a PC.
  • Wide voltage range: works with 3.3V and 5V.

Suggested use of Smart IR Gesture Sensor

  • Wireless gesture interaction
  • Smart light switch
  • Touchless multi-function panel switch
  • PPT interaction
  • Robot control
  • Music player control

Arrangement of elements on the board

  1. LEDs
  2. PAG7646J1 IR camera
  3. Grove connector
  4. 4-position DIP switch
  5. PAG7661QN AI chip
  6. Female sockets
  7. USB Type-C interface

Arrangement of elements on the board.

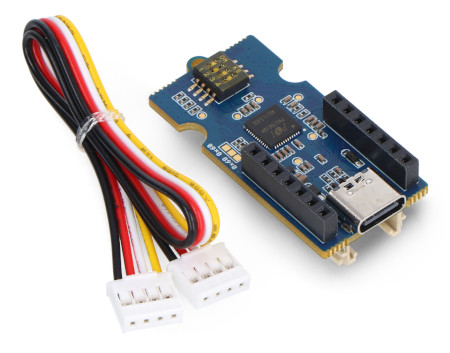

Elements included in the set.

Technical Specifications

  • IR camera with sensor: PAG7646J1
  • Built-in LED light: AU3838A-ZRR-1000mA
  • AI chip: PAG7661QN
  • Gesture detection range: 5 cm to 40 cm
  • Type of gestures detected: N finger swipe, pinch, tap, grab, rotate, thumb up, thumb down, static gesture (1 to 5 fingers), swipe
  • Communication interface:
    • I2C: Grove, XIAO
    • SPI: USB Type C connector
  • Supply voltage: 3.3V / 5V
  • Plate dimensions: 43 x 21 mm

Set contents

  • Grove - Smart IR Gesture Sensor - gesture sensor with IR camera PAG7646J1
  • Grove connecting cable

Package width 8.5 cm
Package height 13.5 cm
Package depth 2 cm
Package weight 0.011 kg
