Description

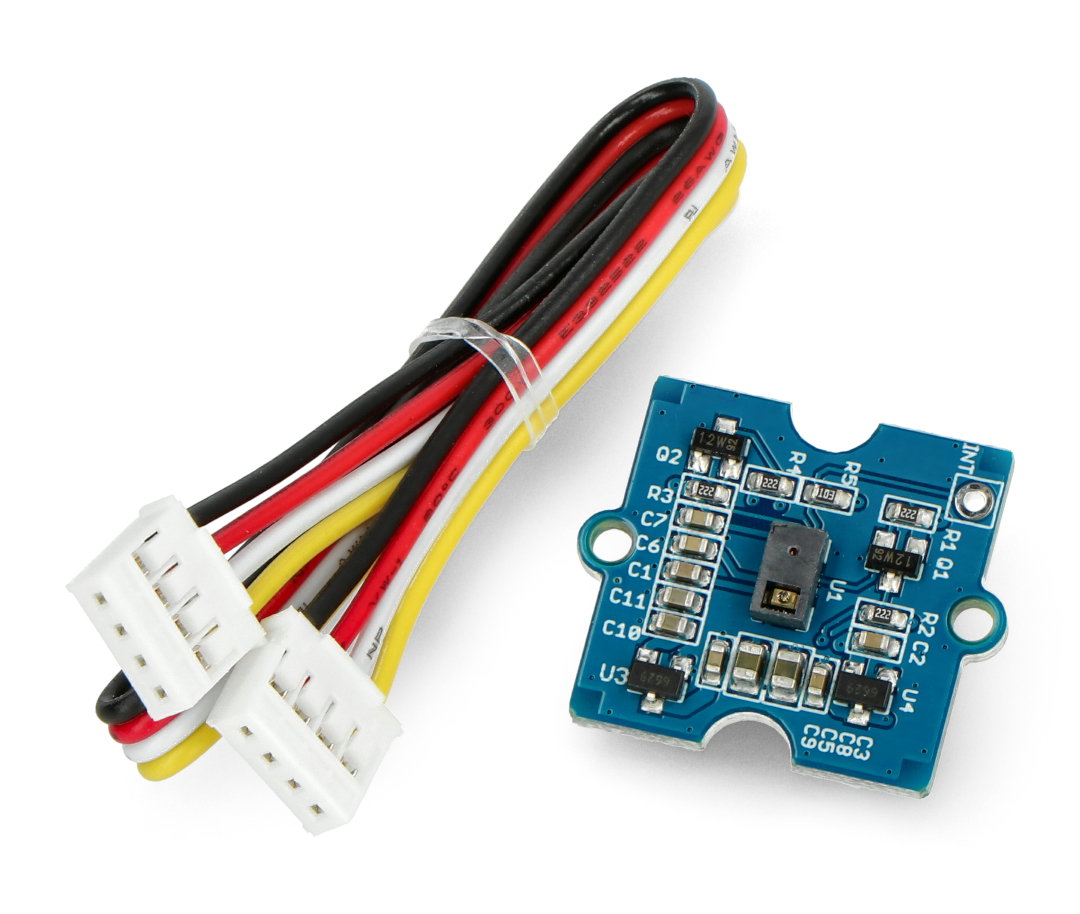

Module from the Grove series, is equipped with a gesture sensor PAJ7620U2 with I2C interface. It can recognize 9 basic gestures, such as moving up, down, left and right. It is powered with the voltage of 5 V. It has a digital output, making it compatible with most of the commissioning modules, including Raspberry Pi and Arduino.
A video about the capabilities of the sensor.
The sensor allows you to adjust the sound volume, robot control or creating control unit which can serve multiple devices simultaneously.
|
The user manual Manufacturer has prepared a user's guide for Arduino and Raspberry Pi. |
Connection
The module is equipped with Grove interface that facilitates its connection to the Arduino along with Base Shield v2.0 or a Raspberry Pi with Hat from GrovePi+.
| Pin | Description |
|---|---|
| GND | The ground of the system. |
| VCC | Supply voltage, 2.7 V to 5.5 V. |
| SDA | Data line of I2C interface. |
| SCL | Data line of I2C interface. |
Specification
- Sensor: PAJ7620U2
- Supply voltage: 5 V
- The measurement speed of gestures:
- Normal mode - 60 °/sec to 600 °/sec
- Gaming mode - 60 °/s to 1200 °/sec
- Interface: I2C
- Recognition of 9 basic gestures
- Operating temperature: -40 °C to 30 °C
- Dimensions: 110 x 75 x 9 mm
- Weight: 9 g
