Grove - vibration sensor with piezoelectric membrane

Index: SEE-11342 EAN: 5903351246651

Vibration sensor with flexible plastic piezoelectric sensor LDT0-028. It is supplied with 5V, works with modules from Arduino, Raspberry Pi and other microcomputers/controllers. Flexible sensor leads to the generation voltage. Range (0.001 Hz to 1000 MHz) can be adjusted using the built-in potentiometer. The kit also includes a cable Grove.

Grove - vibration sensor with piezoelectric membrane
€8.66
€7.04 tax excl.
In stock, shipping 24 hours!
Check quantity
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: Seeedstudio
Compatibility: Arduino Raspberry Pi

Description

Vibration sensor with flexible plastic piezoelectric sensor LDT0-028. It is supplied with 5V, works with modules from ArduinoRaspberry Pi, BeagleBone Forward, LinkIt ONE and other microcomputers/controllers. Flexible sensor leads to the generation voltage. Range (0.001 Hz to 1000 MHz) enables highly precise measurement, it can be adjusted using the built-in potentiometer. The kit also includes a Grove cable.

The manufacturer provides on its website a simple connection scheme to Arduino and Raspberry Pi together with the codes sources.

Application examples:

  • Car alarm
  • Detection of body movement
  • Security
  • Energy-saving switch

Specification

  • Supply voltage: 5 V
  • Membrane thickness: 0.125 mm
  • Adjustable range: from 0.001 Hz to 1000 MHz
  • Operating temperature: 0 ºC to 85 ºC
  • Connector: Grove
  • Dimensions: 40 x 20 x 11,50 mm
  • Weight: 12 g

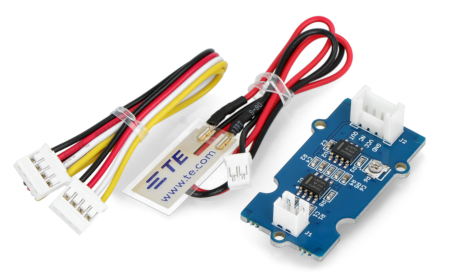

Set includes:

  • Piezo Vibration Sensor v1.1
  • Analog vibration sensor with piezoelectric membrane
  • Connecting cable

Sensor - type vibration
