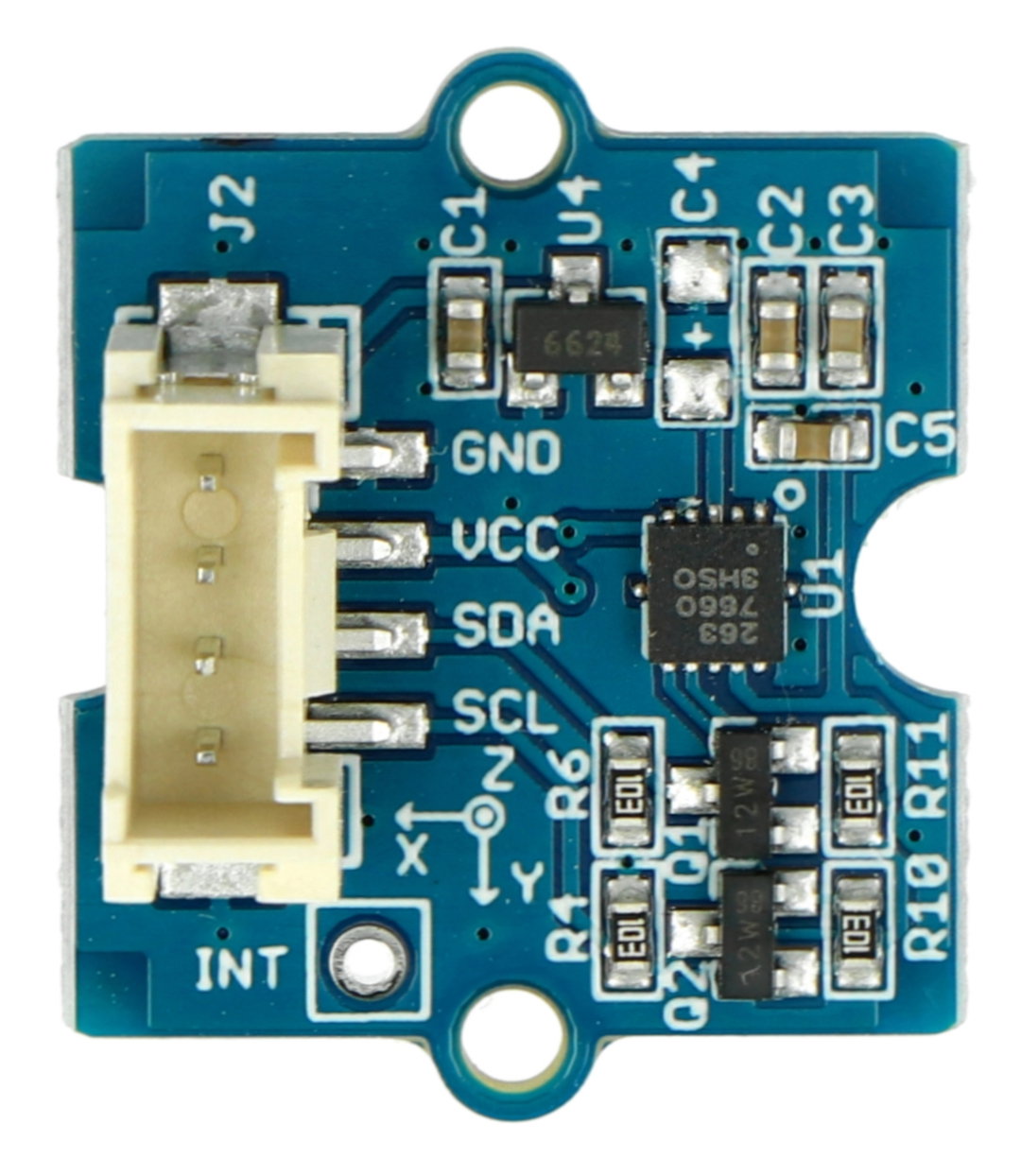

Description: Grove - MMA7660FC3-axisdigital accelerometer I2C
Module with 3-axis accelerometer based onMMA7660FCchip with digitalI2Coutput and Grove connector. TheMEMSsensor has a low power consumption and low profile. The module can detect a change in position orientation and gestures on the INT. Poweredfrom 3 V to 5 V.
3-axis MMA7660FC accelerometer.
|
Product compatible with Arduino The manufacturer has prepared a user guide with asample program for Arduino. |
Module connection
The module is equipped with Grove interface for easy connection with ArduinoandBase Shield v2.0overlay.
| Pin | Description |
|---|---|
| GND | The weight of the system. |
| VCC | Supply voltage from 3 V to 5 V. |
| SDA | I2C bus data line. |
| SIG | I2C bus clock line. |
Main features of the accelerometer
- Grove interface
- 3-axis motion detection / position detection
- Digital I2C output
- Input voltage from 3 V to 5 V
Specification of the accelerometer
- Supply voltage: 3 V to 5 V
- Current consumption in OFF mode: 0.4 μA
- Current consumption at standstill: 2 μA
- Current consumption during operation: 47 μA
- Acceleration range: ± 1.5 g
- Sensitivity: 21 count/g
- Dimensions: 20 x 20 x 15 mm
- Weight: 8 g
