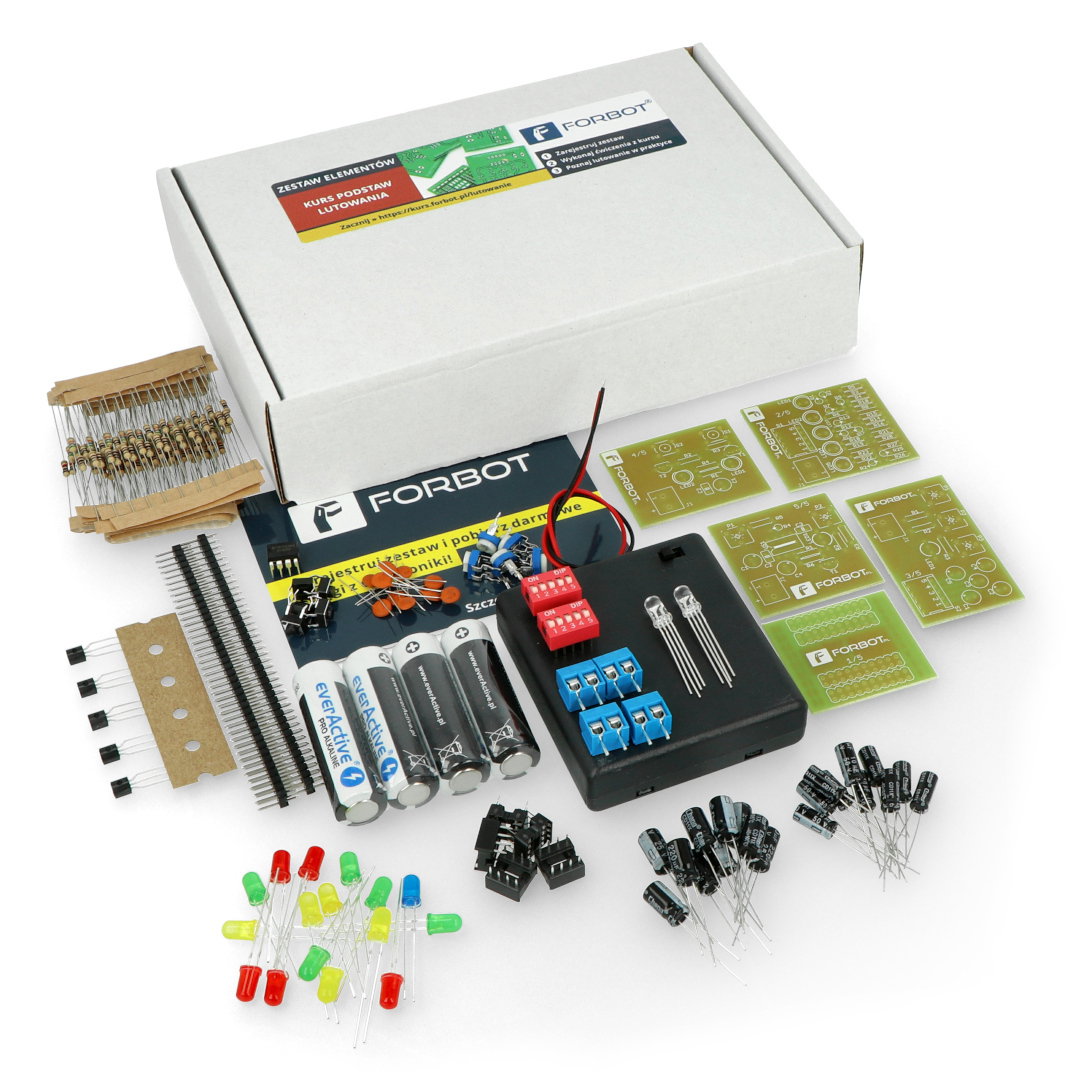

Product description: FORBOT - a set for learning how to solder THT elements
A set of elements for learning soldering using THT technology. In addition to dedicated PCBs, the set also includes elements for soldering, including: capacitors, resistors, LEDs and integrated circuits with sockets.
0%
The electronic components are packed in a box that allows you to transport and store the set.
Set contents
The set includes the following elements for learning THT soldering:
| No | Photo | Description |
|---|---|---|
| 1 |  |
Basket for 4 AA batteries with switch and cover. |
| 2 |  |
Four AA batteries - popular large batteries. |
| 3 |  |
Set of 16 colorful 5 mm LEDs : green, red, yellow - 5 pcs. and blue - 1 pc. |
| 4 |  |
DIP switch 5-pole - red - 2 pcs. |
| 5 |  |
Electrolytic capacitor 10uF/50V 105C THT - 2 pcs. |
| 6 | |
Electrolytic capacitor 220uF/25V 105C THT - 10 pcs. |
| 7 |  |
Ceramic capacitor 100nF/50V THT - 10 pcs. |
| 8 |  |
LED diode 5 mm RGB co-anode - 2 pcs. |
| 9 |  |
THT resistor 1/4 W 56kΩ - 10 pcs. |
| 10 | |
THT resistor 1/4 W 100Ω - 20 pcs. |
| 11 | |
THT resistor 1/4 W 1.0kΩ - 30 pcs. |
| 12 | |
THT resistor 1/4 W 10kΩ - 10 pcs. |
| 13 |  |
Goldpin plug 2x40 straight, 2.54mm pitch - 2 pcs. |
| 14 |  |
Tact Switch buttons 6x6, 4.3mm THT with four pins - 5 pcs. |
| 15 |  |
Universal timer NE555 in THT housing - 2 pcs. |
| 16 |  |
8 pin DIP sockets for systems in THT housing - 2 pcs. |
| 17 |  |
NPN BC546 bipolar transistor 65V/0.1A - 5 pcs. |
| 18 |  |
Mounting potentiometer lying 20 kOhm - 5 pcs. |
| 19 |  |
ARK KF301 connector, 5 mm raster, 2 pin - 4 pcs. |
| 20 |  |
Set of dedicated PCBs for soldering - 5 pcs. |
FORBOT - a set for learning how to solder THT elements.
THT soldering - necessary when working with electronics
Soldering is definitely one of the most important processes connecting electronics. In addition to a properly designed electronic device, in terms of the schematic diagram and printed circuit board, its operation as intended is conditioned by the correct assembly of electronic components.
