Product description: Lidar TF350 IP67 laser distance sensor - 350 m - RS485 / RS232
Industrial, laser distance sensor Benewake LiDAR TF350 operating in the range from 0.1 m to 350 m, measures with an accuracy of 0.1 m. It is equipped with a weatherproof aluminum housing with IP67 tightness class. The device is equipped with algorithms that compensate for daylight, rain and fog, which allows it to work in extreme conditions. The supply voltage is from 5 V to 24 V. The device communicates via the RS232 / RS485 interface. The refresh rate is from 1 Hz to 10 kHz . The length of the emitted light wave is 905 nm . The sensor is used in drones, car collision avoidance, intelligent transportation and industrial safety alert.

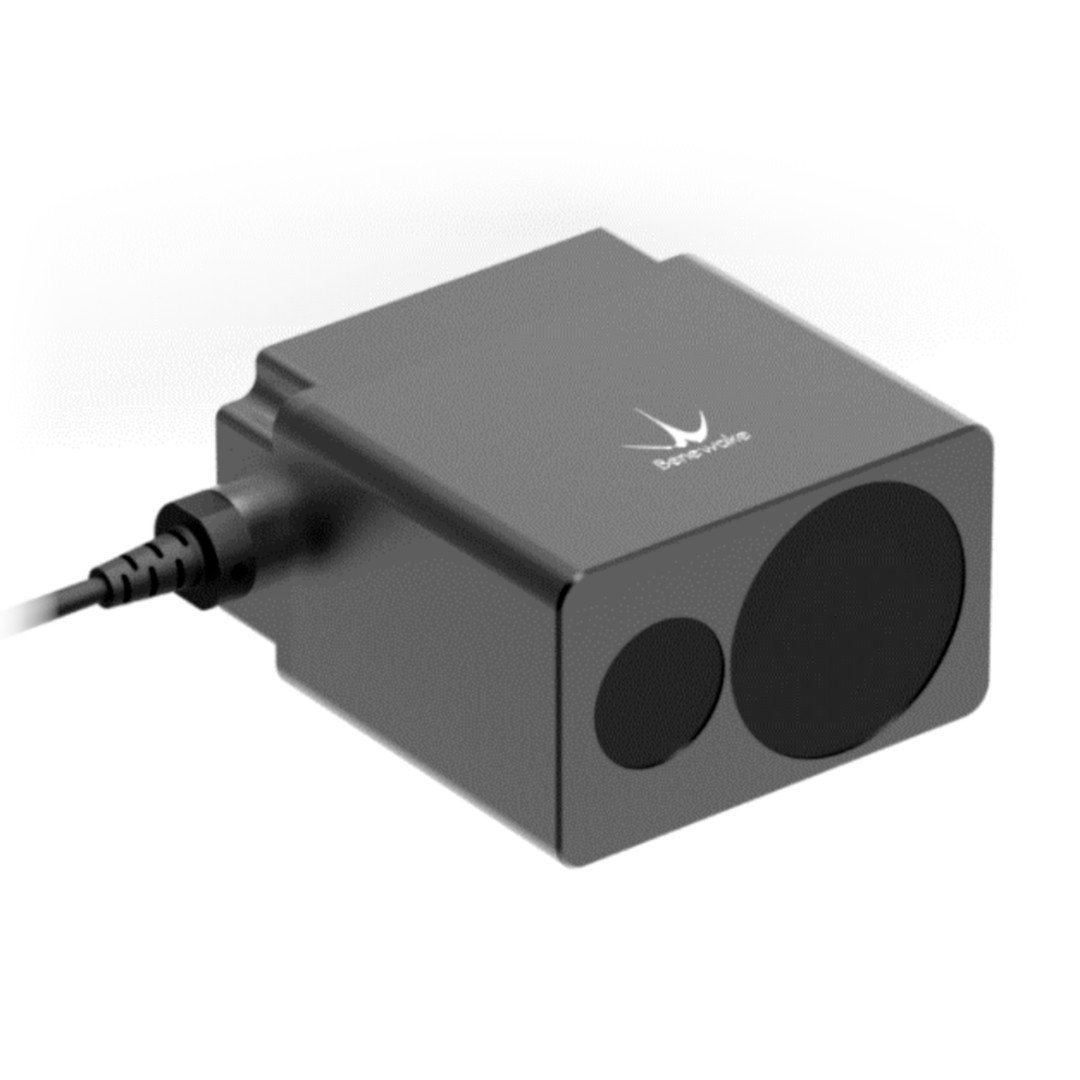

TF350 LiDAR laser distance sensor.
Compact and durable housing for LiDAR TF03 sensor.
Efficient laser sensor with a high level of protection
The design of the optical system and the signal processing circuit greatly improves the detection performance. In addition to the long measuring range of up to 350 m , it has excellent parameters throughout the range, such as distance resolution, accuracy, repeatability and detection frequency. The TF350 housing is made of an aluminum alloy and glass transmitting infrared radiation to improve overall durability. The degree of protection is IP67 , thanks to which the sensor is resistant to dust and water, which allows it to be used in extreme environments, both internal and external.
- Housing made of aluminum and glass
- Communication interface
- IP67 tightness class
- Anti-vibration and anti-shock
Lidar TF350 sensor specification
- Supply voltage: 5 V to 24 V
- Power consumption:
- ≤ 150 mA / 5 V
- ≤ 80 mA / 12 V
- ≤ 50 mA / 24 V
- Photobiological Safety: Class1 (EN60825)
- Measurement range:
- for 90% reflectance: from 0.2 to 350 m
- for a reflectivity of 10%: from 0.2 to 110 m
- for 90% reflectance and 100 k lux: 0.2 m to 300 m
- for a reflectivity of 10% and 100 k lux: from 0.2 m to 100 m
- Accuracy:
- up to 10 m: ± 10 cm
- from 10 m: 1%
- Resolution: 1 cm
- Repeatability: 1σ ： <3 cm="" li="">
- Operating frequency: 1 Hz to 10,000 Hz (default 100 Hz)
- Light beam length: 905 nm
- 0.5 ° contact angle
- Protection degree: IP67
- Corrosion resistant
- Resistant to contamination
- Ambient light resistant up to 100 klux
- Working temperature: -25 ° C to 60 ° C
- Storage temperature: -40 ° C to 85 ° C
- Communication: RS485 / RS232
- Cable length: 70 cm
- Dimensions: 78 x 67 x 40 mm
- Weight: 225 g
Compact dimensions of the laser distance sensor.
