Grove - IR receiver 38kHz 940nm

Index: SEE-04419 EAN: 5904422373931

IR receiver from Grove, operating at a frequency of 38 kHz with a supply voltage from 3.3 V to 5.0 V. Maximum sensitivity is observed for the wave length of 940 nm.

Grove - IR receiver 38kHz 940nm
€4.32
€3.51 tax excl.
Available
Check quantity
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: Seeedstudio
Compatibility: Arduino

Description

IR receiver from Grove, operating at a frequency of 38 kHz with a supply voltage from 3.3 V to 5.0 V. Maximum sensitivity is observed for the wave length of 940 nm.

Attention!

This product is only available in our market in Poland and cannot be sold to other countries.

 Module with Grove interface.

Specification

  • Supply voltage: from 3.3 V to 5 V
  • Operating frequency: 38 kHz
  • Maximum sensitivity for the wave length of 940 nm 950 nm (details indocumentation)
  • Range: 10 m
  • Communications: digital signal
  • Dimensions: 20 x 20 mm



The product is compatible with Arduino

The manufacturer provides auser manualand a libraryforArduino.

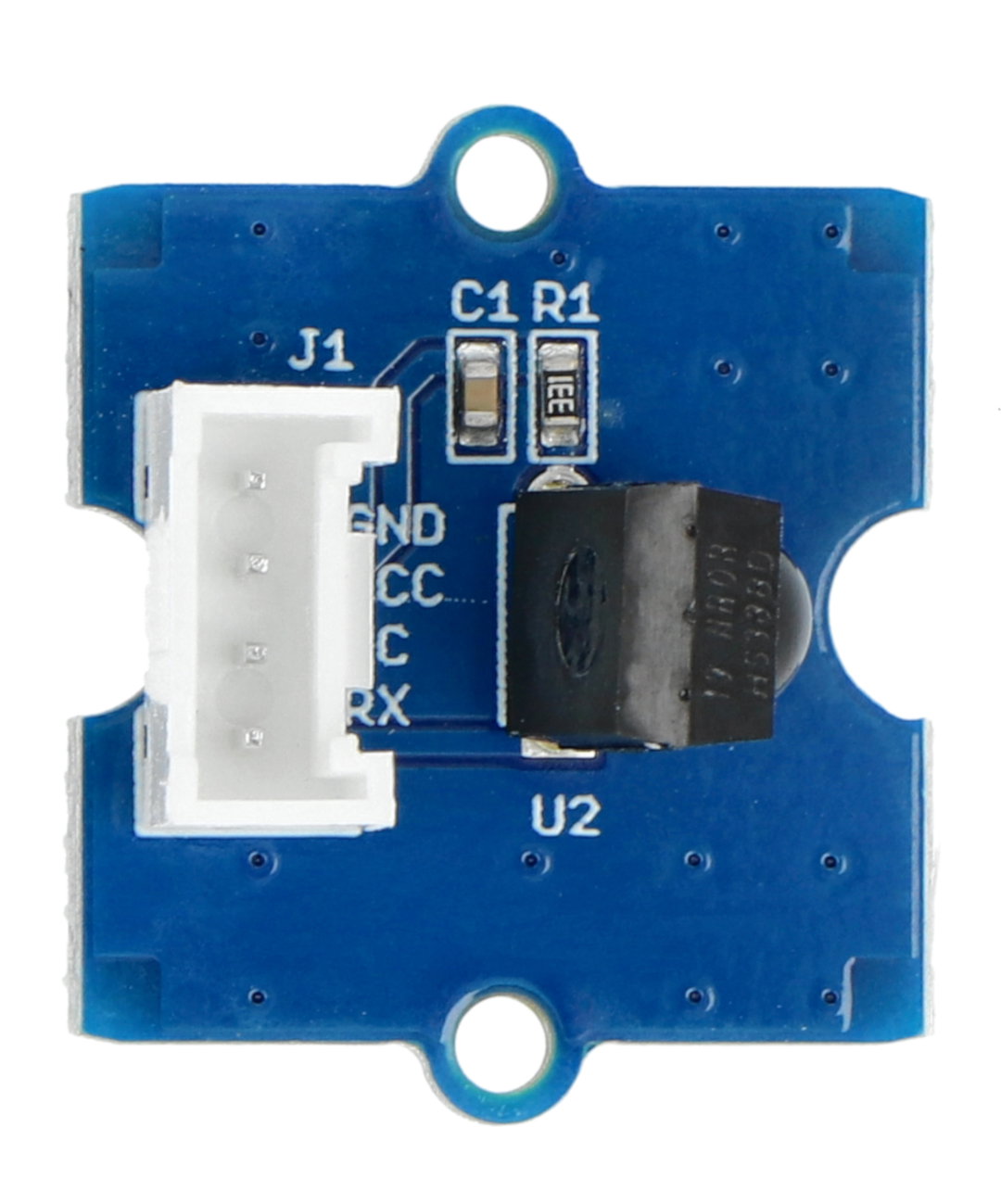

Connection

The sensor communicates with the microcontroller in digital form. It has the following outputs:

Pin Description
GND The ground of the system.
VCC Supply voltage from 3.3 V to 5 V.
NC Not connected.
RX A signal receiver.



Nominal power 0.125 W
LED - color IR
LED - type module
LED lens mat
LED wavelength 940 nm
Sensor - type Podczerwieni
