Description: Grove - VL53L0X Time of Flight - Distance sensor - I2C.
TheVL53L0Xlaser distance sensor measures withTime of Flighttechnology. The Time-of-Flight method measures the time from the infrared laser pulse to its return to the detector. It is equipped with aVCSELdiode emitting a940 nmlong beam. It can measure distancesfrom 3 cm to 100 cmwith a resolution of1 mm. Equipped with a Grove connector, it communicates through theI2Cinterface. The power supply voltage isbetween 3.3 V and 5 V.
The Grove cable is also included.
|
Product compatible with ArduinoandRaspberryPi. The manufacturer provides auser guide forArduino and Raspberry Pi. |

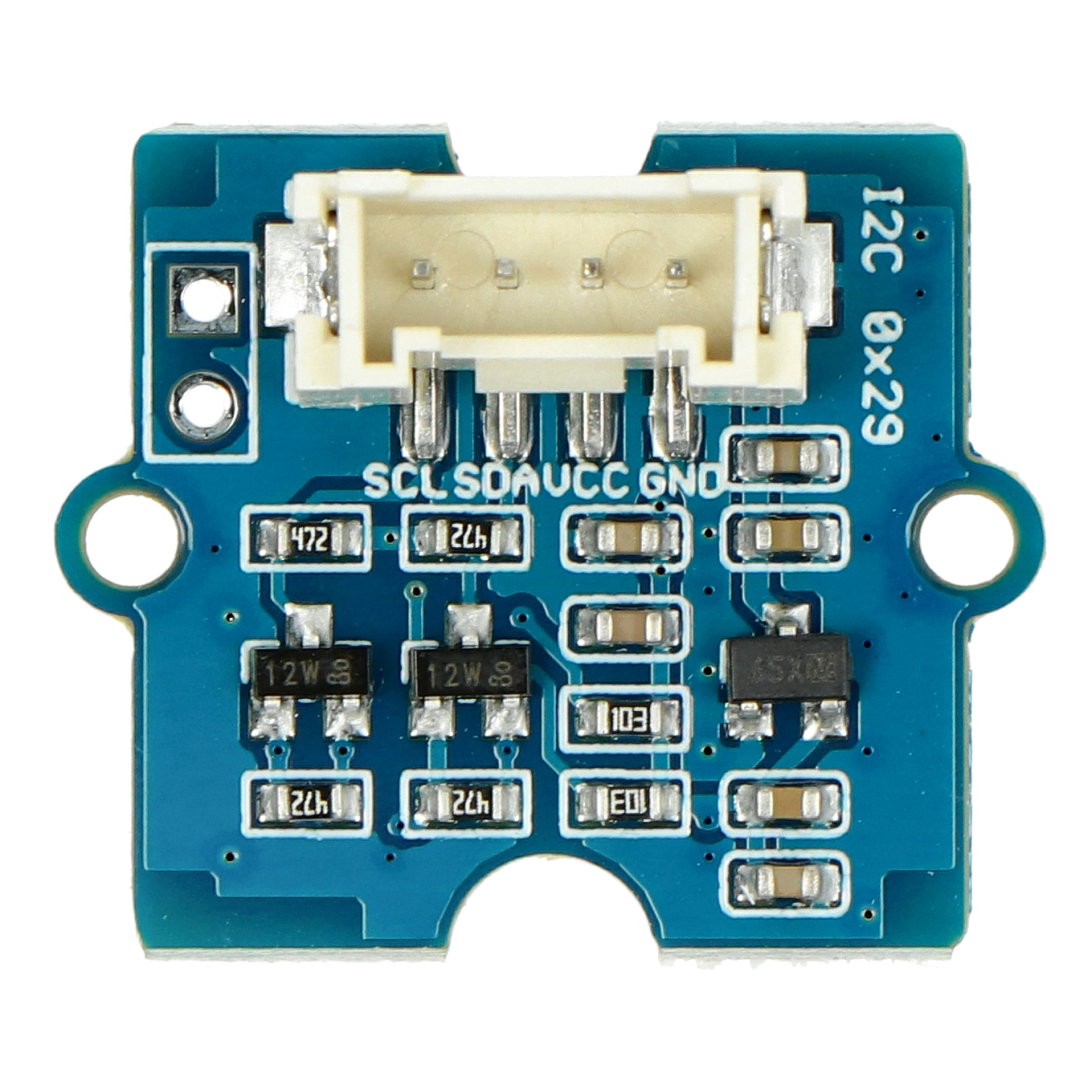

Module outputs
The module is equipped with a Grove connector that allows you to easily connect it with a Base Shield cap. The sensor communicates via the I2C interface.
| Pin | Description |
|---|---|
| GND | The weight of the system. |
| VCC | Supply voltage from 3.3 V to 5 V. |
| SDA | I2C interface data pin. |
| SCL | I2C interface clock pin. |
Sensor specification VL53L0X
- Supply voltage: 3.3 V to 5 V
- Measuring range: from 30 mm to 1000 mm
- Measurement resolution: 1 mm
- Infrared emitter: 940 nm
- Communication: I2C
- Operating temperature: -20°C to 70°C
- Dimensions: 20 x 20 x 11 mm
- Weight: 7,8 g

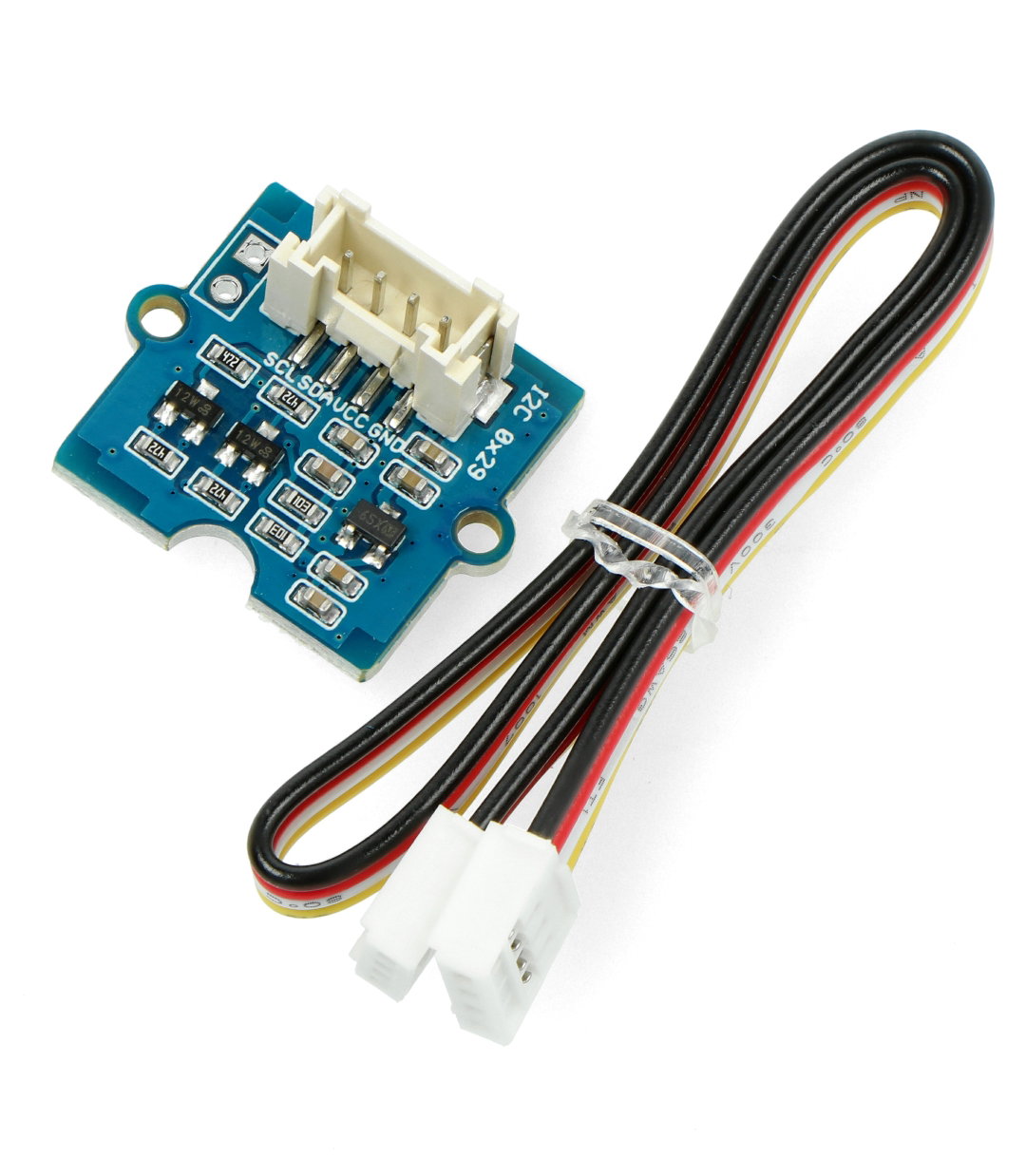

The set includes
- Distance sensor VL53L0X
- Grove cable
