Grove - Base Hat for Raspberry Pi - shield for Raspberry Pi 4B/3B+/3B

Index: SEE-15458 EAN: 5904422323769

Overlay for Raspberry Pi 4B / 3B+ / 3B based STM32 microcontroller with 12-bit ADC, with Grove connectors, allows the connection of sensors and modules from the Grove series communicating through a digital, analog, I2C, PWM, UART interface. Currently more than 60 Grove modules are supported by the Grove Base Hat.

Grove - Base Hat for Raspberry Pi - shield for Raspberry Pi 4B/3B+/3B
€11.00
€8.94 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: Seeedstudio
Compatibility: Raspberry Pi

Description: Grove - Base Hat for Raspberry Pi - Overlay for Raspberry Pi 4B/3B+/3B.

Overlay forRaspberry Pi 4B / 3B+ / 3BbasedSTM32microcontroller with 12-bit ADC, with Grove connectors, allows the connection of sensors and modulesfrom the Grove seriescommunicating througha digital, analog, I2C, PWM, UART interface. Currently more than 60 Grove modules are supported by the Grove Base Hat.

Due to global problems with availability of STM32F030F4P6TR chip, the manufacturer of the overlay replaced it with MM32F031F6P6 chip. The basic functionality of the overlay has not changed.

Grove Base Hat dla Raspberry Pi

The item on sale is the Grove Base Hat, Raspberry Pi mini computer can be purchased separately.

Attention!

The overlay operates at 3.3 V, do not connect higher voltage, as this may result in permanent damage to the board.


The module for communication with the Raspberry Pi mini computer uses an I2C interface with the address 0x04. Base Hat operates at 3.3 volts.

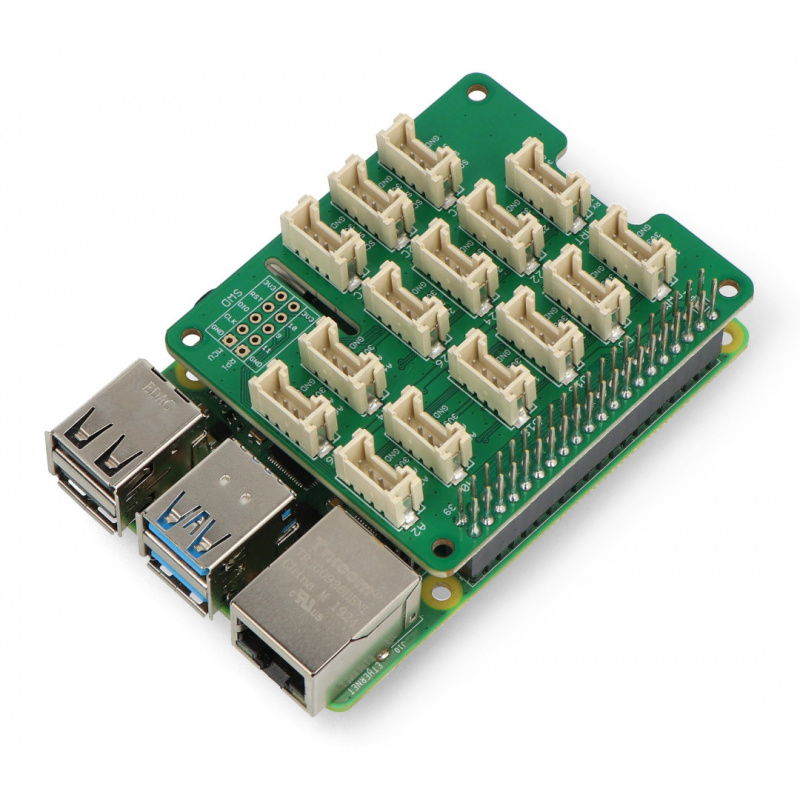

Grove Base Hat overlay insertion for Raspberry Pi

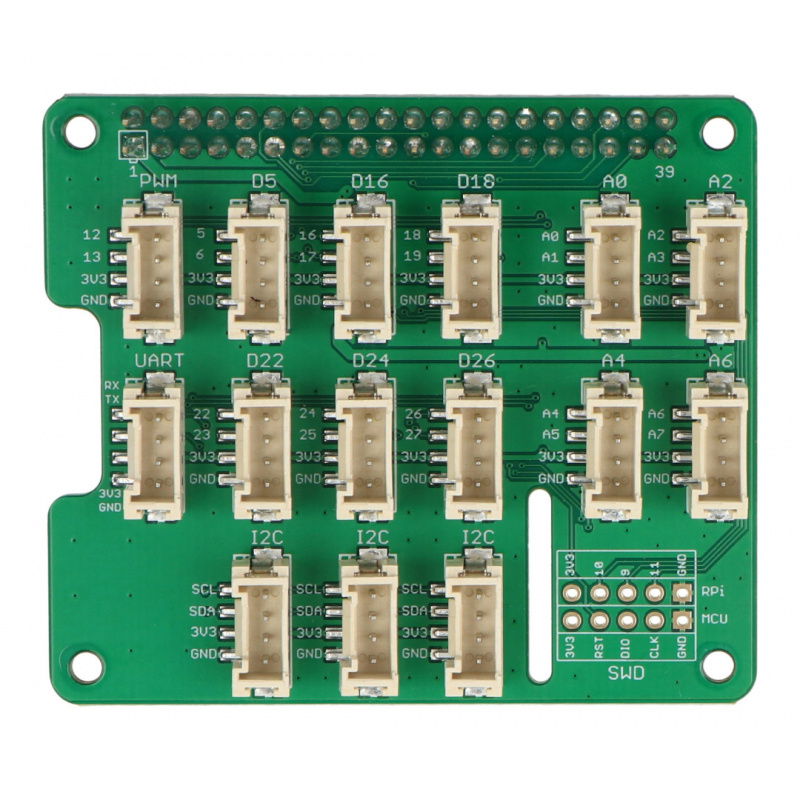

The cover plate is equipped with 15, 4-pin Grove connectors with digital, analog, PWM, I2C, UART and GPIO interfaces. Additionally the board has all GPIO Raspberry Pi connectors.

Grove Base Shield overlay specification

Parameter Description
Working voltage 3,3 V
Microcontroller STM32F030F4P6
Ports of Grove

6x digital

4x analogue

3x I2C

1x PWM

1x UART

1x SWD

Grove-Digital Connected directly to Raspberry Pi
Grove-Analog Connected to a 12-bit ADC in STM32 and transferred to the Raspberry will support I2C
Grove-I2C Connected directly to Raspberry Pi
Grove-PWM Connected directly to Raspberry Pi
UART/RSPISER Connected directly to Raspberry Pi
SWD Pin to upload the STM32 microcontroller firmware
GPIO RPi connector 40-pin
Dimensions 65 x 55 x 20 mm
Mass 24,5 g
Package width 11.6 cm
Package height 2.7 cm
Package depth 7.6 cm
Package weight 0.052 kg
